Climate Control Assembly

REMOVAL
1. Disconnect battery ground cable.
2. Remove instrument panel ash receptacle by depressing service lever and pulling assembly outward.
3. Remove two instrument panel finish panel retaining screws over instrument panel ash receptacle cavity.

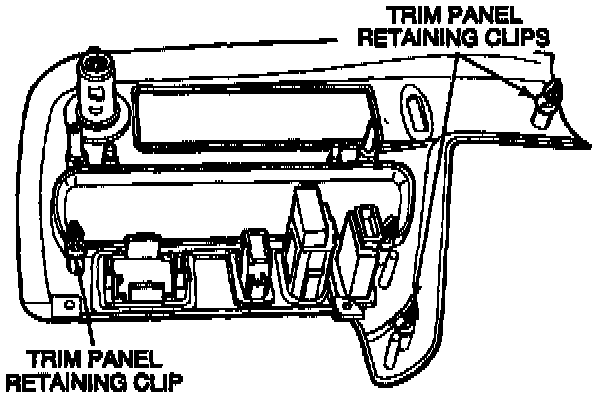

4. Remove instrument panel finish panel by grasping outer edges and pulling outward until retaining clips release panel.
5. Disconnect electrical connectors from finish panel components.
6. Remove four control assembly retaining screw

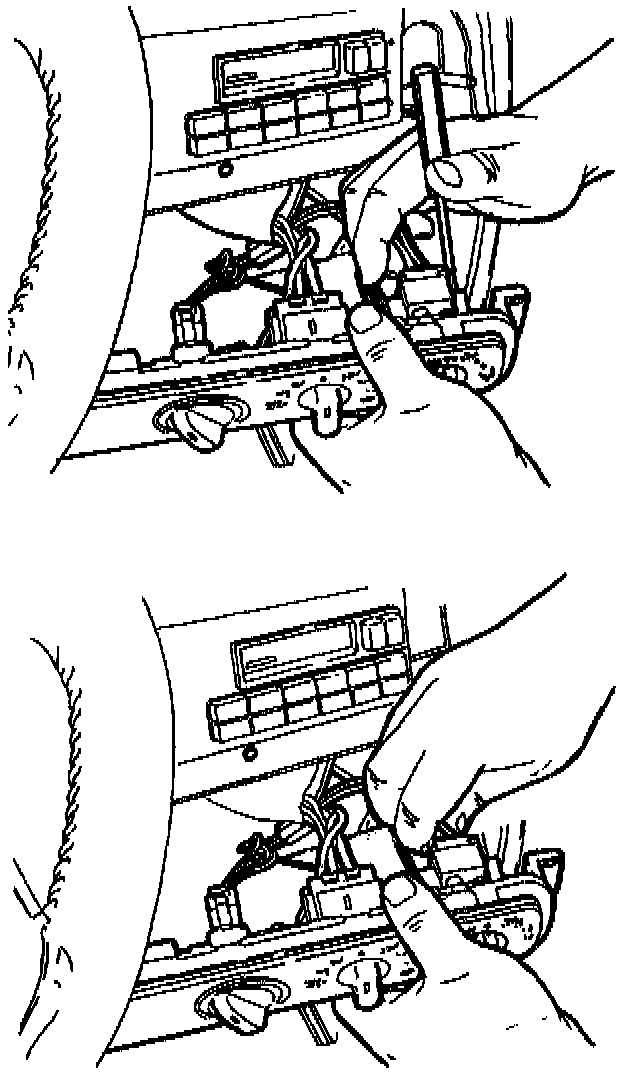

7. Disconnect electrical connectors and vacuum connector from A/C control.
8. Remove A/C control.







INSTALLATION
1. To install, reverse Removal procedure.
