Climate Control Assembly Switch

REMOVAL
1. Remove climate control assembly from instrument panel.
2. Remove knob.

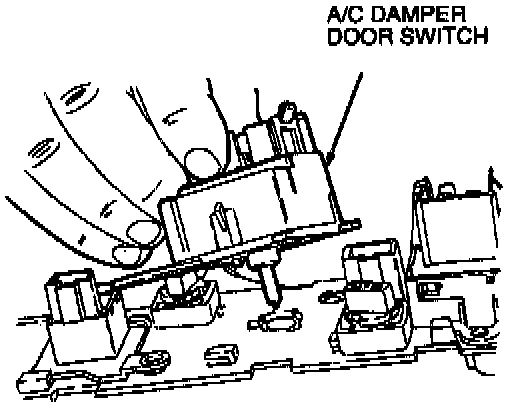

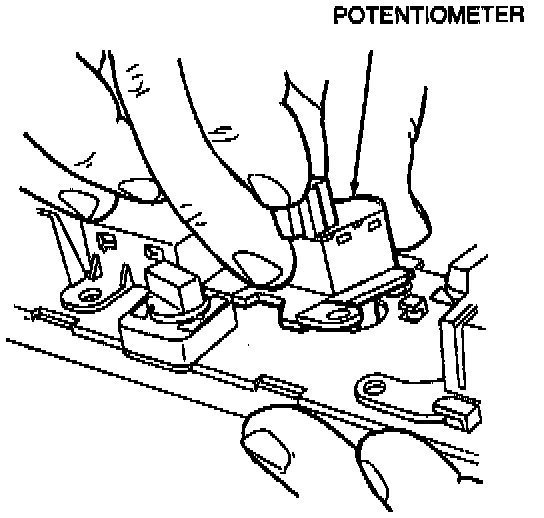

3. Disconnect electrical connector from potentiometer or electrical connector and vacuum hose harness from A/C damper door switch.
4. Remove retaining screw.
5. Rotate climate control assembly switch counterclockwise, lift and remove.

INSTALLATION
1. To install, reverse Removal procedure.
