Test Notes

You should enter this Pinpoint Test only when directed here.

This Pinpoint Test is intended to diagnose the following:
- Throttle Body Assembly
- Speed Control Cable
- Accelerator Cable Linkage to Throttle Body
- Air Cleaner Assembly (including air filter)
- Air Inlet Tube
- Clean Air Tube (Hose) and Resonator
- Intake Manifold Runner Control (IMRC) Housing Assembly
- IMRC Actuator Assembly
- Harness Circuits: IMRC, IMRC Monitor, SIG RTN, PWR GND, VPWR
- Powertrain Control Module (PCM)


DESCRIPTION

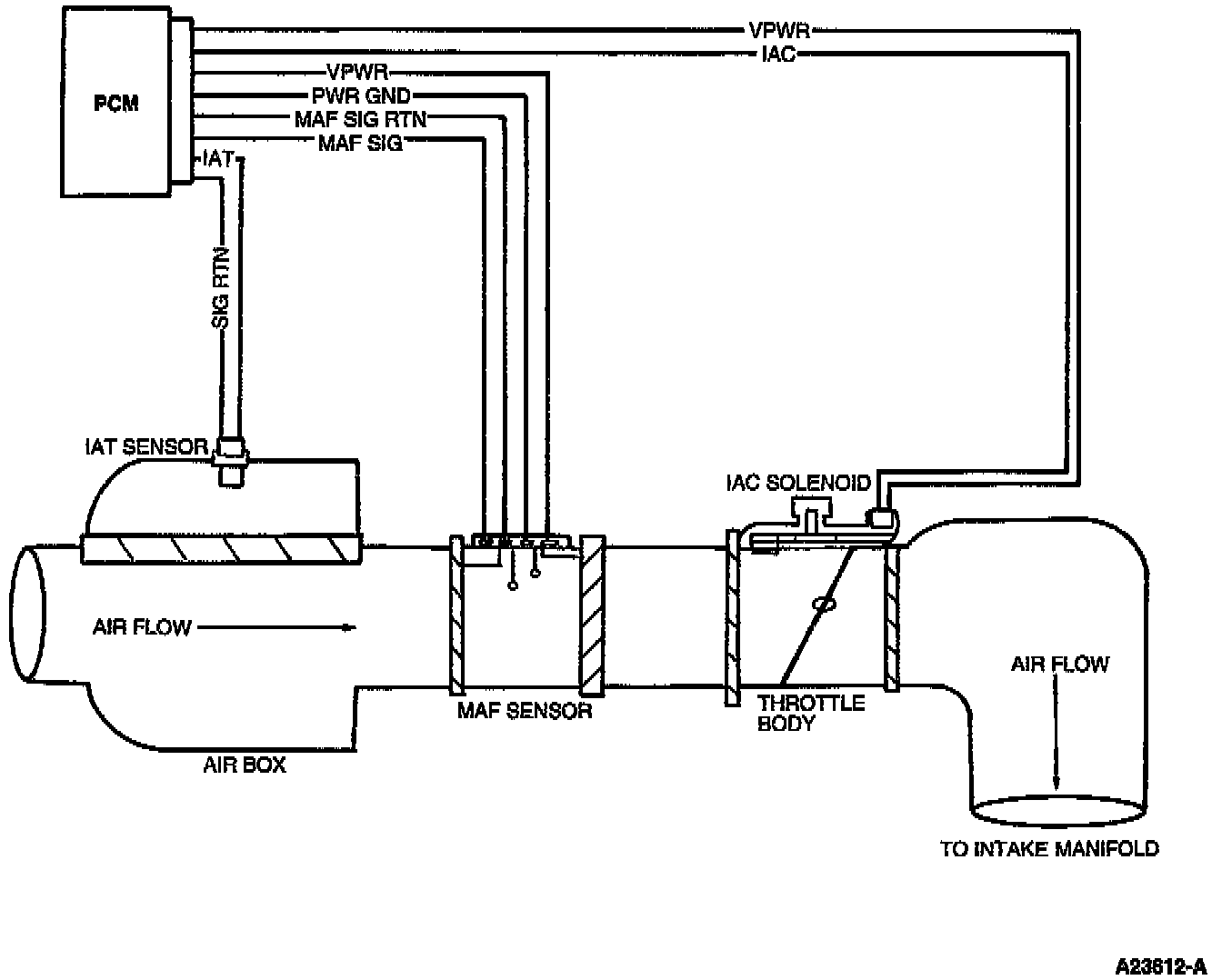

Air Intake System Components:

For additional information on Air Intake System, refer to Powertrain Management / Fuel Delivery and Air Induction
