Pinpoint Test Schematics

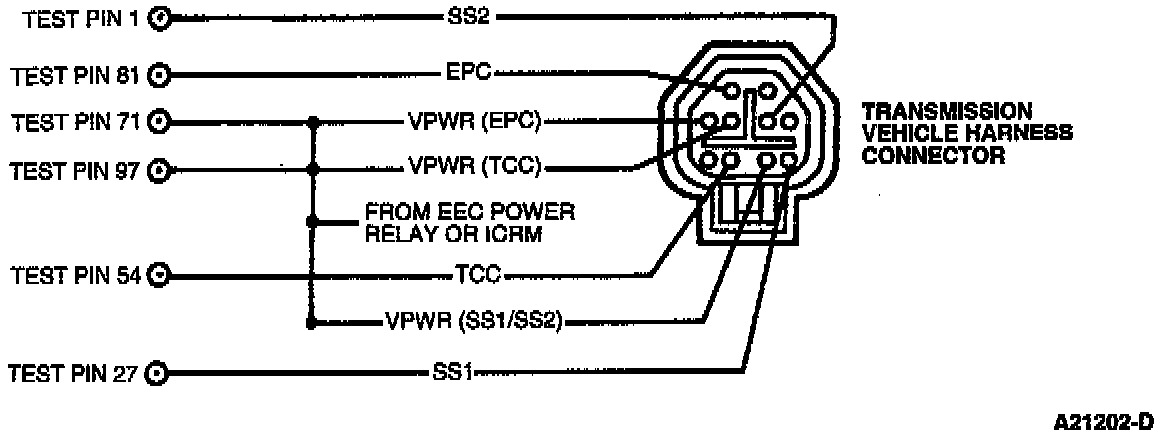

4R70W Transmission:

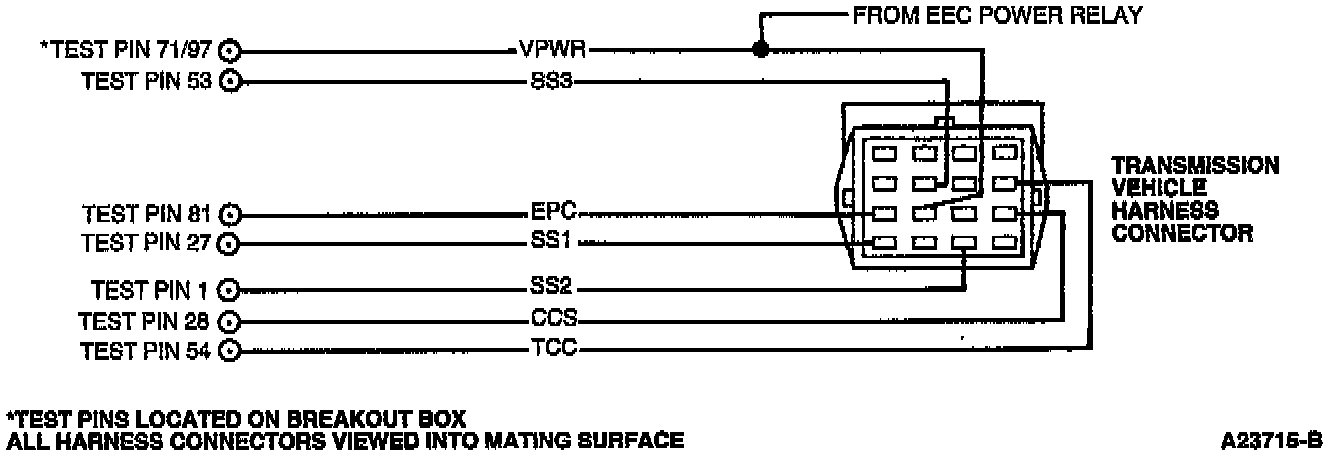

AX4S/AX4N Transaxle:

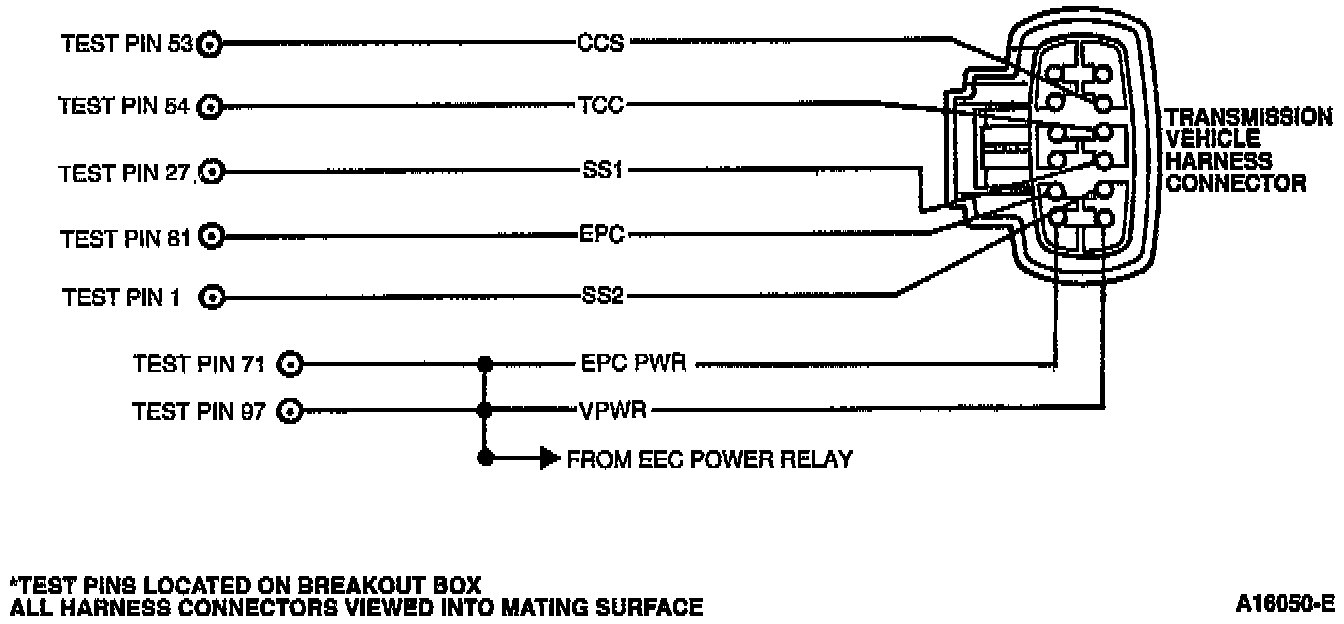

CD4E Transaxle:

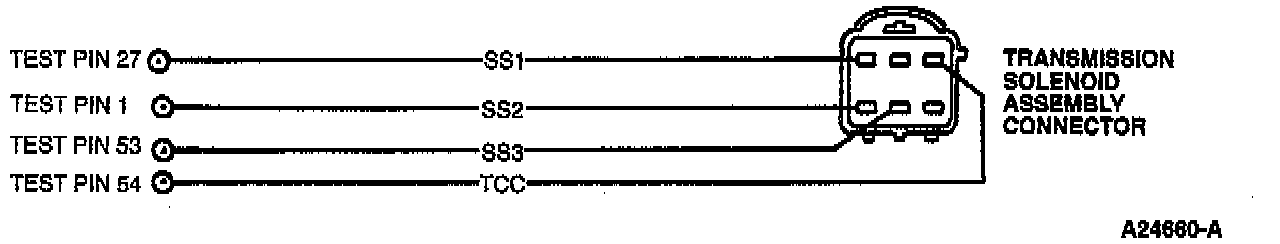

F4E Transaxle:

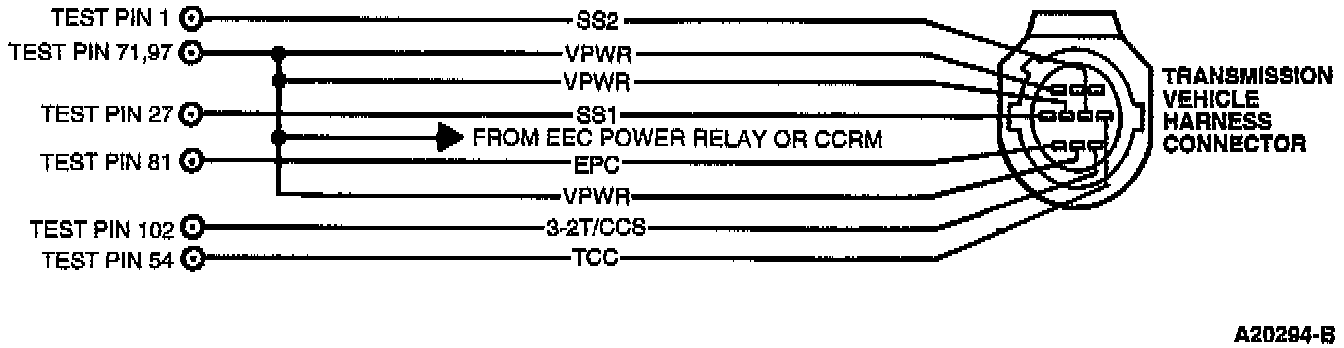

4R44E/4R55E Transmission:

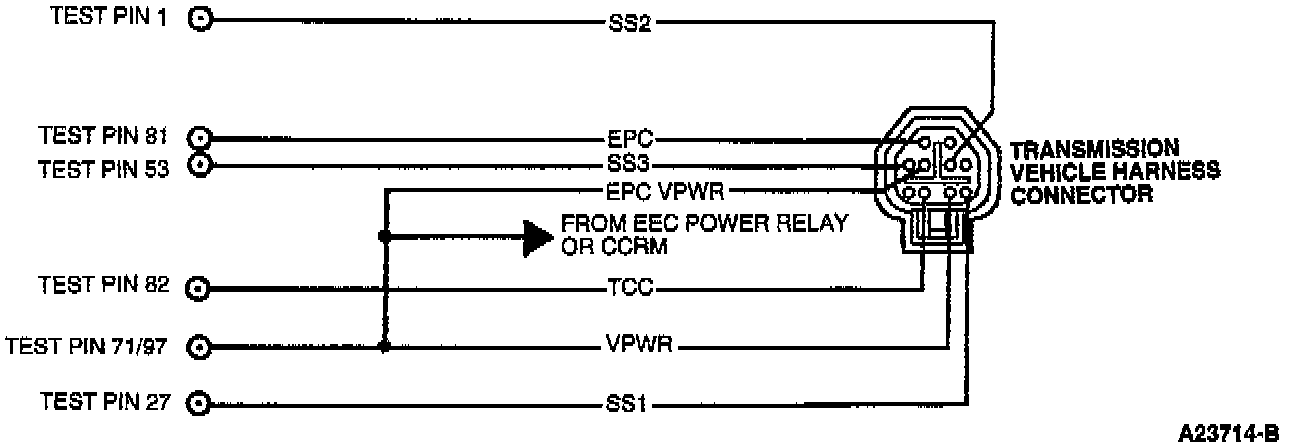

E4OD Transmission (Gasoline Engines Only):

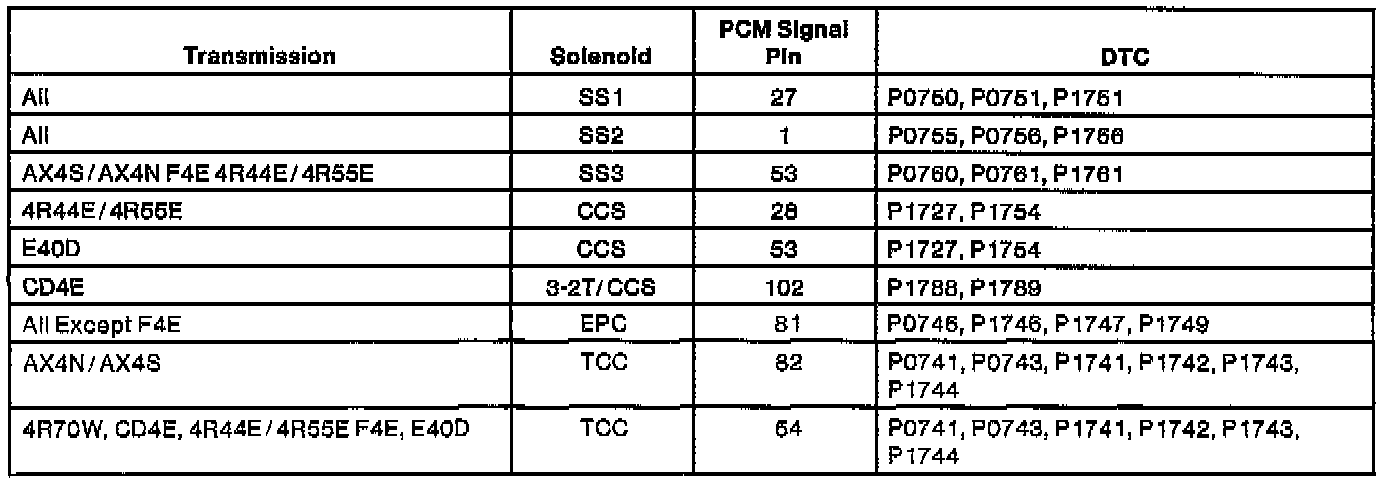

Transmission Solenoid Test Pin Chart:
