A/T Technical Data

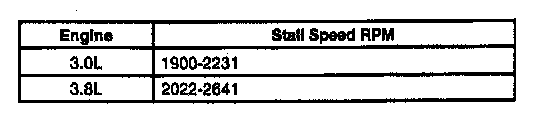

AX4S 4-spd A/T, Stall Speeds (Windstar):

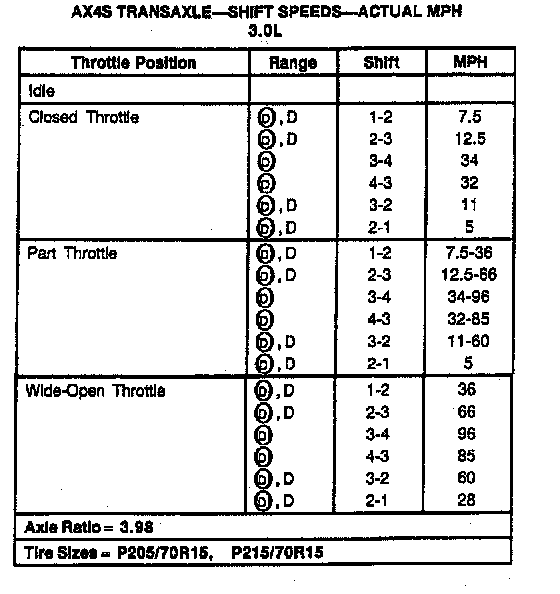

AX4S 4-spd A/T, Shift Speeds (3.0L Windstar):

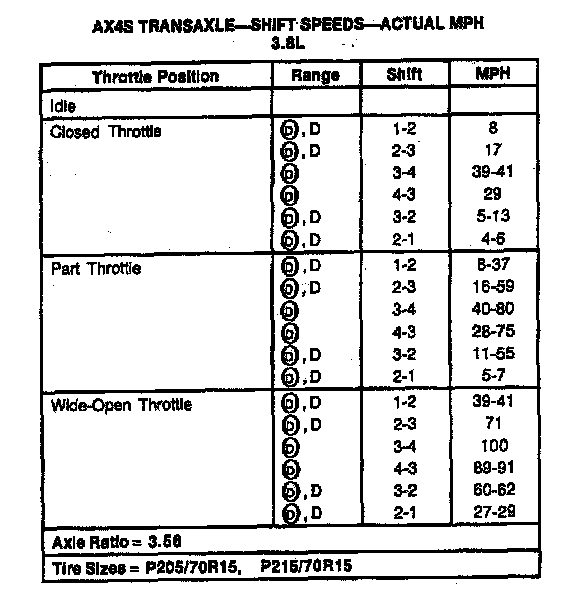

AX4S 4-spd A/T, Shift Speeds (3.8L Windstar):
