A/T Torque Data

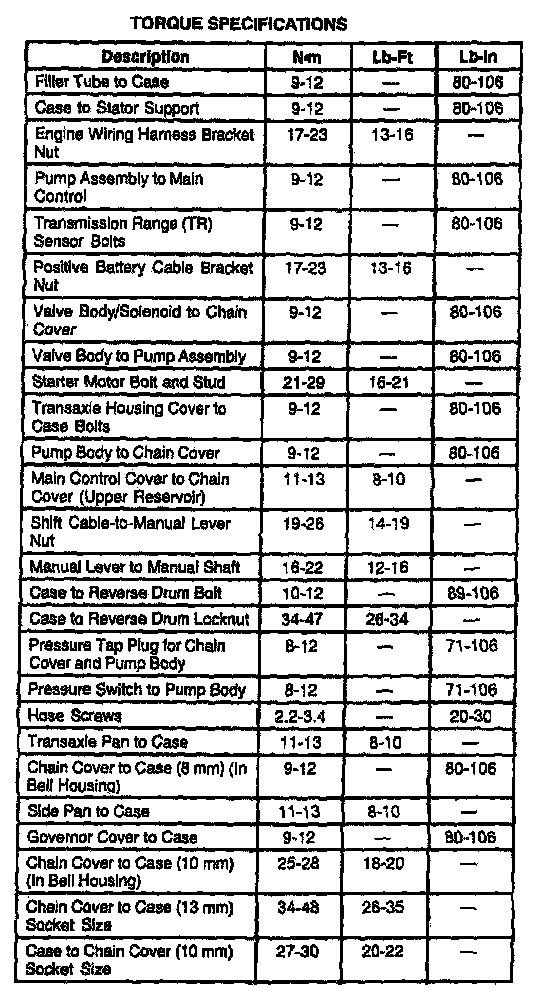

AX4S 4-spd A/T, Transaxle Torque (Windstar):

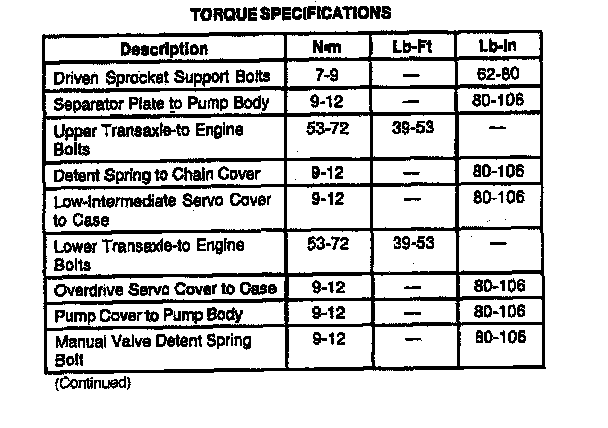

AX4S 4-spd A/T, Transaxle Torque:

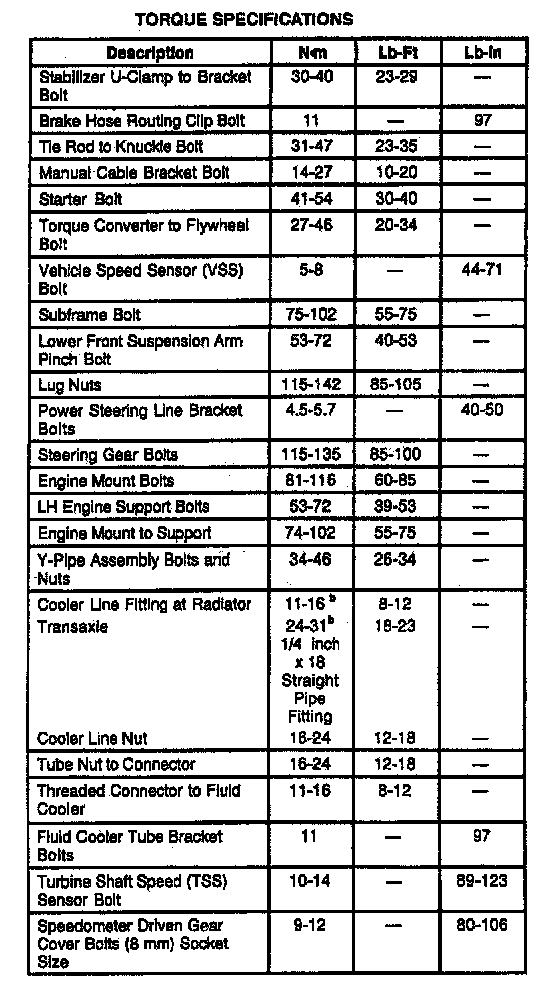

AX4S 4-spd A/T, Transaxle Torque:
