Intake Manifold

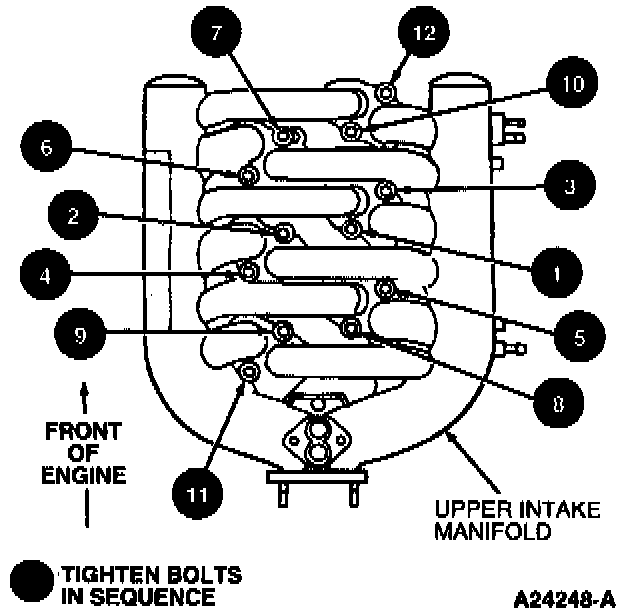

Install the upper intake manifold bolts in their original locations. Tighten in numerical sequence, shown in the illustration, to 8-12 Nm (71-106 inch lbs.).

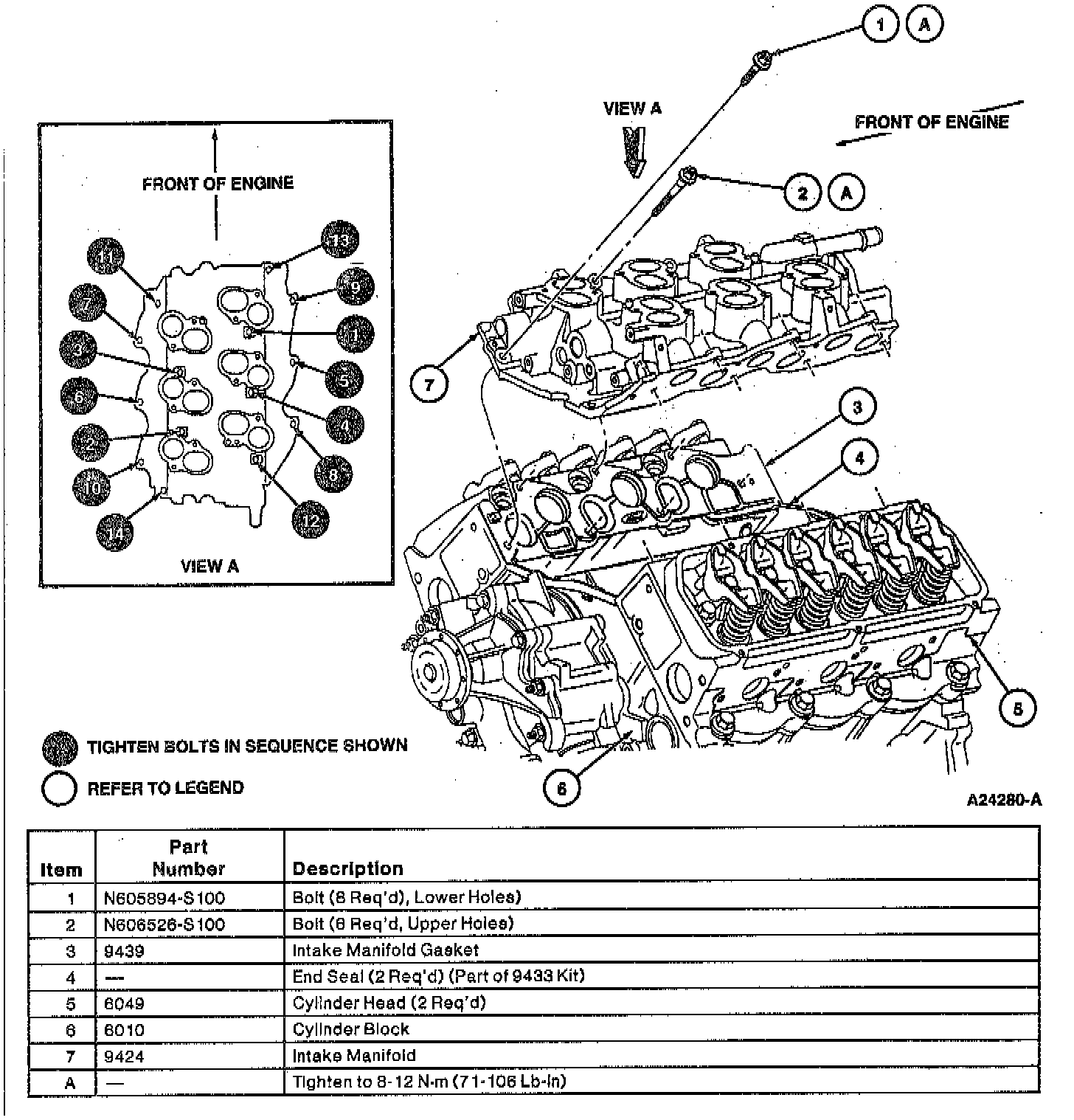

Install the lower intake manifold bolts in their original locations. Tighten in numerical sequence as shown in the illustration to 8-12 Nm (71-106 inch lbs.).
