Service Point Locations

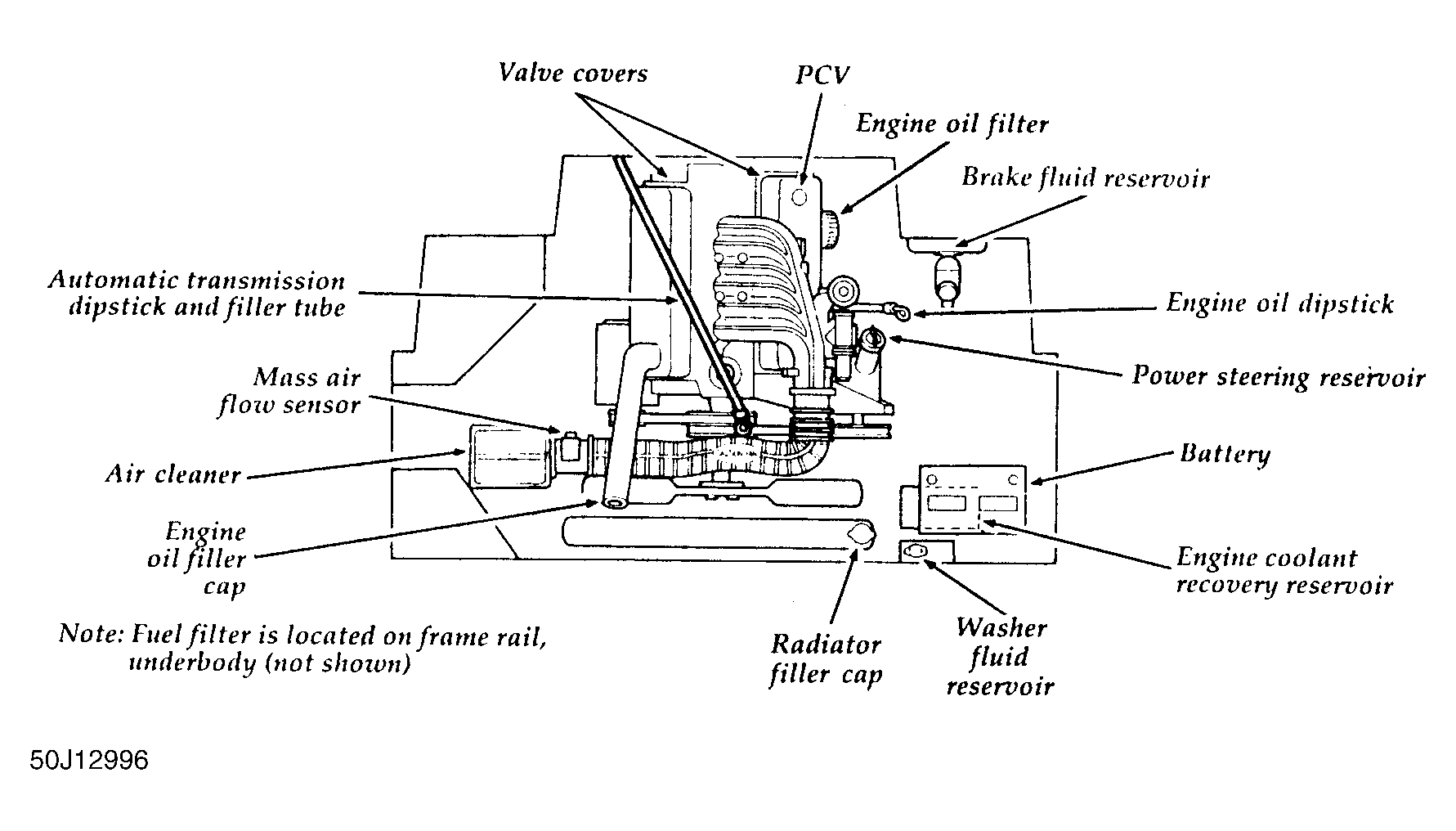

Fig 1: Service Point Locations (3.0L)

G50J12996

Courtesy of FORD MOTOR CO.

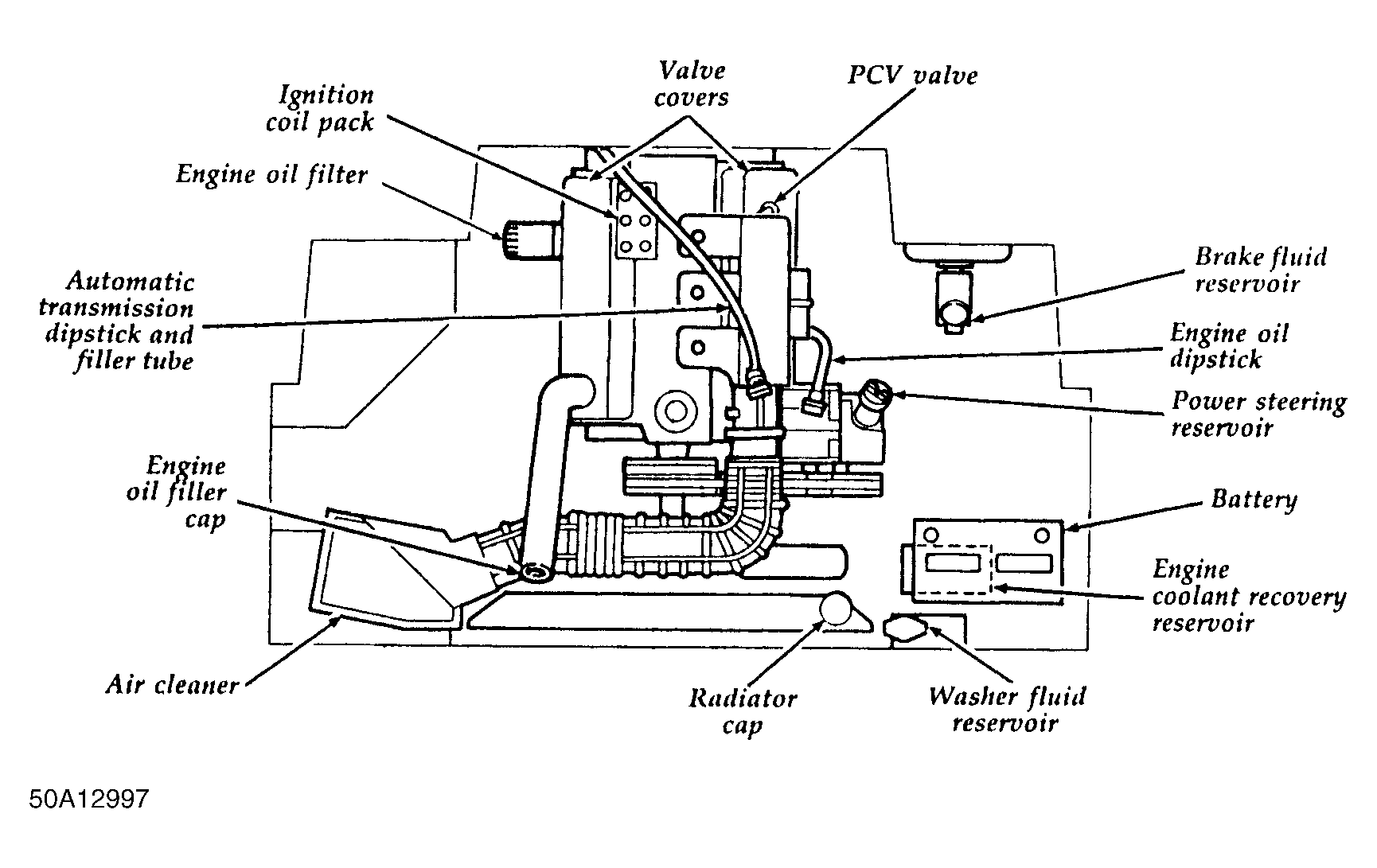

Fig 2: Service Point Locations (4.0L)

G50A12997

Courtesy of FORD MOTOR CO.

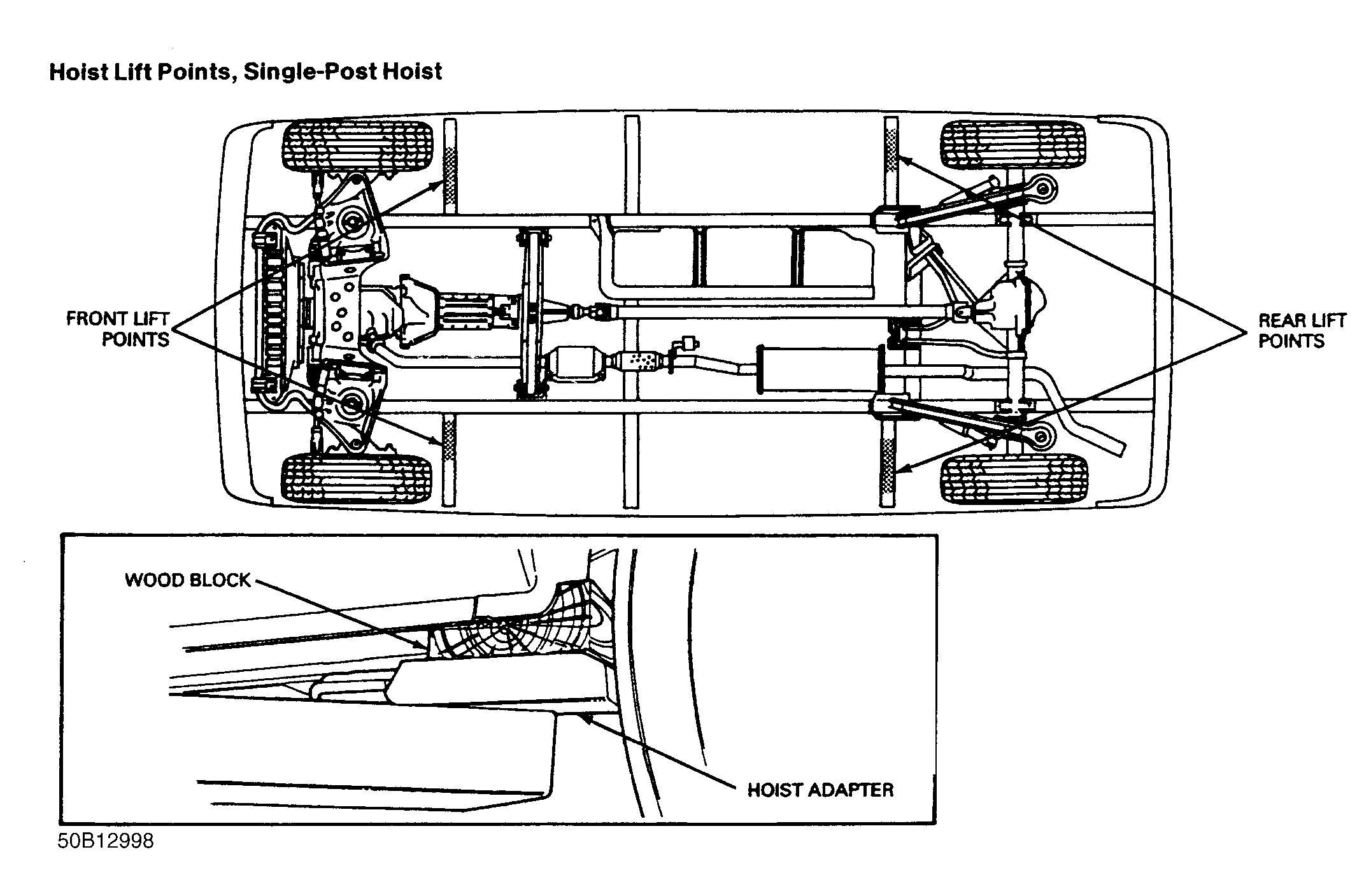

Fig 3: Lift Point Locations - Single Post Hoist

G50B12998

Courtesy of FORD MOTOR CO.

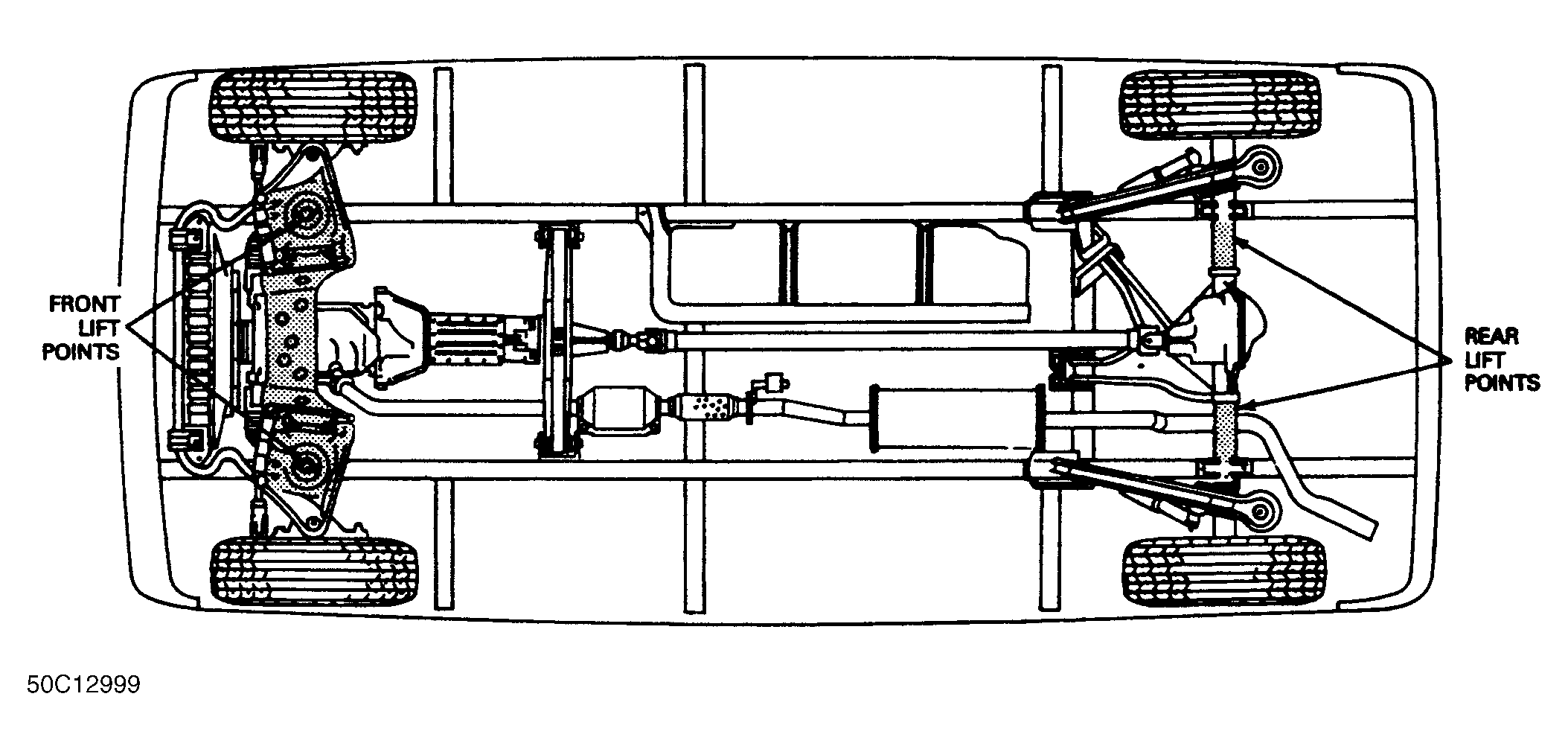

Fig 4: Lift Point Locations - Twin Post Hoist

G50C12999

Courtesy of FORD MOTOR CO.

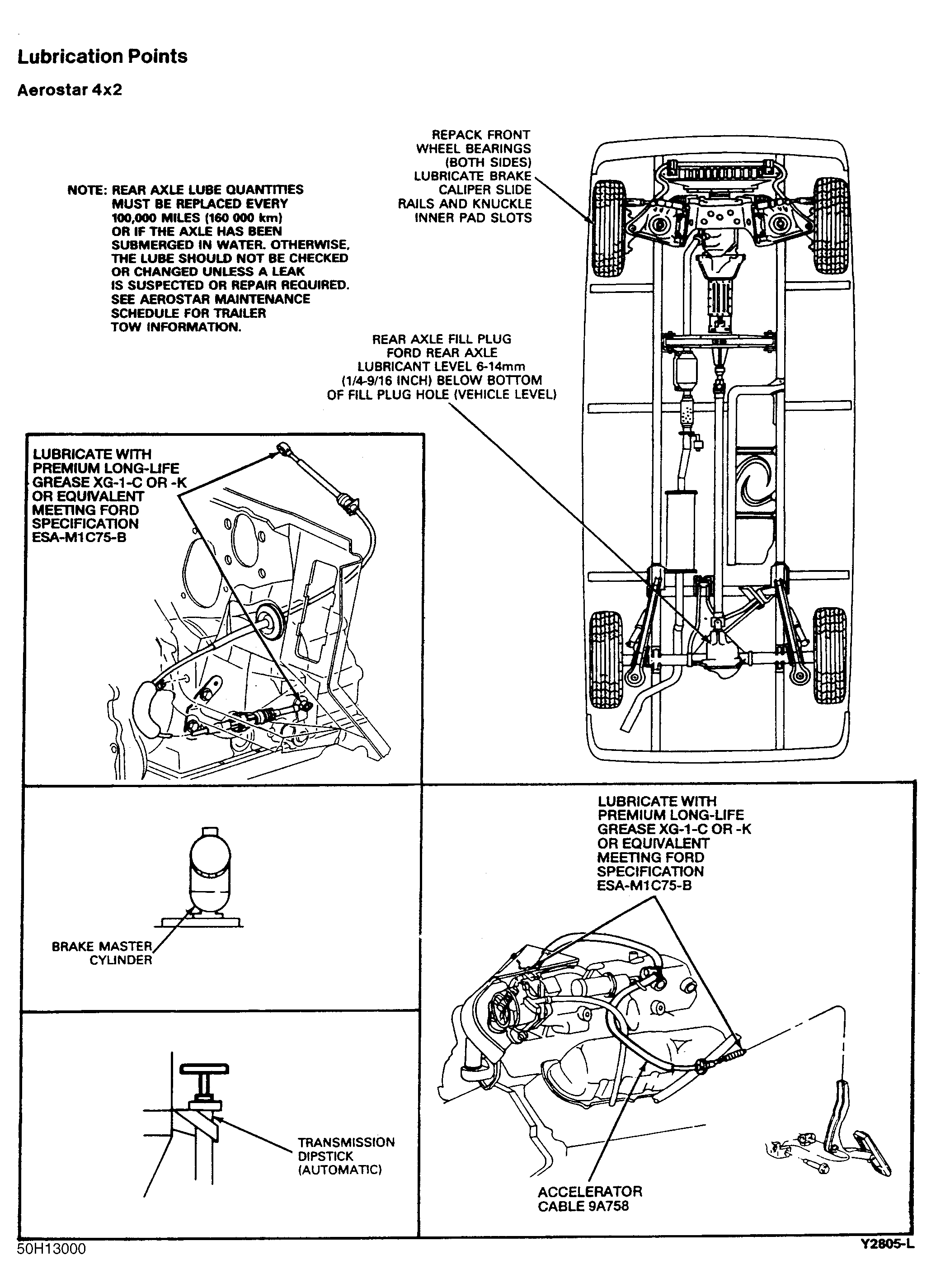

Fig 5: Lubrication Points (2WD Models)

G50H13000

Courtesy of FORD MOTOR CO.

Fig 6: Lubrication Points (AWD Models)

G50I13001

Courtesy of FORD MOTOR CO.
