Hydraulic Control Unit (HCU) Assembly

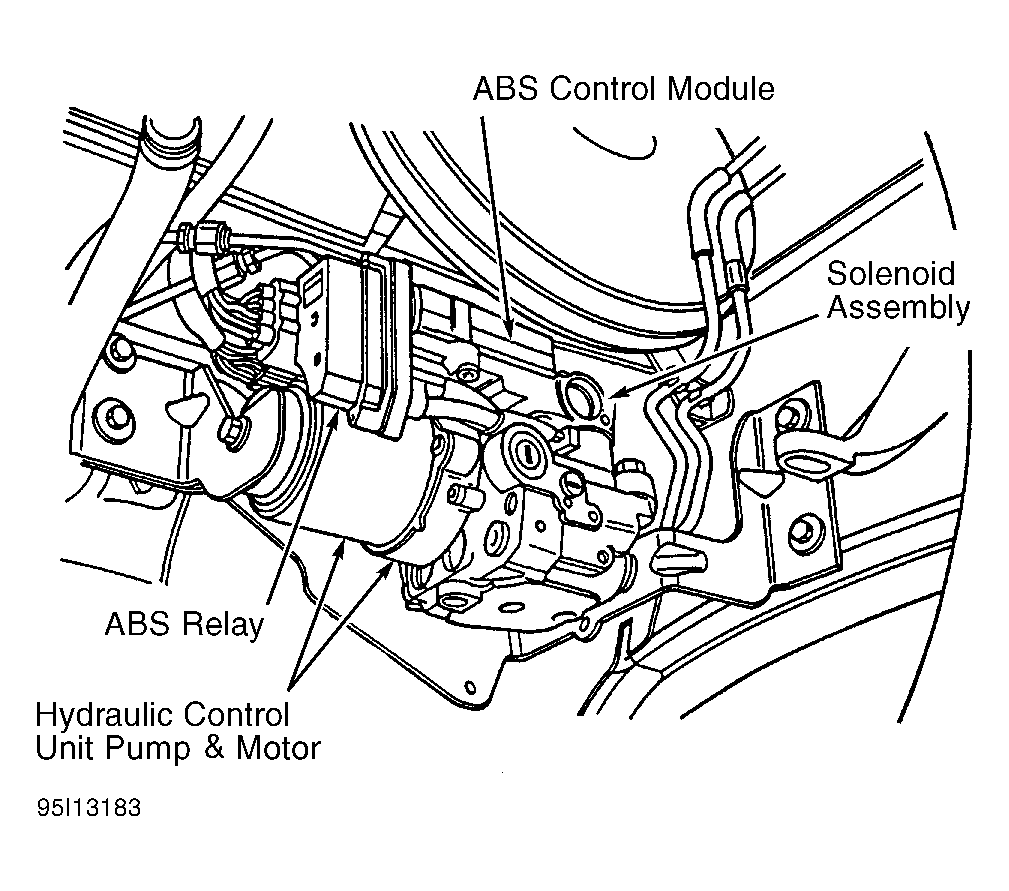

Hydraulic control unit and ABS control module are a complete assembly. See Figure. The assembly is located below brake master cylinder.
