TCS Control Unit

Right front of engine compartment.

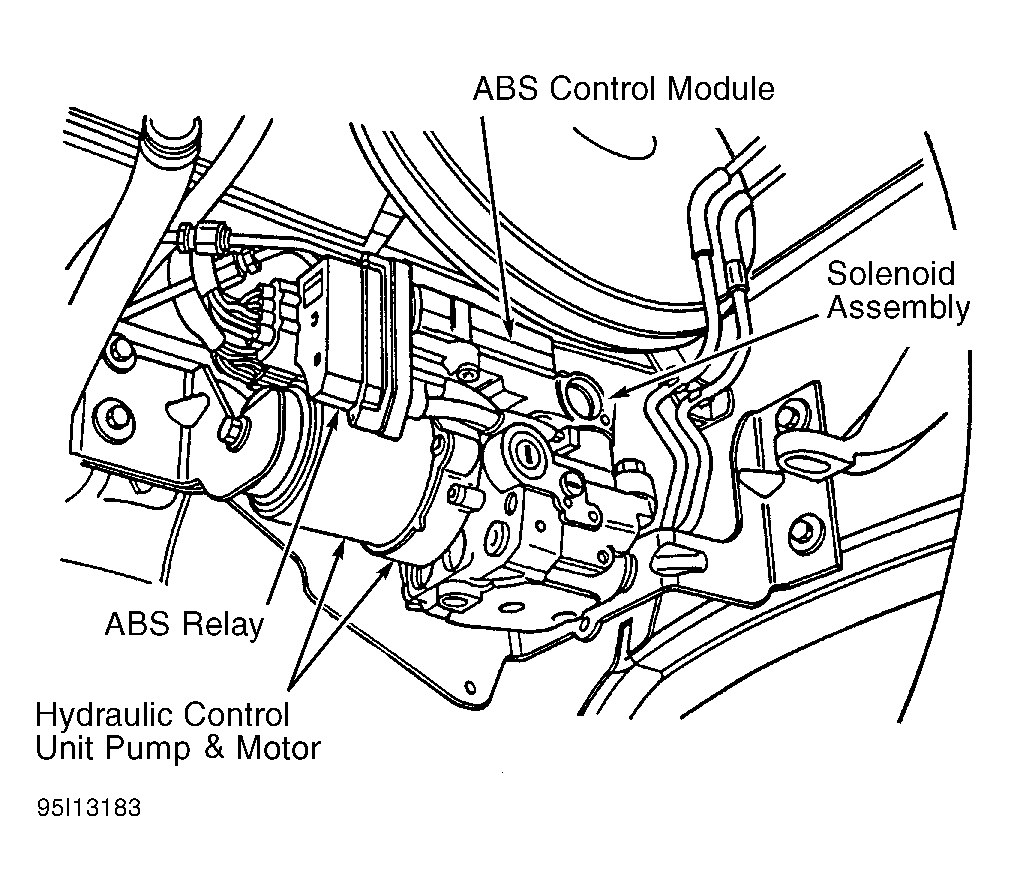

Fig 1: Identifying Hydraulic Control Unit (HCU) Assembly
G95I13183Courtesy of FORD MOTOR CO.
