Armature Grounded Circuit Test

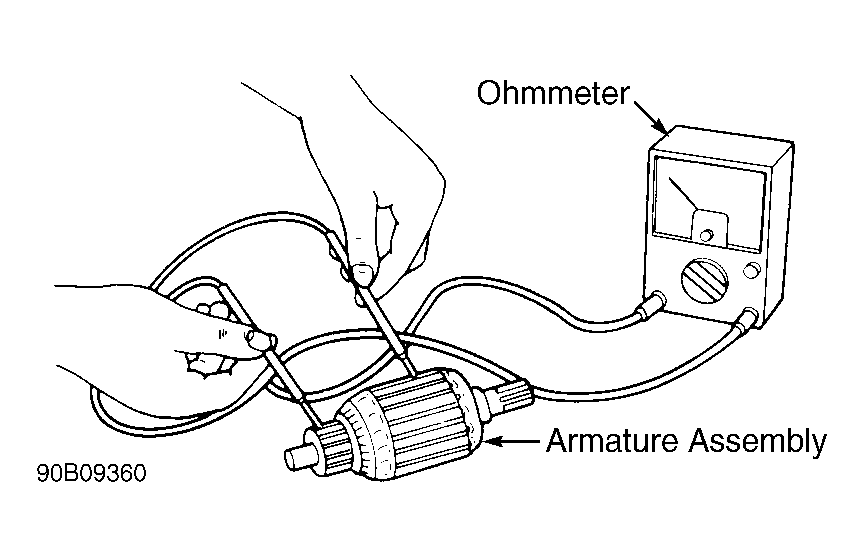

Using an ohmmeter, check for continuity between any commutator segment and armature laminations. See Fig 1. If ohmmeter indicates less than infinite resistance, armature is shorted and must be replaced.
