Fan Control (FC) Relays: Notes
NOTE:

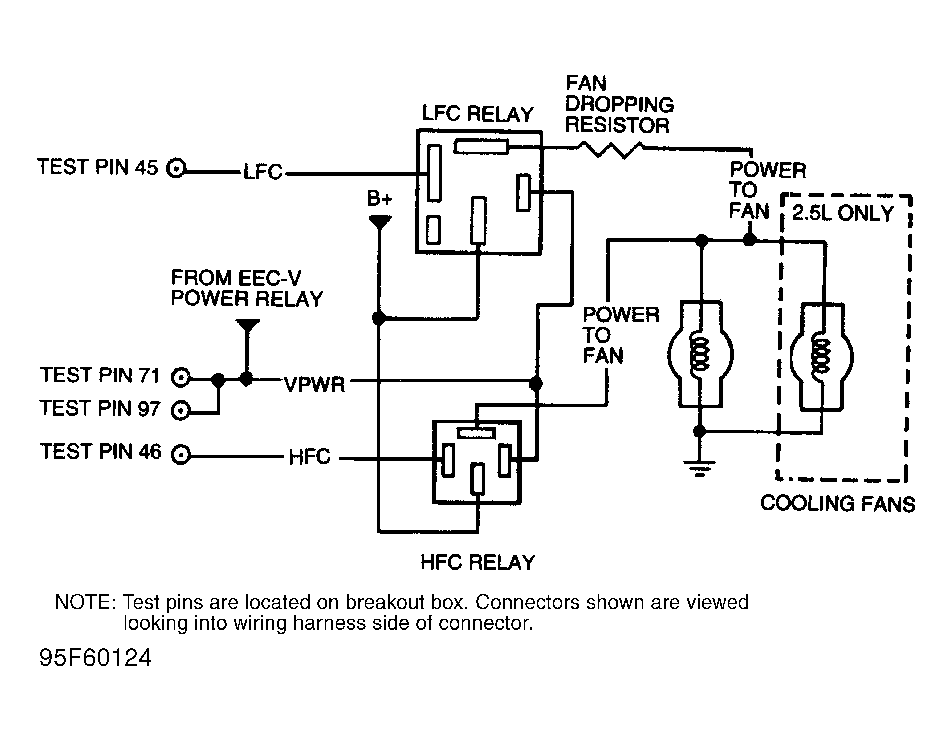

Use the following illustrations for cooling fan circuit identification. See Fig 1
. For additional identification of components, wire colors or terminals, see appropriate wiring diagram in WIRING DIAGRAM
.
