Firing Order & Timing Marks

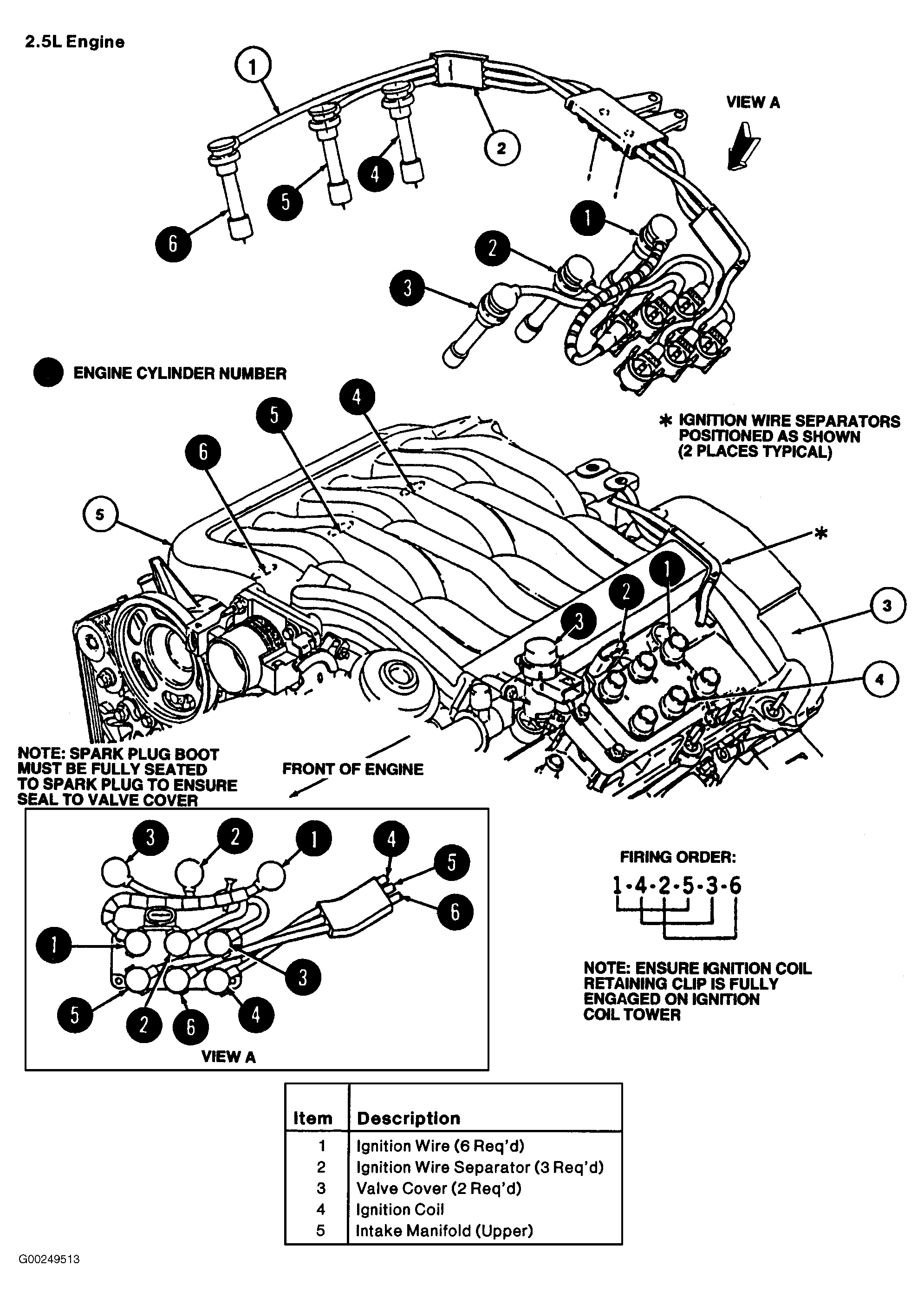

Fig 1: Identifying Firing Order & Timing Marks (2.5L)

Fig 2: Identifying Spark Plug Wire Routing (2.5L)

Courtesy of FORD MOTOR CO.

BASE IGNITION TIMING

Application

Degrees BTDC @ Idle

2.5L (VIN L)

⁽¹⁾⁽²⁾ 8-12

⁽¹⁾	Disconnect single in-line SPOUT connector, or remove shorting bar from double-wire SPOUT connector.

⁽²⁾	Timing is not adjustable.
