Firing Order & Timing Marks

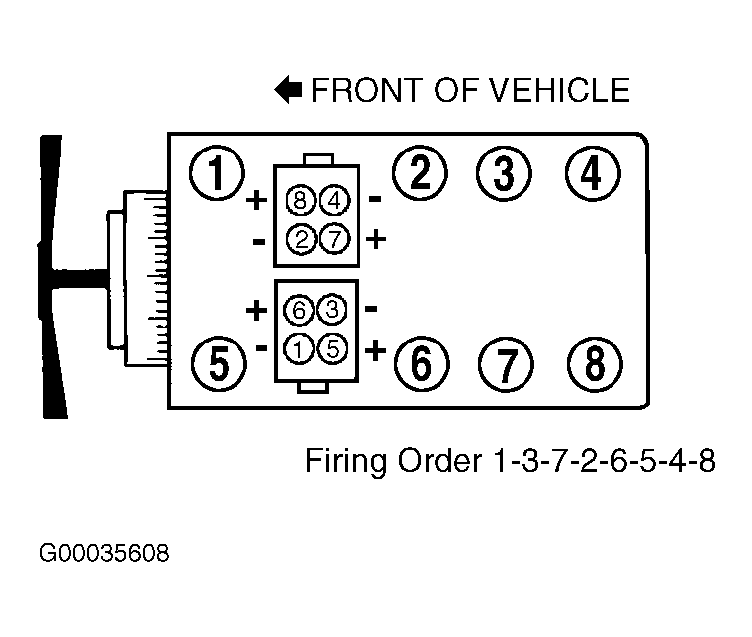

Fig 1: Identifying Firing Order & Timing Marks
G00035608
Fig 2: Identifying Spark Plug Wire Routing
G00249502Courtesy of FORD MOTOR CO.
