Light Sensor Amplifier

WARNING: This page is about a different car, the 1997 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

The light sensor amplifier assembly (located on top of dash, below defroster grill) is equipped with an adjustment screw. See Fig 1 . If earlier or later activation of headlights is desired, turning adjustment screw 1/16 turn counterclockwise will delay headlight activation an additional 15 minutes.

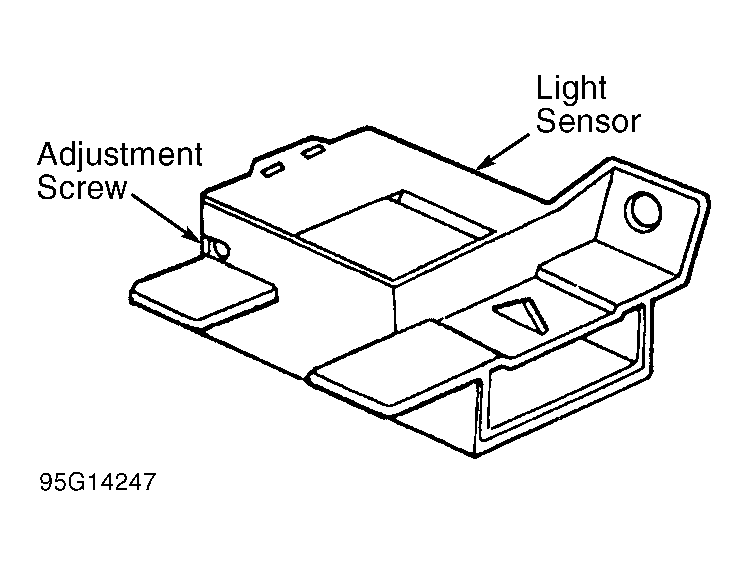

Fig 1: Locating Light Sensor Adjustment Screw
G95G14247Courtesy of FORD MOTOR CO.
