Removal & Installation

WARNING: This page is about a different car, the 1997 Mercury Mystique and 1997 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.

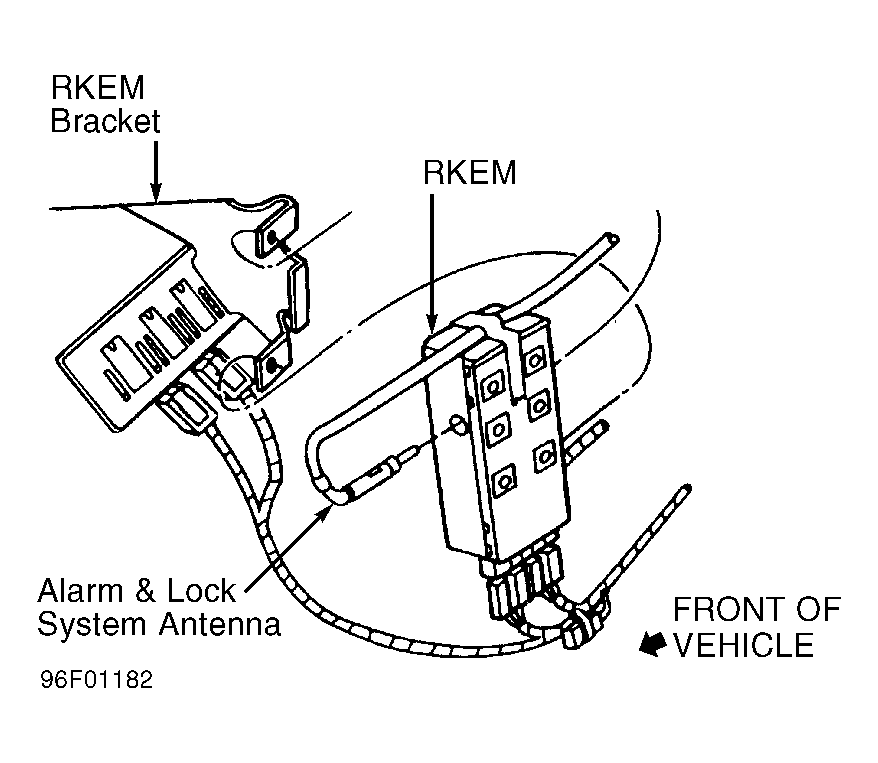

Disconnect negative battery cable. Open glove box. Depress sides of glove box, and lower glove box to access RKEM. Slide RKEM off bracket. See Figure. Unplug harness connectors. Unplug antenna connector. To install, reverse removal procedure.
