Interior Fuse Panel Identification: Notes

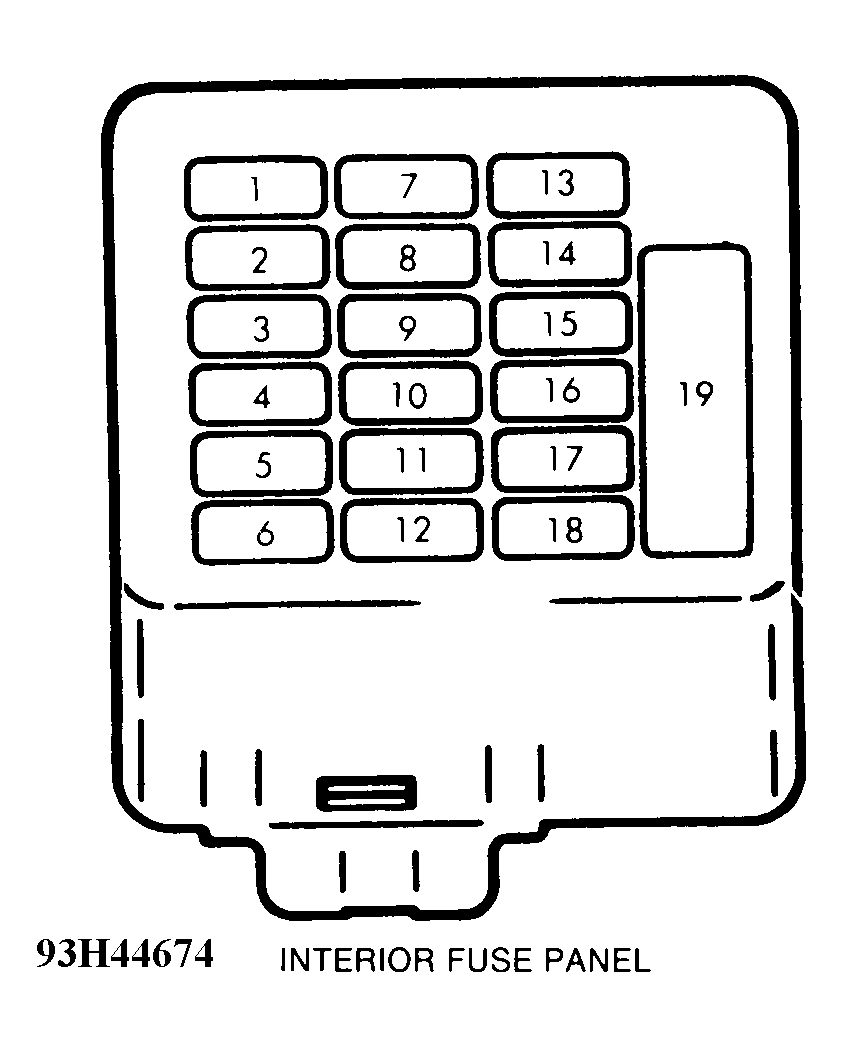

Fig 1: Instrument Panel Fuse Identification (1989-92)
Courtesy of FORD MOTOR CO.

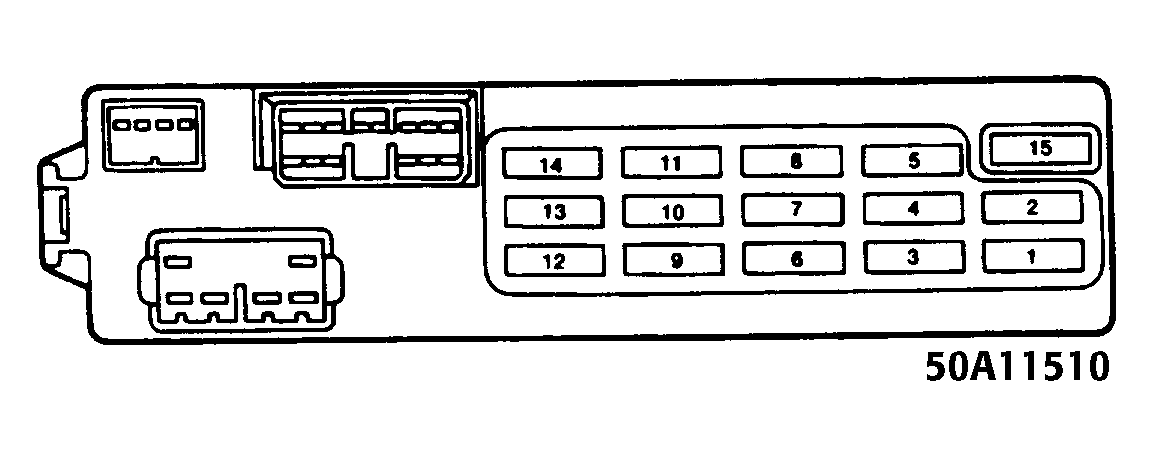

Fig 2: Underhood Fuse Panel Identification (1989-92)
Courtesy of FORD MOTOR CO.

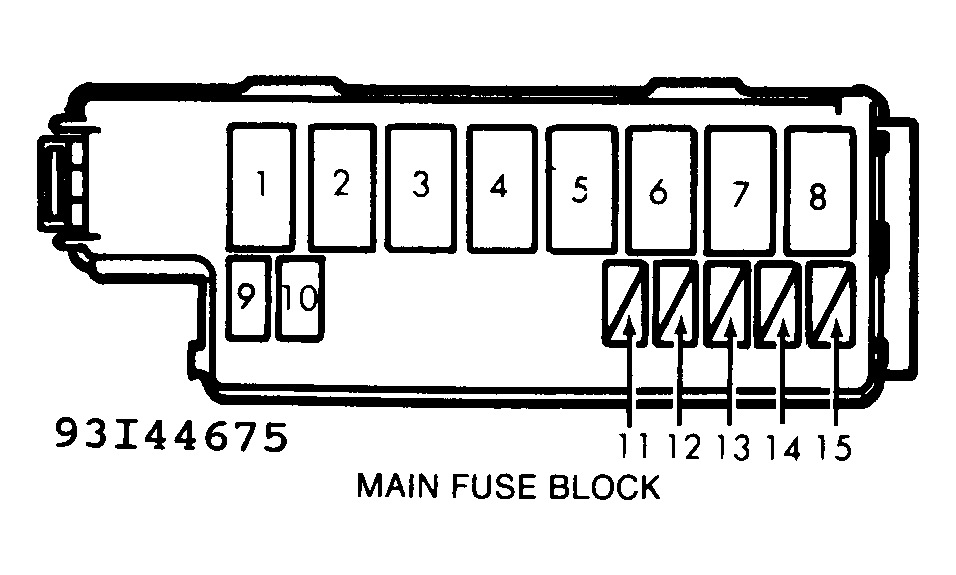

Fig 3: Interior Fuse Panel Identification
Courtesy of FORD MOTOR CO.
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
