Starter Ground Circuit Test

NOTE: Make all voltmeter connections at component terminal rather than at cable or wire end.

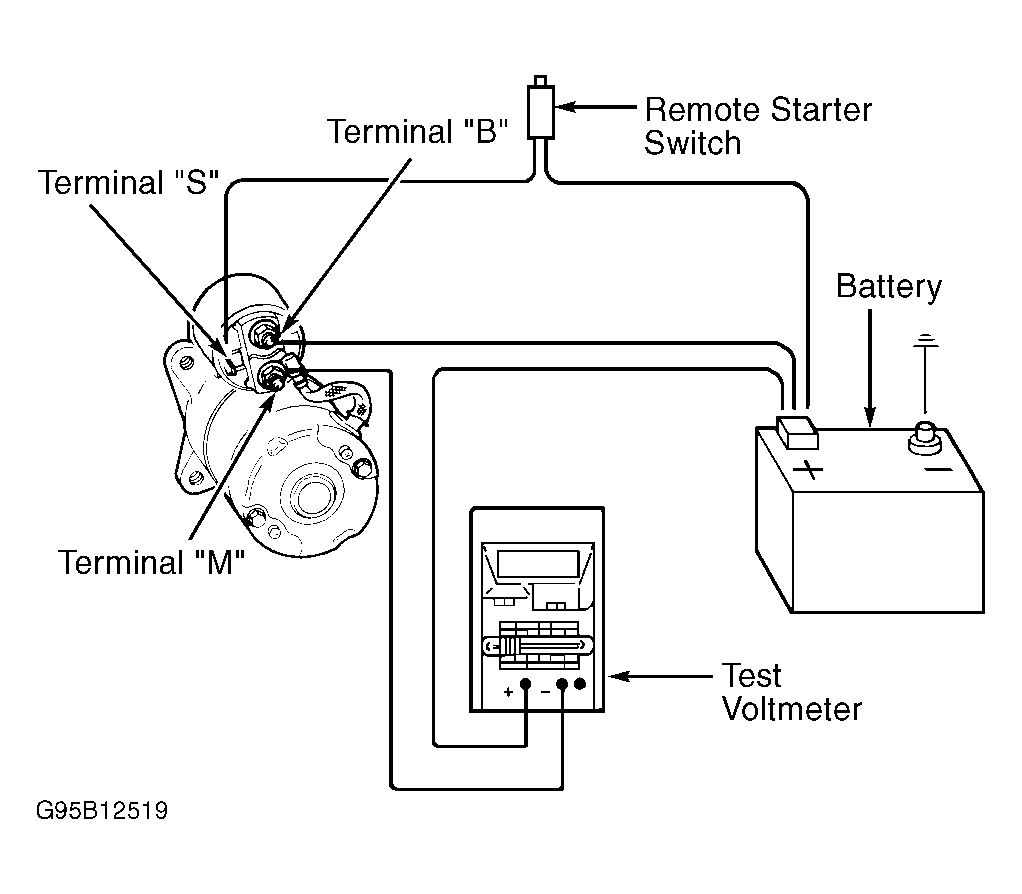

  1. Disconnect both connectors from distributor. Connect remote starter switch between starter solenoid terminal "S" and positive battery post. See Figure .
  2. Using a digital voltmeter set at lowest voltage scale, connect positive voltmeter lead to starter housing, and negative lead to negative battery post.
  3. Engage remote starter switch while observing voltmeter. Voltmeter should indicate .2 volt or less. If voltmeter indicates more than .2 volt, clean negative cable connections at battery and chassis. Also clean engine ground cable connections at front cover and engine mount bracket.
  4. If voltage drop is still excessive, repair or replace negative battery cable and/or engine ground cable as necessary. Repeat starter circuit test after repair to ensure problem has been corrected.
  5. If battery and cables test okay and starter motor still cranks slowly or not at all, remove and repair starter.
