System Tests: Notes

SYSTEM TEST INDEX

Symptom	System Test
Anti-Theft Indicator Always On	A
Anti-Theft Indicator Never On	B
Alarm System Does Not Operate Correctly	C
Alarm System Does Not Arm	D
Alarm System Does Not Disarm	E

NOTE: For connector terminal identification, See Fig 1 -3 and WIRING DIAGRAMS.

Fig 1: Connector Terminals Anti-Theft Module Connector C451A, C451B & Clock Connector C442 Terminal Identification

Courtesy of FORD MOTOR CO..

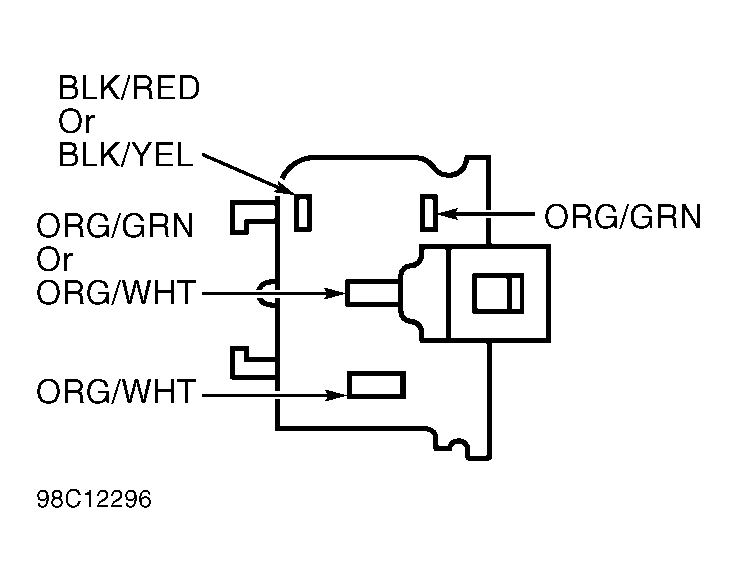

Fig 2: Connector Terminals Clock Connector C1941 Terminal Identification

Courtesy of FORD MOTOR CO..

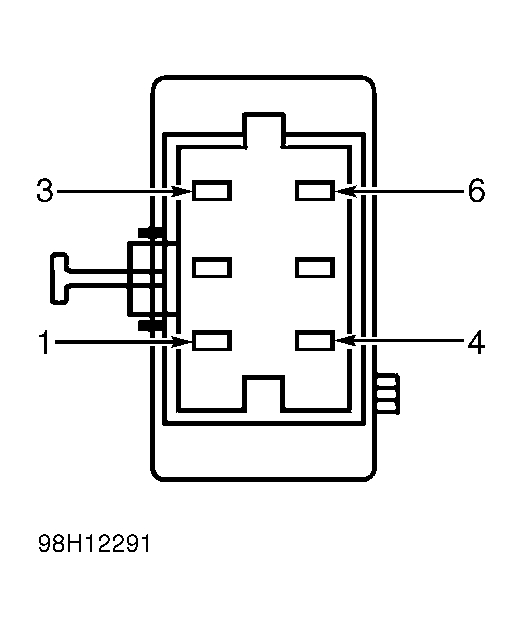

Fig 3: Connector Terminals Panic Alarm Headlight Relay Connector C1904 & Panic Alarm Brakelight Relay Connector C1910 Terminal Identification

Courtesy of FORD MOTOR CO..
