Vehicle Calibration

Vacuum diagrams are identified by calibration code. Use the Emission Calibration Label to identify calibration. Calibration label is attached to left door or left door pillar. See Fig 1. Use calibration code to select vacuum diagram.

NOTE: Vacuum diagrams for calibrations not shown are not available from manufacturer.

Fig 1: Identifying Emission Calibration Label

Courtesy of FORD MOTOR CO.

VACUUM DIAGRAM APPLICATIONS

Application & Calibration Codes ⁽¹⁾

See

Continental

4.6L

8-38D-R06 (RSA2), 8-38D-R10 (RSA3)

Fig 2

Contour & Mystique

2.0L

California

Except CARB Tier 1 ⁽²⁾

8-03P-R05 (EXA1) - Code BFY

Fig 3

CARB Tier 1 ⁽²⁾

8-03P-R05 (EXA1) - Code BHH, 8-03P-R11 (XTL1)

Fig 4

Except CARB TLEV ⁽³⁾

8-04P-R10 (DDY3) - Code BCP, 8-04P-R12 (GPE1), 9-EQA-BAD (GEP3), 9-EQA-BAE (JEP4), 9-EQM-BAC (FKA2), 9-EQM-BAD (FKA3)

Fig 3

CARB TLEV ⁽³⁾

8-04P-R06 (DDY2), 8-04P-R10 (DDY3) - Code BAY

Fig 4

Canada & 49-States

8-04A-R06 (ALZ2), 8-04A-R10 (ALZ3) - Codes BLA & BSS

Fig 4

49-States

8-03A-R05 (HHC1), 8-03A-R11 (XGR1), 8-04A-R10 (ALZ3) - Code BUZ, 8-04A-R12 (KRR1), 9-EQA-AAD (HCA3), 9-EQA-AAE (HCA4), 9-EQM-AAC (EXY2), 9-EQM-AAD (EXY3)

Fig 3

2.5L

California

Except CARB Tier 1 ⁽²⁾

9-LCA-BAD (PLA3) - Code DHB, 9-LCM-AGA (SFG0) - Code DHB, 9-LCM-BAC (LTZ2) - Code DHB

Fig 5

CARB Tier 1 ⁽²⁾

8-11T-R06 (JZE2), 8-11T-R07 (JZE3), 8-12T-R06 (LPQ2), 8-12T-R07 (LPQ3), 8-12T-R10 (LPQ4), 9-LCA-BAD (PLA3) - Code BCM, 9-LCM-AGA (SFG0) - Code BCM, 9-LCM-BAC (LTZ2) - Code BCM

Fig 6

Canada & 49-States

8-11B-R06 (GYY2), 8-11B-R07 (GYY3) - Codes BGM & BDB, 8-11F-R05 (RJL1), 8-12B-R06 (KCA2), 8-12B-R07 (KCA3) - Codes BGM & BDB

Fig 6

49-States

8-11B-R10 (GYY4), 8-11T-R10 (JZE4), 8-12B-R10 (EZE4), 9-LCA-AAD (MJJ3) - Code BGM, 9-LCM-AAC (KKT2) - Code BGM

Fig 6

9-LCA-AAD (MJJ3) - Code DZU, 9-LCM-AAC (KKT2) - Code DZU

Fig 5

50-States

8-11B-R07 (GYY3) - Code BDM, 8-12B-R07 (KCA3) - Code BDM

Fig 7

Crown Victoria

4.6L

Except Natural Gas

8-18F-R10 (VTC5), 8-18F-R11 (VTC6), 8-18F-R12 (VTC7), 8-18H-R10 (XDX5), 8-18H-R11 (XDX6), 8-18H-R12 (XDX7), 8-18I-R10 (YYA5), 8-18I-R11 (YYA6), 8-18I-R12 (YYA7), 8-18M-R11 (ZLZ5), 8-18M-R12 (ZLZ6), 8-18M-R13 (ZLZ7), 8-18N-R11 (BZN6), 8-18N-R12 (BZN7), 8-18N-R13 (BZN8)

Fig 8

Natural Gas

8-18L-R05 (TQW1), 8-18L-R06 (TQW2)

Fig 9

Grand Marquis

4.6L

Fig 8

Escort & Tracer

2.0L

California

8-03R-R06 (PPD4), 8-04R-R06 (LLW4), 8-04R-R06 (LLW5)

Fig 4

8-03R-R10 (PPD5), 8-03R-R11 (PPD6), 8-04R-R11 (LLW6)

Fig 3

8-07T-R06 (DTD2), 8-07T-R10 (DTD3), 8-08P-R06 (HMC2), 8-08P-R10 (HMC3)

Fig 10

Canada & 49-States

8-03E-R06 (MTA4), 8-04E-R06 (KVT4)

Fig 4

49-States

8-03E-R10 (MTA5), 8-03E-R11 (MTA6), 8-04E-R10 (KVT5), 9-04E-R11 (KVT6)

Fig 3

8-07C-R06 (CGG2), 8-07C-R10 (CGG3), 8-08B-R06 (BEQ0), 8-08B-R10 (EZA3), 8-08C-R06 (GAO3), 8-08C-R10 (GAO3)

Fig 10

Mark VIII

4.6L

8-38K-R05 (BTC0)

Fig 11

Mustang

3.8L

California

Except CARB TLEV ⁽³⁾

8-15P-R05 (JJV1) - Code BDL

Fig 12

8-16E-R05 (KLT1), 8-16E-R05 (LAQ1)

Fig 13

CARB TLEV ⁽³⁾

8-15P-R05 (JJV1) - Code BAM

Fig 14

Canada & 49-States

8-15E-R05 (HHU1), 8-16E-R05 (KLT1), 8-16E-R05 (LAQ1)

Fig 13

4.6L

Except Cobra

California

8-19P-R05 (ECL1), 8-19R-R05 (FAU1), 8-19S-R05 (GUK1), 8-19T-R05 (NEY1), 8-20P-R05 (WMA1), 8-20R-R05 (XTA1), 8-20S-R05 (YCU1), 8-20T-R05 (ZEA1)

Fig 15

49-States & 50-States

8-19A-R05 (ADE1), 8-19B-R05 (BAI1), 8-19C-R05 (CLU1), 8-19D-R05 (DBZ1), 8-20A-R05 (RHJ1), 8-20A-R10 (RHJ2), 8-20B-R05 (SXA2), 8-20C-R05 (TGG1), 8-20D-R05 (VFA1)

Fig 16

Cobra

8-37M-R05 (AOL1), 8-37M-R10 (AOL3)

Fig 17

Sable

3.0L OHV

California

8-10T-R05 (XLH1), 8-10T-R11 (WTT0) - Code BCS

Fig 18

8-10T-R11 (WTT0) - Code DDM

Fig 19

49-States

8-10A-R05 (TEJ1), 8-10B-R05 (VKX1)

Fig 20

8-10A-R11 (SRR0), 8-10B-R11 (RPP0)

Fig 21

3.0L DOHC

8-14A-R05 (YPZ1), 8-14A-R10 (YPZ2), 8-14S-R05 (ZCQ1), 8-14S-R10 (ZCQ2)

Fig 22

Taurus

3.0L OHV - Except Flex-Fuel

California

8-10T-R05 (XLH1), 8-10T-R11 (WTT0) - Code BCS

Fig 18

8-10T-R11 (WTT0) - Code DDM

Fig 19

49-States

8-10A-R05 (TEJ1), 8-10B-R05 (VKX1)

Fig 20

8-10A-R11 (SRR0), 8-10B-R11 (RPP0)

Fig 21

3.0L DOHC

8-14A-R05 (YPZ1), 8-14A-R10 (YPZ2), 8-14S-R05 (ZCQ1), 8-14S-R10 (ZCQ2)

Fig 22

3.0L Flex-Fuel

8-10C-R05 (BFT1)

Fig 23

8-10G-R05 (CJE1)

Fig 24

3.4L SHO

8-10M-R06 (GQD2)

Fig 25

Town Car

4.6L

8-18E-R10 (CCE4), 8-18E-R11 (CCE5), 8-18E-R12 (CCE6), 8-18J-R09 (DDK3), 8-18J-R10 (DDK4), 8-18J-R11 (DDK5), 8-18Q-R11 (ETA5), 8-18Q-R12 (ETA6), 8-18Q-R13 (ETA7), 8-18S-R11 (FLC6), 8-18S-R12 (FLC7), 8-18S-R13 (FLC8)

Fig 8

⁽¹⁾	Code within parentheses is new coding sequence for revision level information beginning in 1999 by Ford Motor Co.

⁽²⁾	CARB Tier 1 is California Air Resource Board Tier 1 emission category.

⁽³⁾	CARB TLEV is California Air Resource Board Transitional Low Emission Vehicle.

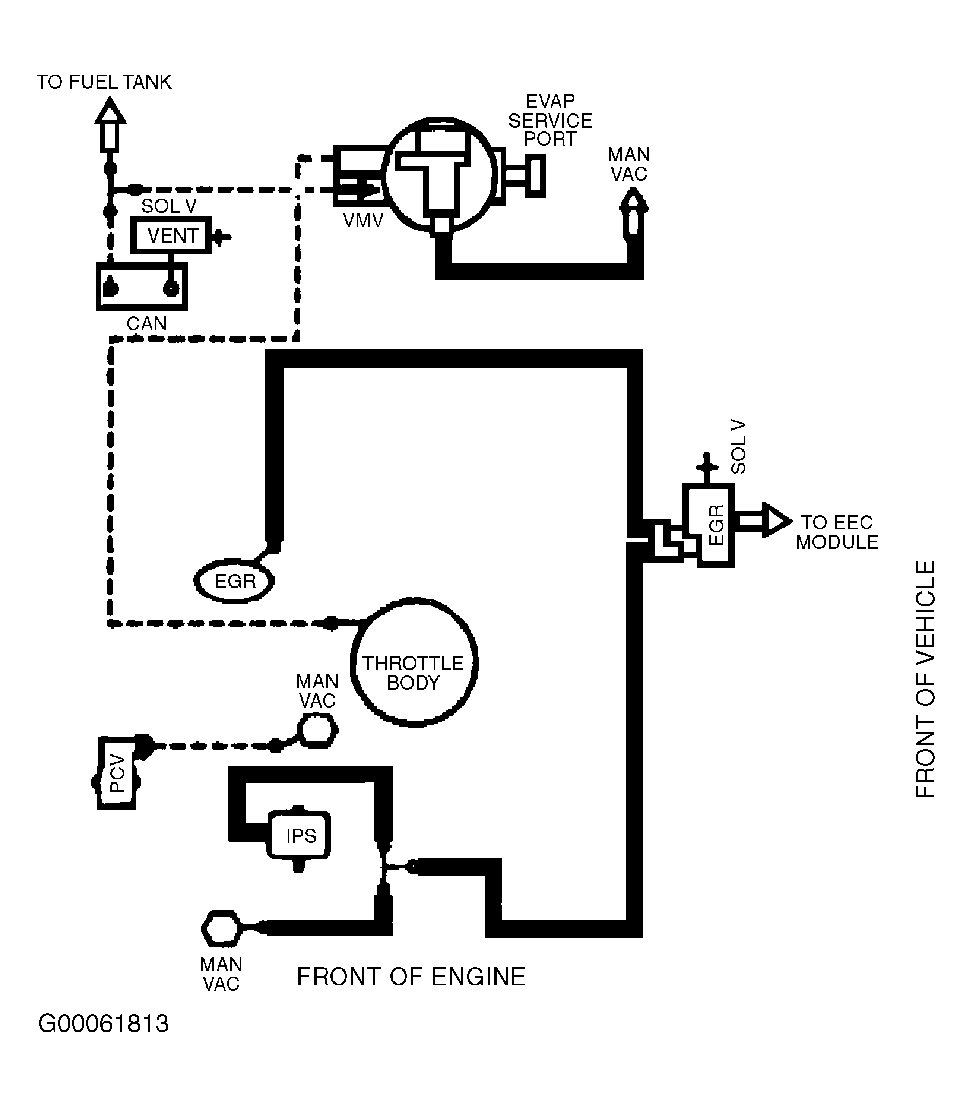

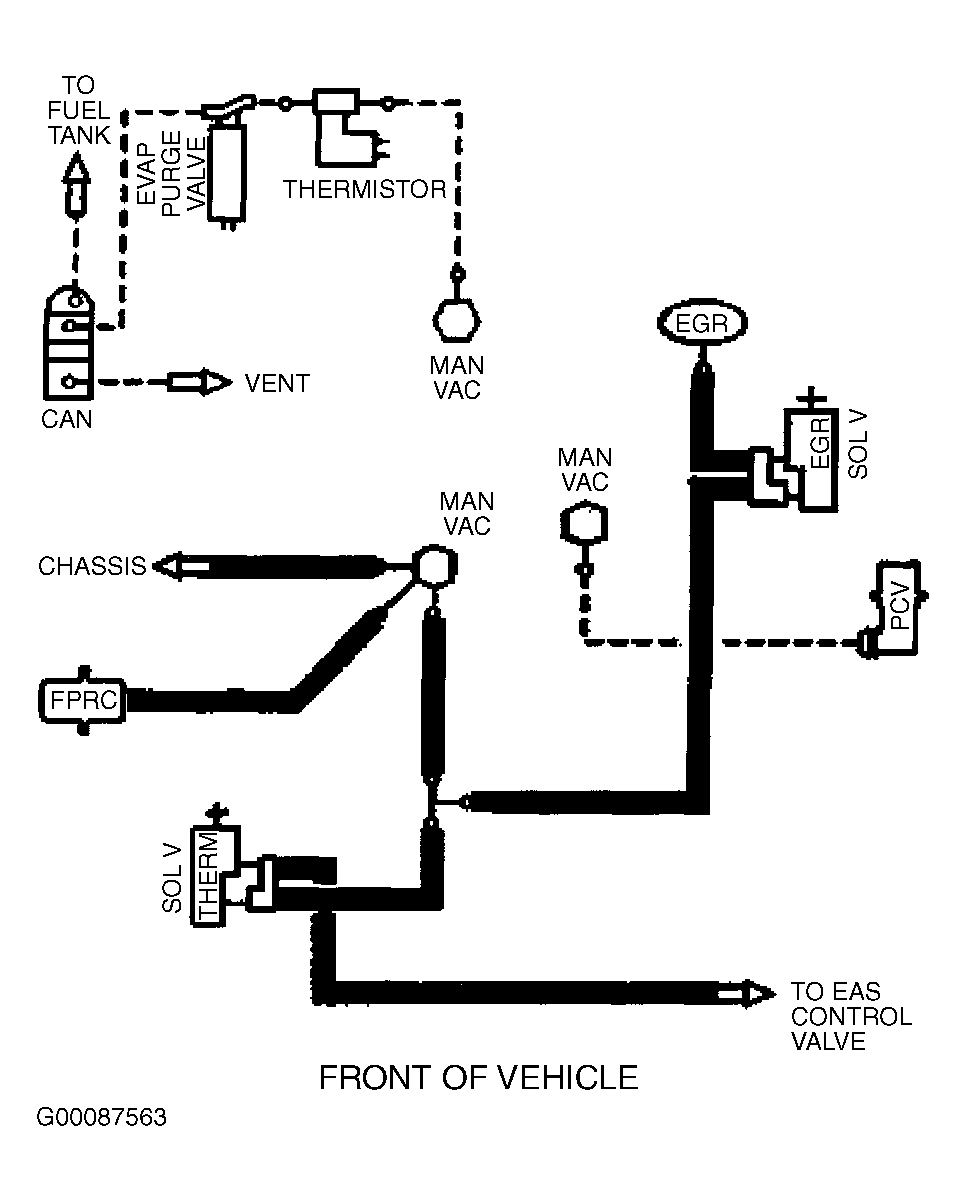

Fig 2: Vacuum Diagram (Continental - 4.6L)

Courtesy of FORD MOTOR CO.

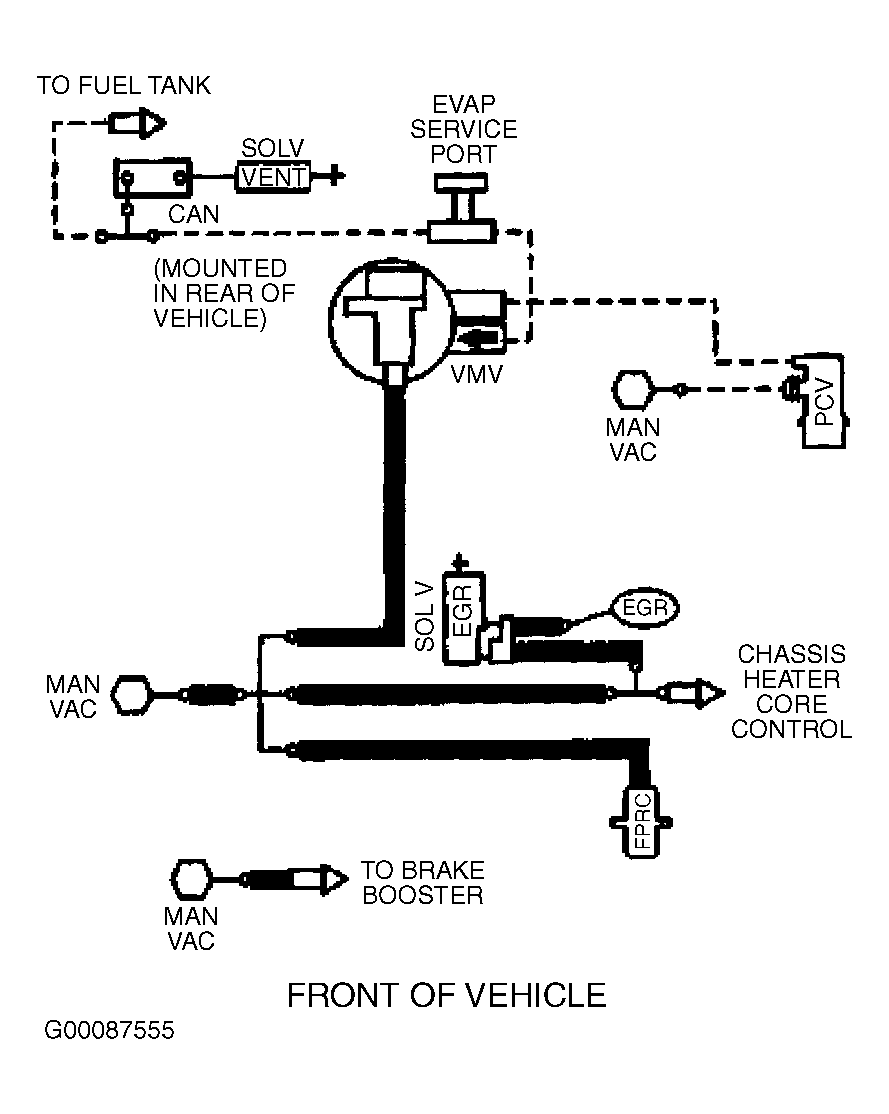

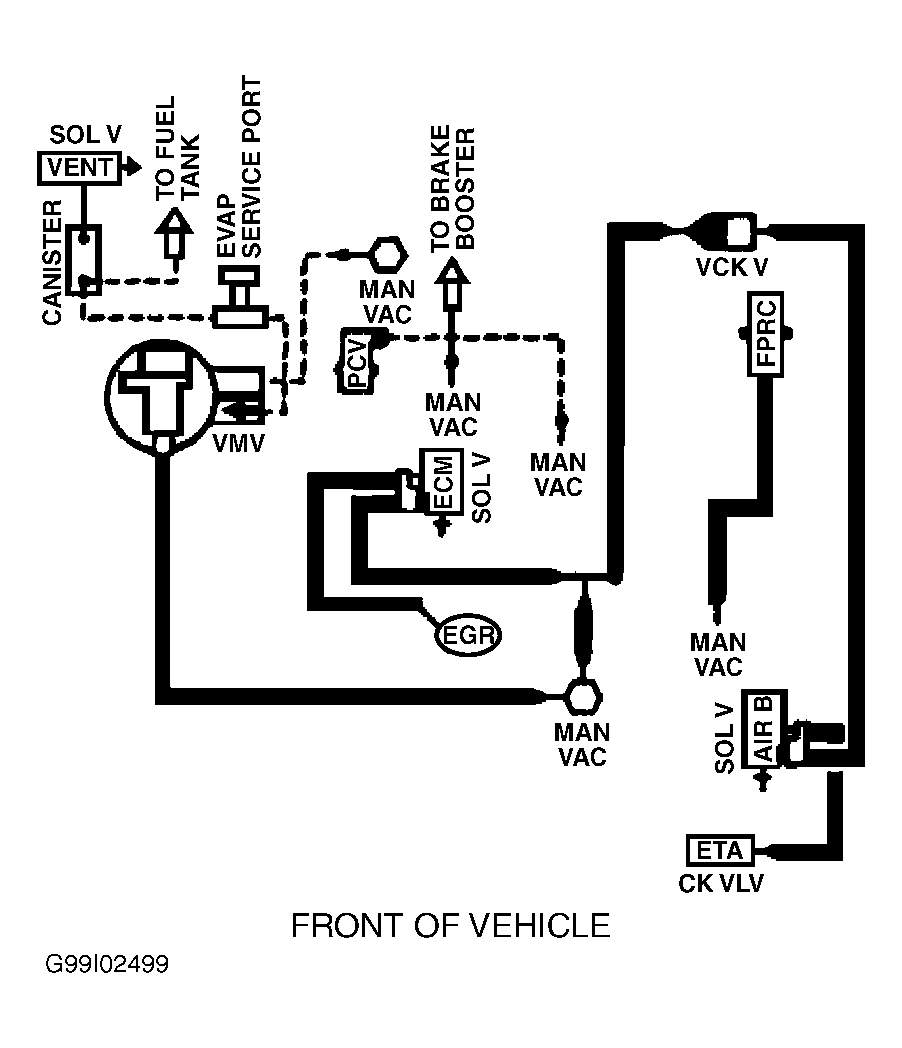

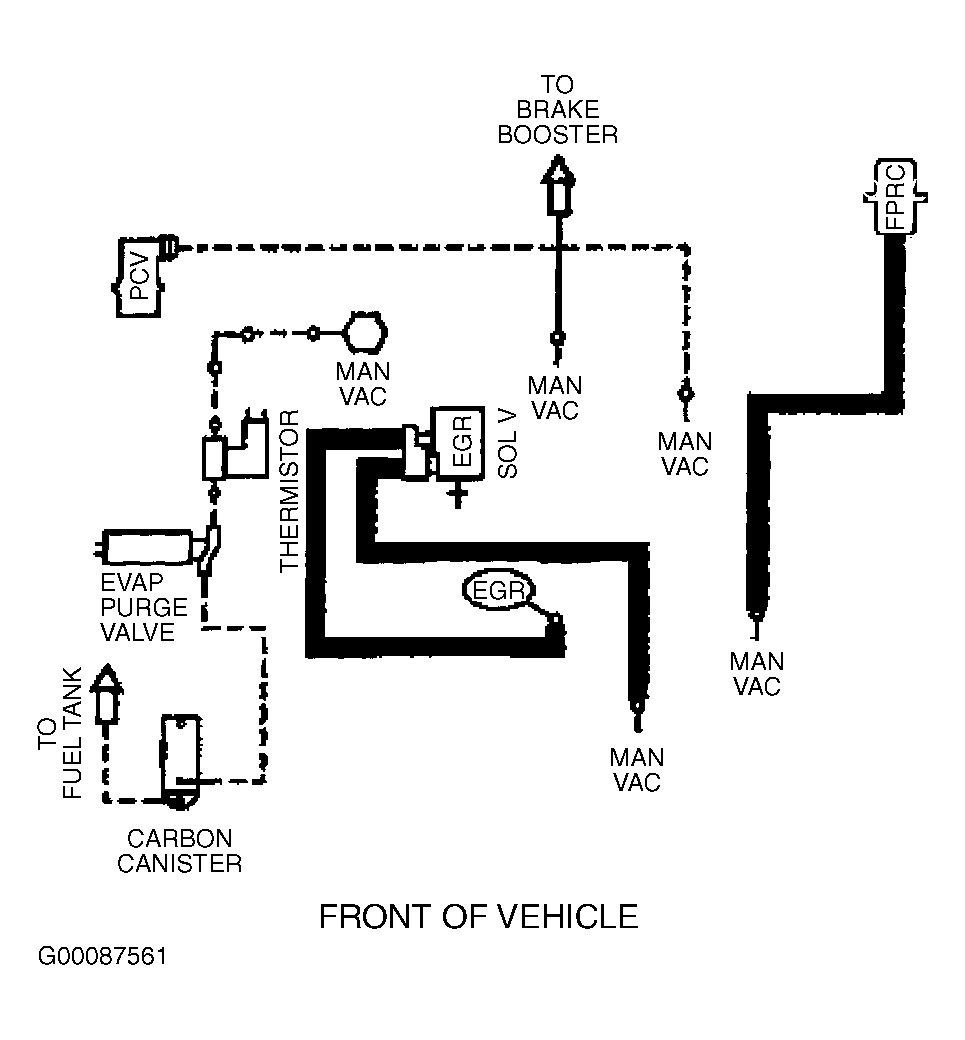

Fig 3: Vacuum Diagram (Contour, Escort, Mystique & Tracer - 2.0L)

Courtesy of FORD MOTOR CO.

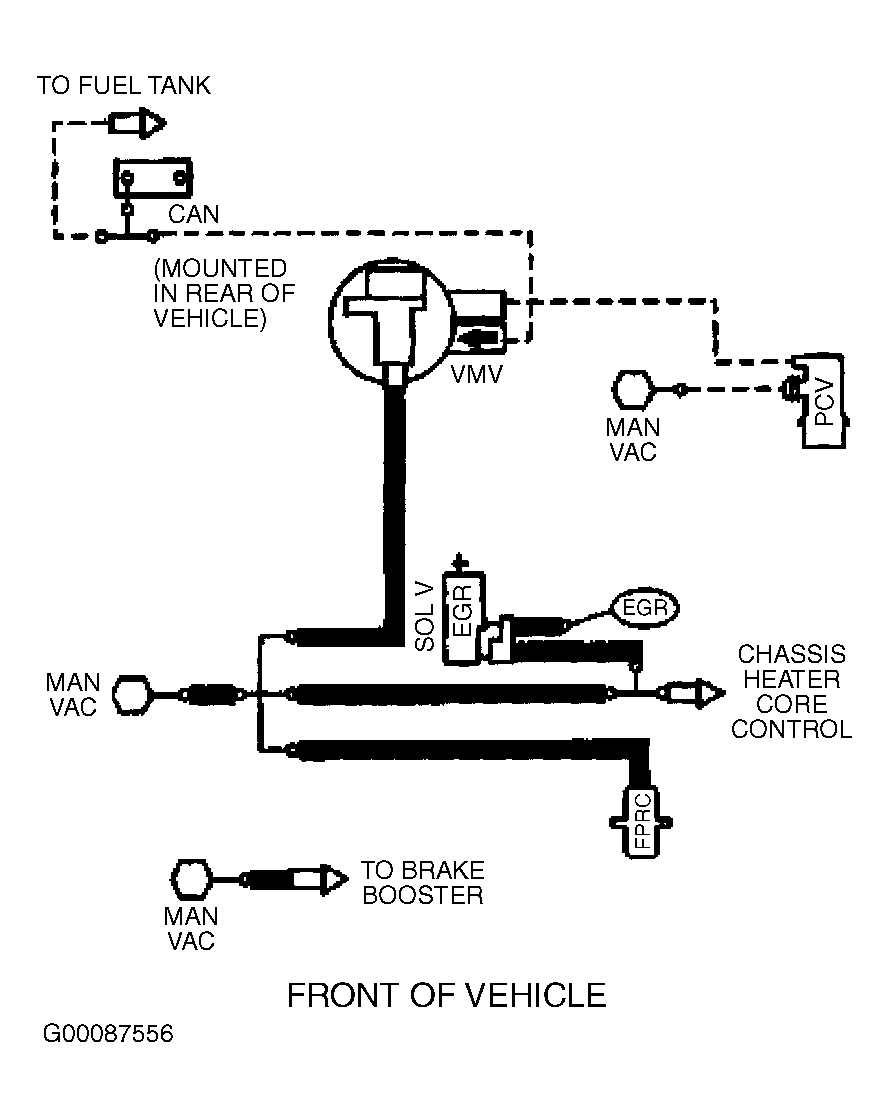

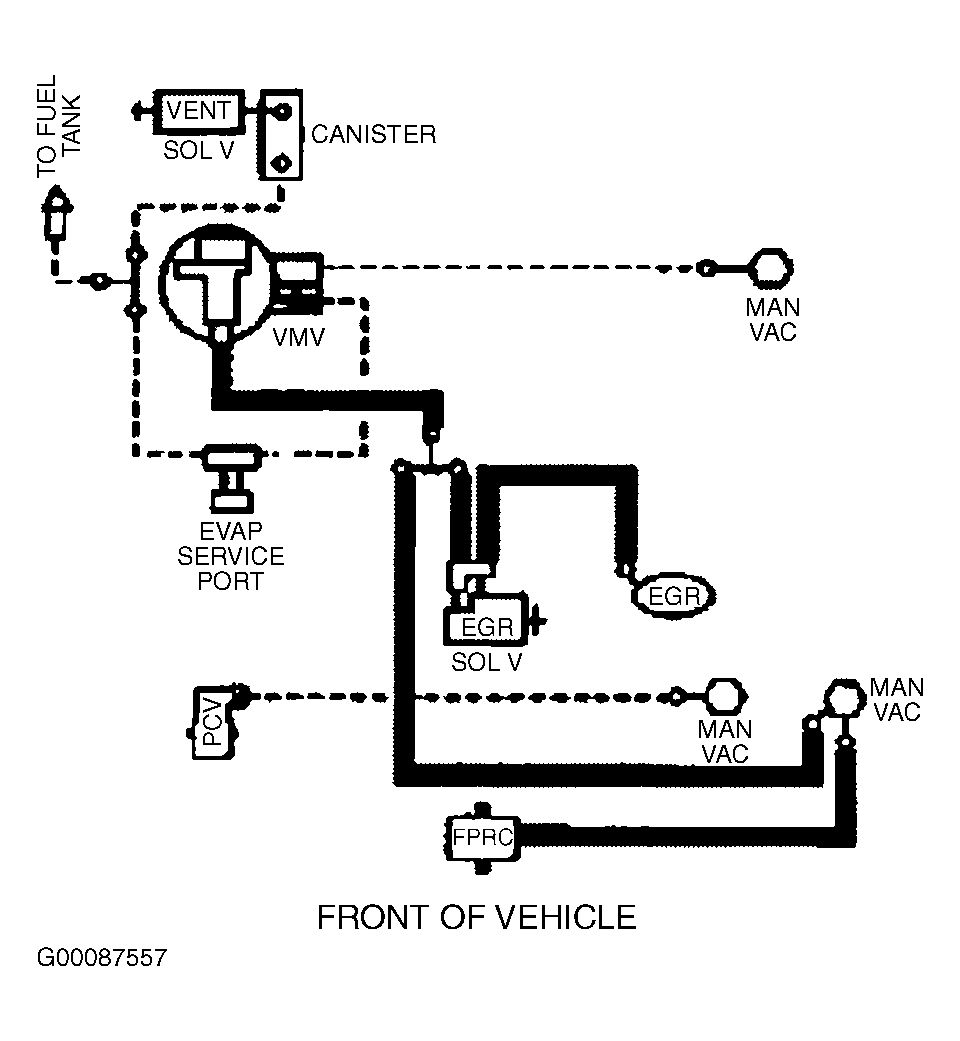

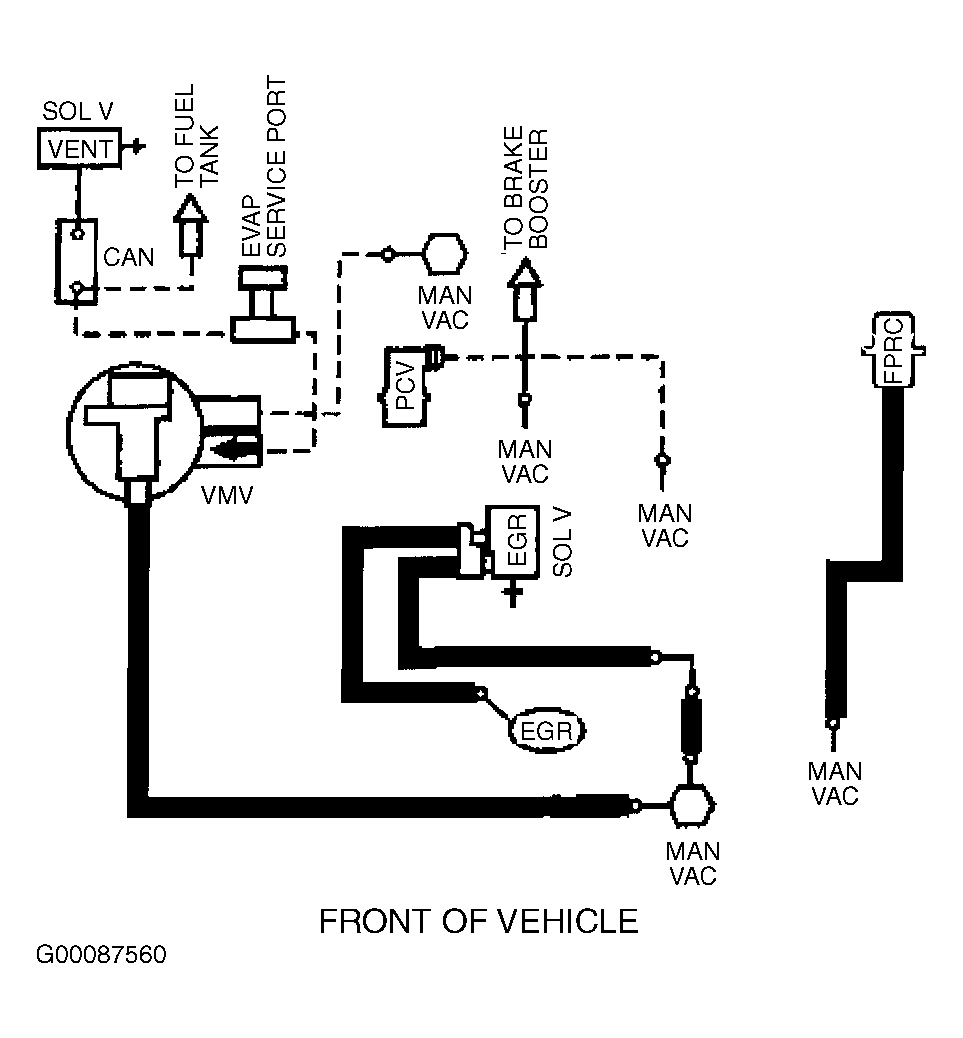

Fig 4: Vacuum Diagram (Contour, Escort, Mystique & Tracer - 2.0L)

Courtesy of FORD MOTOR CO.

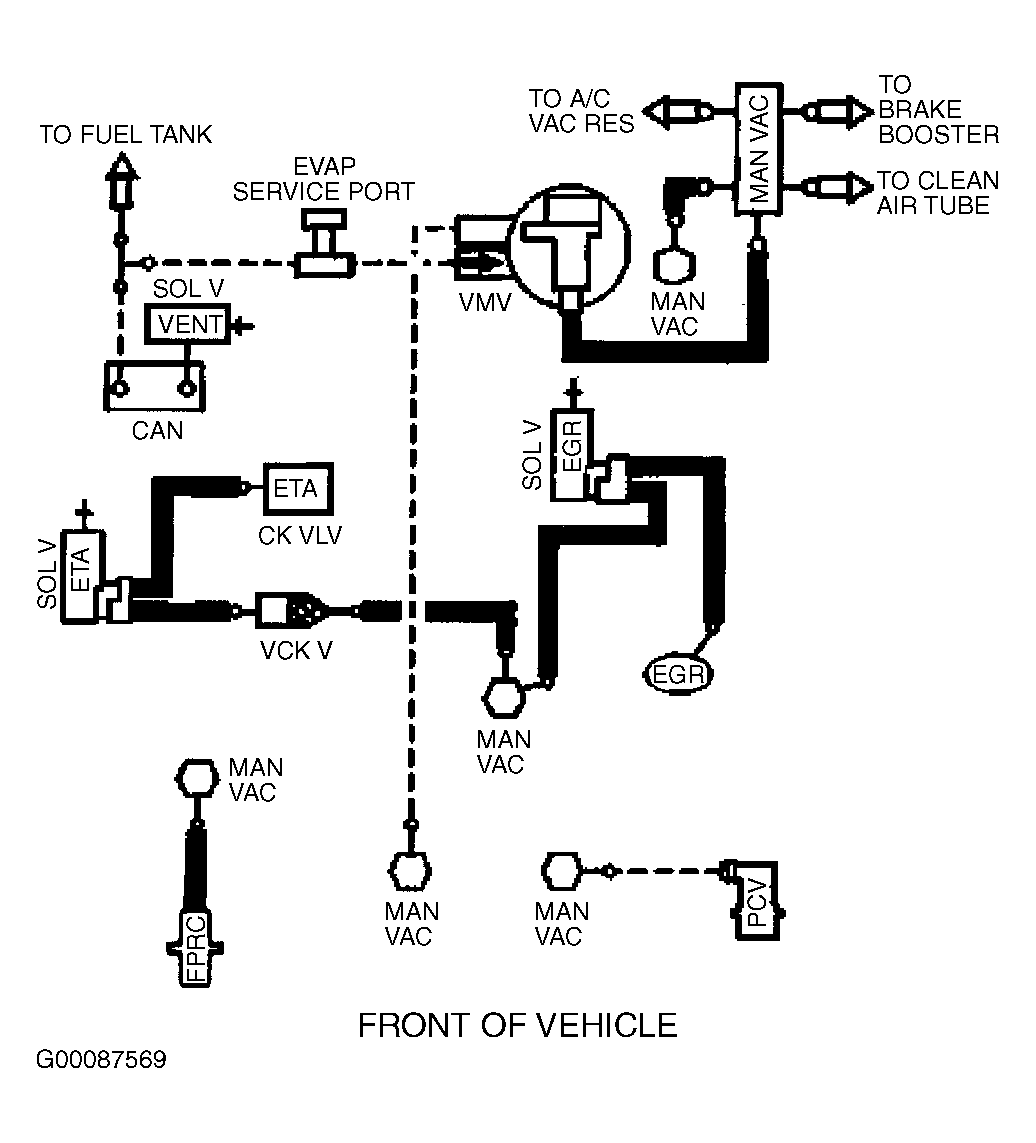

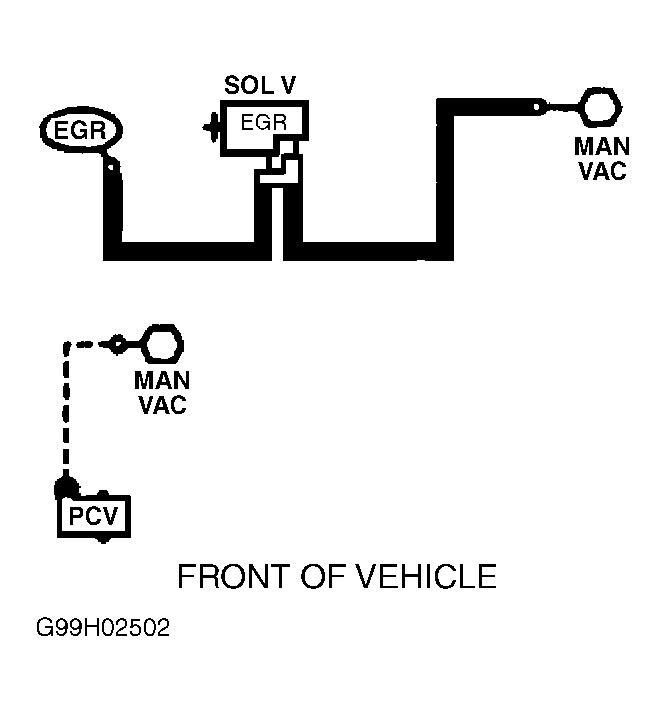

Fig 5: Vacuum Diagram (Contour & Mystique - 2.5L - California - Except CARB Tier 1 & 49-States)

Courtesy of FORD MOTOR CO.

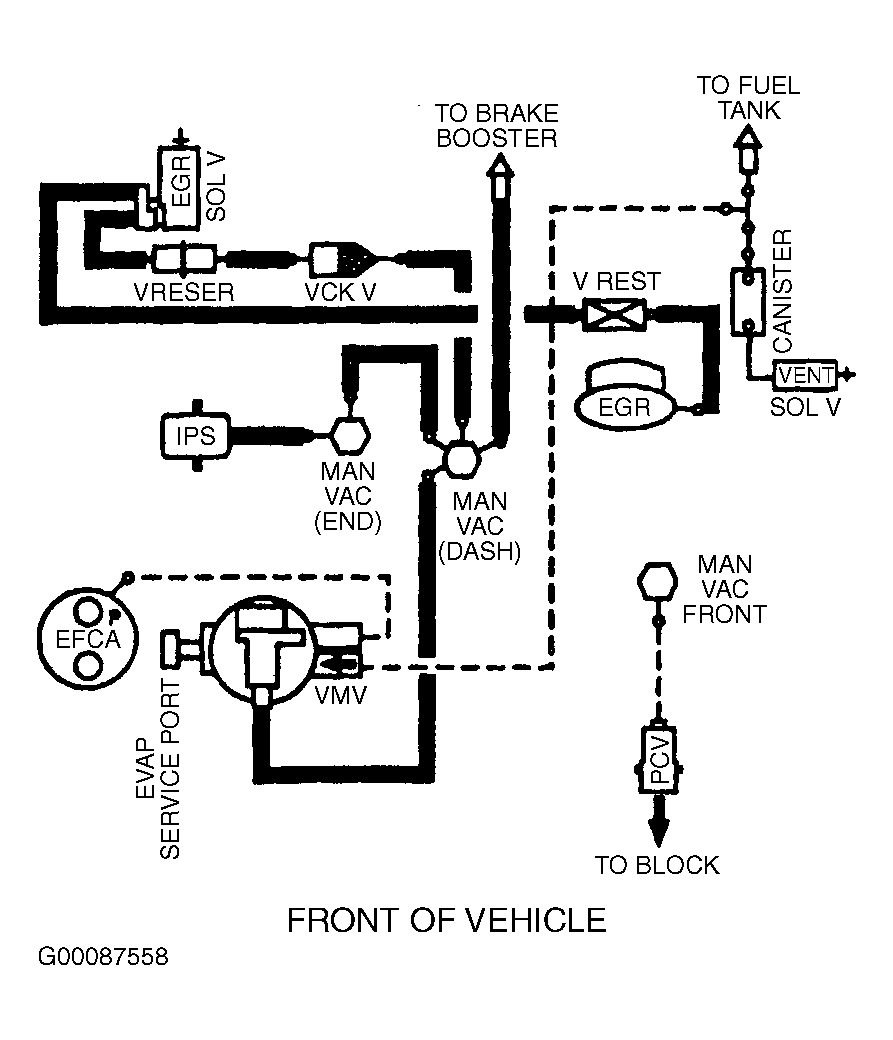

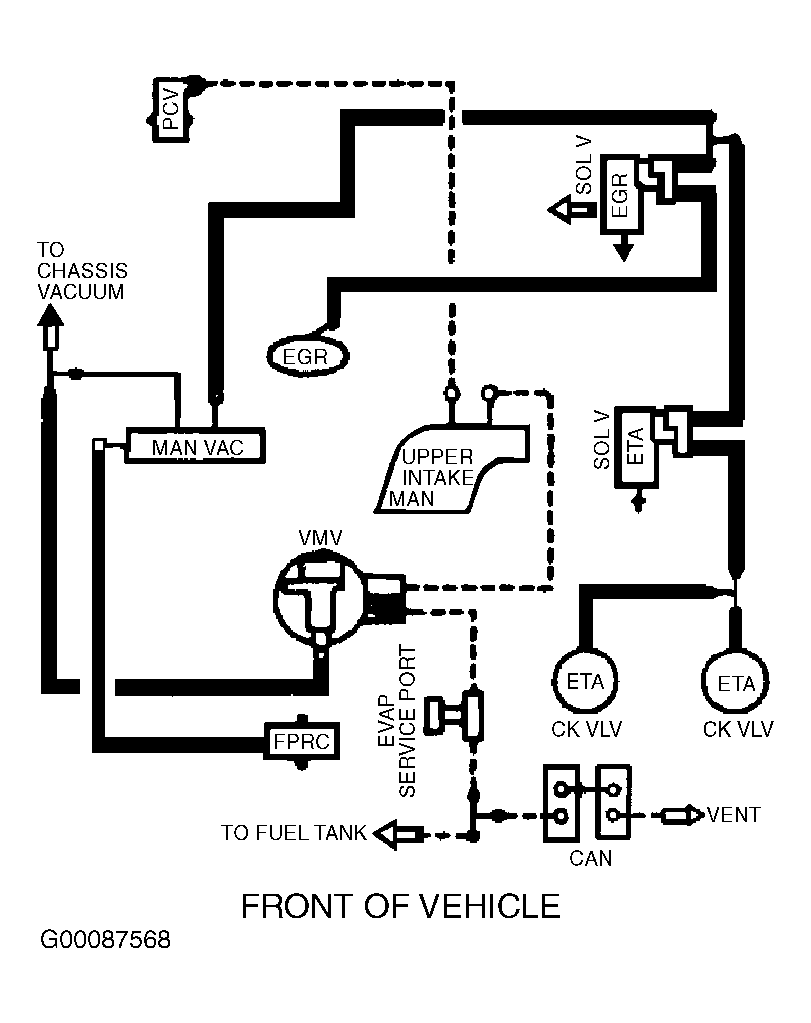

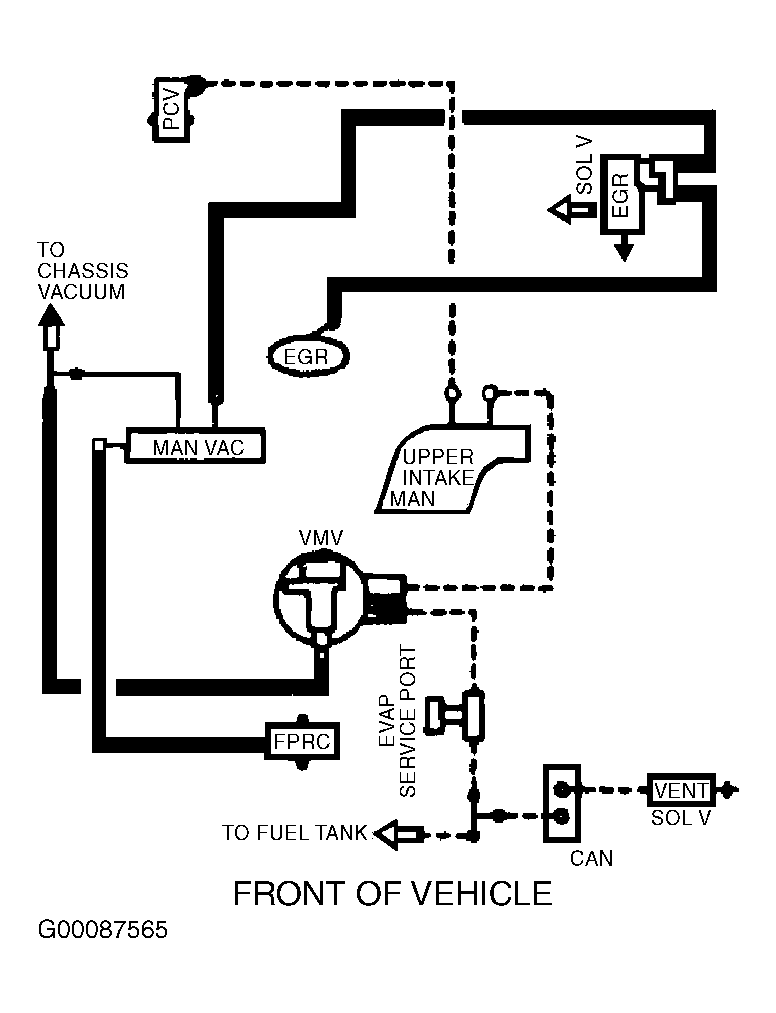

Fig 6: Vacuum Diagram (Contour & Mystique - 2.5L - California CARB Tier 1, Canada & 49-States - Except Calibration Nos. 9-LCA-AAD (MJJ3) - Code DZU & 9-LCM-AAC (KKT2) - Code DZU)

Courtesy of FORD MOTOR CO.

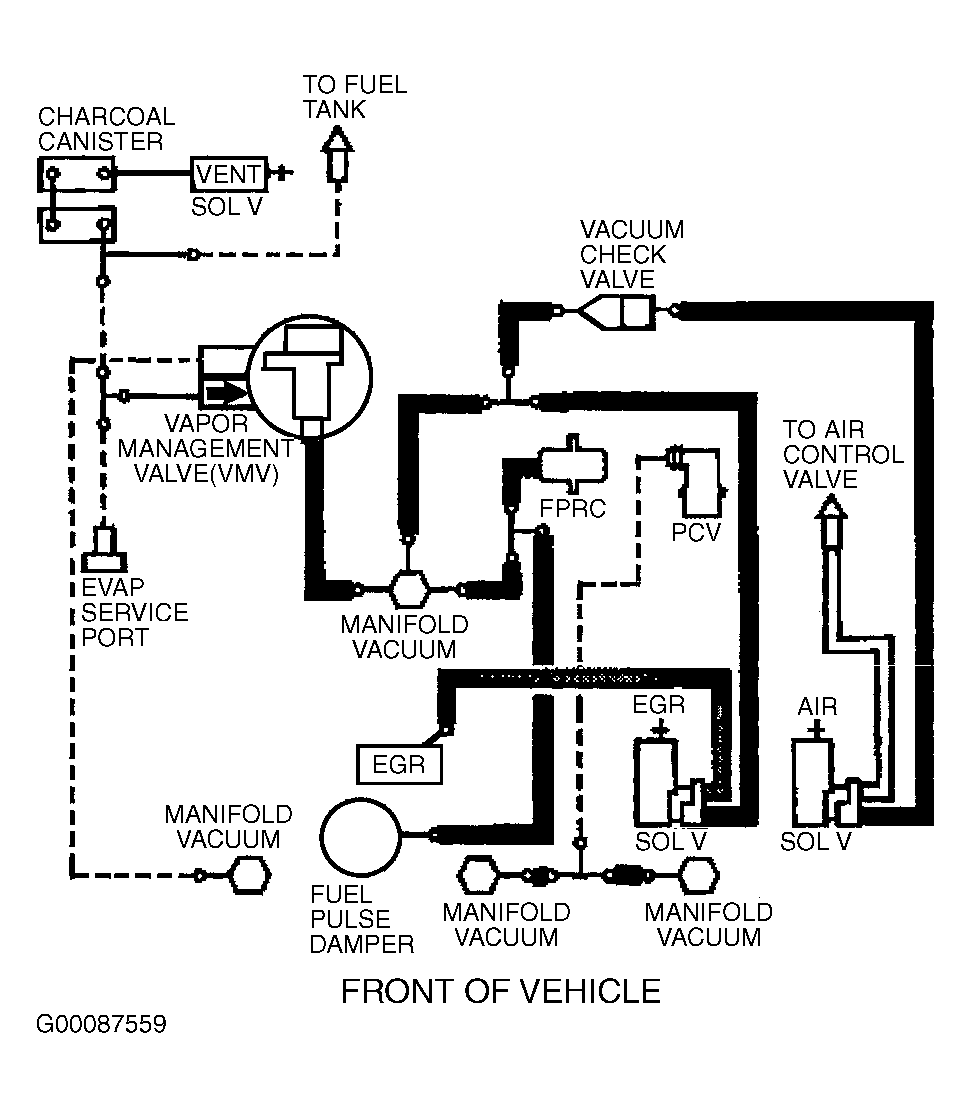

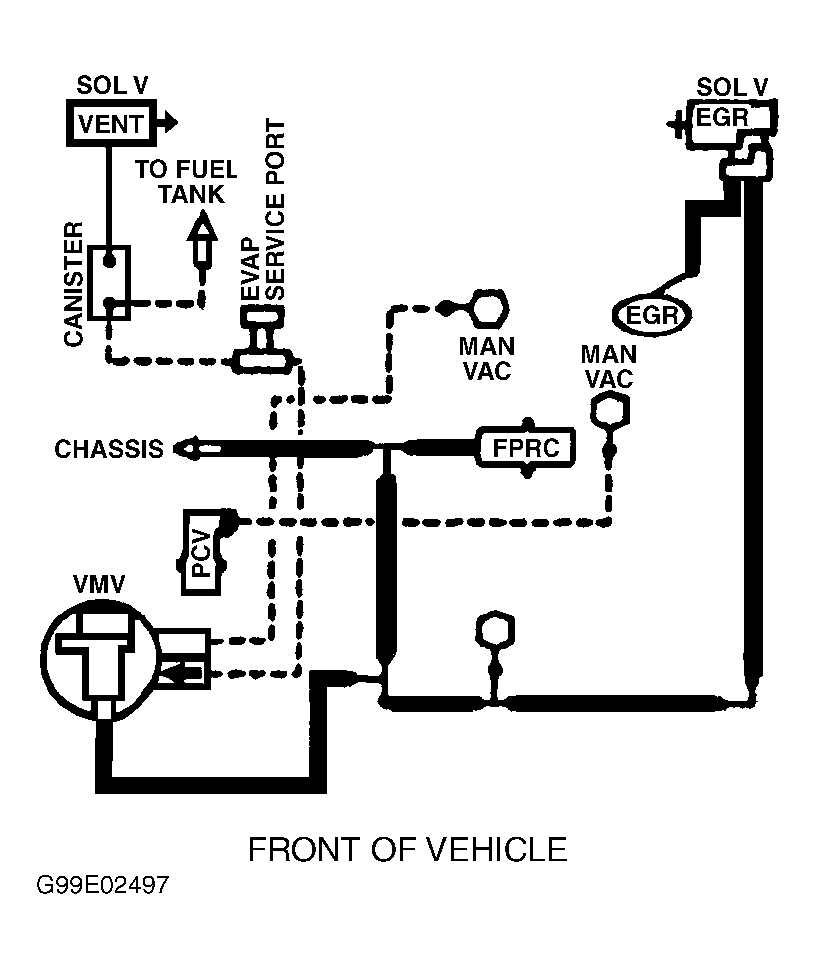

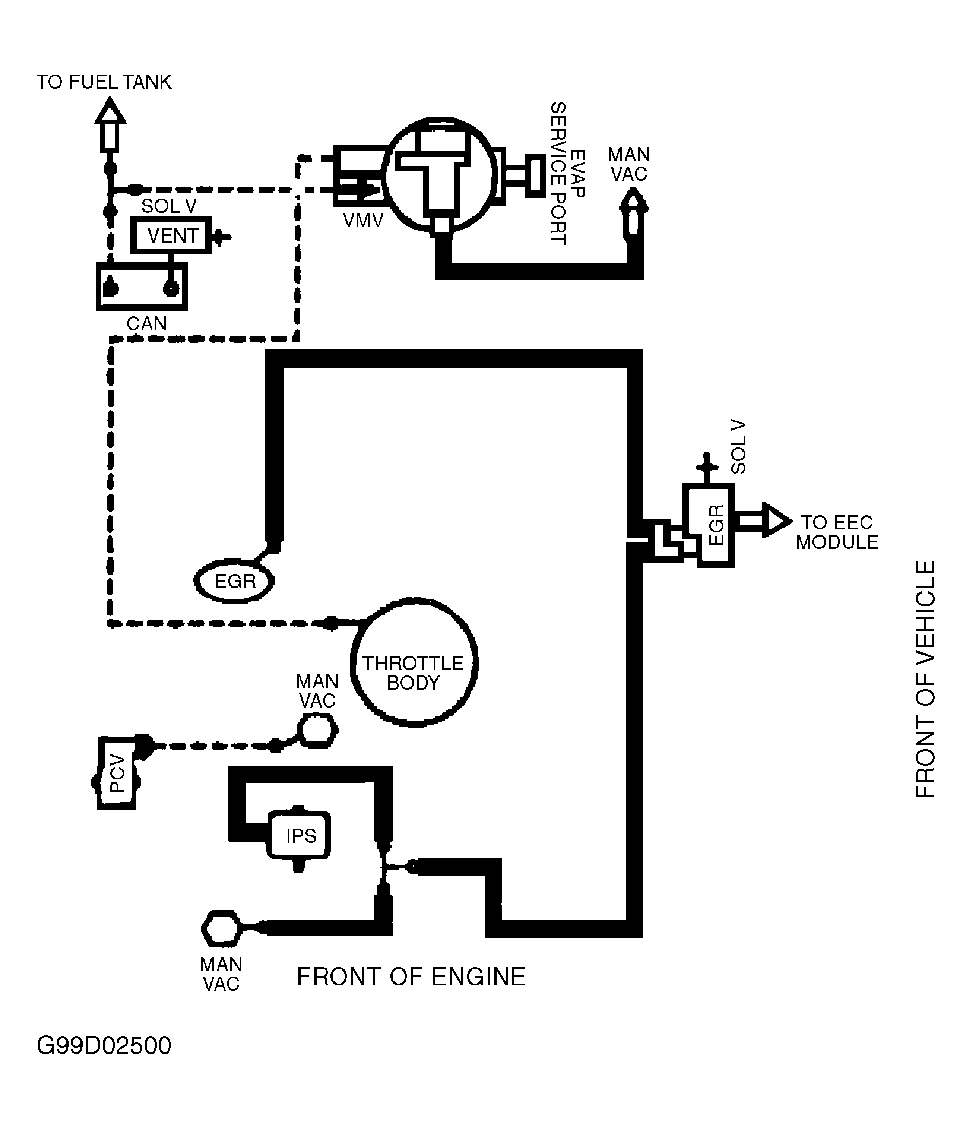

Fig 7: Vacuum Diagram (Contour & Mystique - 2.5L - 50-States)

Courtesy of FORD MOTOR CO.

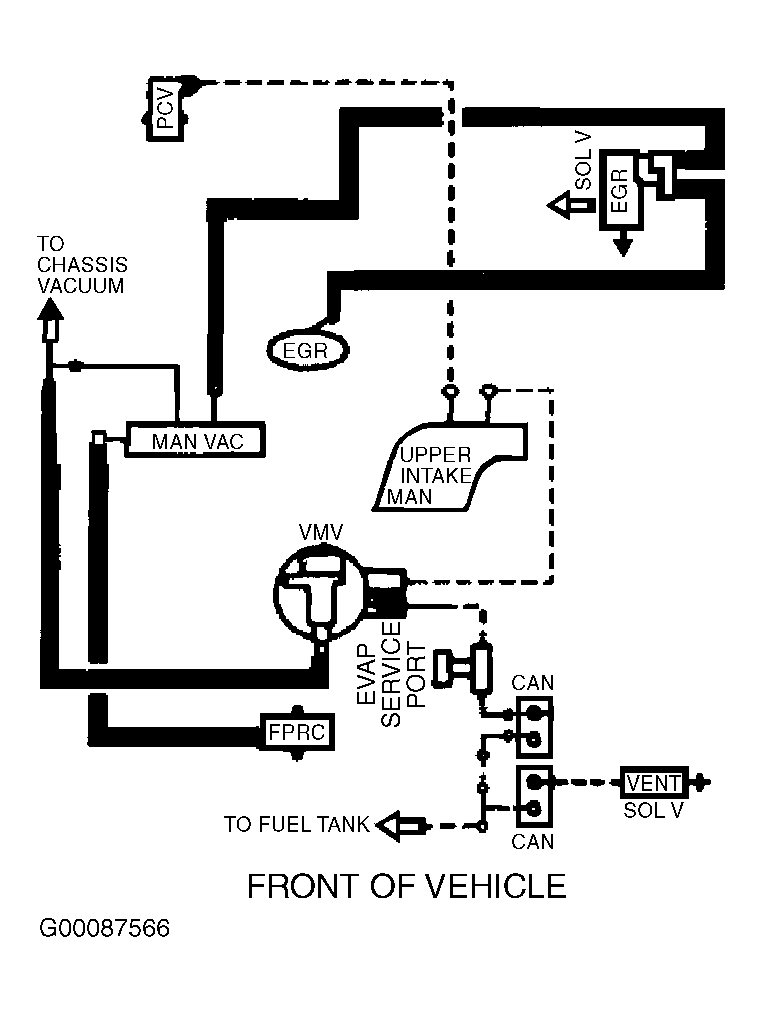

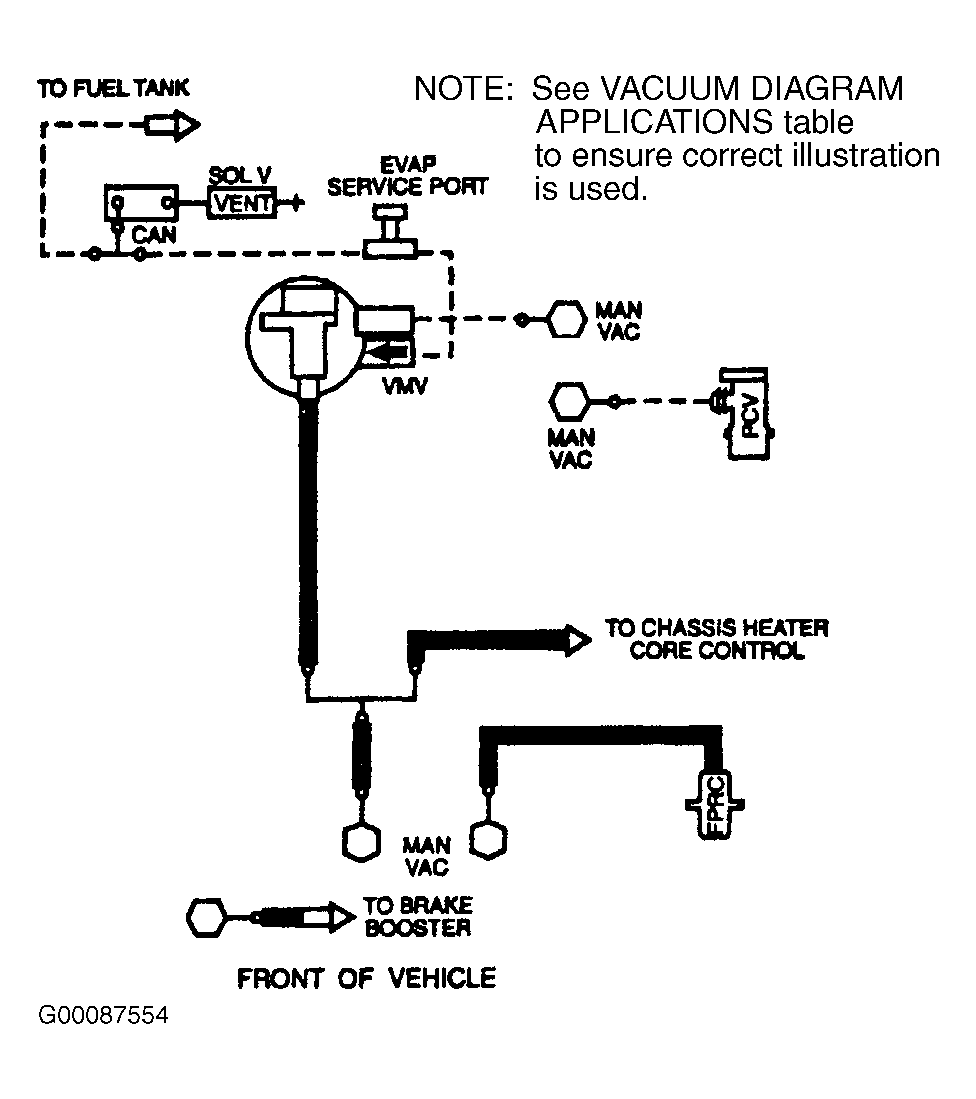

Fig 8: Vacuum Diagram (Crown Victoria - 4.6L - Except Natural Gas & Grand Marquis & Town Car - 4.6L)

Courtesy of FORD MOTOR CO.

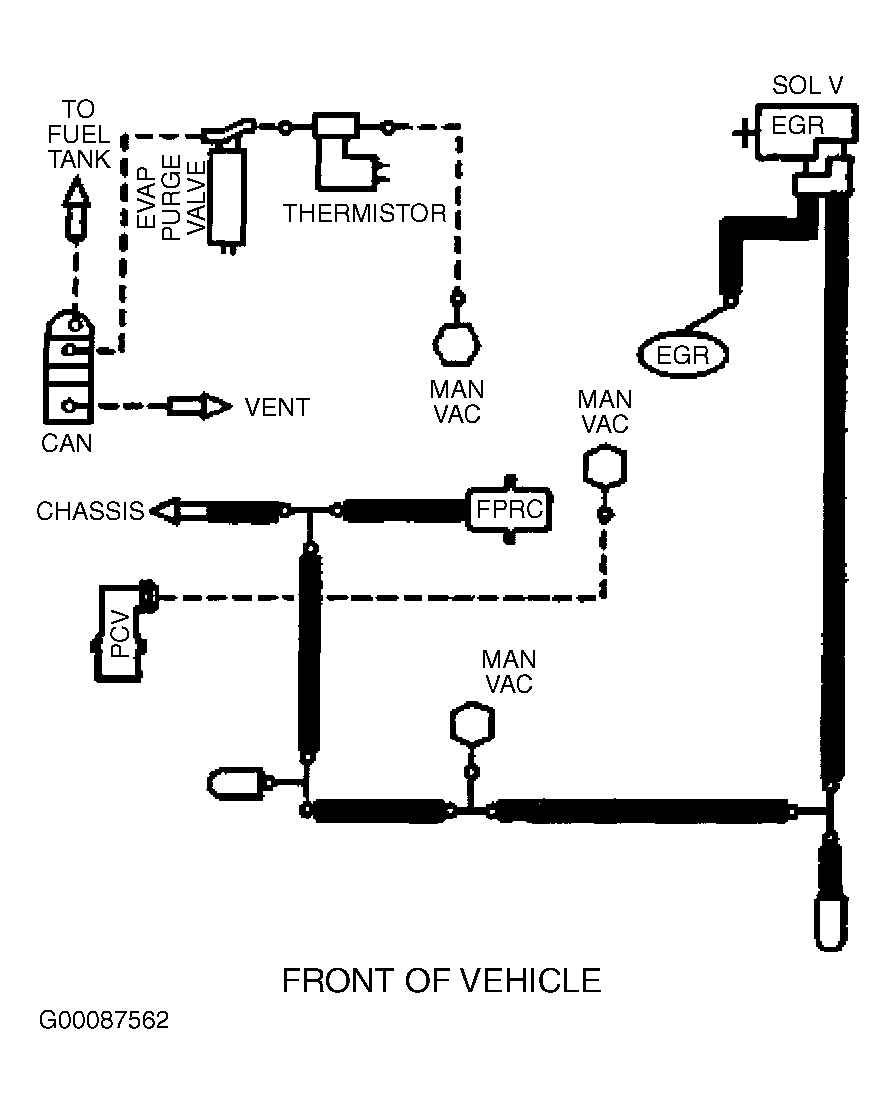

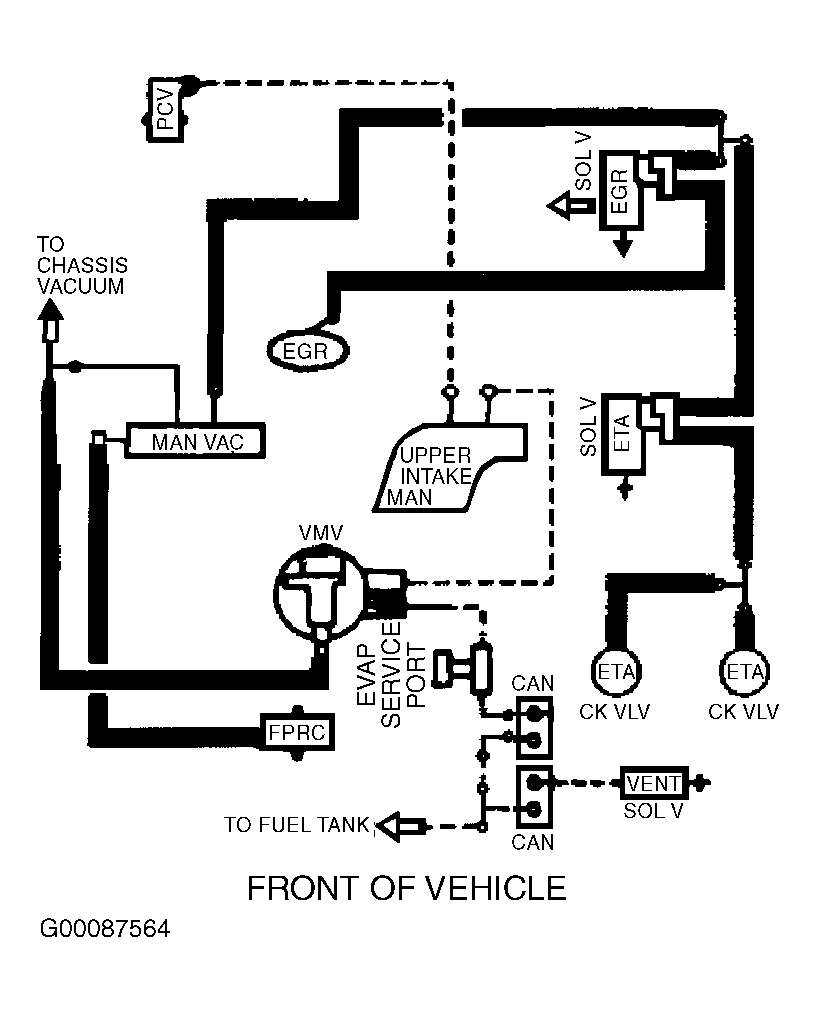

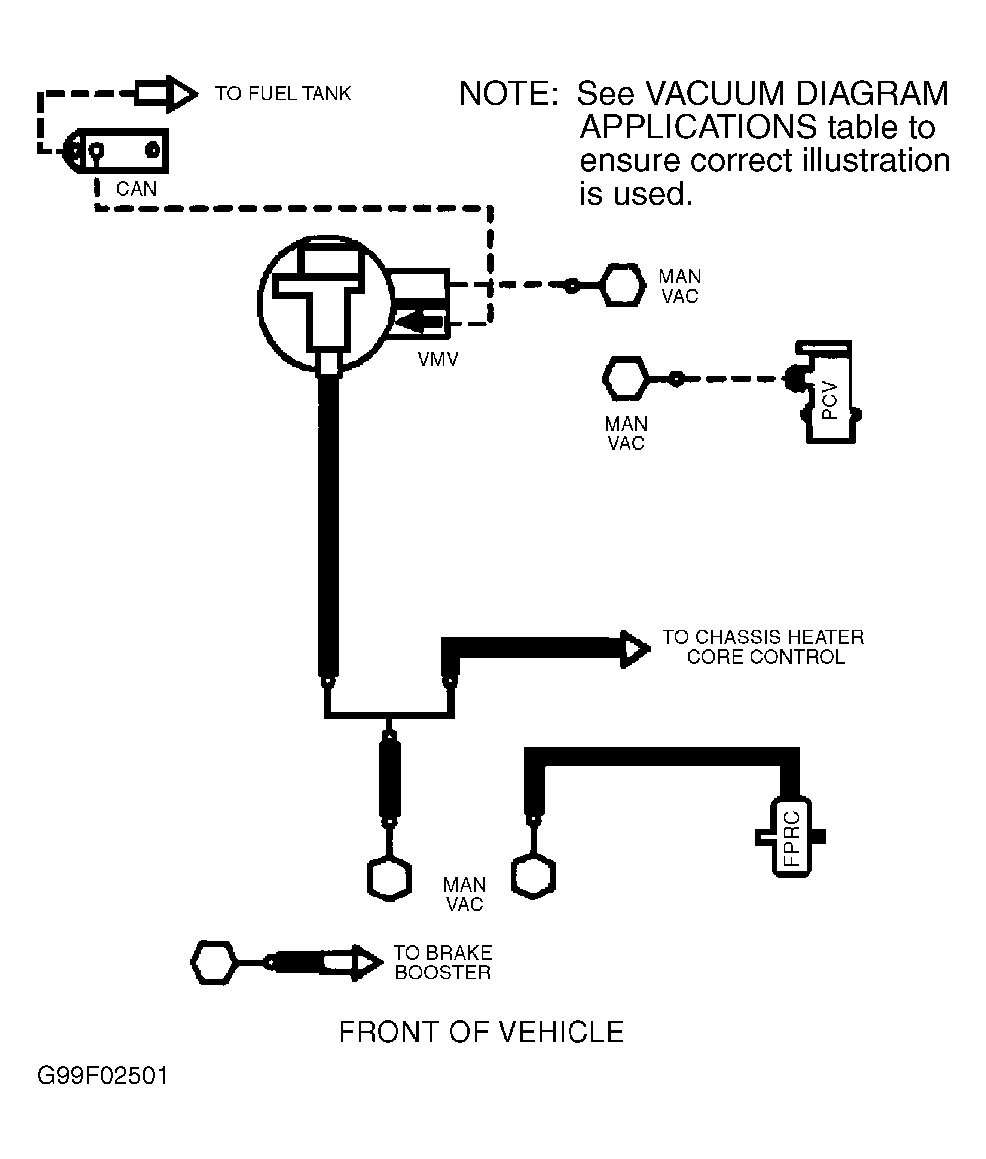

Fig 9: Vacuum Diagram (Crown Victoria - 4.6L - Natural Gas)

Courtesy of FORD MOTOR CO.

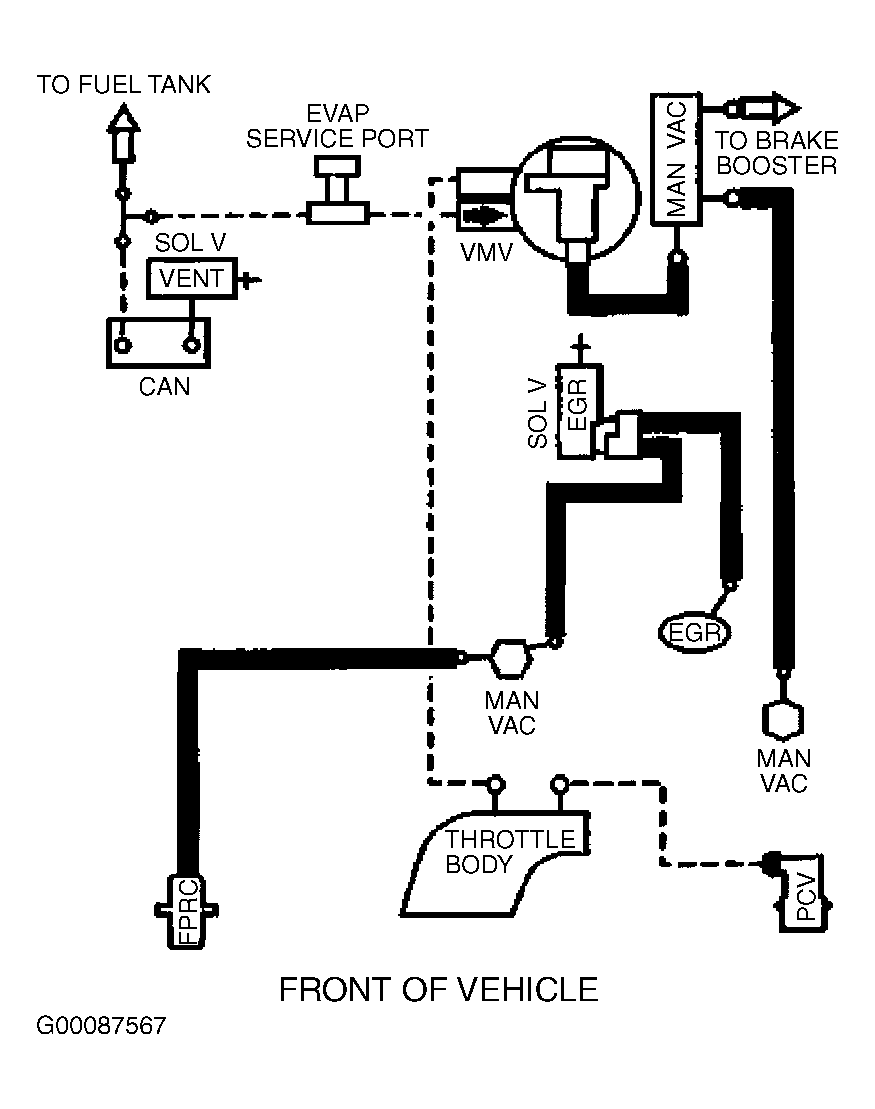

Fig 10: Vacuum Diagram (Escort & Tracer - 2.0L)

Courtesy of FORD MOTOR CO.

Fig 11: Vacuum Diagram (Mark VIII - 4.6L)

Courtesy of FORD MOTOR CO.

Fig 12: Vacuum Diagram (Mustang - 3.8L - Calibration No. 8-15P-R05 (JJV1) - Code BDL)

Courtesy of FORD MOTOR CO.

Fig 13: Vacuum Diagram (Mustang - 3.8L - Except Calibration No. 8-15P-R05 (JJV1) - Codes BAM & BDL)

Courtesy of FORD MOTOR CO.

Fig 14: Vacuum Diagram (Mustang - 3.8L - Calibration No. 8-15P-R05 (JJV1) - Code BAM)

Courtesy of FORD MOTOR CO.

Fig 15: Vacuum Diagram (Mustang - 4.6L - Except Cobra - California)

Courtesy of FORD MOTOR CO.

Fig 16: Vacuum Diagram (Mustang - 4.6L - Except Cobra - 49-States & 50-States)

Courtesy of FORD MOTOR CO.

Fig 17: Vacuum Diagram (Mustang - 4.6L Cobra)

Courtesy of FORD MOTOR CO.

Fig 18: Vacuum Diagram (Sable & Taurus - 3.0L OHV - Calibration Nos. 8-10T-R05 (XLH1) & 8-10T-R11 (WTT0) - Code BCS)

Courtesy of FORD MOTOR CO.

Fig 19: Vacuum Diagram (Sable & Taurus - 3.0L OHV - Calibration No. 8-10T-R11 (WTT0) - Code DDM)

Courtesy of FORD MOTOR CO.

Fig 20: Vacuum Diagram (Sable & Taurus - 3.0L OHV - Calibration Nos. 8-10A-R05 (TEJ1) & 8-10B-R05 (VKX1))

Courtesy of FORD MOTOR CO.

Fig 21: Vacuum Diagram (Sable & Taurus - 3.0L OHV - Calibration Nos. 8-10A-R11 (SRR0) & 8-10B-R11 (RPP0))

Courtesy of FORD MOTOR CO.

Fig 22: Vacuum Diagram (Sable & Taurus - 3.0L DOHC)

Courtesy of FORD MOTOR CO.

Fig 23: Vacuum Diagram (Taurus - 3.0L Flex-Fuel - Calibration No. 8-10C-R05 (BFT1))

Courtesy of FORD MOTOR CO.

Fig 24: Vacuum Diagram (Taurus - 3.0L Flex-Fuel - Calibration No. 8-10G-R05 (CJE1))

Courtesy of FORD MOTOR CO.

Fig 25: Vacuum Diagram (Taurus - 3.4L SHO)

Courtesy of FORD MOTOR CO.
