Firing Order & Timing Marks

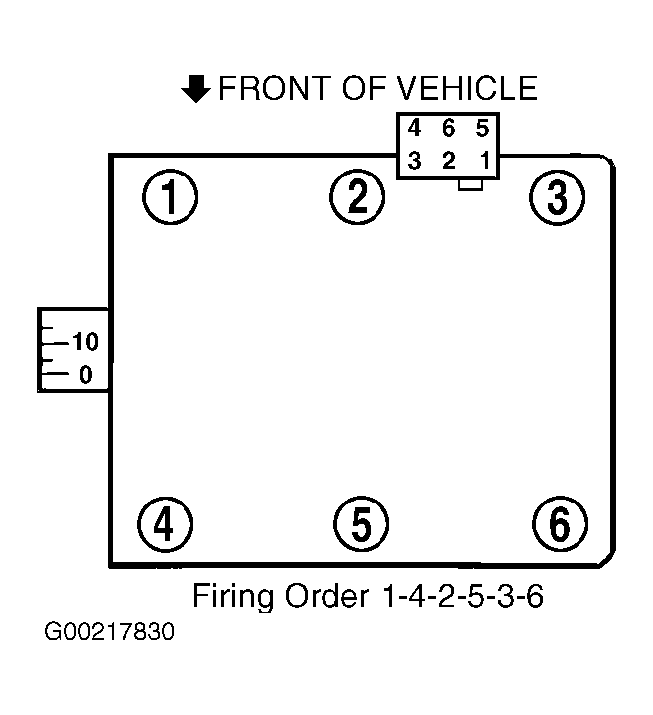

Fig 1: Identifying Firing Order & Timing Marks
G00217830

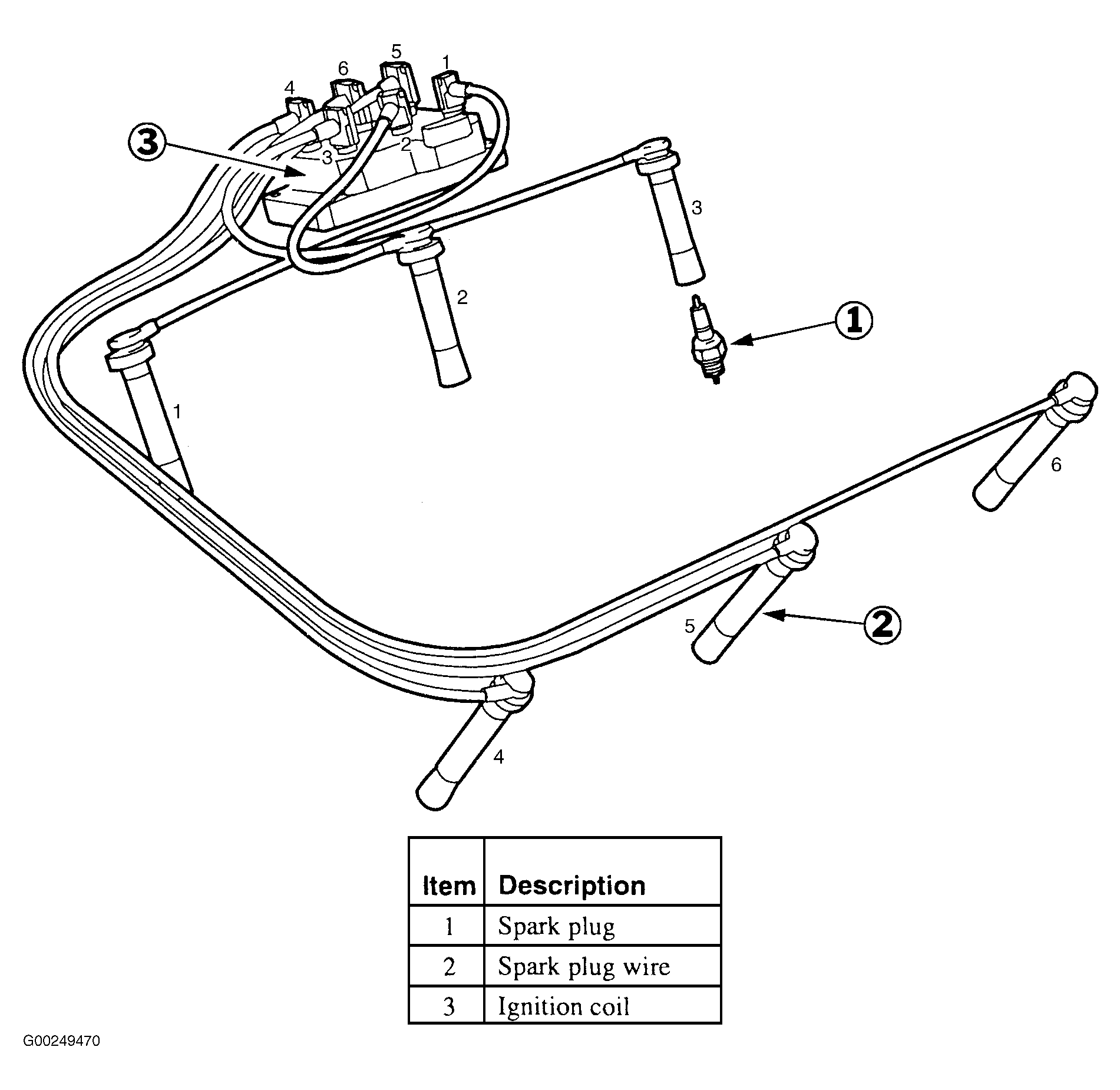

Fig 2: Identifying Spark Plug Wire Routing
G00249470Courtesy of FORD MOTOR CO.
