Vehicle Calibration

Vacuum diagrams are identified by calibration code. Use the Emission Calibration Label to identify calibration. Calibration label is attached to left door or left door pillar. See Fig 1 . Use calibration code to select vacuum diagram.

NOTE: Vacuum diagrams for calibrations not shown are not available from manufacturer.

Fig 1: Identifying Emission Calibration Label

Courtesy of FORD MOTOR CO.

VACUUM DIAGRAM APPLICATIONS

Application & Calibration Codes ⁽¹⁾

See

Expedition

4.6L

8-48J-R05 (LZO1), 8-48J-R10 (LZO2), 8-48U-R05 (MTT1), 8-48U-R10 (MTT2)

Fig 2

5.4L

8-46F-R05 (VXX1), 8-46F-R10 (VXX2), 8-46U-R05 (WNI1), 8-46U-R10 (WNI2)

Fig 3

Explorer

4.0L - Except 4.0L SOHC

8-57B-R05 (ZZD1), 8-57R-R05 (AQM1), 8-58B-R05 (PPG1), 8-58R-R05 (XRL1)

Fig 4

4.0L SOHC

8-58C-R05 (BEA1), 8-58C-R10 (BAE2), 8-58V-R05, 8-58V-R10 (CJJ2)

Fig 5

5.0L

8-54G-R05 (NTR1), 8-54U-RO5 (PCC1)

Fig 6

F-150

4.2L

8-43E-R00 (XNB0), 8-43F-R05 (ZFT0), 8-43R-R00 (NHY0), 8-43S-R00 (SQW0), 8-44E-R05 (LYY1), 8-44F-R05 (MPO1), 8-44R-R05 (NLT1), 8-44S-R05 (POA1)

Fig 7

4.6L

8-48C-R05 (EGE1), 8-48D-R05 (FOU1), 8-48E-R05 (GDT1), 8-48Q-R05 (JLP1), 8-48R-R05 (JPL1), 8-48S-R05 (KHE1)

Fig 8

5.4L

8-46C-R00 (JLD2), 8-46D-R00 (JLD1), 8-46D-R10 (JLD2), 8-46E-R05 (HTL1), 8-46E-R10 (HTL2), 8-46G-R00 (HTL2), 8-46R-R05 (PDC1), 8-46R-R10 (PDC2), 8-46S-R00 (PDC2), 8-46T-R05 (TOZ1), 8-46T-R10 (EFG2), 8-46V-R00 (EGF2)

Fig 9

F-250

4.6L

7-47F-R05 (BQQ1), 7-47G-R05 (DYA1), 8-48F-R05 (TZO1), 8-48G-R05 (BSQ1), 8-48P-R05 (CLT1), 8-48T-R05 (DZY1)

Fig 9

5.4L - Except Natural Gas

8-46T-R05 (TOZ1), 8-46T-R10 (EFG2)

Fig 9

5.4L Natural Gas

7-46W-R05 (KLX1)

Fig 10

Mountaineer

4.0L SOHC

8-58C-R05 (BEA1), 8-58C-R10 (BAE2), 8-58V-R05 (CJJ2), 8-58V-R10 (CJJ2)

Fig 5

5.0L

8-54G-R05 (NTR1), 8-54U-RO5 (PCC1)

Fig 6

Navigator

5.4L

7-46U-R10 (GZA4), 8-46F-R05 (VXX1), 8-46F-R10 (VXX2), 8-46U-R05 (WNI1), 8-46U-R10 (WNI2)

Fig 3

Ranger

2.5L

8-49A-R06 (FLH2), 8-49T-R06 (BLC2), 8-50A-R05 (CNP1), 8-50T-R06 (DUU2)

Fig 11

3.0L

8-55F-R05 (EFA1), 8-55H-R05 (FLQ1), 8-55R-R05 (GTA1), 8-55S-R05 (HND1), 8-56F-R05 (JCT1), 8-56F-R15 (BPE0), 8-56H-R05 (KKL1), 8-56H-R15 (CVV0), 8-56R-R05 (LLJ1), 8-56R-R15 (DGG0), 8-56S-R05 (MPZ1), 8-56S-R15 (EMR0)

Fig 12

4.0L

8-57F-R05 (NCA1), 8-57F-R10 (NCA2), 8-57H-R05 (PTO1), 8-57H-R10 (PTO2), 8-57S-R05 (RRL1), 8-57S-R10 (RRL2), 8-57T-R05 (SHH1), 8-57T-R10 (SHH2), 8-58F-R06 (TJT2), 8-58F-R15 (FFP0), 8-58H-R06 (VVQ2), 8-58H-R15 (XRR0), 8-58S-R06 (XCC2), 8-58S-R15 (HRE0), 8-58T-R06 (YLB2), 8-58T-R15 (JYP0)

Fig 13

Super Duty

Pickup

7.0L Gasoline

5-87B-00, 5-87H-00, 5-88B-00, 5-88H-00

Fig 14

7.0L LPG

5-57L-00, 5-87L-00

Fig 15

Van

4.2L

8-44J-R05 (DTA1), 8-44K-R05 (EEC2), 8-44K-R10 (EEC2), 8-44L-R05 (FGG1), 8-44M-R05 (HSS1), 8-44M-R05 (RII1), 8-44M-R10 (HSS2), 8-44T-R05 (JJR1), 8-44U-R05 (ZLD1), 8-44U-R10 (ZLD2)

Fig 16

8-44R-R05 (NLT1)

Fig 7

4.6L

8-48W-R05 (SYY1)

Fig 2

5.4L - Except Natural Gas

8-46K-R05 (RLM1), 8-46K-R10 (RLM2), 8-46Q-R05 (ANQ1), 8-46Q-R10 (ANQ2), 8-74C-R05 (BRR1) - Code BZM, 8-74C-R10 (BRR2) - Code BZM, 8-74S-R05 (CVQ1), 8-74S-R05 (CVQ2), 8-74U-R05 (EYT1), 8-74U-R10 (EYT2), 8-74V-R05 (FSS1), 8-74V-R10 (FSS2)

Fig 17

8-74C-R05 (BRR1) - Code DAU, 8-74C-R10 (BRR2) - Code DAU, 8-74T-R05 (DWW1), 8-74T-R10 (DWW2)

Fig 18

5.4L Natural Gas

7-46N-R05 (RST1)

Fig 10

6.8L

8-96E-R05 (WOM1) - Codes BAD & BSF, 8-96E-R05 (WOM2) - Codes BAD & BSF, 8-96T-R05, 8-96T-R10, 8-96W-R05 (ZJZ1), 8-96W-R10 (ZJZ2), 8-96Y-R05 (NNT0)

Fig 19

8-96E-R05 (WOM1) - Code DAP, 8-96E-R05 (WOM2) - Code DAP, 8-96J-R05 (XTT1), 8-96X-R05 (VOO1), 8-96X-R10 (V002)

Fig 20

7.3L Turbo Diesel

8-90N-R10, 8-90N-R11, 9-DTA-BAF

⁽²⁾

Villager

3.0L

⁽²⁾

Windstar

3.0L

8-56K-R06, 8-56K-R10, 8-56K-R11, 8-56K-R17, 8-56K-R18 (EPT3), 8-56P-R06 (GLG3), 8-56P-R10 (GLG4), 8-56Q-R05, 8-56Q-R17, 8-56Q-R18 (FGA3)

Fig 21

3.8L

8-62J-R06, 8-62J-R11, 8-62J-R12, 8-62J-R17, 8-62J-R18 (FRZ3), 8-62K-R06, 8-62K-R11, 8-62K-R12, 8-62K-R17, 8-62K-R18 (FLB3), 8-62P-R05, 8-62P-R17, 8-62P-R18 (GLC3), 8-62Q-R05, 8-62Q-R17, 8-62Q-R18 (FTC3), 8-62S-R06, 8-62S-R11, 8-62T-R06, 8-62T-R11

Fig 22

⁽¹⁾	Code within parentheses is new coding sequence for revision level information beginning in 1999 by Ford Motor Co.

⁽²⁾	Information not available from manufacturer.

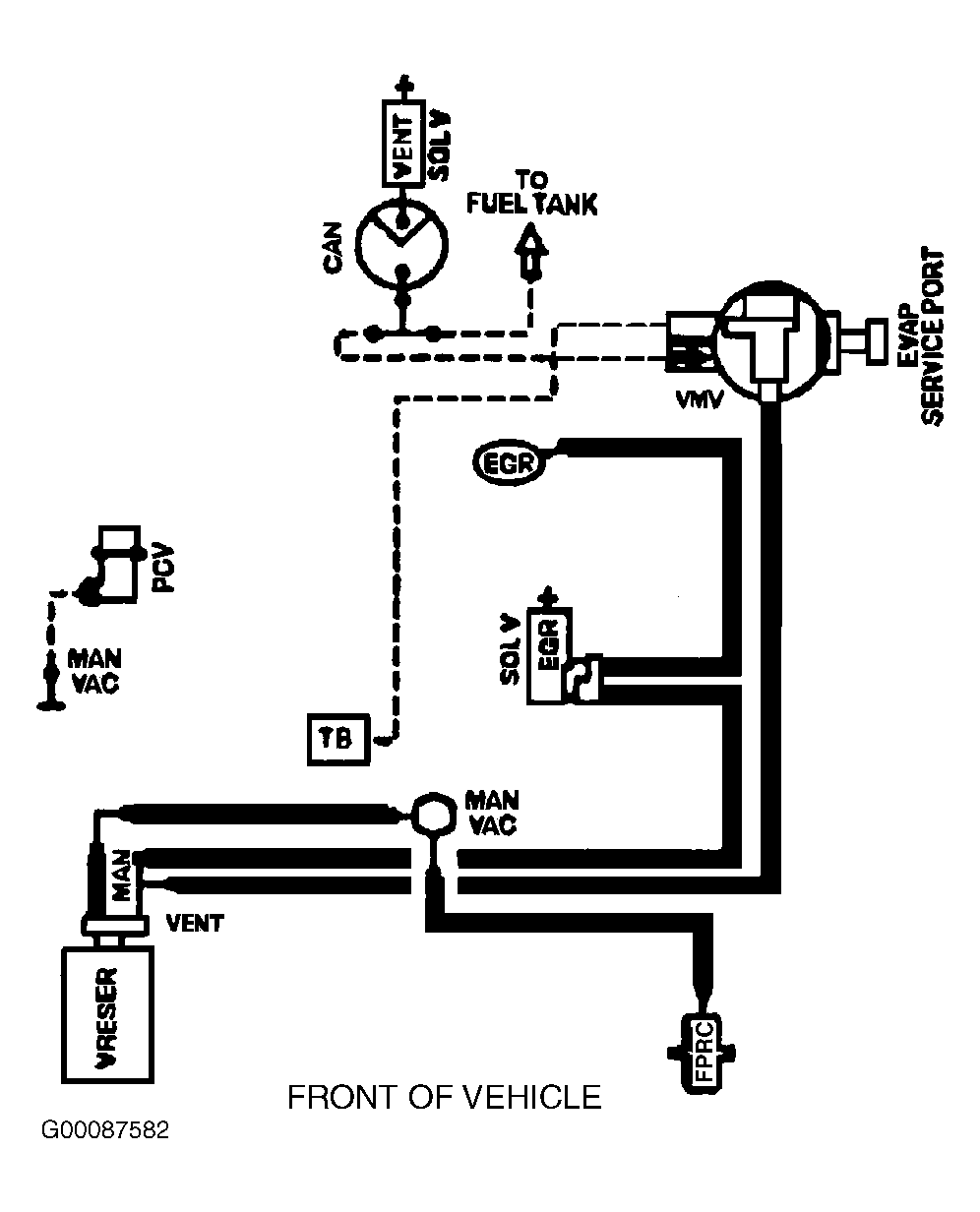

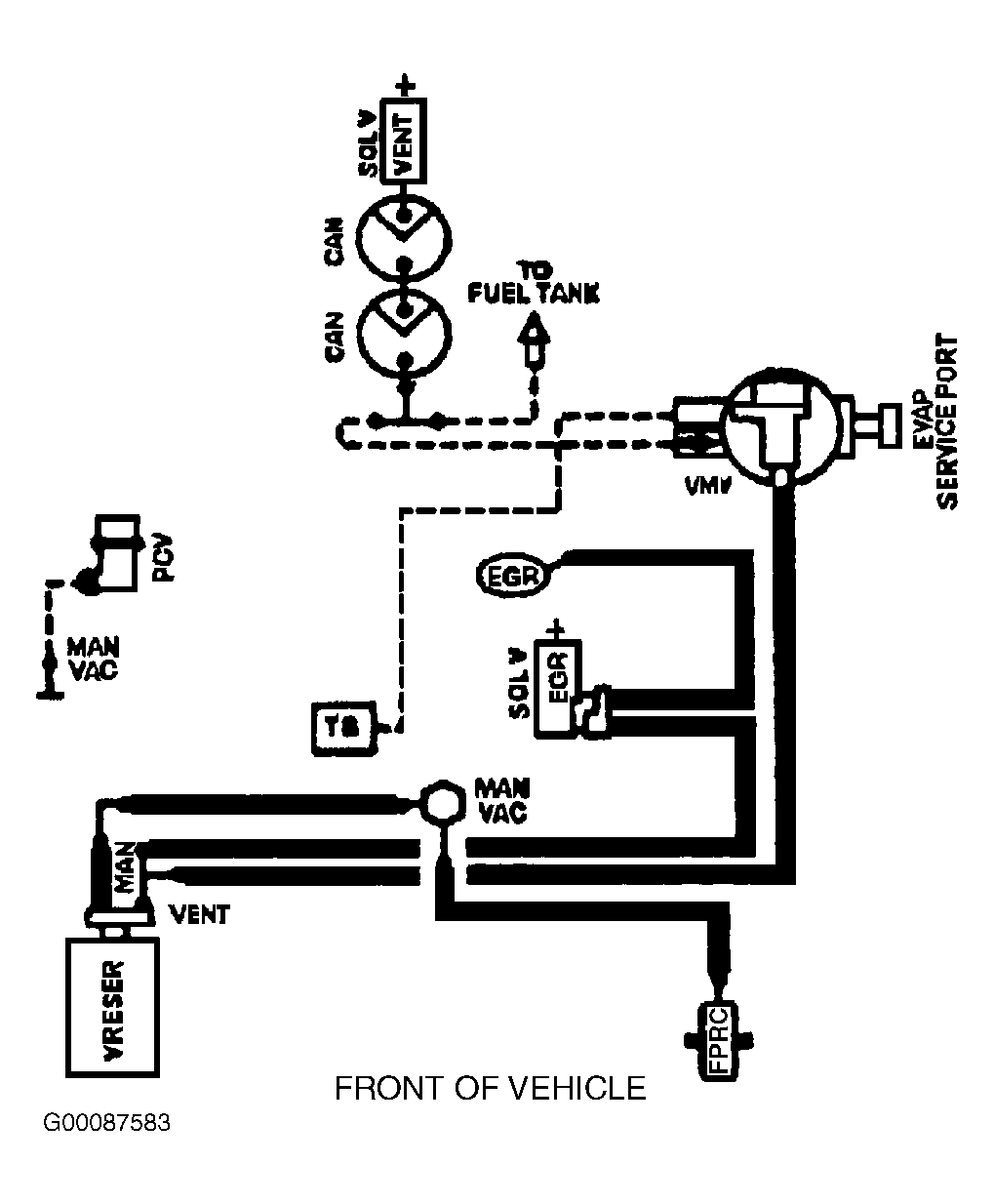

Fig 2: Vacuum Diagram (Expedition & Van - 4.6L)

Courtesy of FORD MOTOR CO.

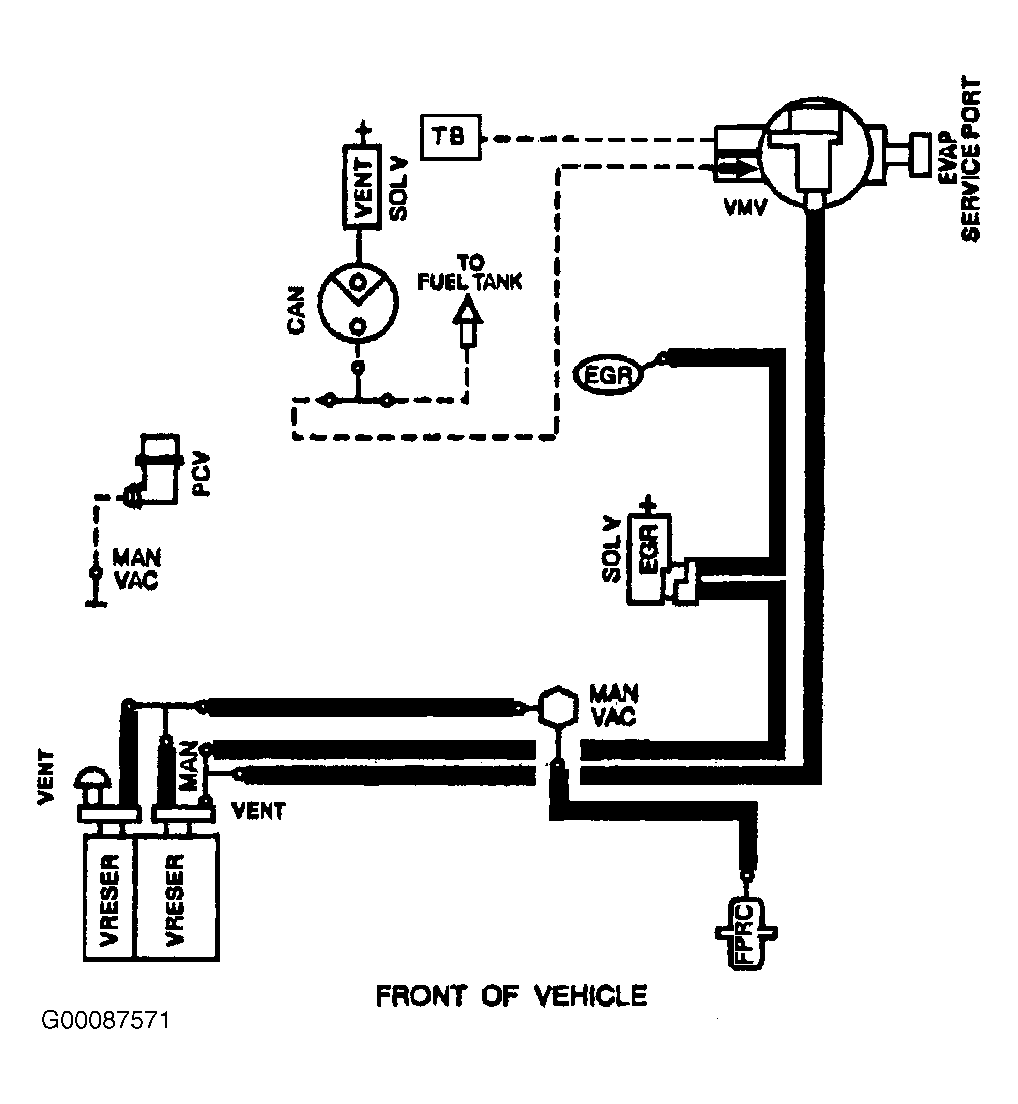

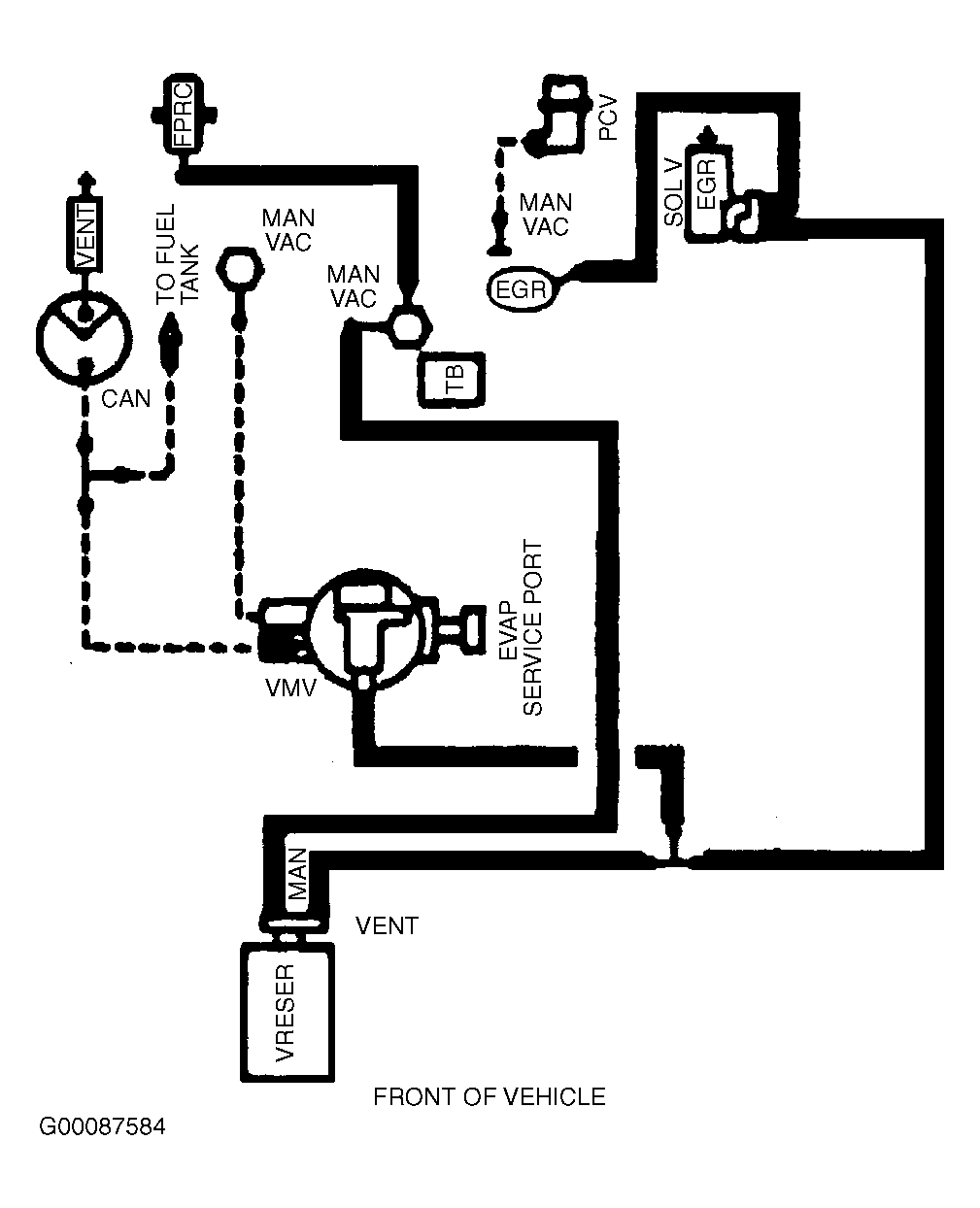

Fig 3: Vacuum Diagram (Expedition & Navigator - 5.4L)

Courtesy of FORD MOTOR CO.

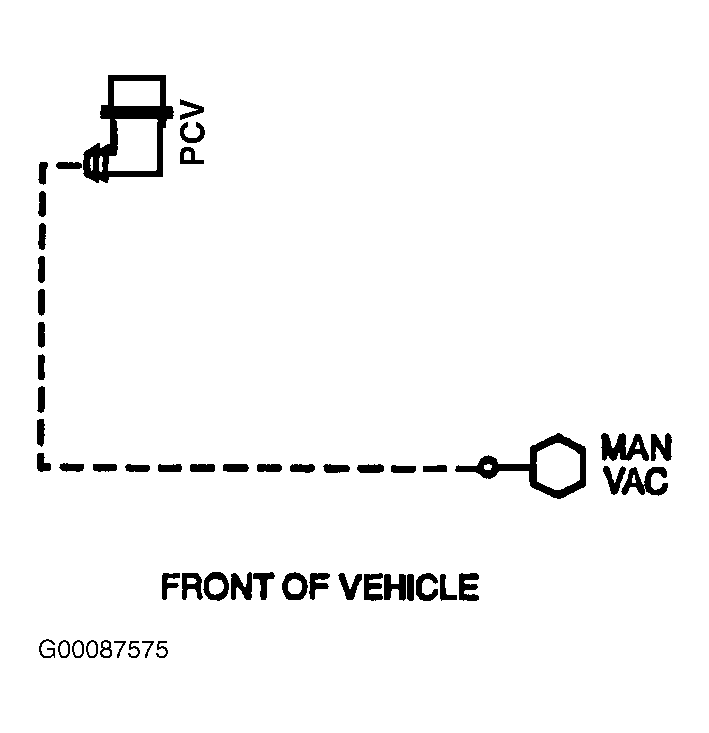

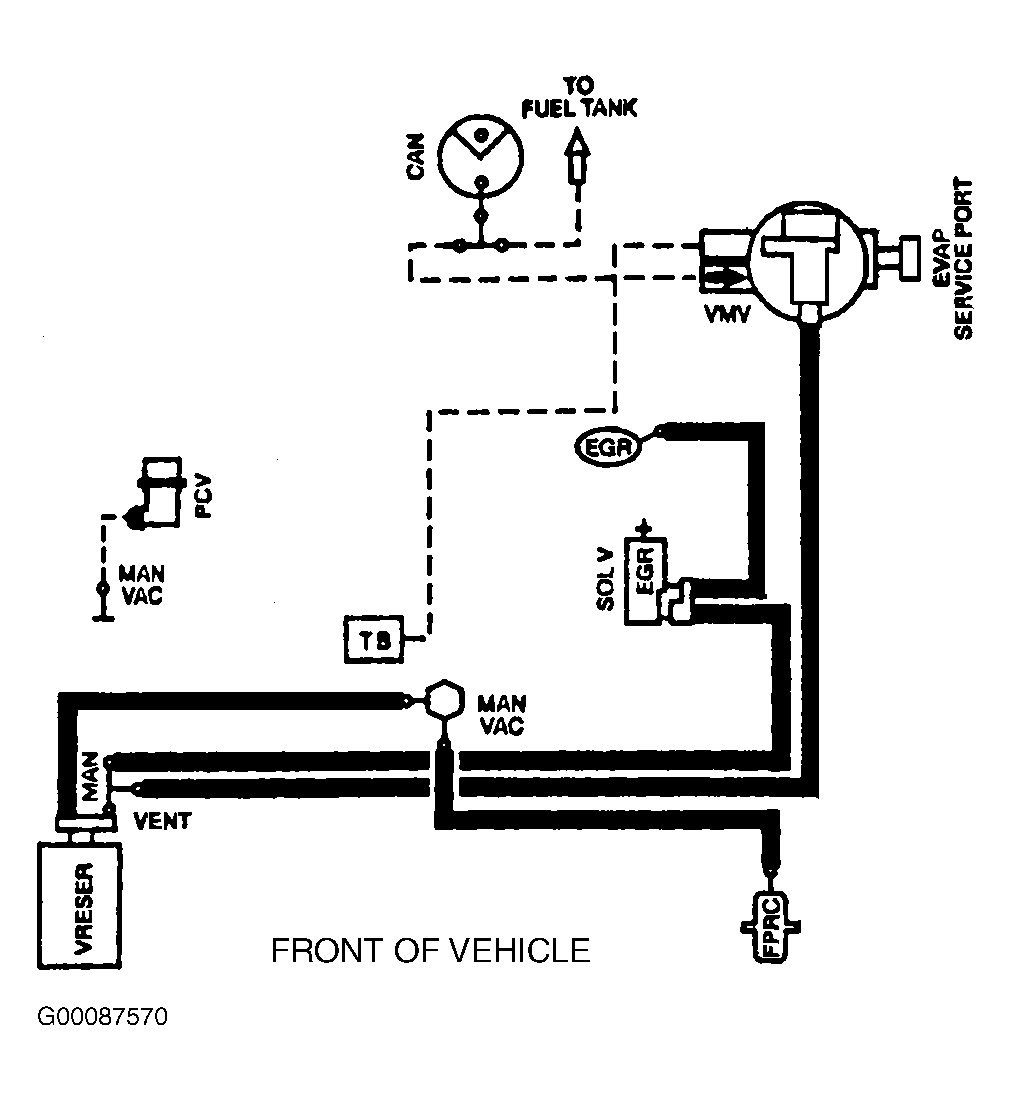

Fig 4: Vacuum Diagram (Explorer - 4.0L - Except 4.0L SOHC)

Courtesy of FORD MOTOR CO.

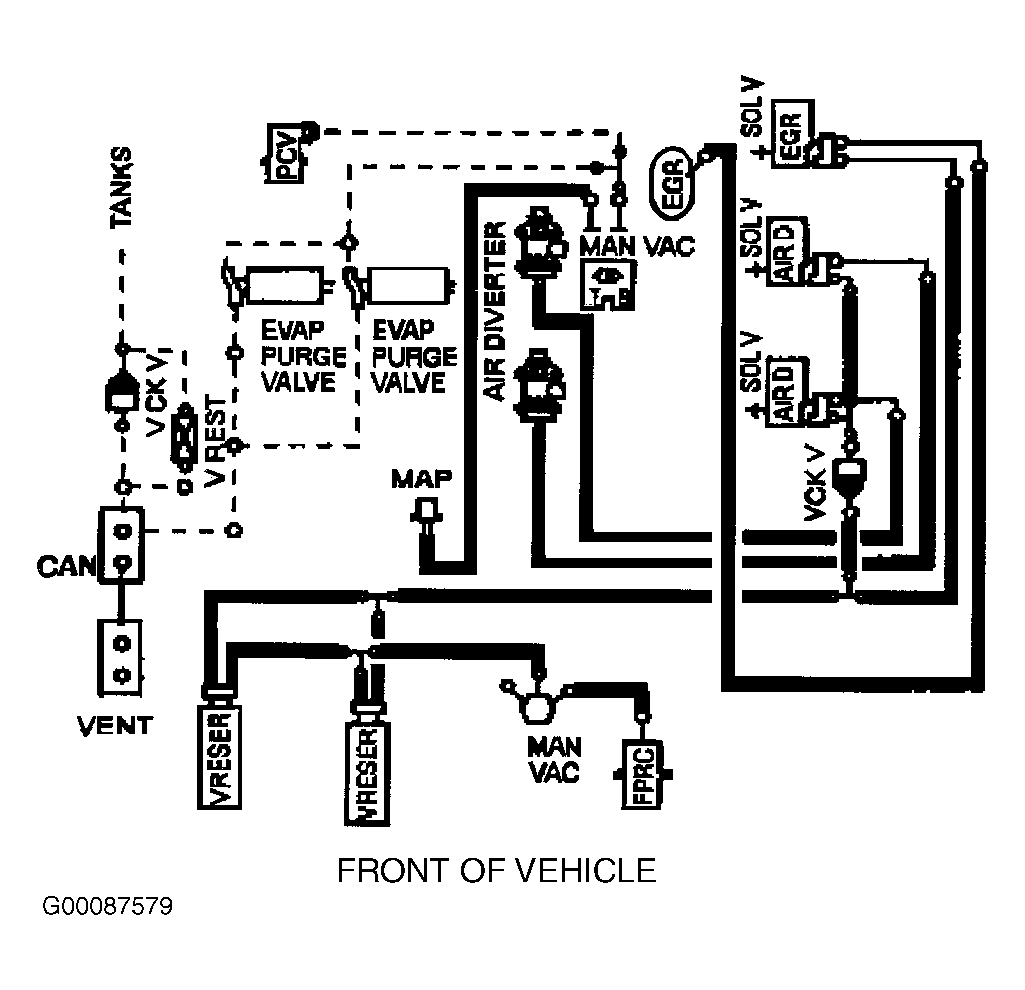

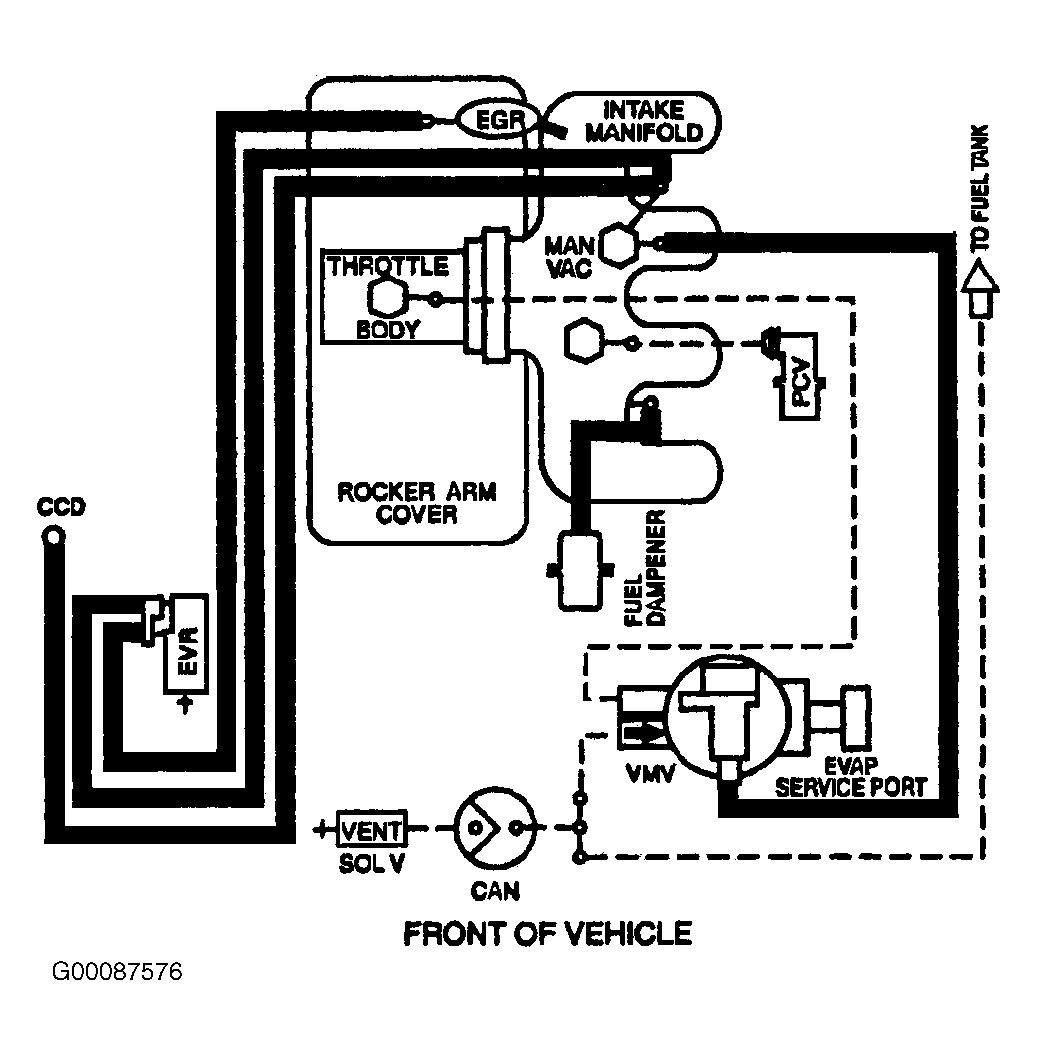

Fig 5: Vacuum Diagram (Explorer & Mountaineer - 4.0L SOHC)

Courtesy of FORD MOTOR CO.

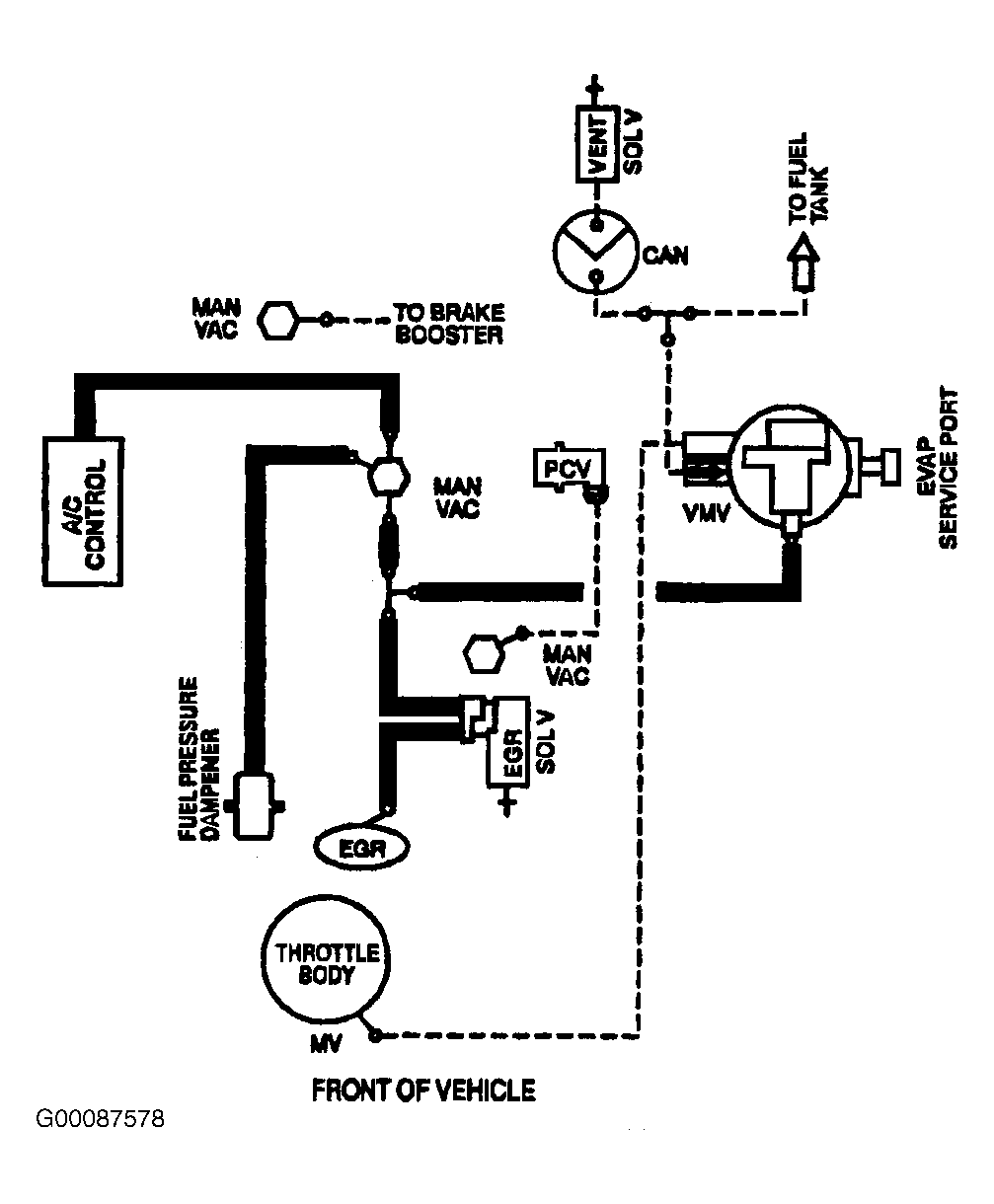

Fig 6: Vacuum Diagram (Explorer & Mountaineer - 5.0L)

Courtesy of FORD MOTOR CO.

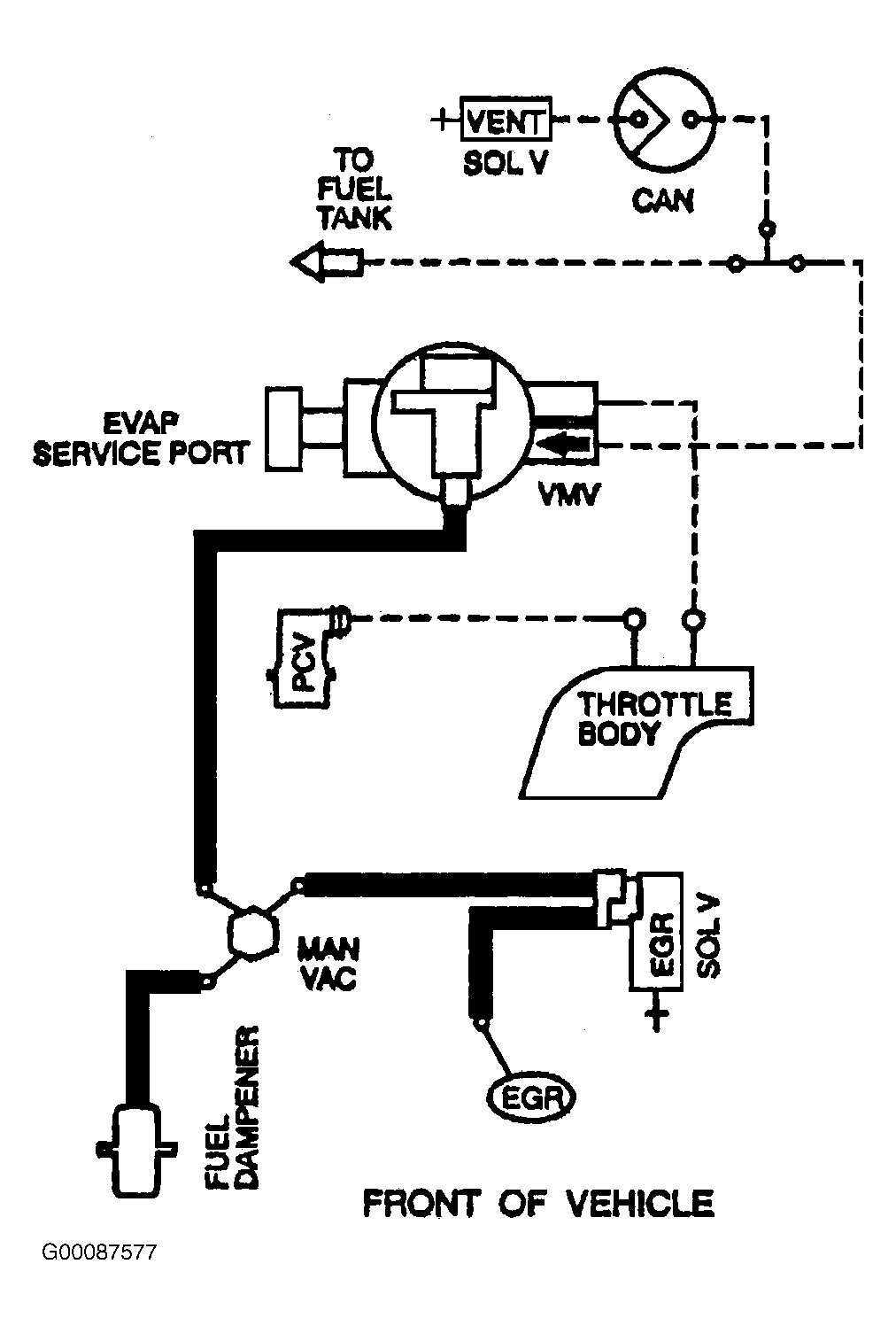

Fig 7: Vacuum Diagram (F-150 & Van - Calibration No. 8-44R-R05 (NLT1) - 4.2L)

Courtesy of FORD MOTOR CO.

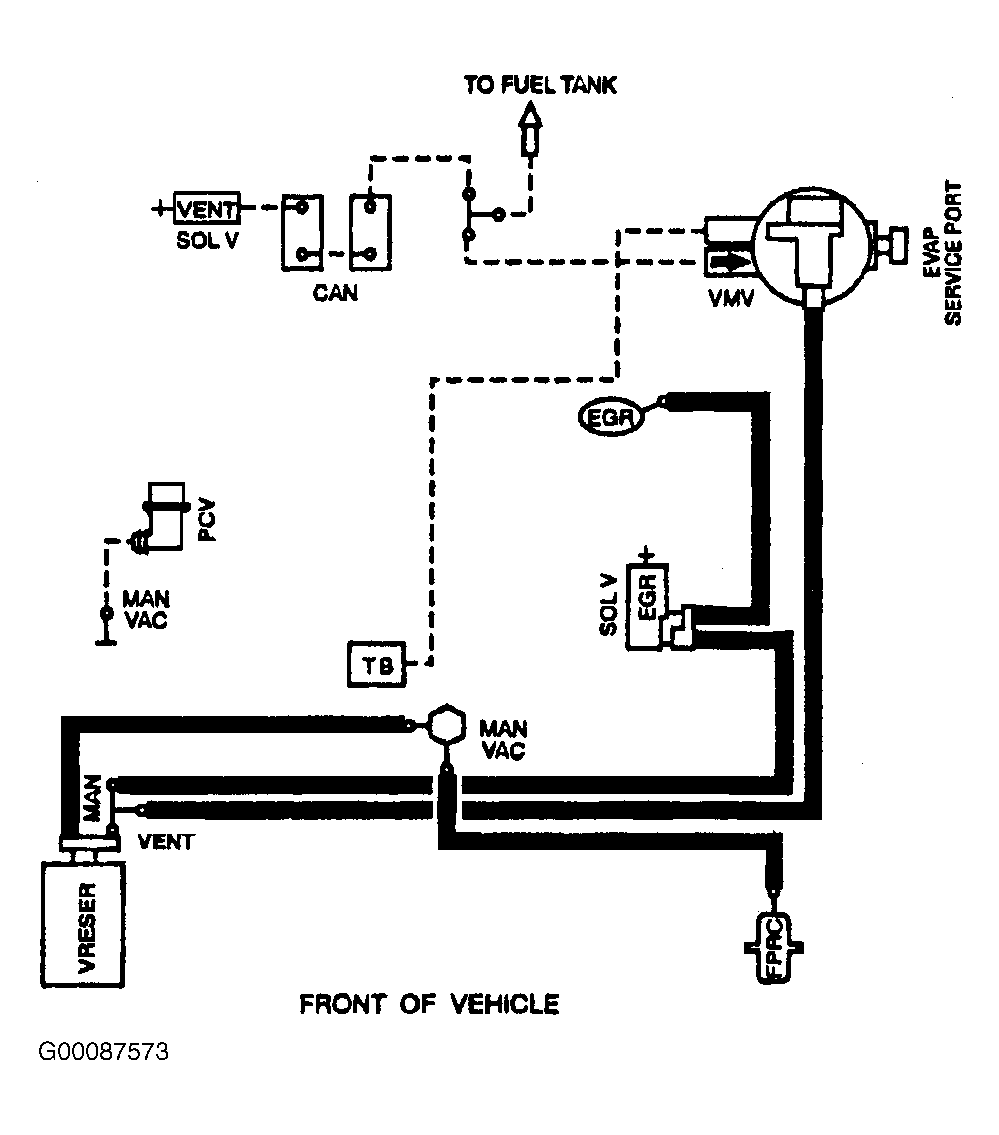

Fig 8: Vacuum Diagram (F-150 - 4.6L)

Courtesy of FORD MOTOR CO.

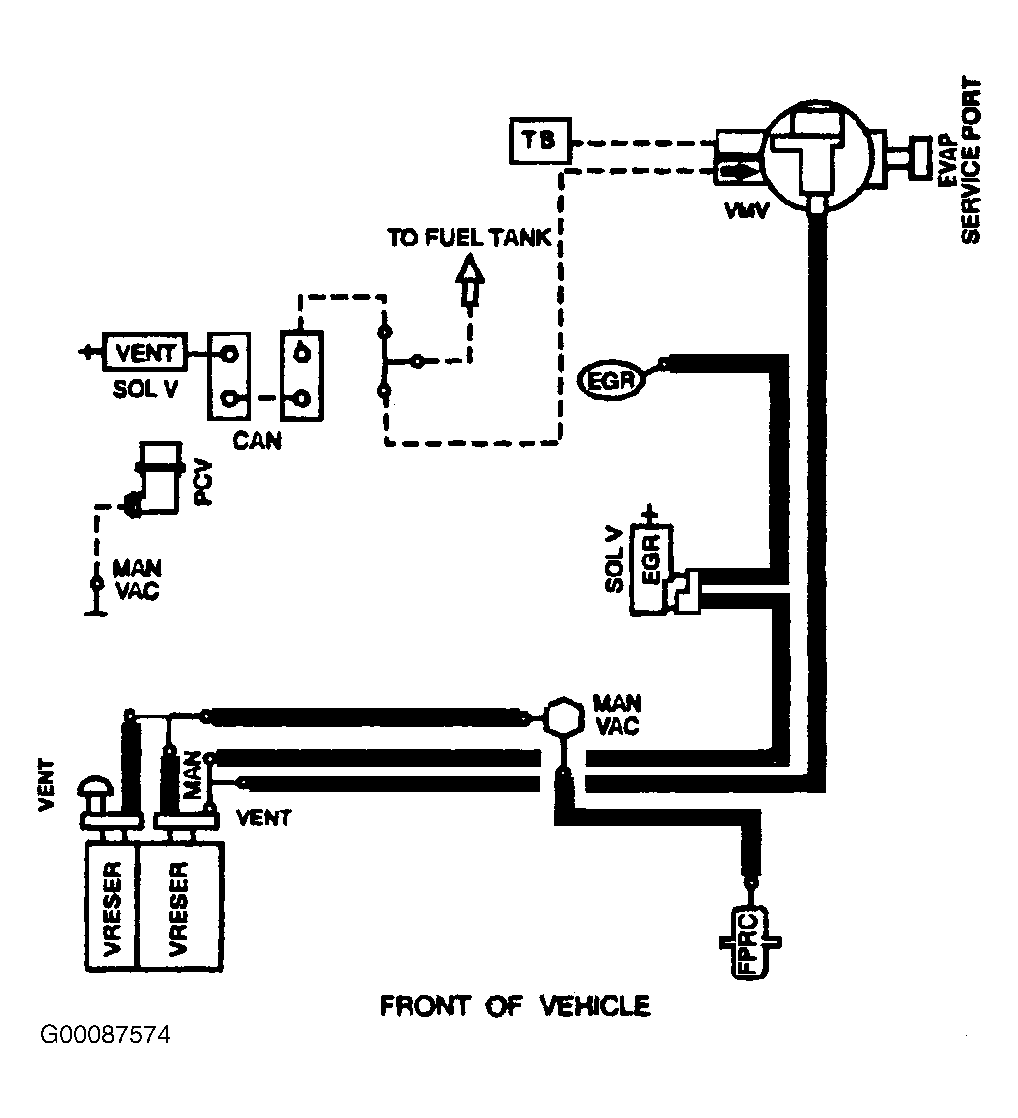

Fig 9: Vacuum Diagram (F-150 - 5.4L & F-250 - 4.6L & 5.4L - Except Natural Gas)

Courtesy of FORD MOTOR CO.

Fig 10: Vacuum Diagram (F-250 & Van - 5.4L Natural Gas)

Courtesy of FORD MOTOR CO.

Fig 11: Vacuum Diagram (Ranger - 2.5L)

Courtesy of FORD MOTOR CO.

Fig 12: Vacuum Diagram (Ranger - 3.0L)

Courtesy of FORD MOTOR CO.

Fig 13: Vacuum Diagram (Ranger - 4.0L)

Courtesy of FORD MOTOR CO.

Fig 14: Vacuum Diagram (Super Duty - Pickup - 7.0L Gasoline)

Courtesy of FORD MOTOR CO.

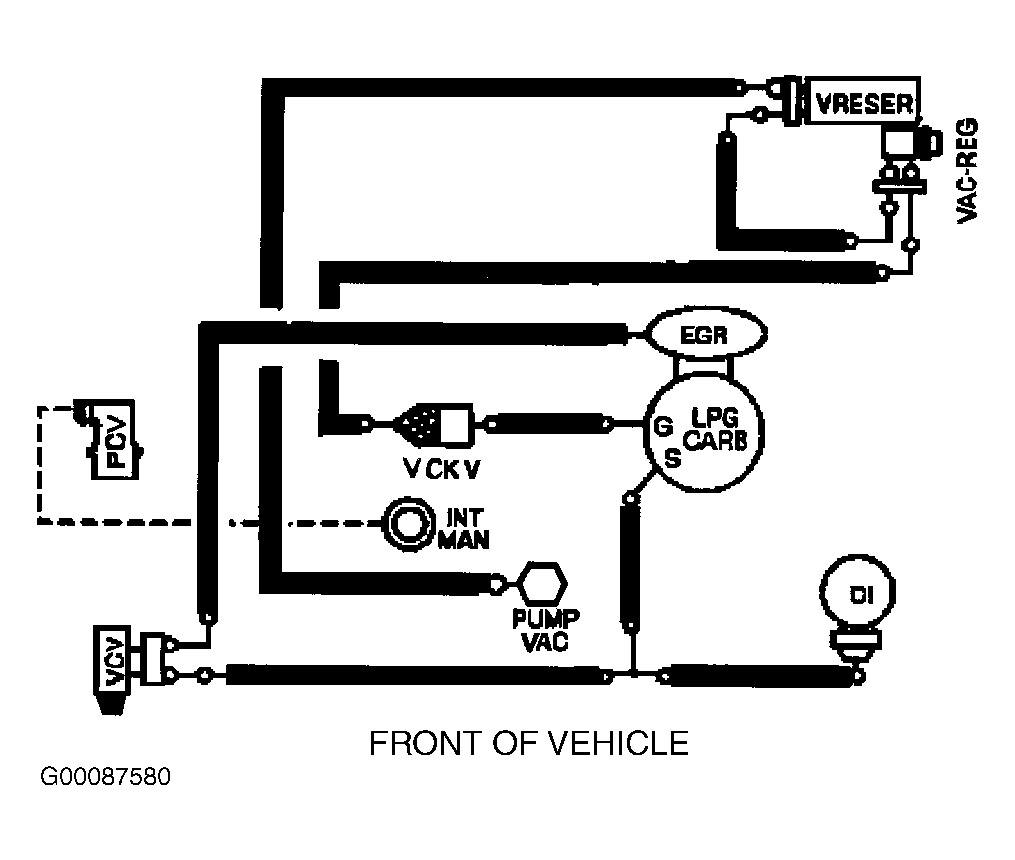

Fig 15: Vacuum Diagram (Super Duty - Pickup - 7.0L LPG)

Courtesy of FORD MOTOR CO.

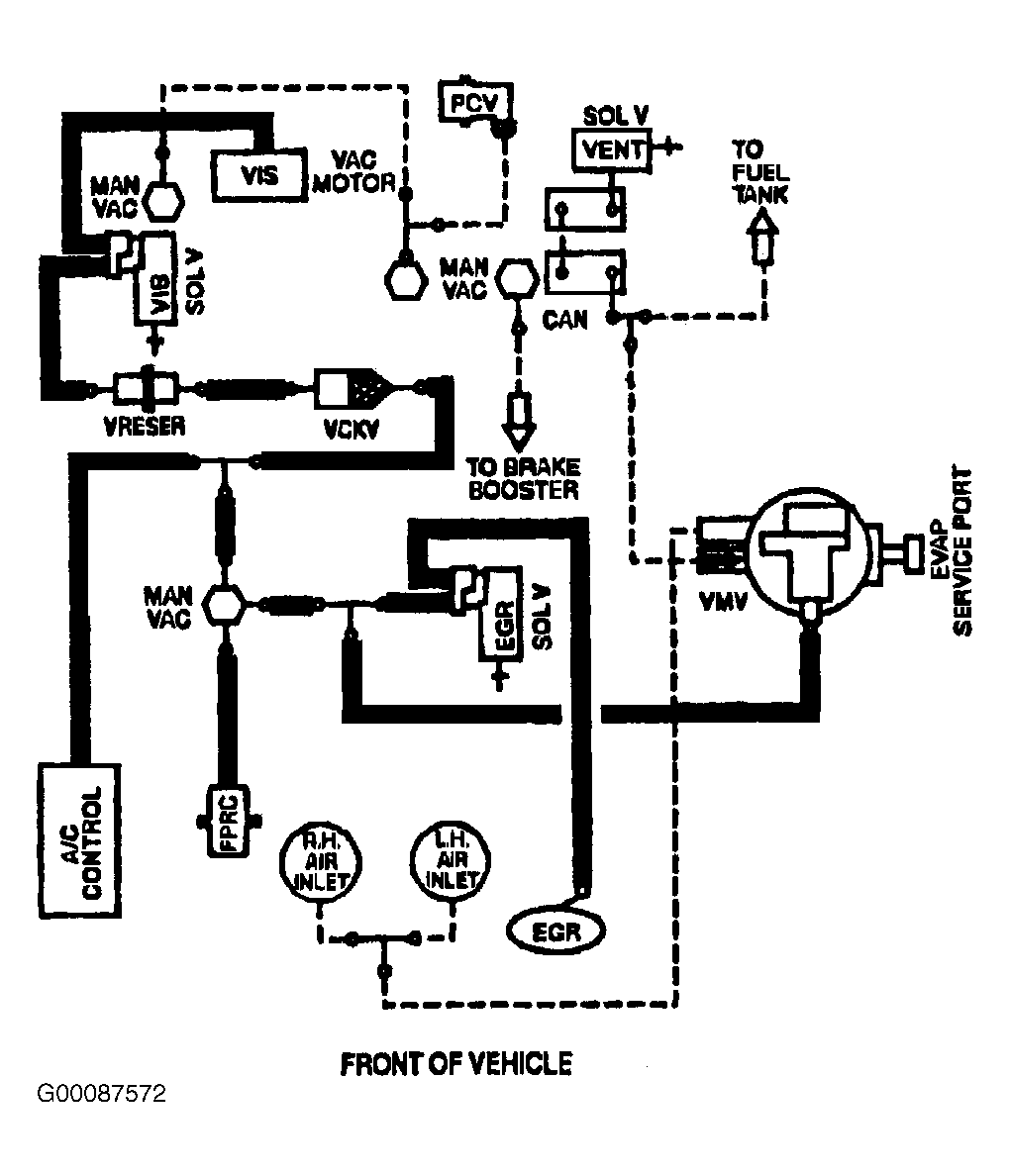

Fig 16: Vacuum Diagram (Van - 4.2L)

Courtesy of FORD MOTOR CO.

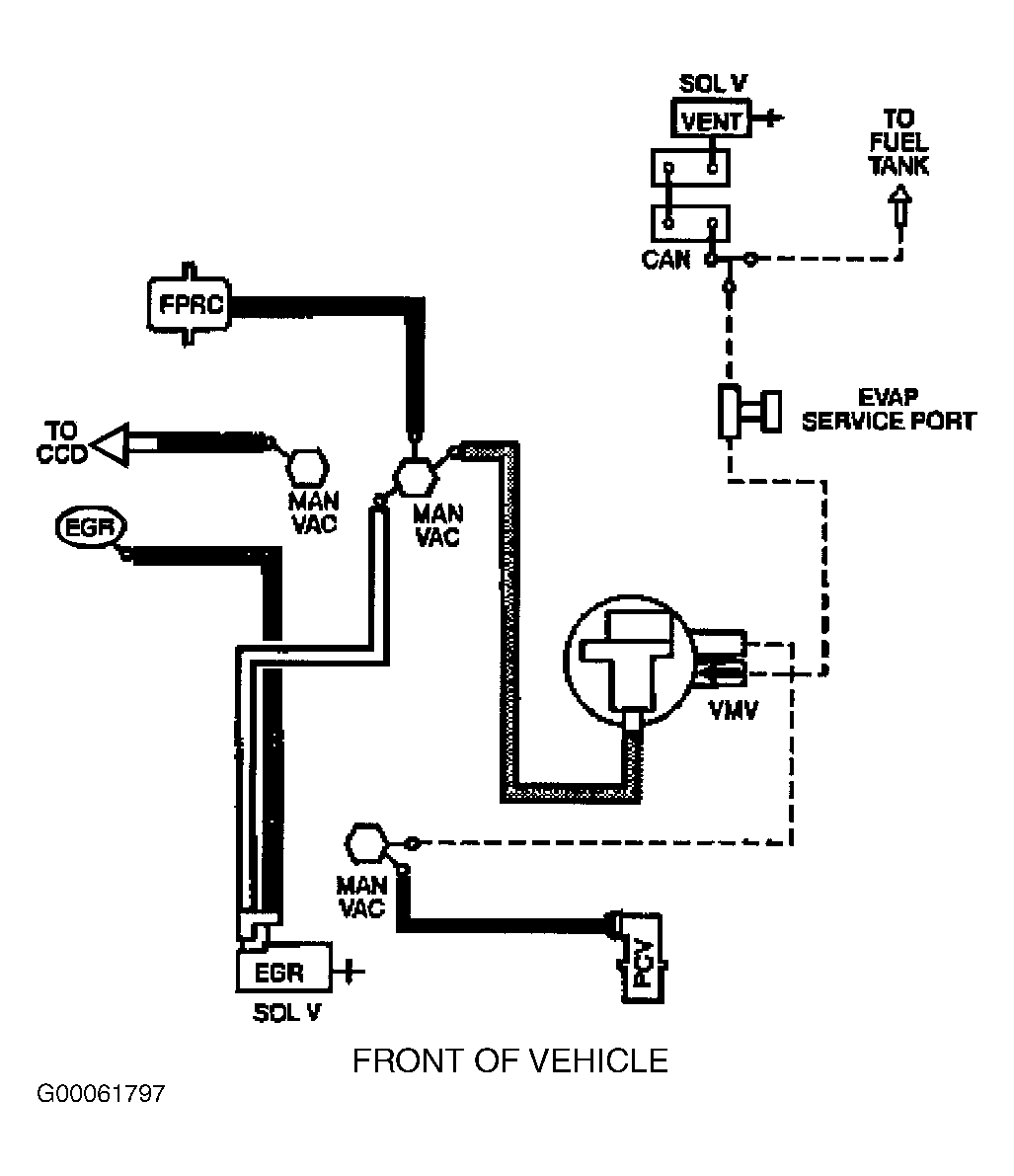

Fig 17: Vacuum Diagram (Van - 5.4L - Except Natural Gas - Except Calibration Nos. 8-74C-R05 (BRR1) - Code DAU, 8-74C-R10 (BRR2) - Code DAU, 8-74T-R05 (DWW1) & 8-74T-R10 (DWW2))

Courtesy of FORD MOTOR CO.

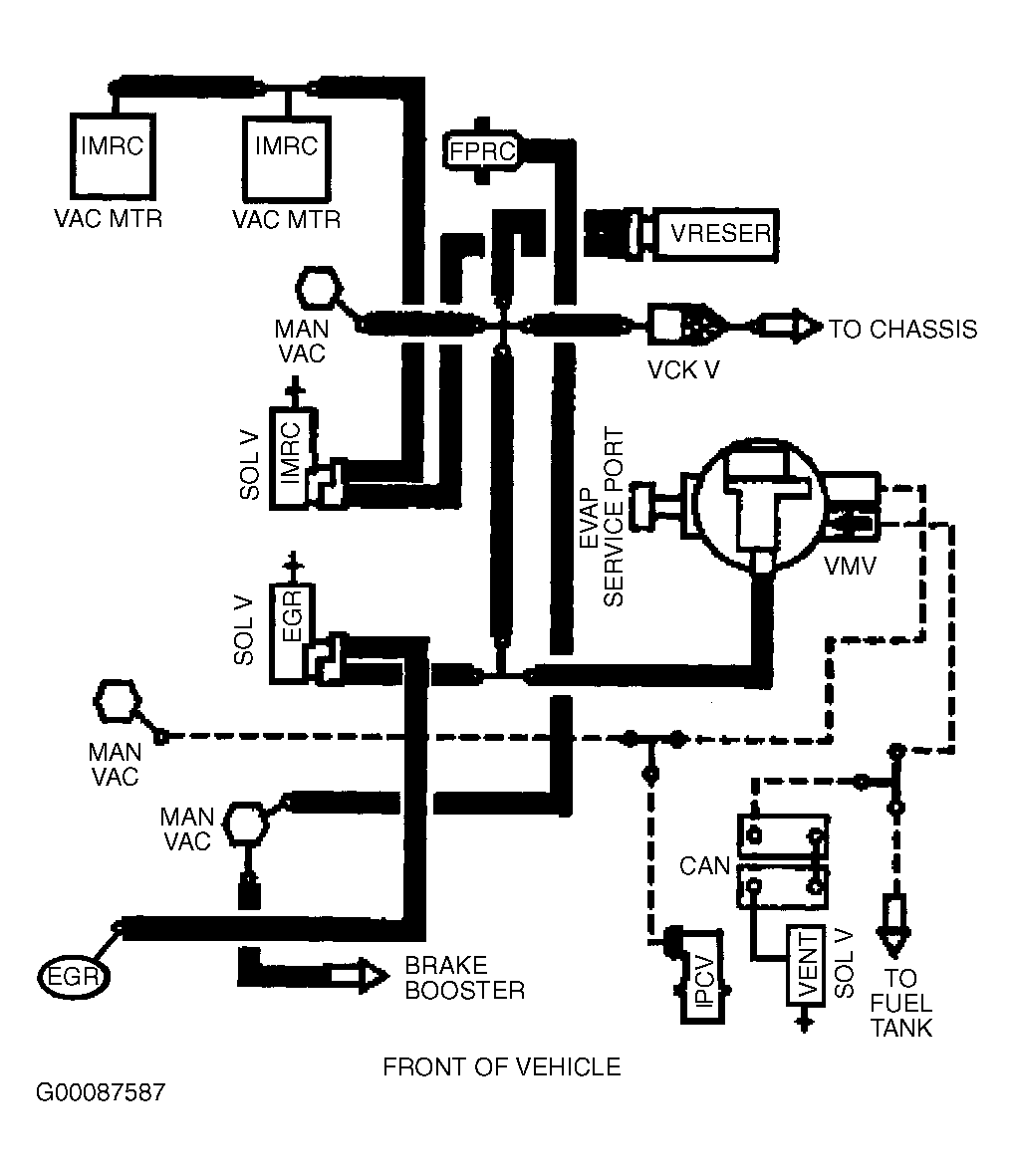

Fig 18: Vacuum Diagram (Van - 5.4L - Except Natural Gas - Calibration Nos. 8-74C-R05 (BRR1) - Code DAU, 8-74C-R10 (BRR2) - Code DAU, 8-74T-R05 (DWW1) & 8-74T-R10 (DWW2))

Courtesy of FORD MOTOR CO.

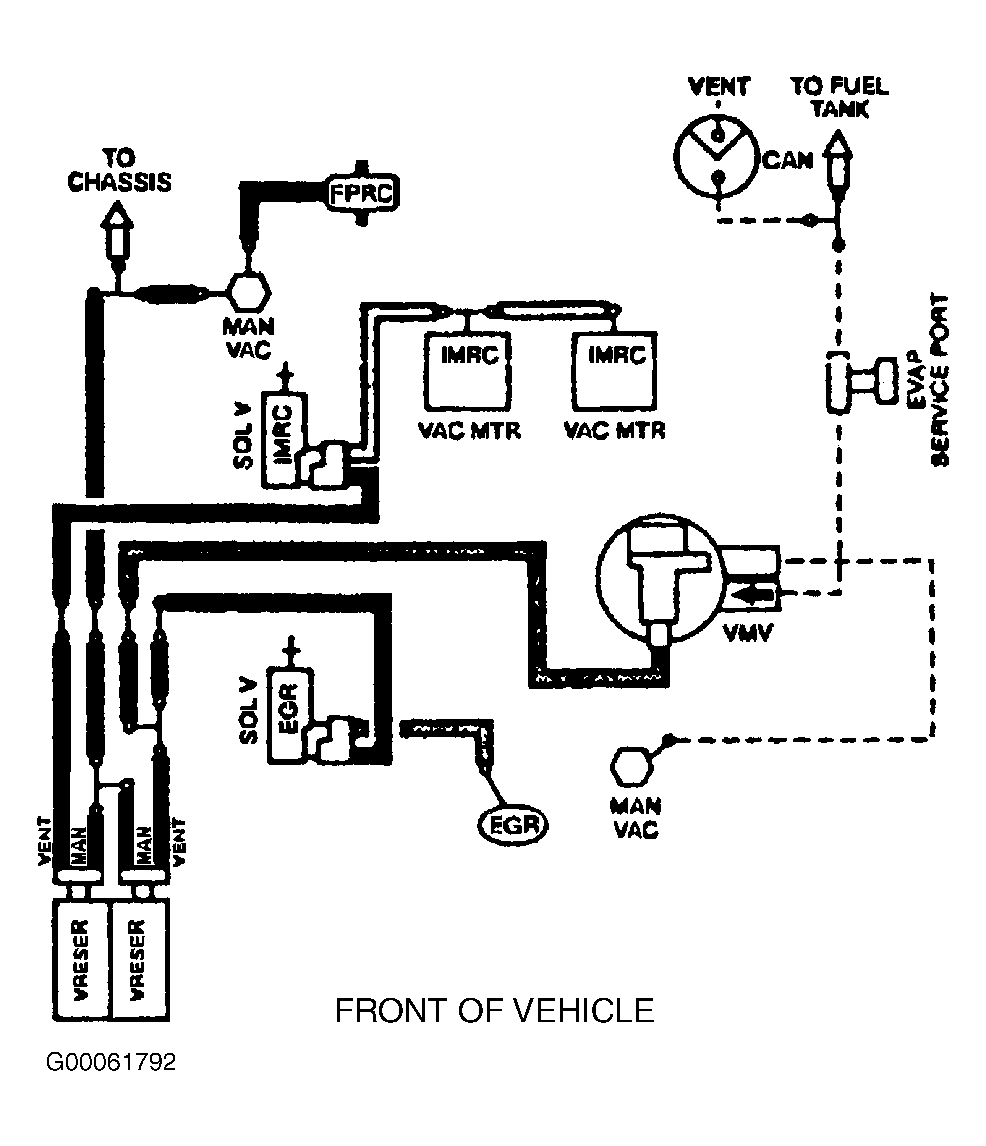

Fig 19: Vacuum Diagram (Van - 6.8L - Except Calibration Nos. 8-96E-R05 (WOM1) - Code DAP, 8-96E-R05 (WOM2) - Code DAP, 8-96J-R05 (XTT1), 8-96X-R05 (VOO1) & 8-96X-R10 (VOO2))

Courtesy of FORD MOTOR CO.

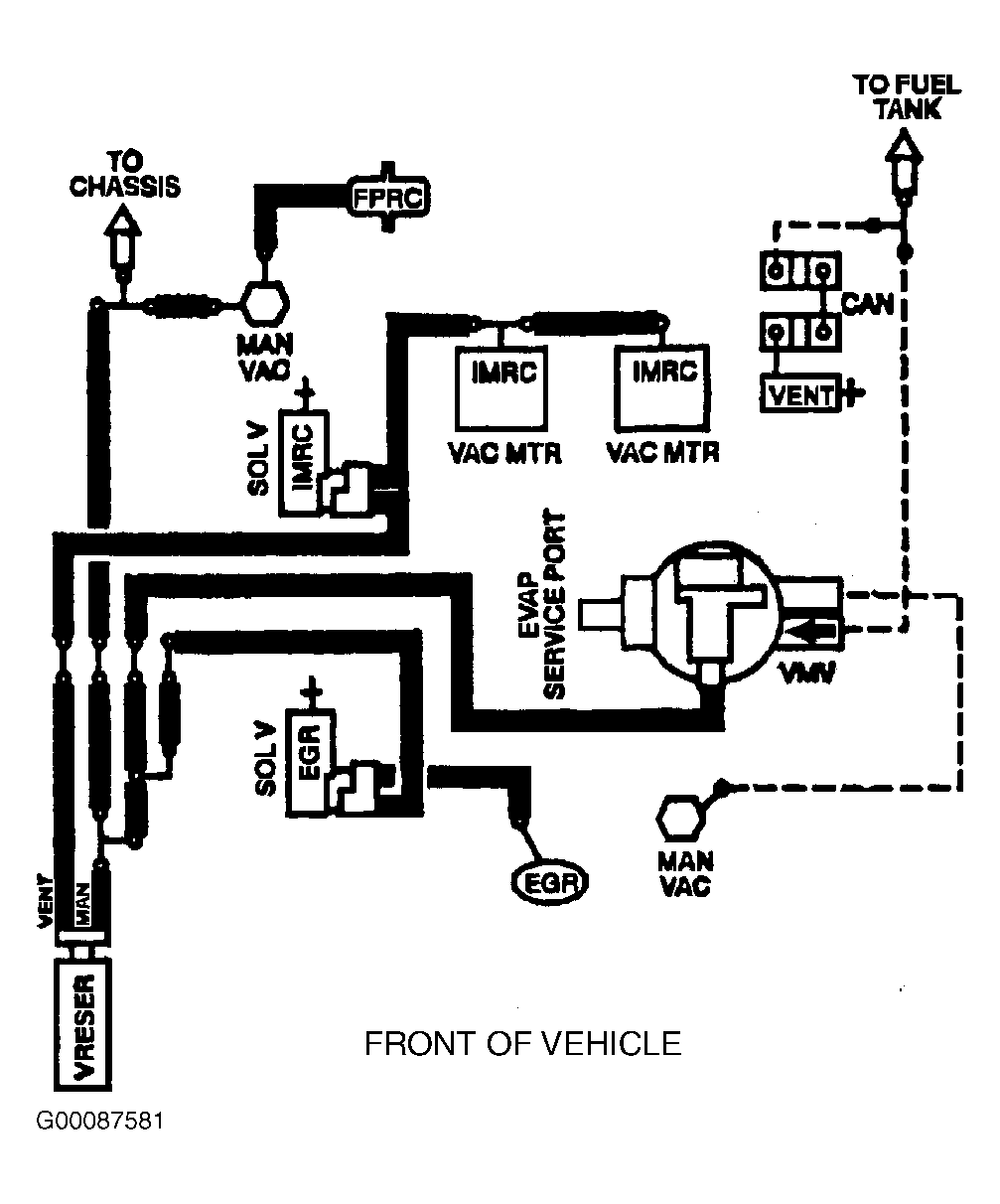

Fig 20: Vacuum Diagram (Van - 6.8L - Calibration Nos. 8-96E-R05 (WOM1) - Code DAP, 8-96E-R05 (WOM2) - Code DAP, 8-96J-R05 (XTT1), 8-96X-R05 (VOO1) & 8-96X-R10 (VOO2))

Courtesy of FORD MOTOR CO.

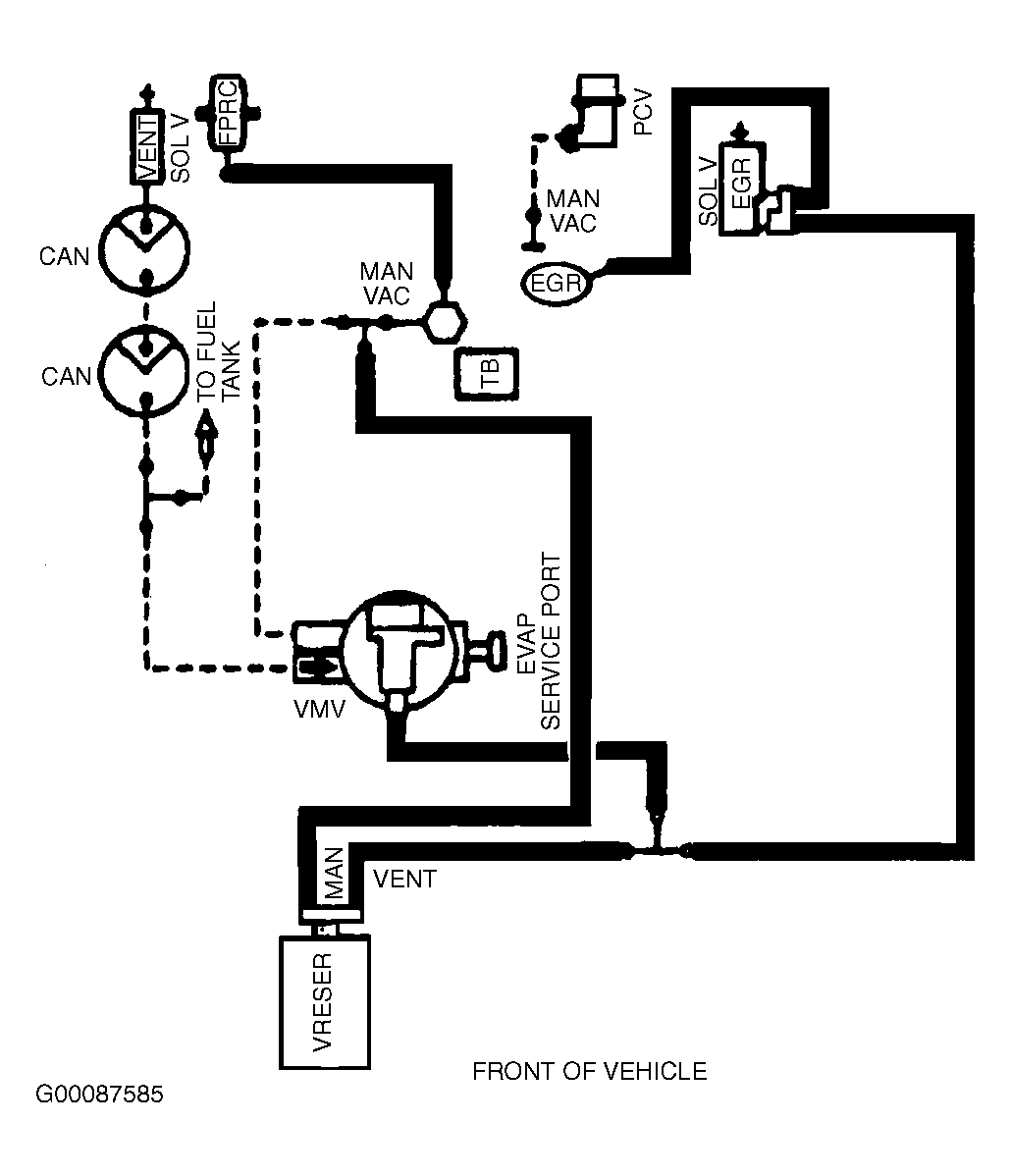

Fig 21: Vacuum Diagram (Windstar - 3.0L)

Courtesy of FORD MOTOR CO.

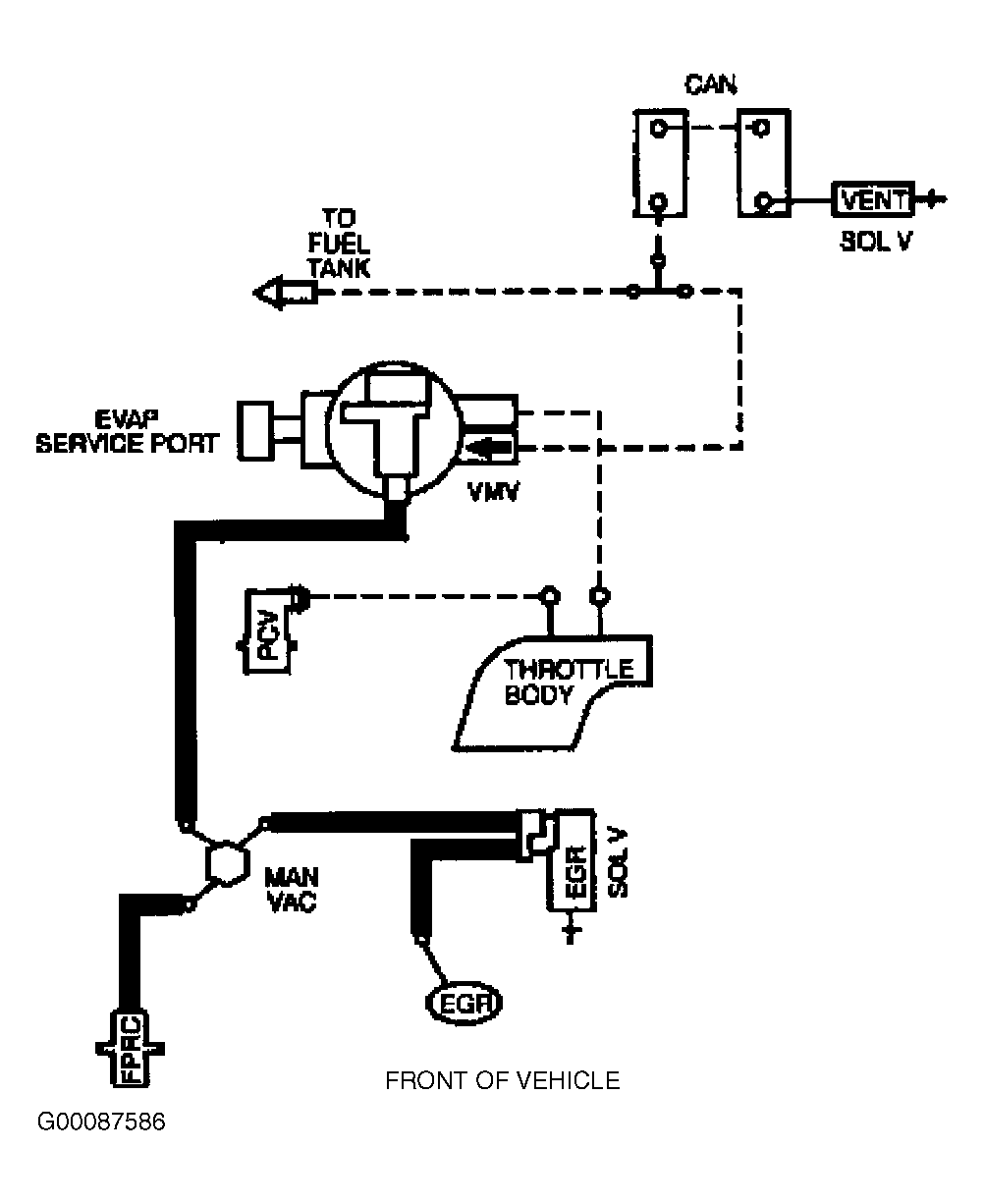

Fig 22: Vacuum Diagram (Windstar - 3.8L)
