Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Diagnostic Monitor | Behind lower center of dash. See Figure. |
| Anti-Lock Brake Control Module (3.8L) | In right front of engine compartment, behind radiator. See Figure. |
| Anti-Lock Brake Control Module (4.6L) | In right front of engine compartment, behind radiator. See Figure. |

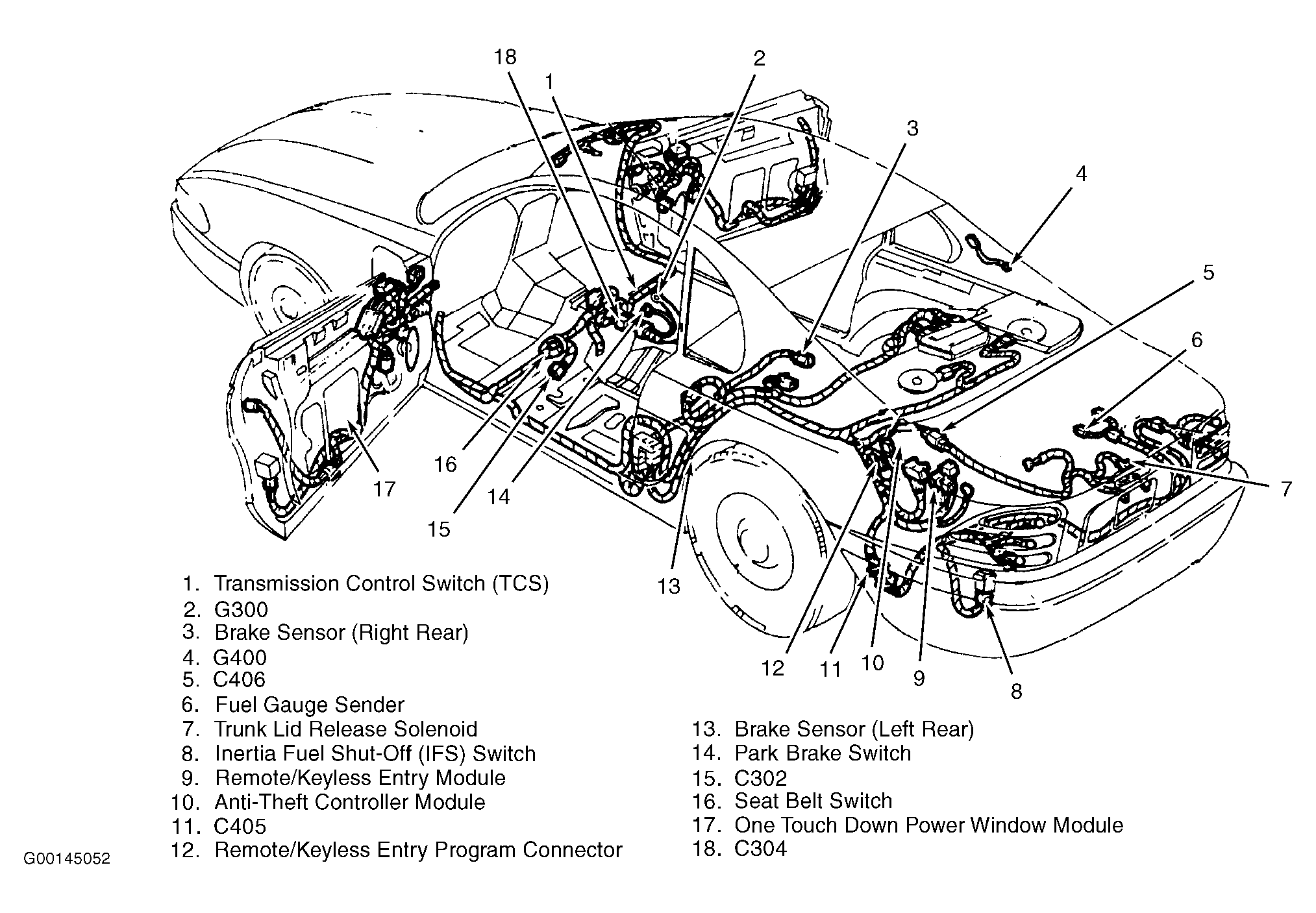

| Anti-Theft Controller Module | In left rear of trunk, behind trim panel. See Figure. |
| Anti-Theft Transceiver Module | Underside of steering column. |
| Constant Control Relay Module (CCRM) (3.8L) | Inside right front fender, behind air filter housing. See Figure. |
| Constant Control Relay Module (CCRM) (4.6L) | Inside right front fender, behind air filter housing. See Figure. |
| Daytime Running Lamps (DRL) Module (3.8L) | In left front corner of engine compartment, below horns. See Figure. |
| Daytime Running Lamps (DRL) Module (4.6L) | In left front corner of engine compartment, below horns. See Figure. |
| Intake Manifold Runner Control | Center rear of engine. |
| One Touch Down Power Window Module | In lower rear of left door. See Figure. |
| Passive Anti-Theft System (PATS) Module | In dash, by wiper control module. |
| Powertrain Control Module (PCM) | Behind right kick panel. |
| Remote/Keyless Entry Module | In left rear of trunk, behind side trim panel. See Figure. |
| Warning Chime Module | Behind center of dash, to right of radio. See Figure. |
| Wiper Control Module | Behind dash, near top of left kick panel. See Figure. |
