Mirror Control Switch

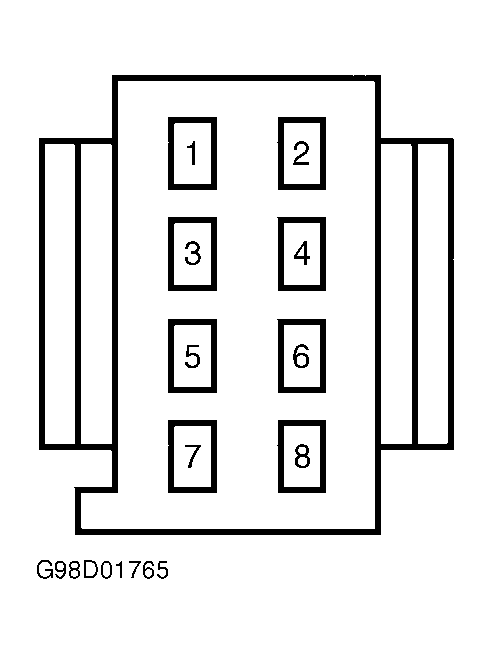

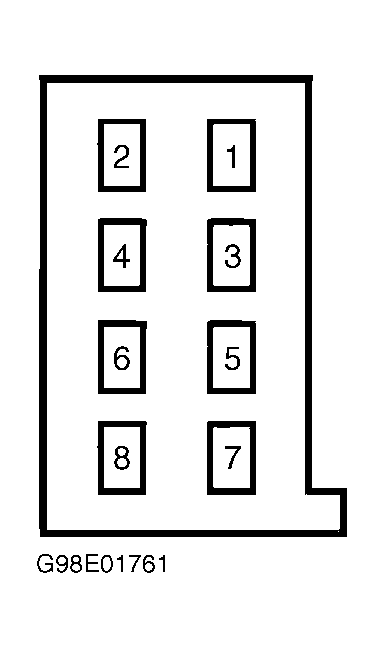

Remove mirror control switch. Measure resistance between specified terminals while operating switch in appropriate direction. See appropriate MIRROR SWITCH TEST table. See Fig 1 and Figure . Resistance in all tests should be less than 5 ohms. If switch fails any portion of test, replace switch.
MIRROR SWITCH TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Mirror | ||
| Up | 4 & 7; 6 & 8 | |
| Down | 4 & 8; 6 & 7 | |
| Left | 1 & 7; 6 & 8 | |
| Right | 1 & 8; 6 & 7 | |
| Passenger Mirror | ||
| Up | 2 & 7; 6 & 8 | |
| Down | 2 & 8; 6 & 7 | |
| Left | 3 & 7; 6 & 8 | |
| Right | 3 & 8; 6 & 7 | |
