Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

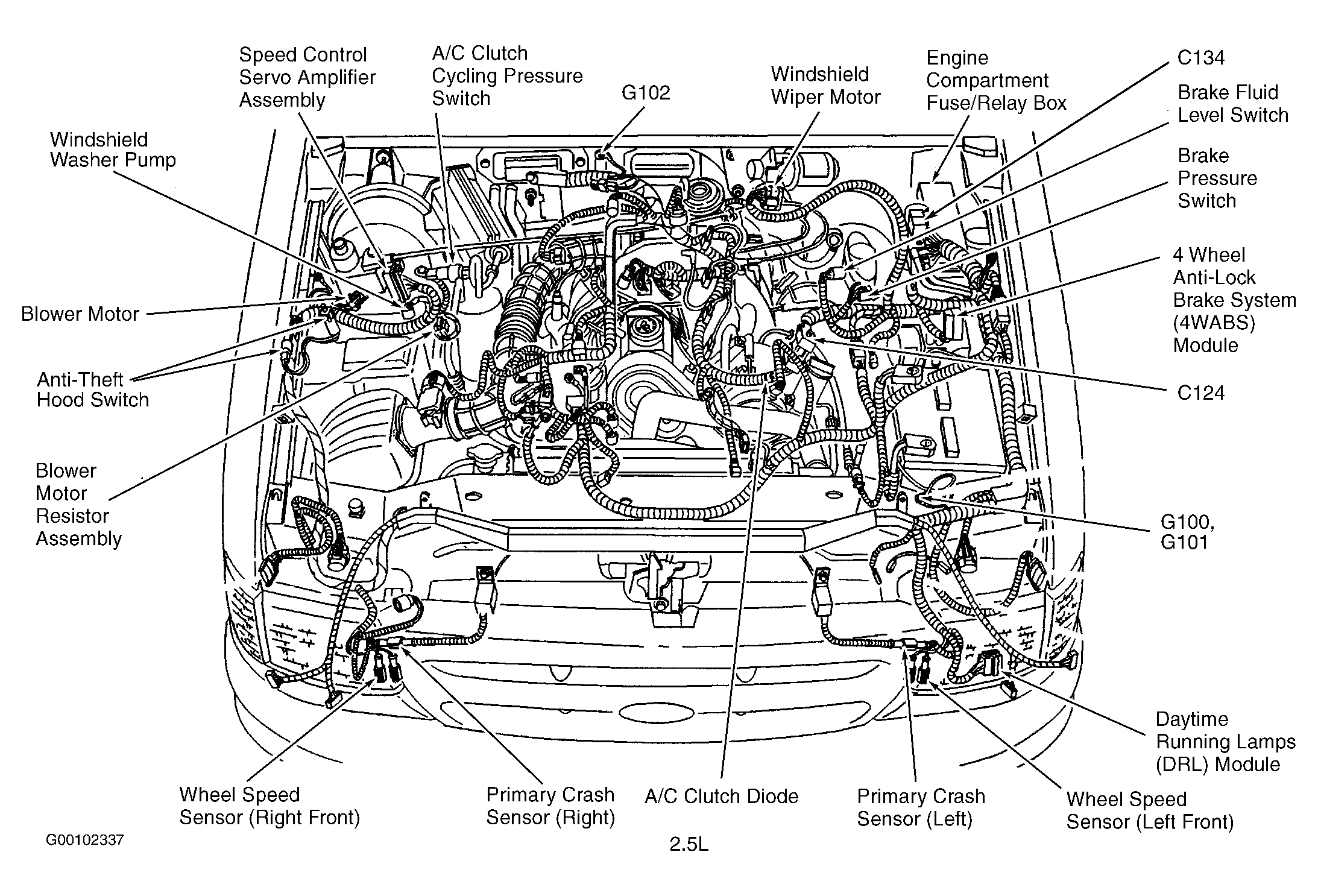

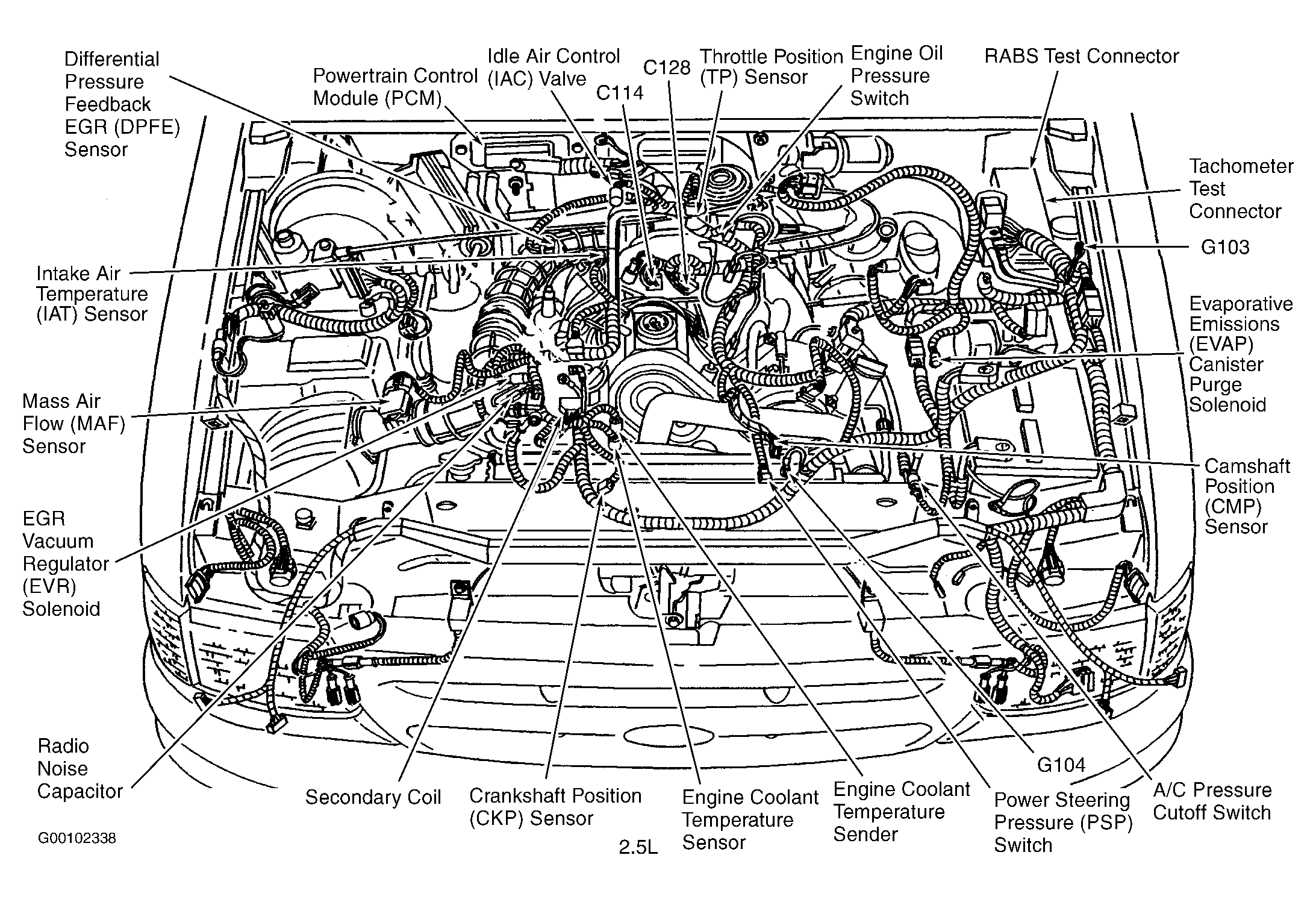

Fig 1: Engine Compartment (2.5L)

Fig 2: Engine Compartment (2.5L)

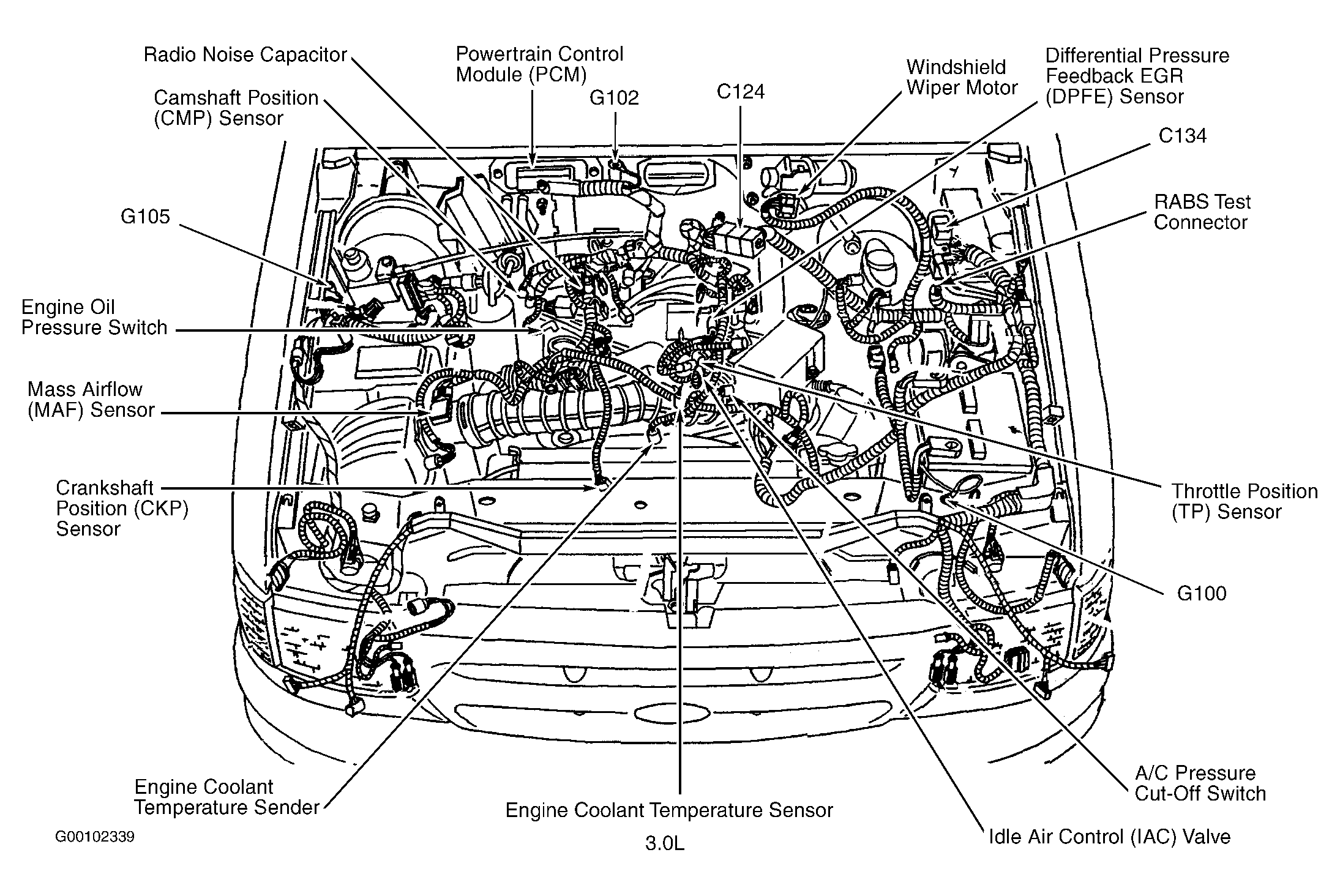

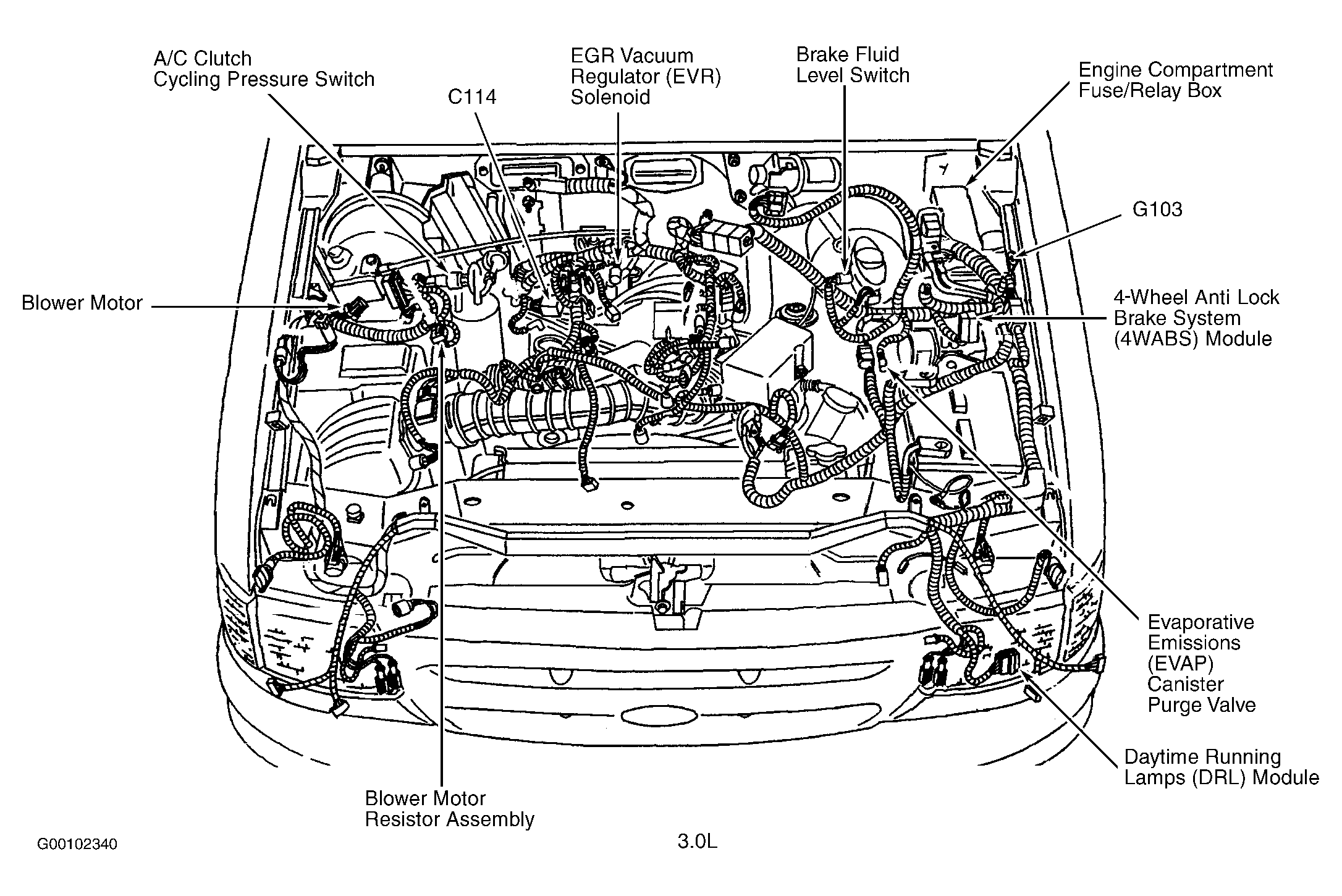

Fig 3: Engine Compartment (3.0L)

Fig 4: Engine Compartment (3.0L)

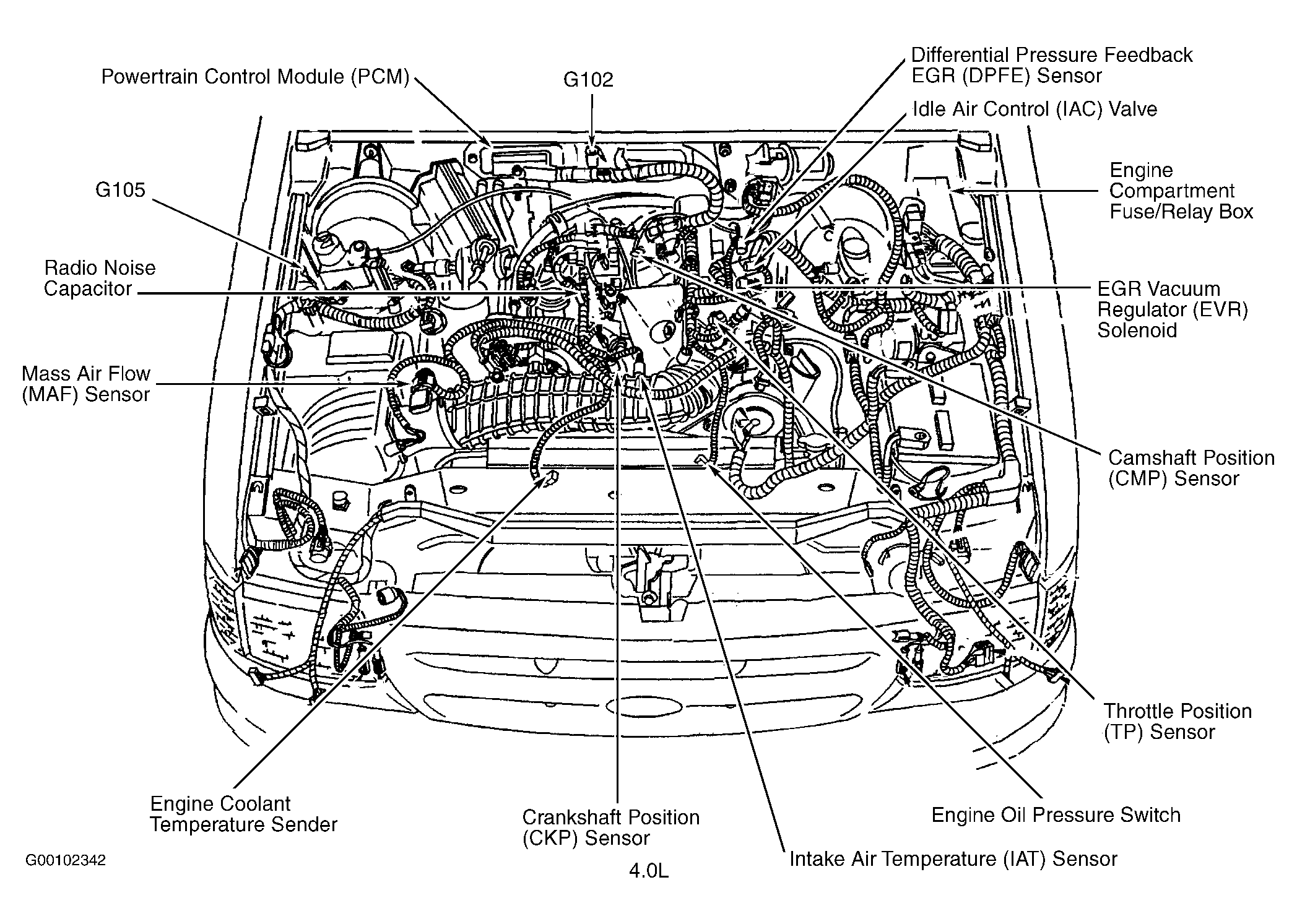

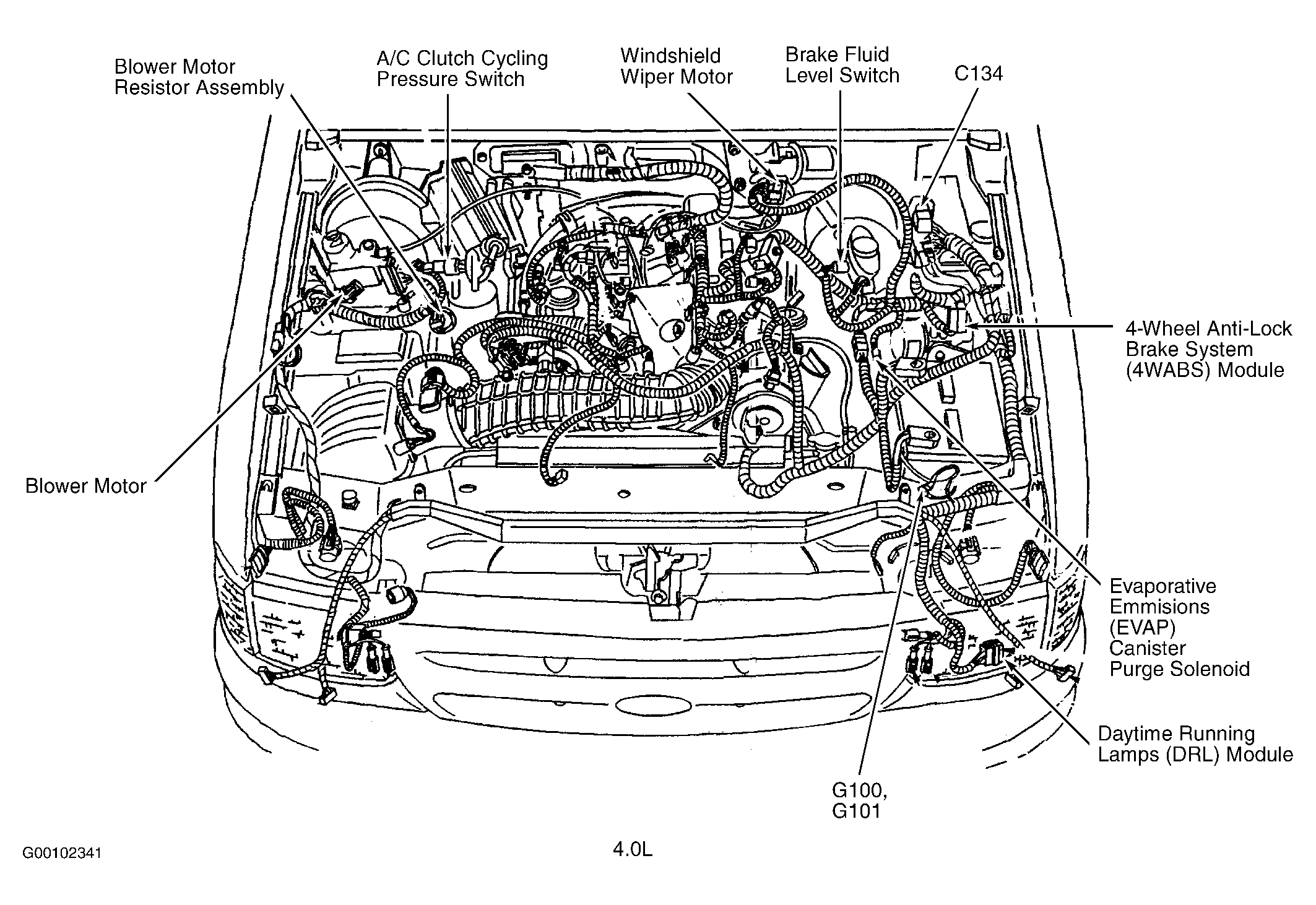

Fig 5: Engine Compartment (4.0L)

Fig 6: Engine Compartment (4.0L)
