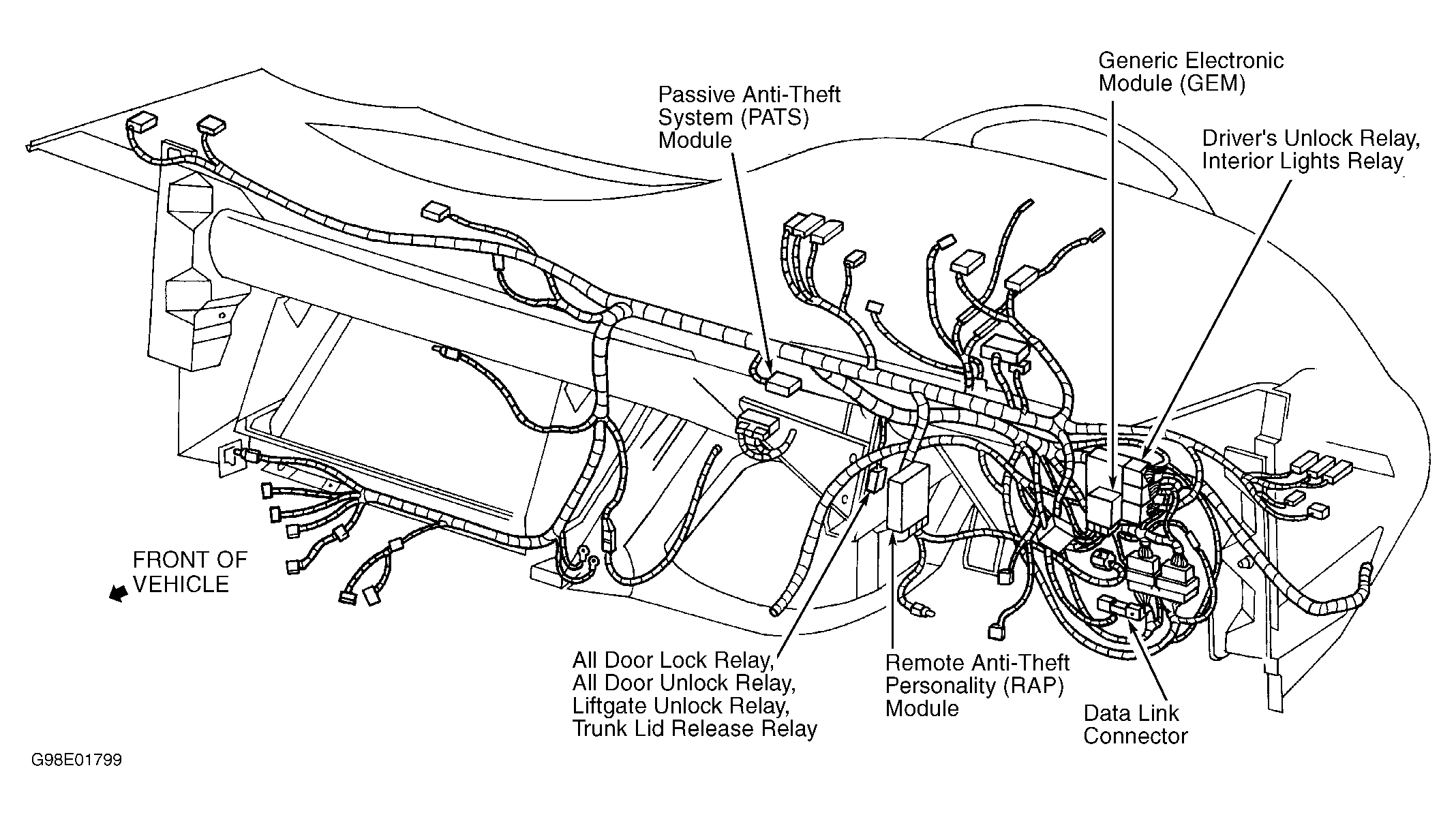

| All Door Lock Relay |
Under Instrument Panel, To Right Of Steering Column |
| All Door Unlock Relay |
Under Instrument Panel, To Right Of Steering Column |
| Data Link Connector |
Mounted On Instrument Panel, Below Steering Column |

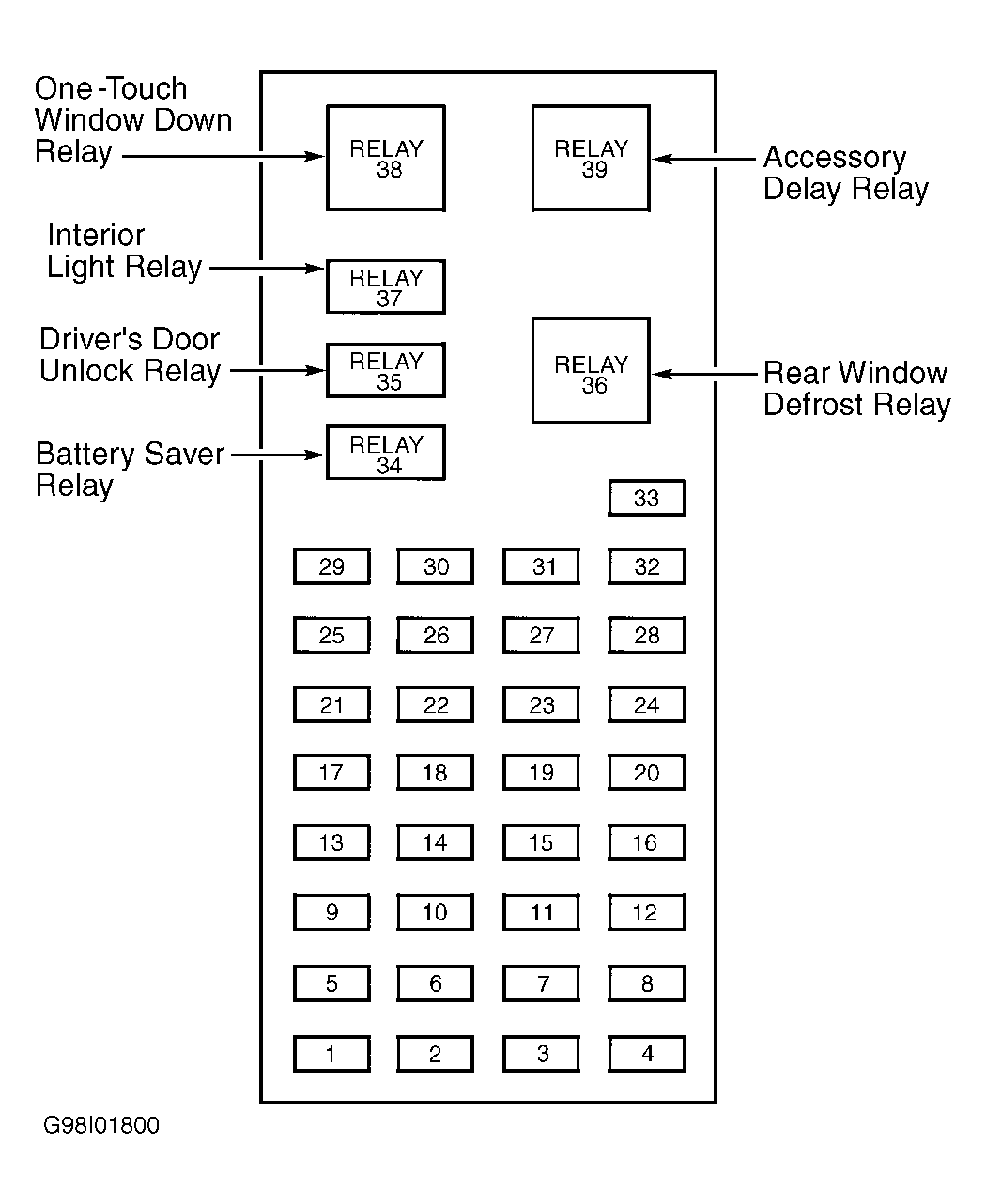

| Driver's Door Unlock Relay |
On Instrument Panel Fuse Box |
| Door Lock Actuators |
Lower Rear Of Appropriate Door, Behind Door Panel |
| Door Lock Switches |
On Appropriate Door Panel |
| Generic Electronic Module (GEM) |
Attach To Under Side Of Instrument Panel Fuse Box |
| Interior Light Relay |
On Instrument Panel Fuse Box |
| Liftgate Unlock Relay (Wagon) |
Under Instrument Panel, To Right Of Steering Column |
| Passive Anti-Theft System (PATS) Module |
Center Of Instrument Panel, Behind Integrated Control Panel |
| Remote Anti-Theft Personality (RAP) Module |
Above Accelerator Pedal |
| Trunk Lid Release Relay |
Under Center Of Instrument Panel |
| Trunk Lid Release Switch |
On Instrument Panel, Below Headlight Switch |
