Front Electronic Module (FEM) C201a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

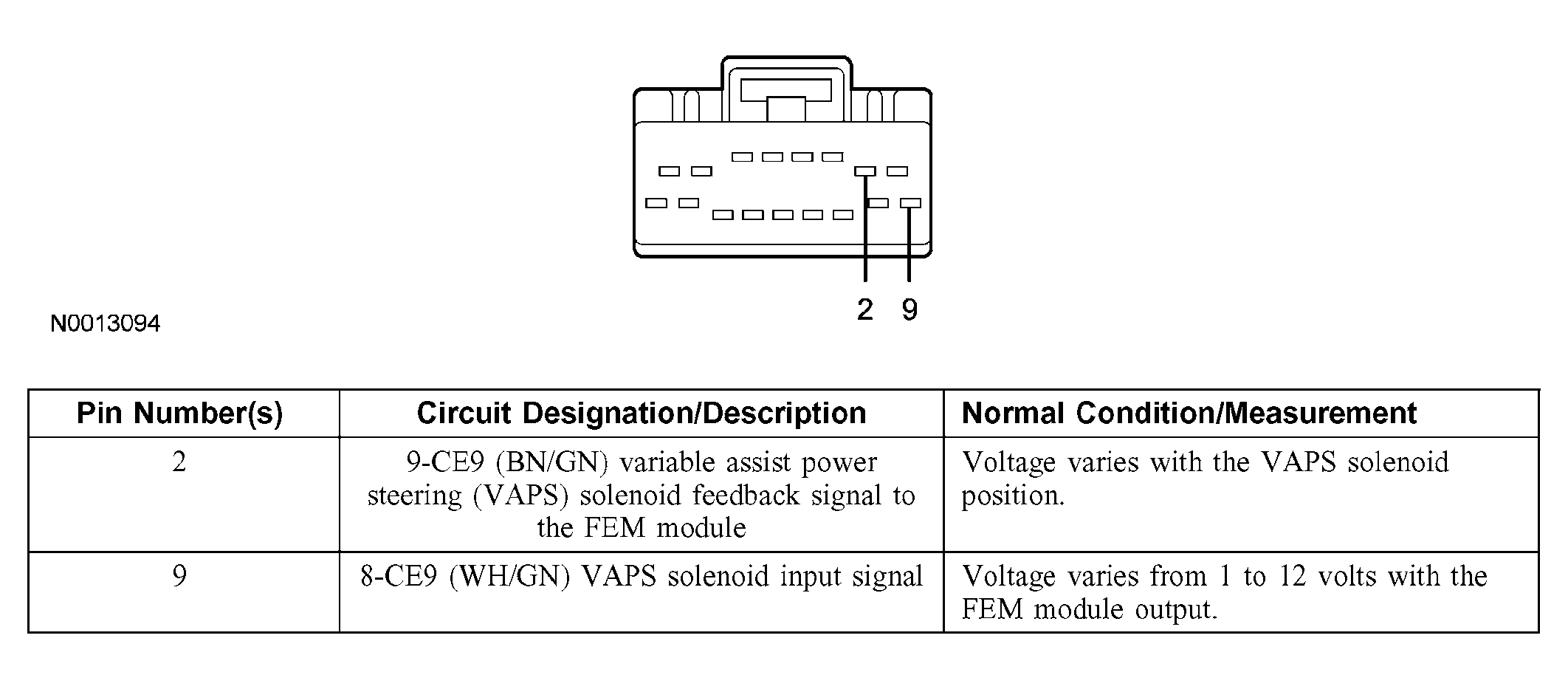

Fig 1: Identifying Front Electronic Module (FEM) C201a Connector Terminals
G03995596Courtesy of FORD MOTOR CO.
