Control Units
CONTROL UNITS

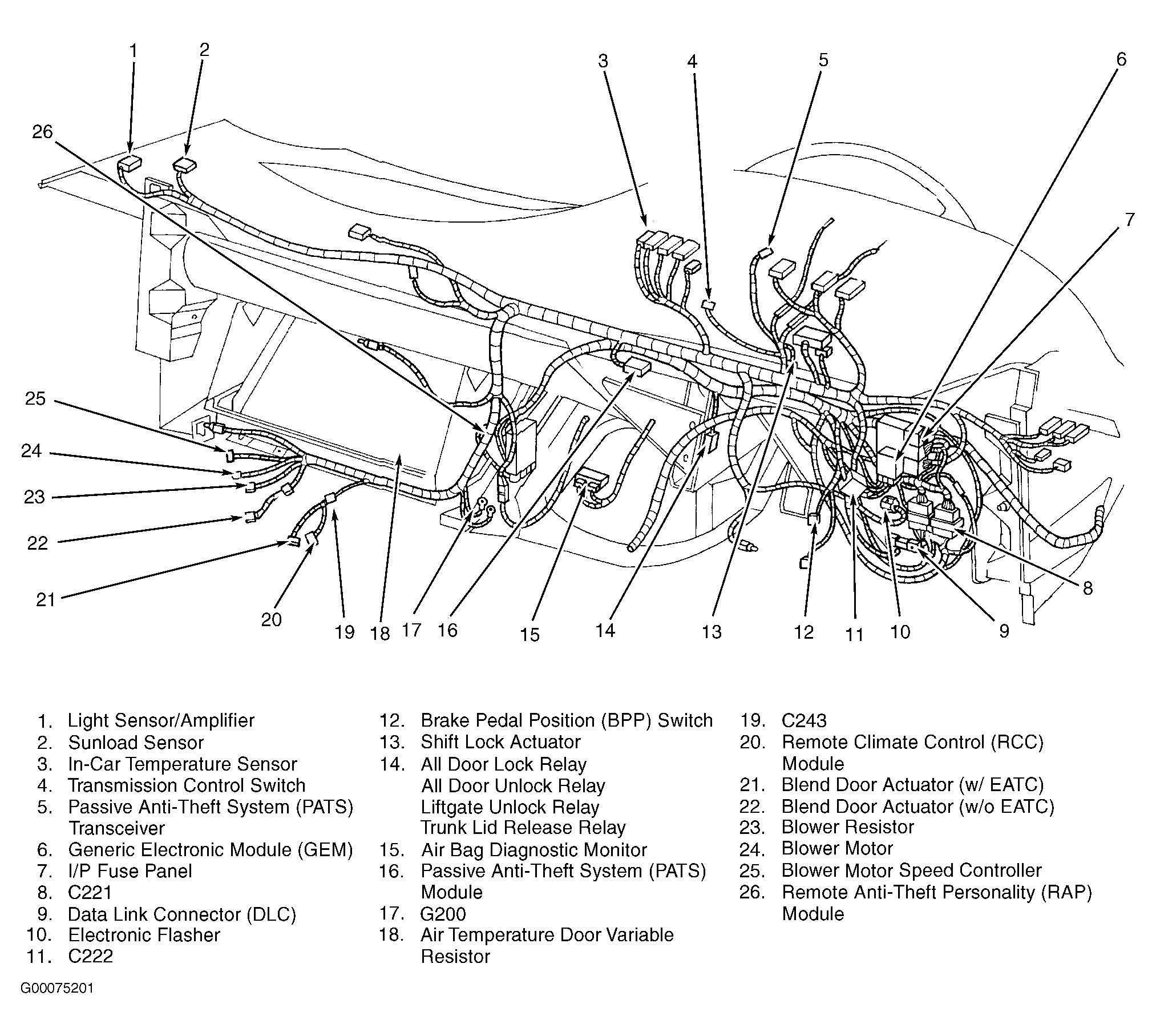

| Component | Component Location |
|---|---|
| Air Bag Diagnostic Monitor | Front center of dash, behind integrated control panel. See Figure . |
| Anti-Lock Brake Control Module | Left front of engine compartment, below battery. |
| Blower Motor Speed Controller | In right side of dash. See Figure . |
| Daytime Running Lights (DRL) Module | In left front fender, below left headlight. |
| Distance To Empty (DTE) Module | On left side of dash, in instrument cluster. |
| Flex Fuel Sensor Module | Center of dash, behind integrated control panel. |
| Generic Electronic Module (GEM) | Attached to the underside of the I/P fuse panel. See Figure . |

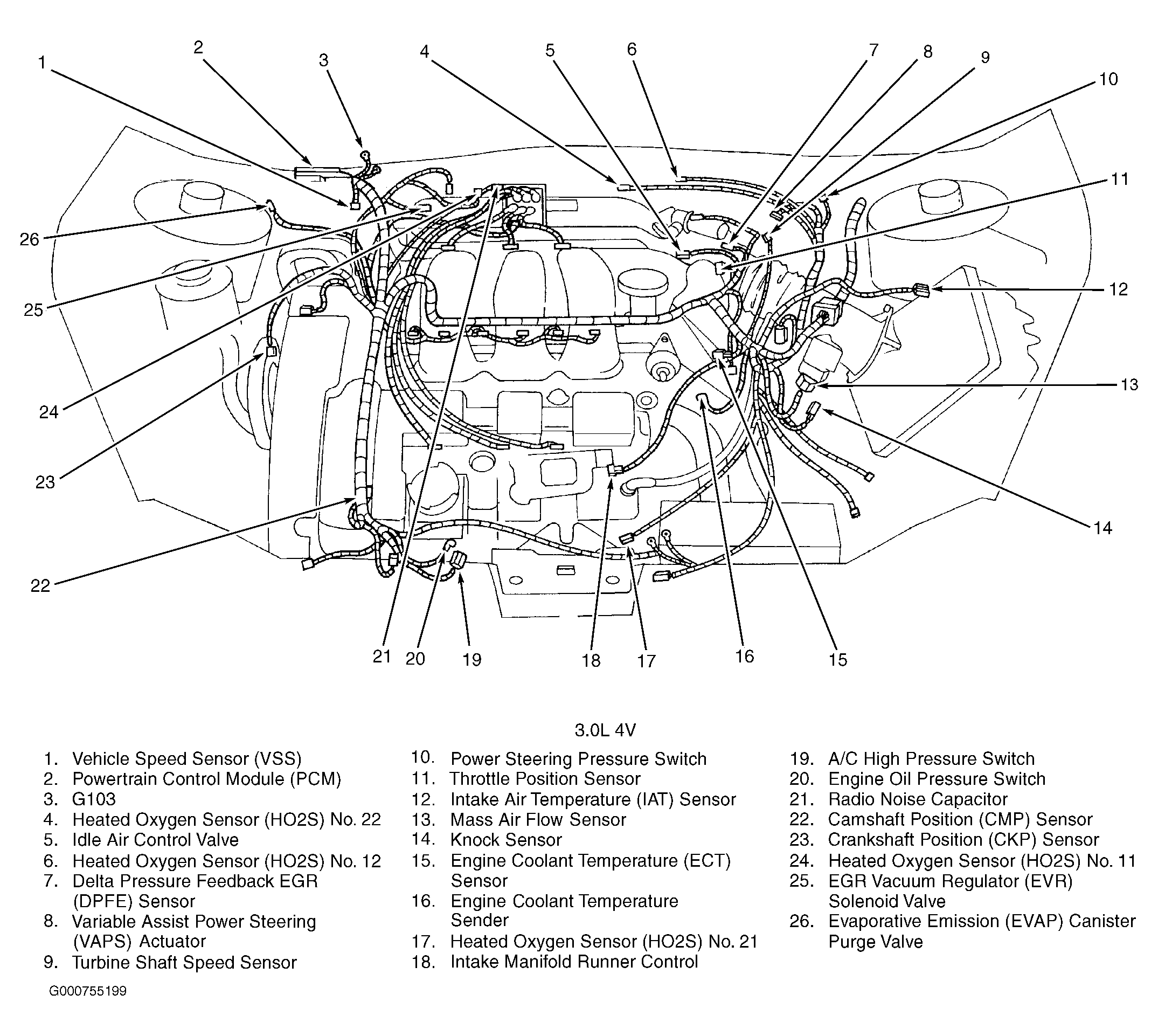

| Intake Manifold Runner Control (3.0L 4V) | On left side of engine, mounted on valve cover. See Figure . |

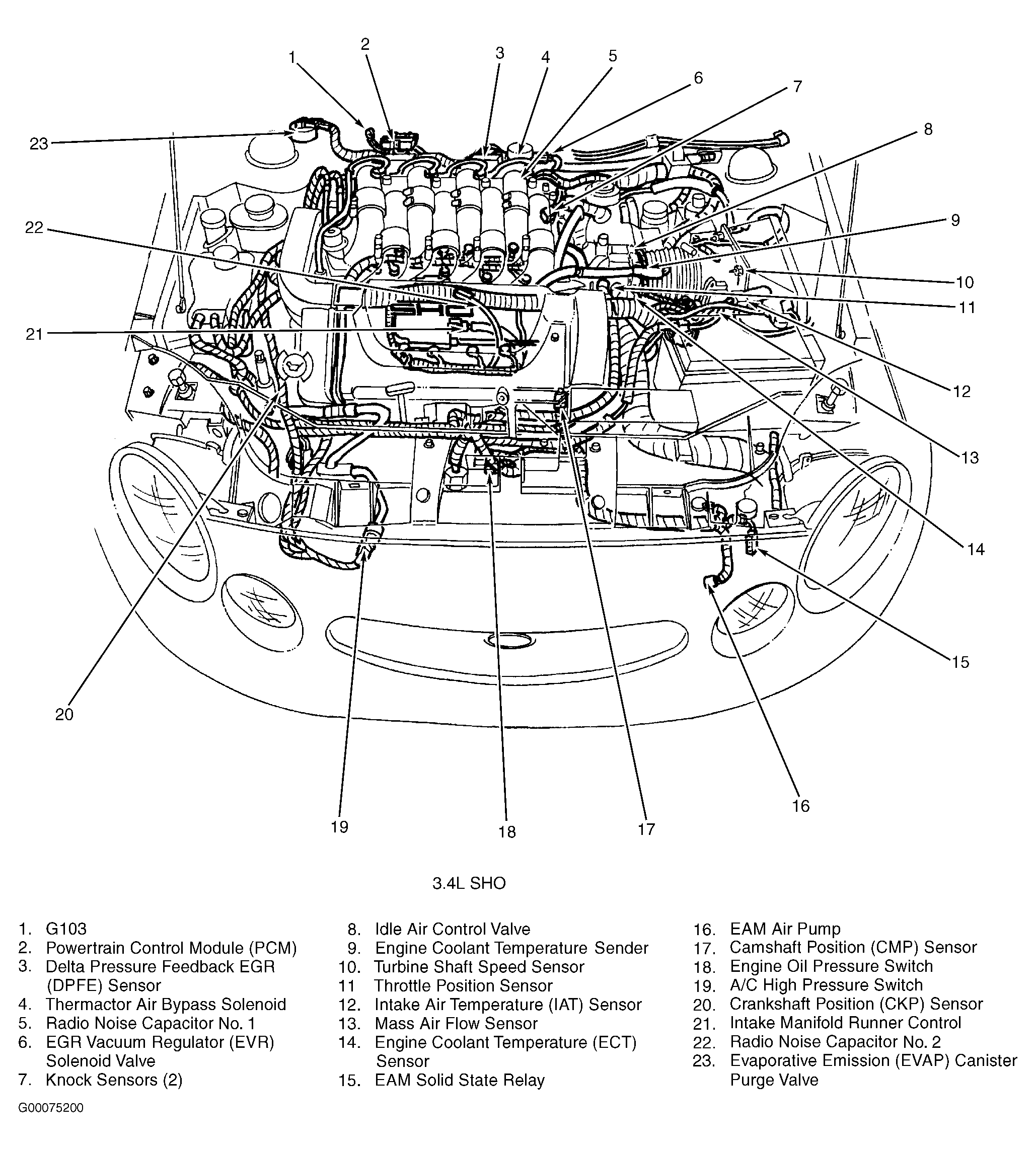

| Intake Manifold Runner Control (3.4L SHO) | On left side of engine, mounted on valve cover. See Figure . |
| Integrated Control Panel | Centered in dash, to the right of the steering column. |
| Passive Anti-Theft System (PATS) Module | In center of dash, behind integrated control panel. See Figure . |
| Powertrain Control Module (PCM) (3.0L 2V) | Right rear corner of engine compartment, mounted in firewall. See Figure . |

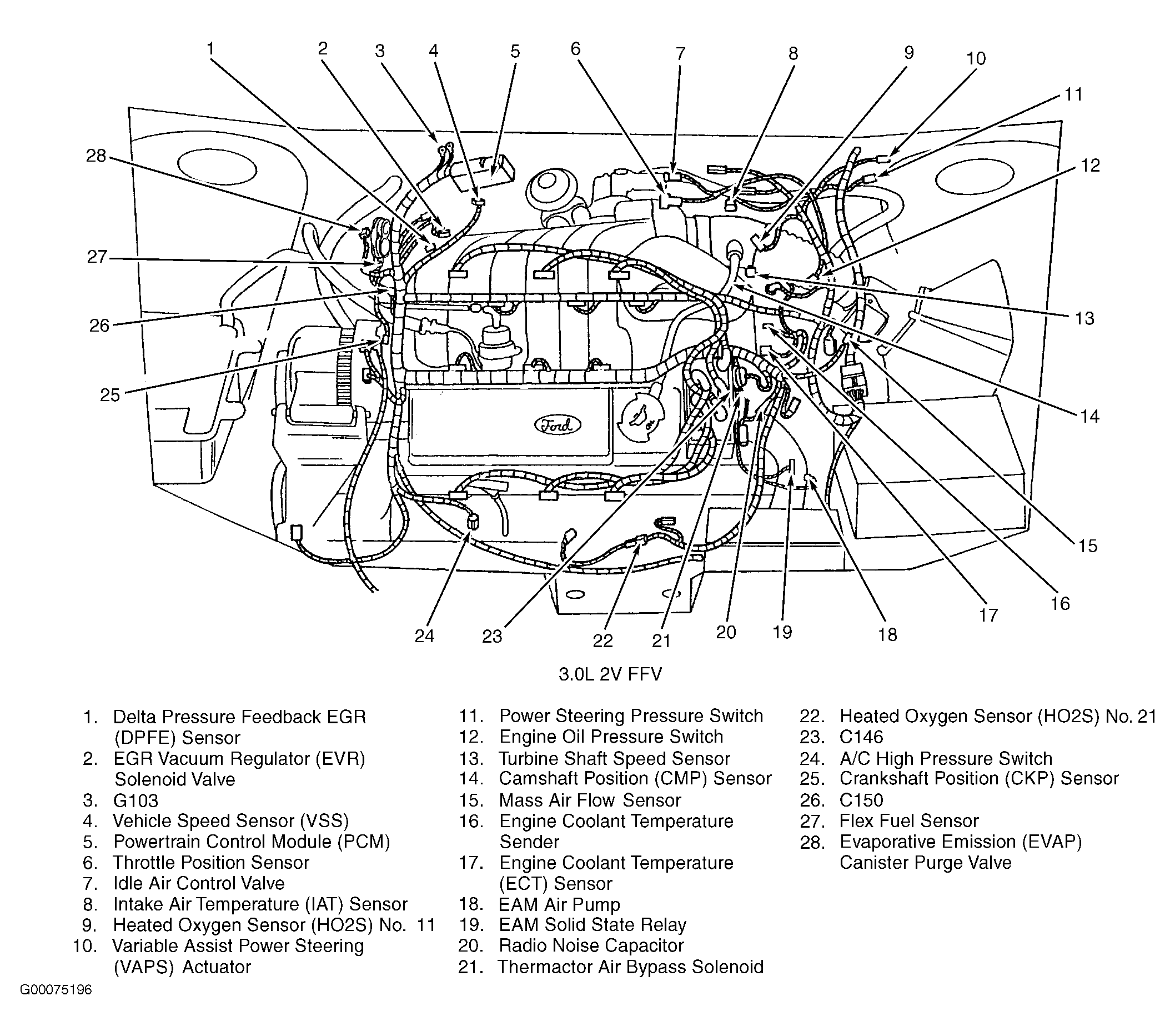

| Powertrain Control Module (PCM) (3.0L 2V FFV) | Right rear corner of engine compartment, mounted in firewall. See Figure . |
| Powertrain Control Module (PCM) (3.0L 4V) | Right rear corner of engine compartment, mounted in firewall. See Figure . |
| Powertrain Control Module (PCM) (3.4L SHO) | Right rear corner of engine compartment, mounted in firewall. See Figure . |
| Rear Control Unit (RCU) | In left rear of vehicle. |
| Remote Anti-Theft Personality (RAP) Module | Above accelerator pedal. See Figure . |
| Remote Climate Control (RCC) Module | Behind right side of dash, behind glove box. See Figure . |
| Semi-Active Ride Control (SARC) Module | Right side of rear compartment, behind rear seat. |
| Speed Control Module | Mounted on left front strut, to left of master cylinder. |
