Firing Order & Timing Marks

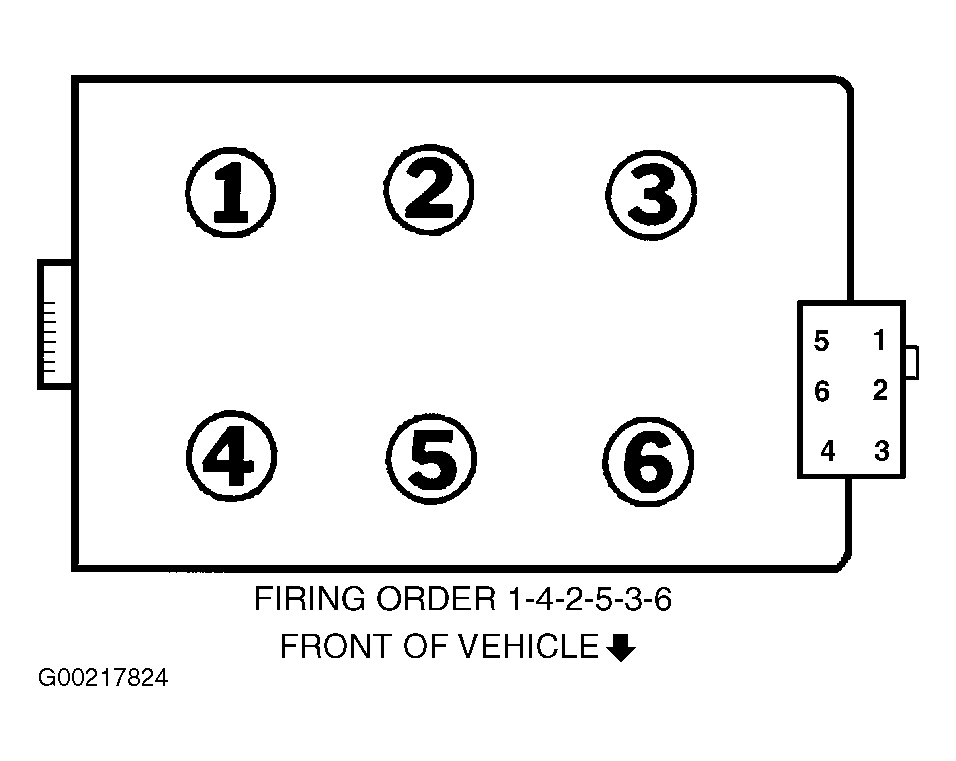

Fig 1: Identifying Firing Order & Timing Mark (3.0L)
G00217824Courtesy of FORD MOTOR CO.

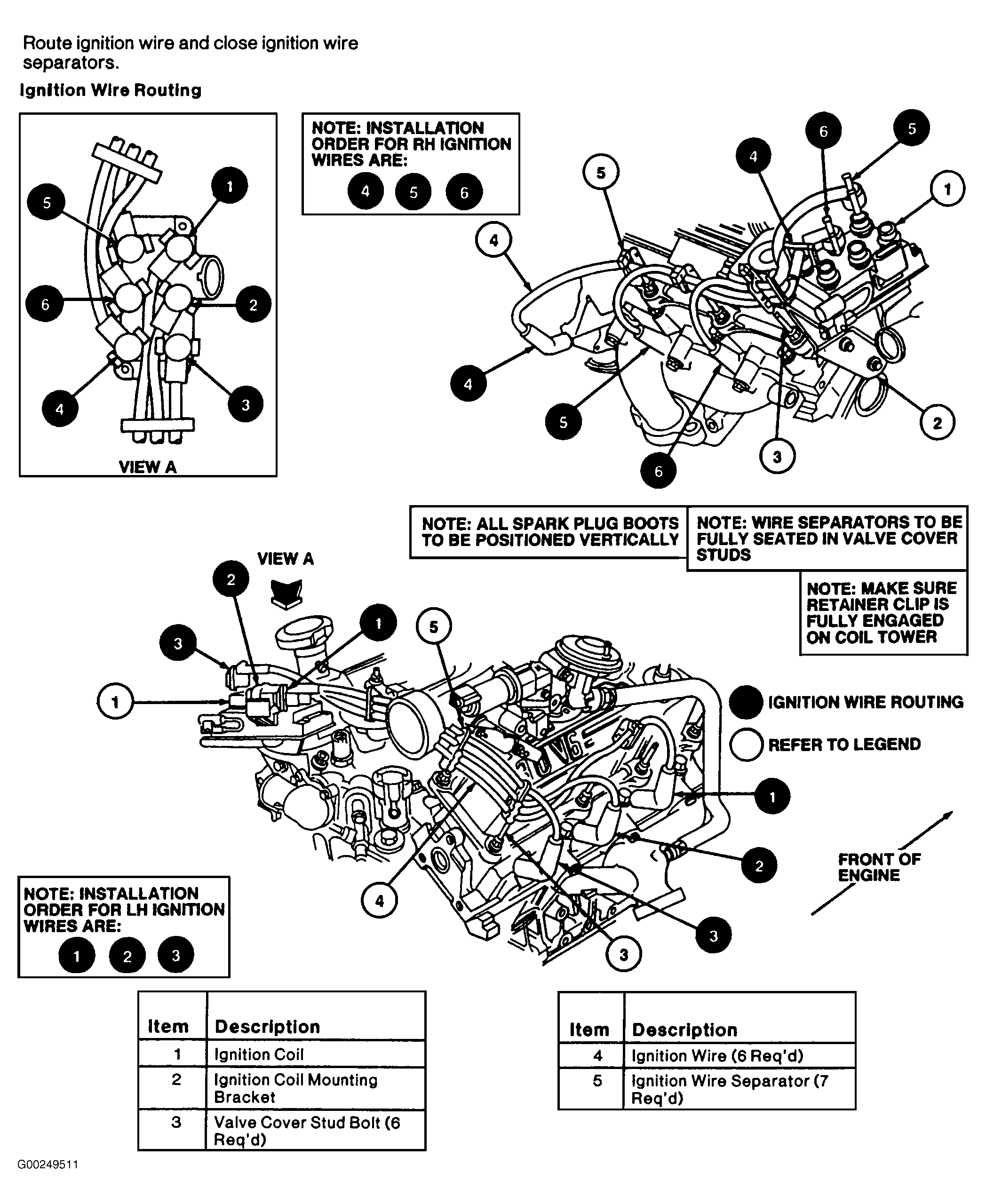

Fig 2: Identifying Spark Plug Wire Routing (3.0L)
G00249511Courtesy of FORD MOTOR CO.
