Test B: DECKLID Is Inoperative Using RKE Transmitter

  1. Turn ignition off. Disconnect decklid motor connector C844 (located in center rear of trunk, behind lining). Connect a jumper wire between battery positive terminal and decklid motor terminal No. 3 (Orange/Green wire). Connect another jumper wire between battery negative terminal and decklid motor terminal No. 1 (Black wire). If decklid motor operates, go to next step. If decklid motor does not operate, replace decklid motor and retest system operation. See appropriate POWER DOOR LOCKS article.
  2. Using an ohmmeter, check resistance between ground and decklid motor harness connector C844 terminal No. 1 (Black wire). If resistance is less than 5 ohms, go to next step. If resistance is 5 ohms or more, go to step 4)  .

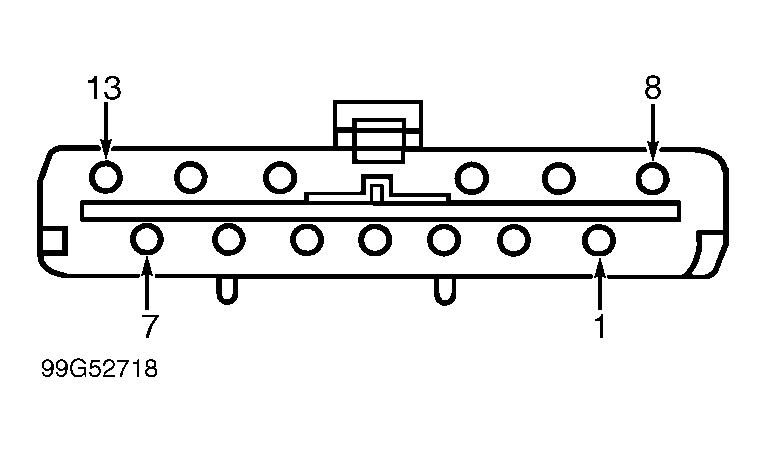

  3. Disconnect central locking module 13-pin connector C451a (located behind glove box). Using an ohmmeter, check resistance in Orange/Green wire between decklid motor harness connector C844 terminal No. 3 and central locking module 13-pin harness connector C451a terminal No. 4. See. Figure . Check resistance between ground and central locking module 13-pin harness connector C451a terminal No. 4 (Orange/Green wire). If resistance is less than 5 ohms between connectors and more than 10 k/ohms between connector and ground, replace central locking module and retest system operation. See CENTRAL LOCKING MODULE  under REMOVAL & INSTALLATION. If resistance is 5 ohms or more between connectors and 10 k/ohms or less between connector and ground, repair open or short to ground in Orange/Green wire and retest system operation.
  4. Disconnect shorting bar No. 4, 10-pin connector C103 (located in left rear side of trunk, behind lining). Using an ohmmeter, check resistance in Black wire between shorting bar No. 4 10-pin harness connector C103 terminal No. 1 and decklid motor harness connector C844 terminal No. 1. See. Fig 1 . If resistance is less than 5 ohms, replace shorting bar No. 4 and retest system operation. If resistance is 5 ohms or more, repair open in Black wire and retest system operation.

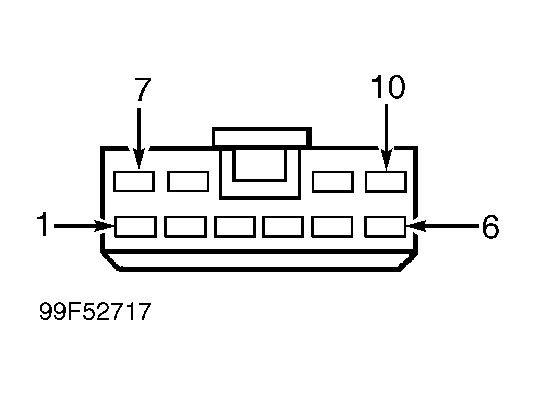

Fig 1: Identifying Shorting Bar No. 4 Connector C103 Terminals
G99F52717Courtesy of FORD MOTOR CO.
