Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| Busbar | On left rear of engine compartment. |
| Data Link Connector (DLC) | Under left side of dash, left of steering column. |
| Door Lock Diagnostic Connector | On center of right "A" pillar. |
| Engine Cooling Fan Resistor | Below engine cooling fan motor. |
| Heater Blower Series Resistor | Under right side of dash, near blower motor. |
| Ignition Transformer (2.0L) | On rear of cylinder head. |

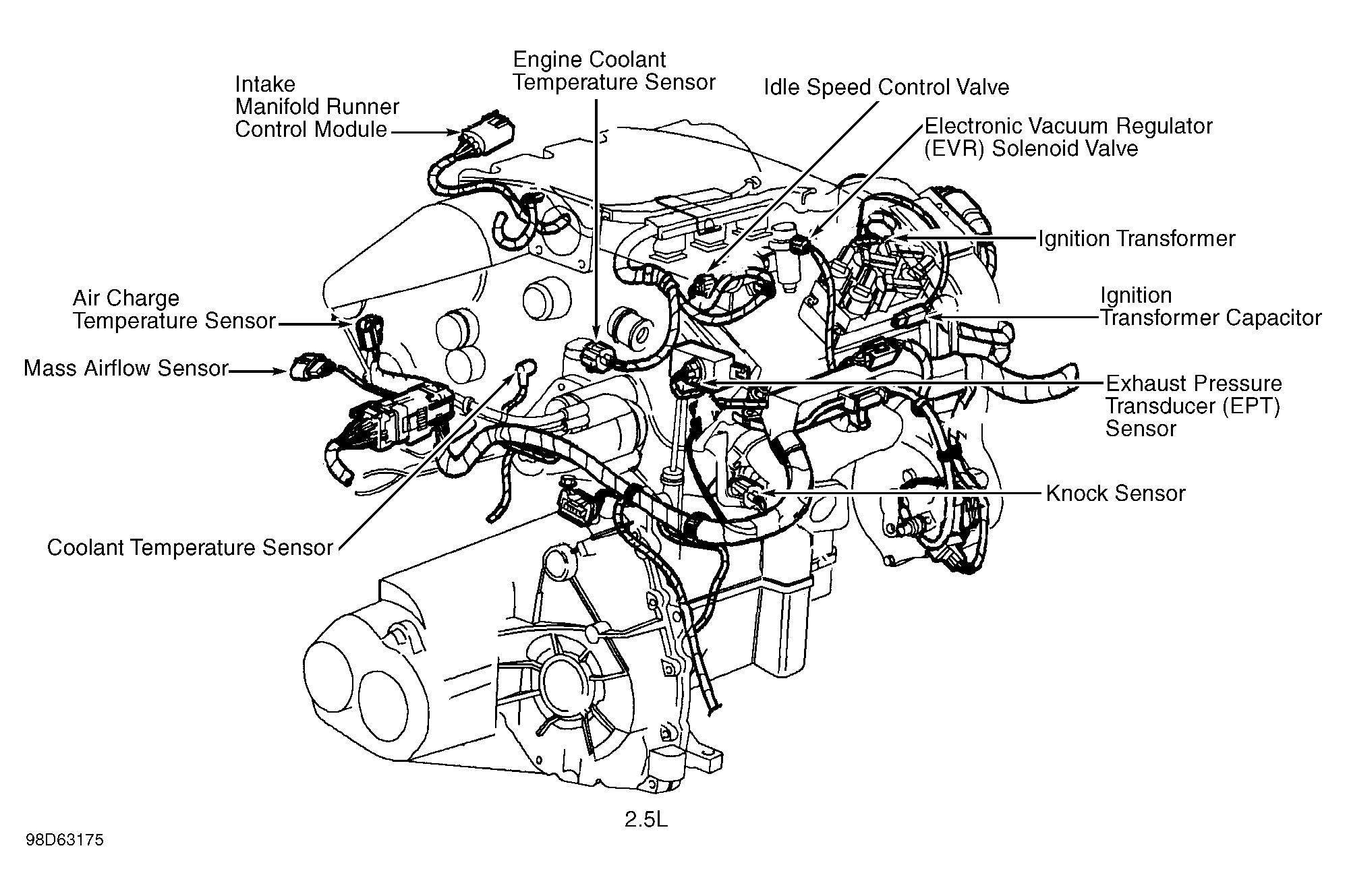

| Ignition Transformer (2.5L) | On top right side of engine. See Figure . |

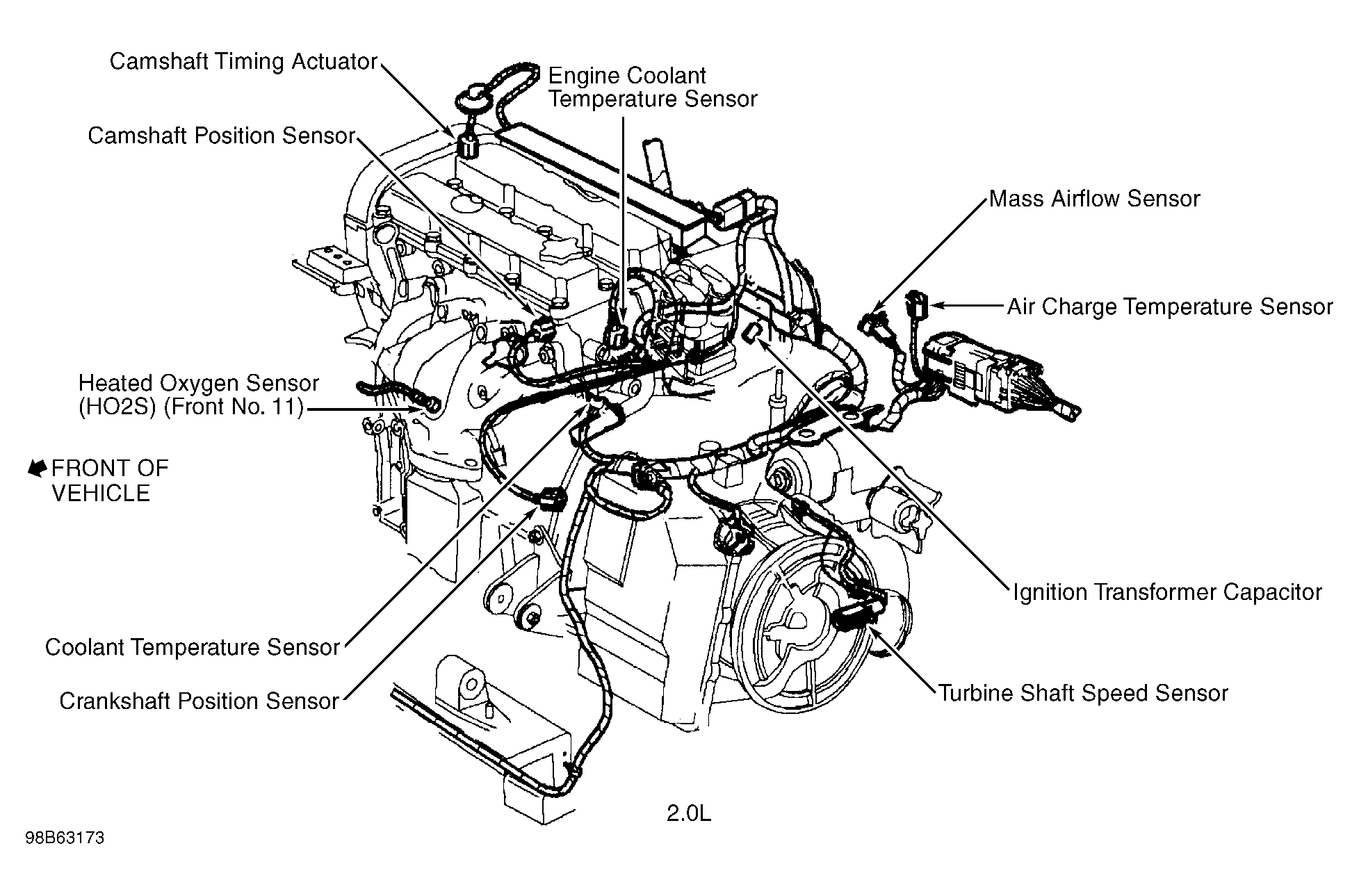

| Ignition Transformer Capacitor (2.0L) | On rear of cylinder head. See Figure . |
| Ignition Transformer Capacitor (2.5L) | On top right side of engine. See Figure . |
| Remote Amplifier (Front) | Under center of dash. |
| Shorting Bar Connector No. 1 | Behind left side of dash. |
| Shorting Bar Connector No. 2 | Behind center of dash. |
| Shorting Bar Connector No. 3 | Behind right side of dash. |
| Shorting Bar Connector No. 4 | In left rear of luggage compartment. |
| Shorting Bar Connector No. 5 | Behind right side of dash. |
| Temperature Door Variable Resistor | Behind center of dash. |
