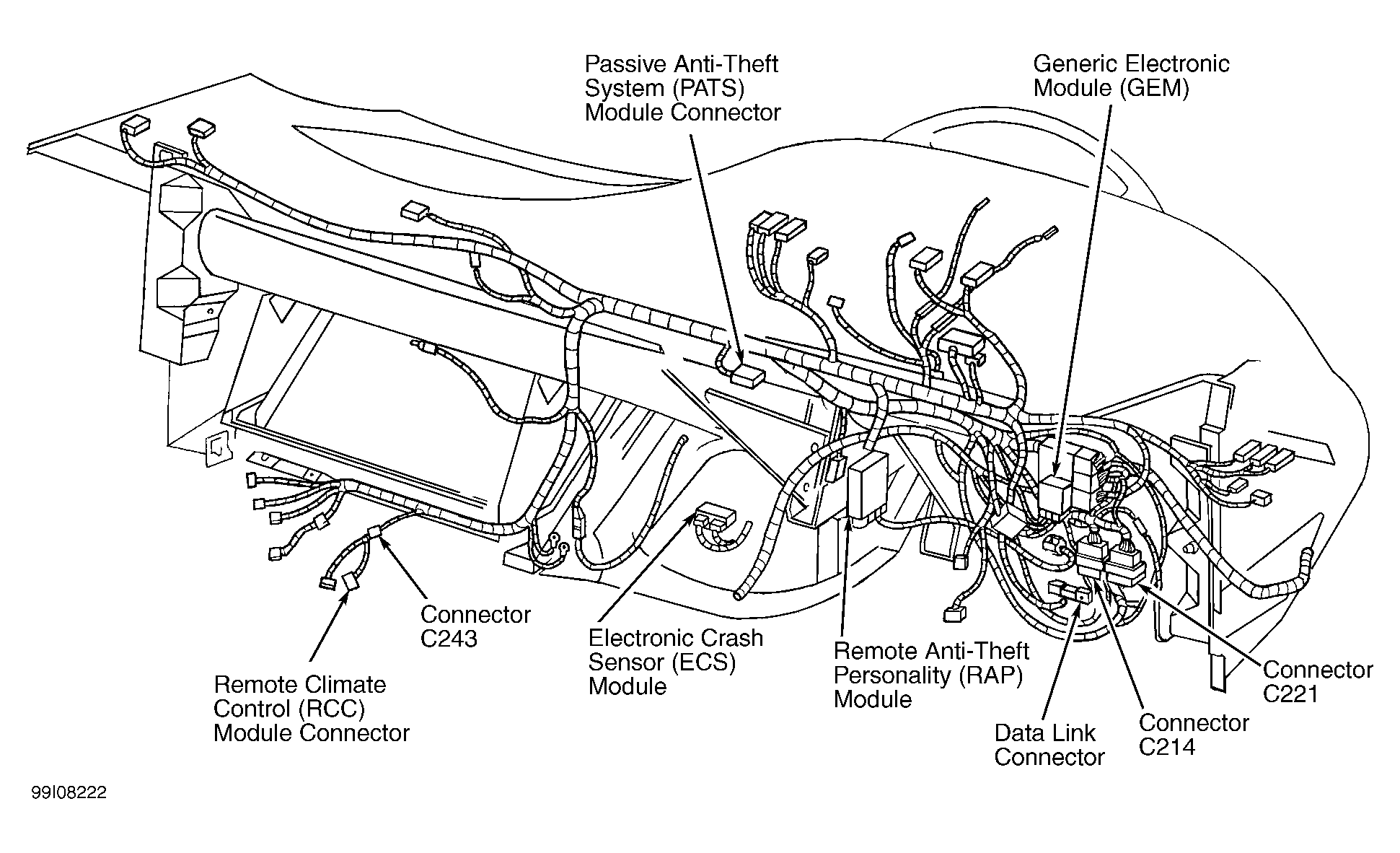

| Anti-Lock Brake System Module |
In Engine Compartment, Below Battery |
| Data Link Connector |
Under Instrument Panel, Below Steering Column |
| Electronic Crash Sensor Module |
Behind Center Of Instrument Panel, On Tunnel |
| Generic Electronic Module |
Attached To Under Side Of Instrument Panel Fuse Box |
| In-Line Harness Connector C130 |
Left Side Of Engine Compartment, On Top Of Transmission |
| In-Line Harness Connector C214 |
Behind Left Side Of Instrument Panel |
| In-Line Harness Connector C221 |
Behind Left Side Of Instrument Panel |
| In-Line Harness Connector C243 |
Behind Right Side Of Instrument Panel, Behind Glove Box |
| Passive Anti-Theft System Module |
Behind Center Of Instrument Panel, Behind Integrated Control Panel |
| Powertrain Control Module |
On Right Side Of Firewall In Engine Compartment |
| Remote Anti-Theft Personality Module |
Above Accelerator Pedal |
| Remote Climate Control Module |
Behind Right Side Of Instrument Panel, Behind Glove Box |
| Semi-Active Ride Control Module |
Right Side Of Luggage Compartment |
