Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Cellular Phone In-Line Fuse | In cargo area, above left rear wheelwell. |
| Battery Junction Box | Front center of engine compartment, behind radiator. |

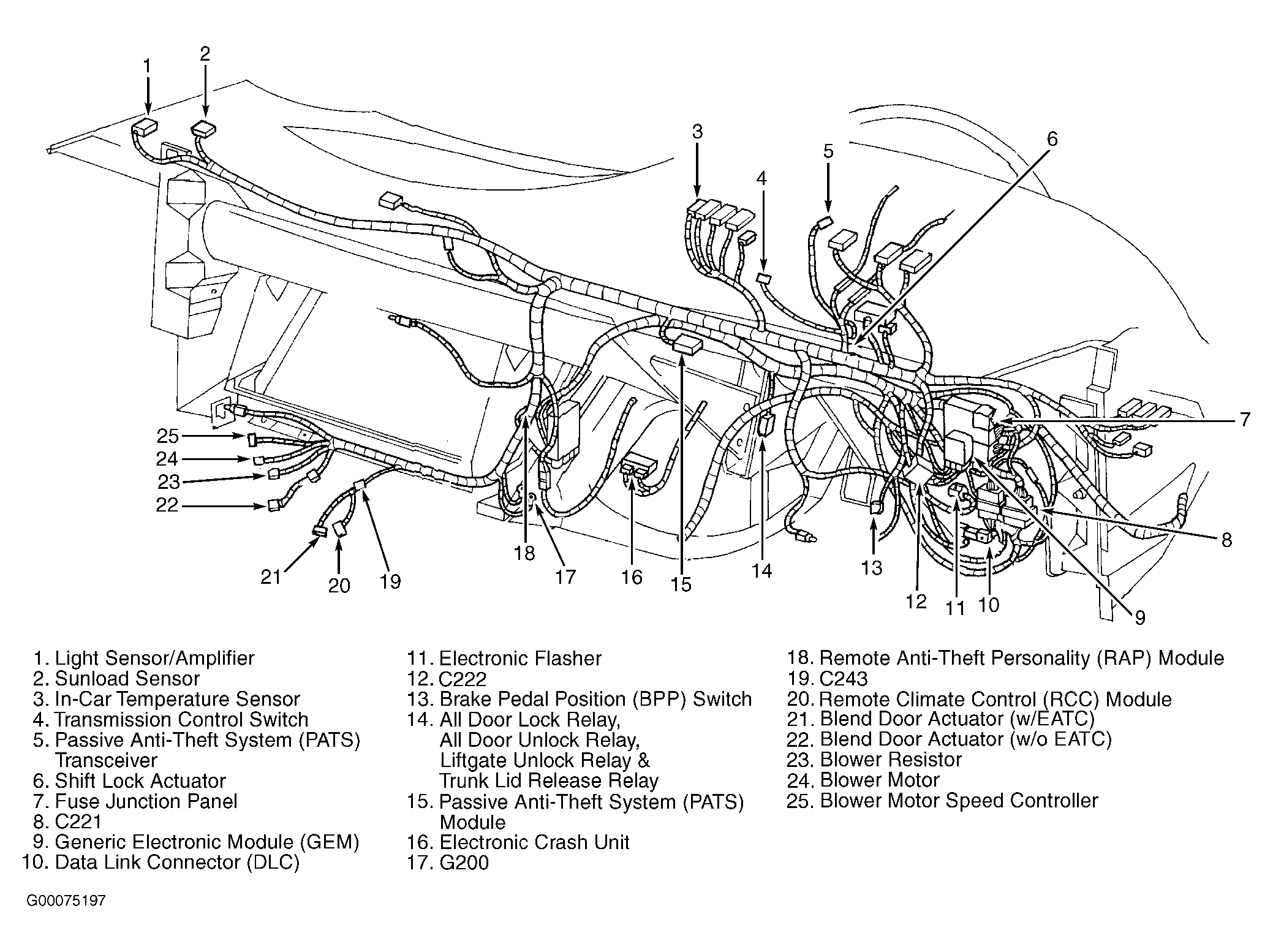

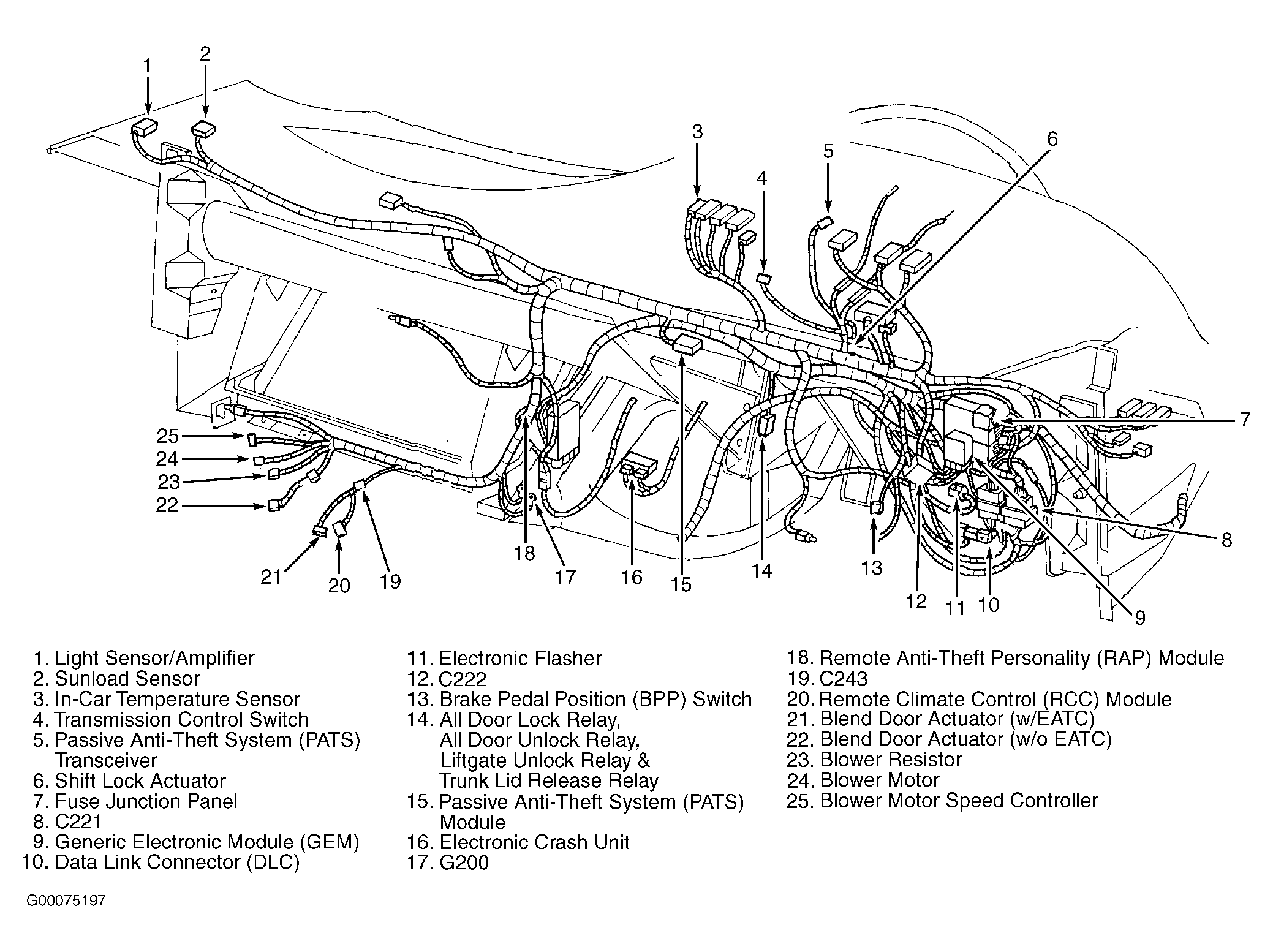

| Fuse Junction Panel | Under left corner of instrument cluster. See Figure . |
| Mega Fuse | Right side of battery junction box. |
| Relay Center Box | Left of battery, behind headlight. |
