AX4N

1 Of 9:




2 Of 9:




3 Of 9:




4 Of 9:




5 Of 9:




6 Of 9:




7 Of 9:




8 Of 9:




9 Of 9:

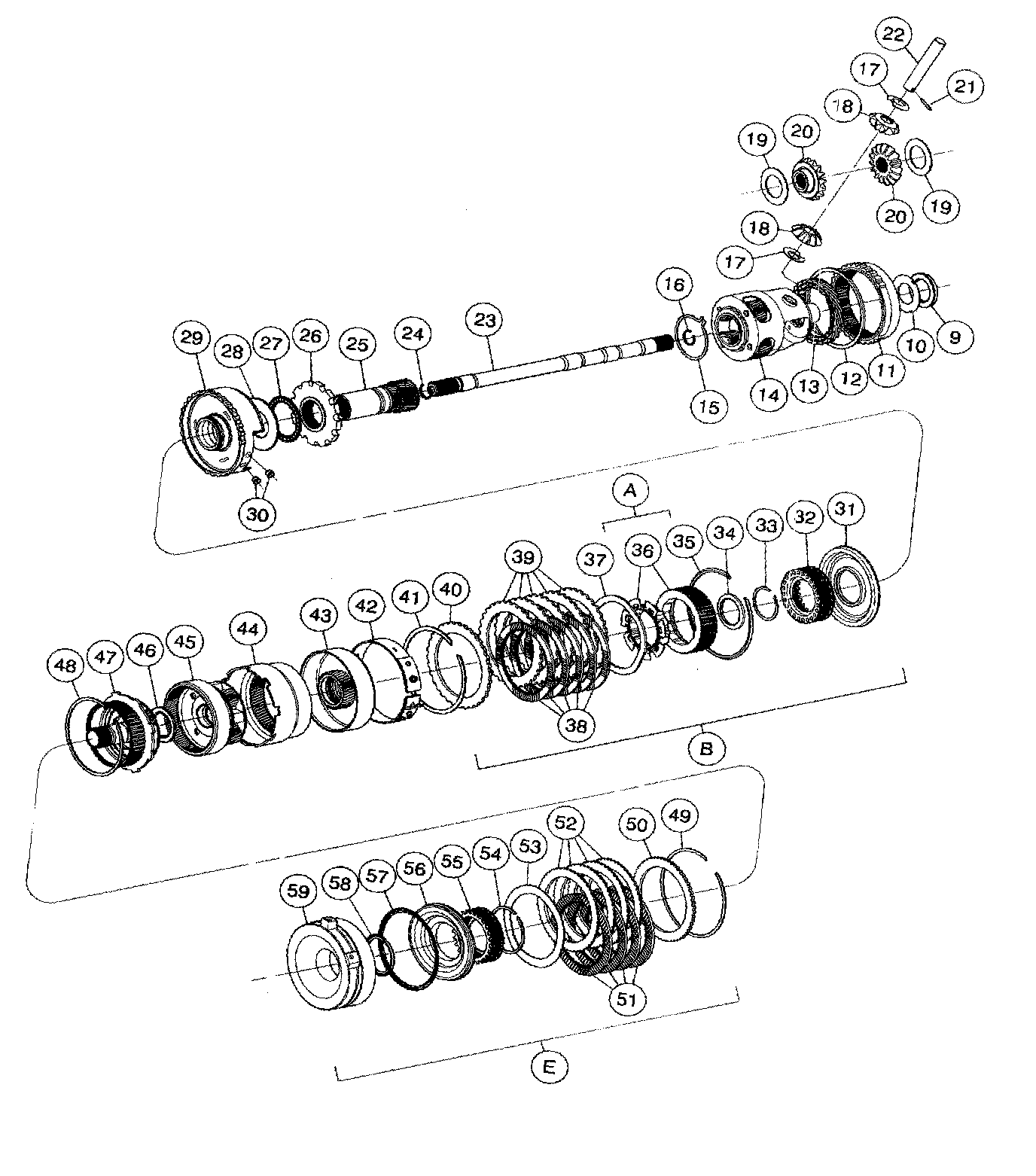

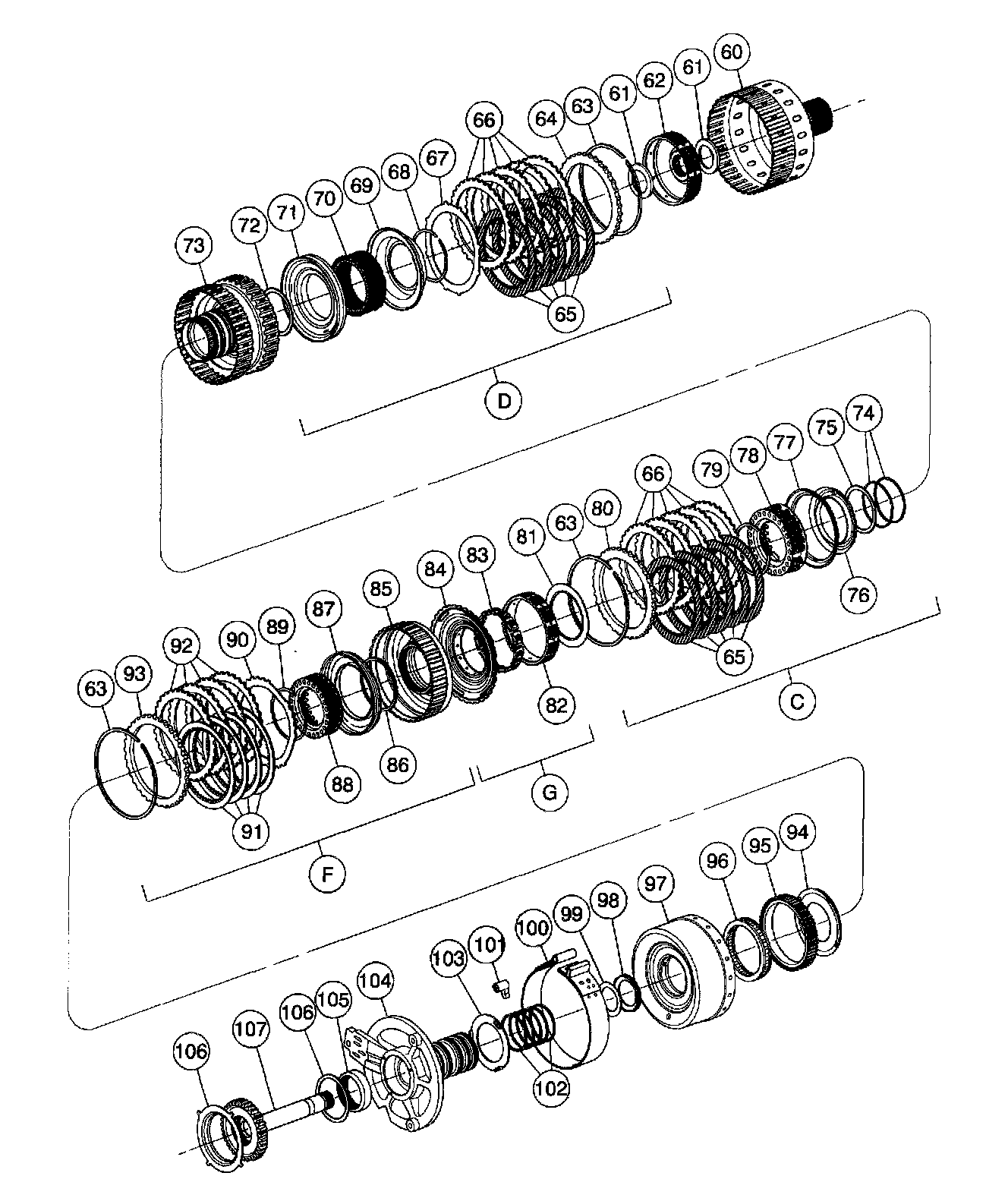

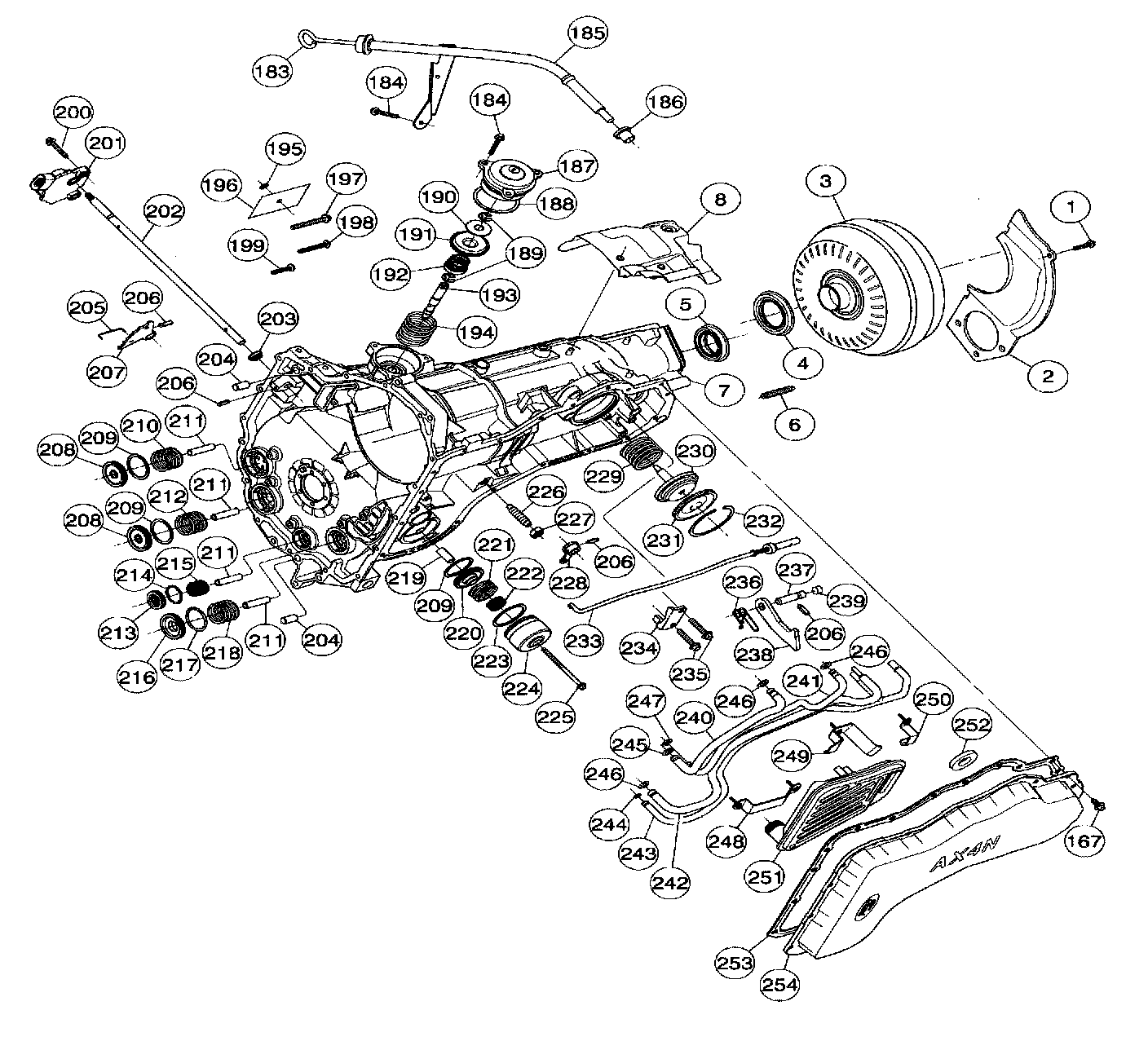

Transaxle, Automatic, AX4N-Disassembled View
