LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
1999
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
AX4S
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
AX4S
1 of 7:
2 Of 7:
3 Of 7:
4 Of 7:
5 Of 7:
6 Of 7:
7 Of 7:

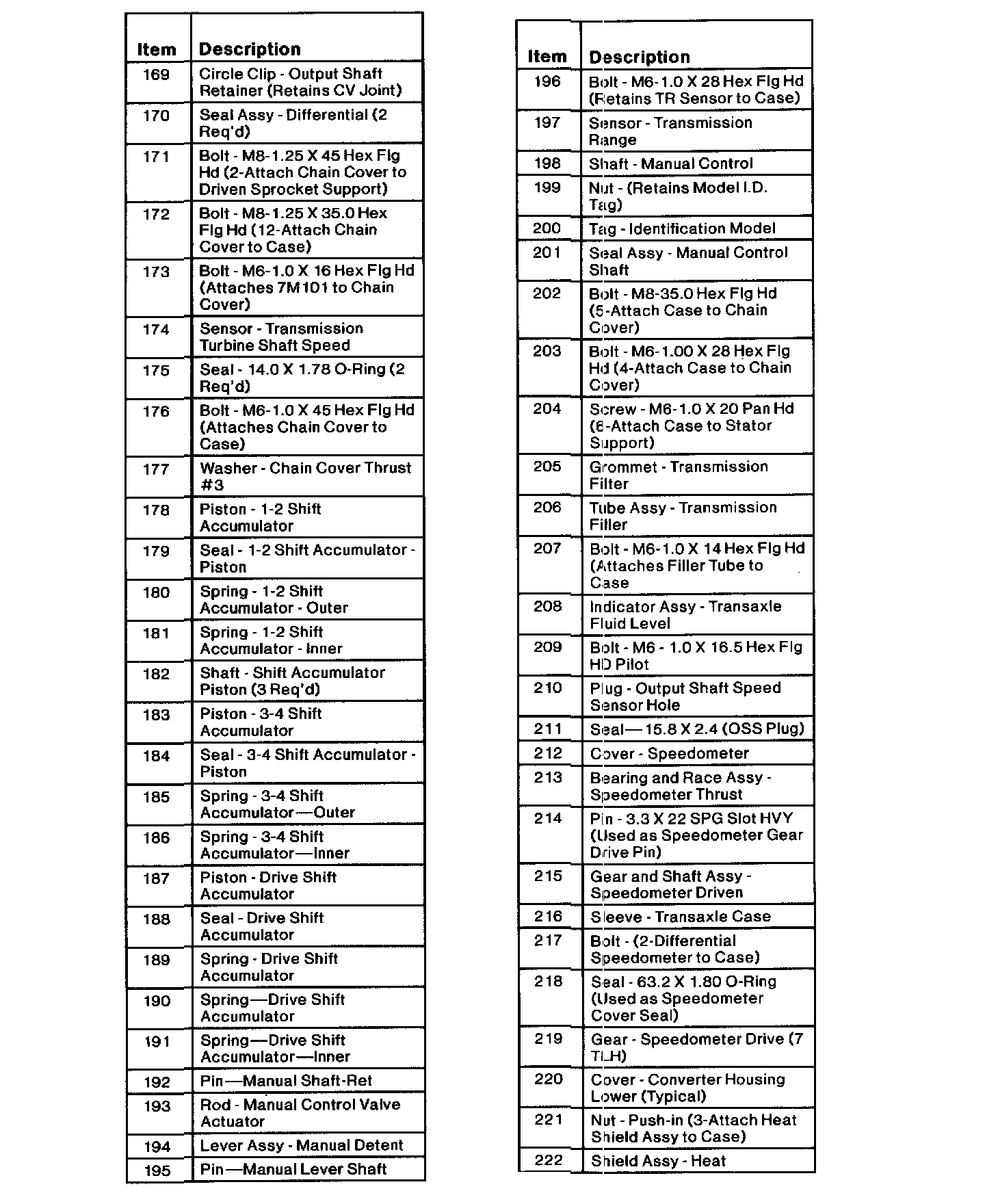

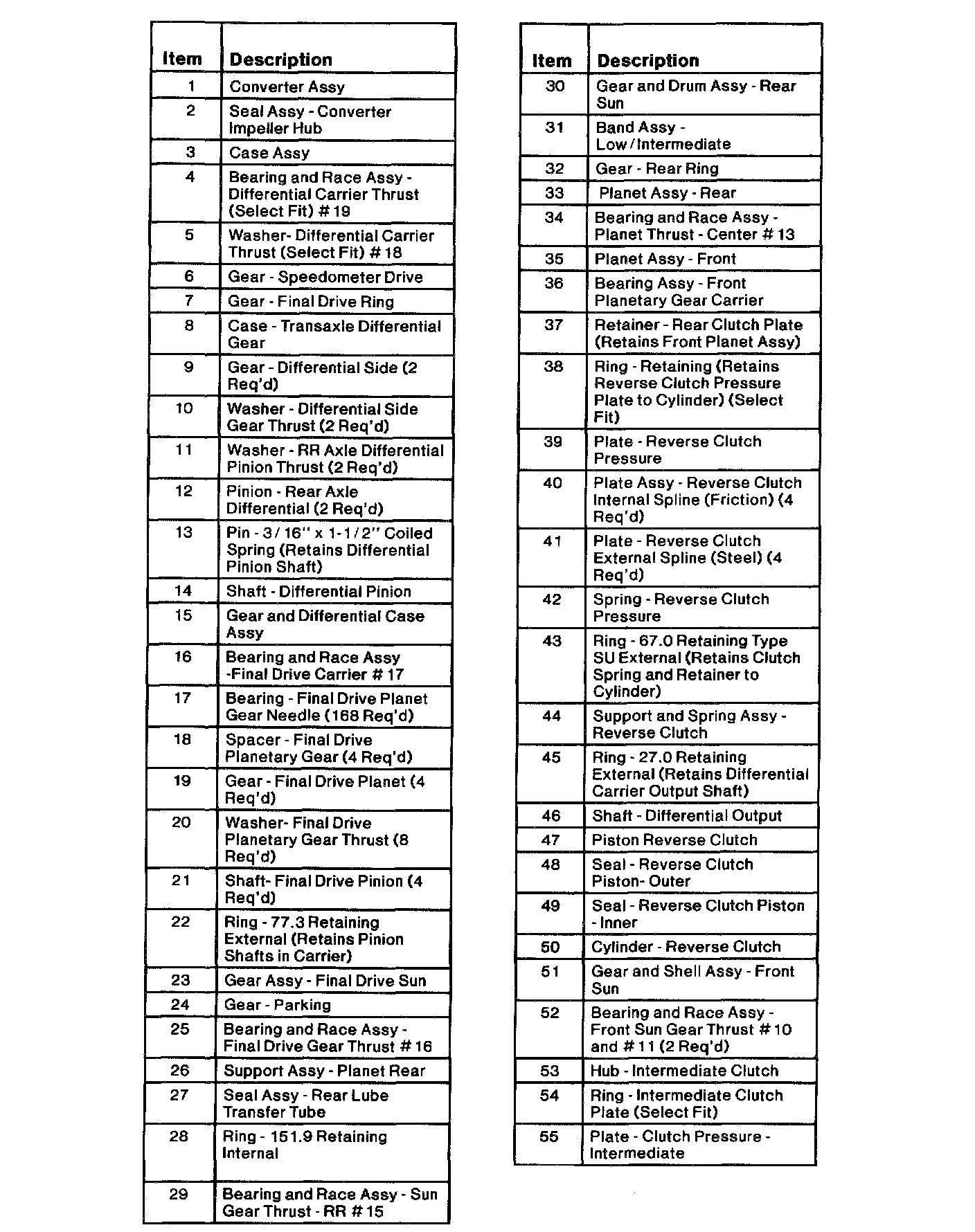

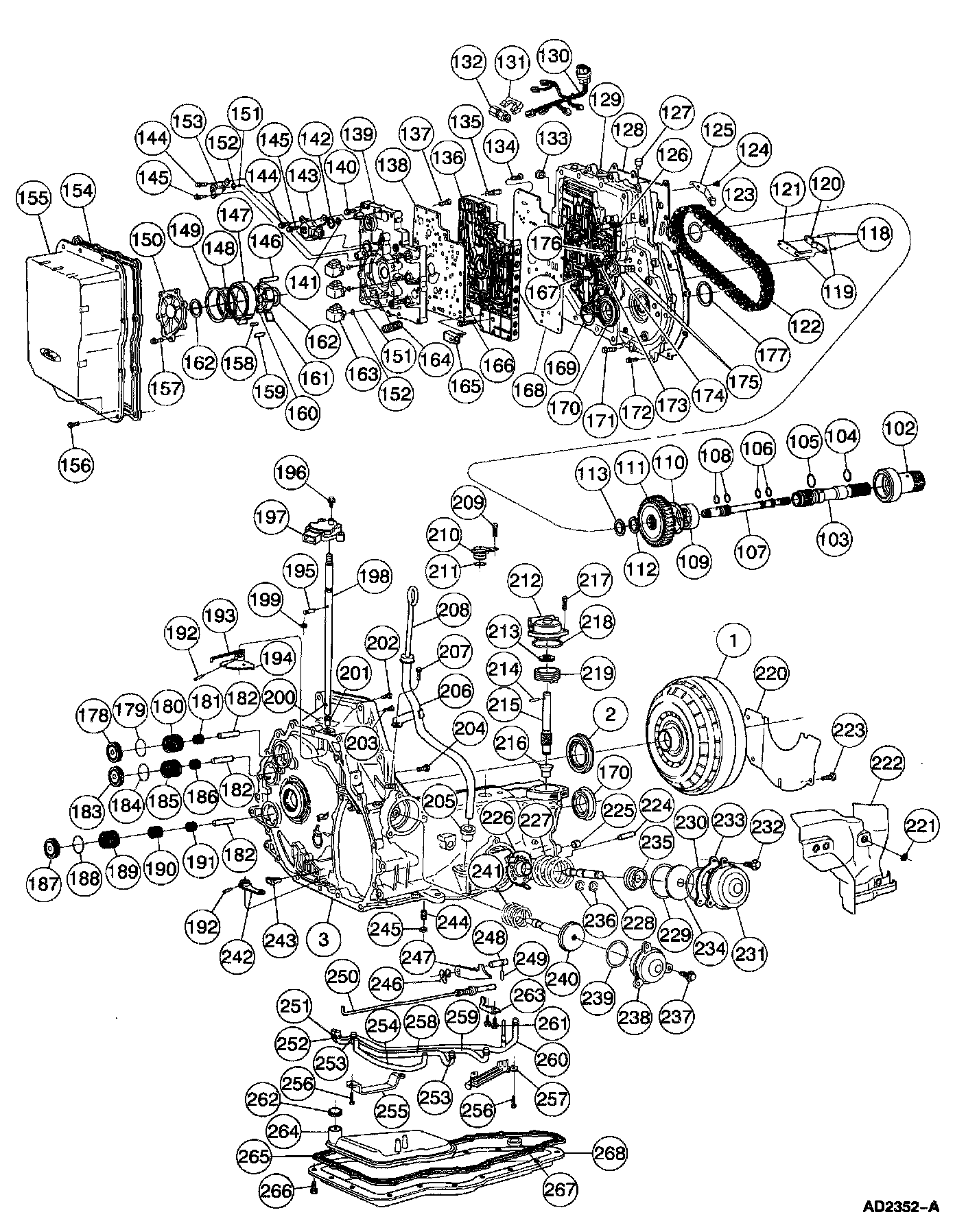

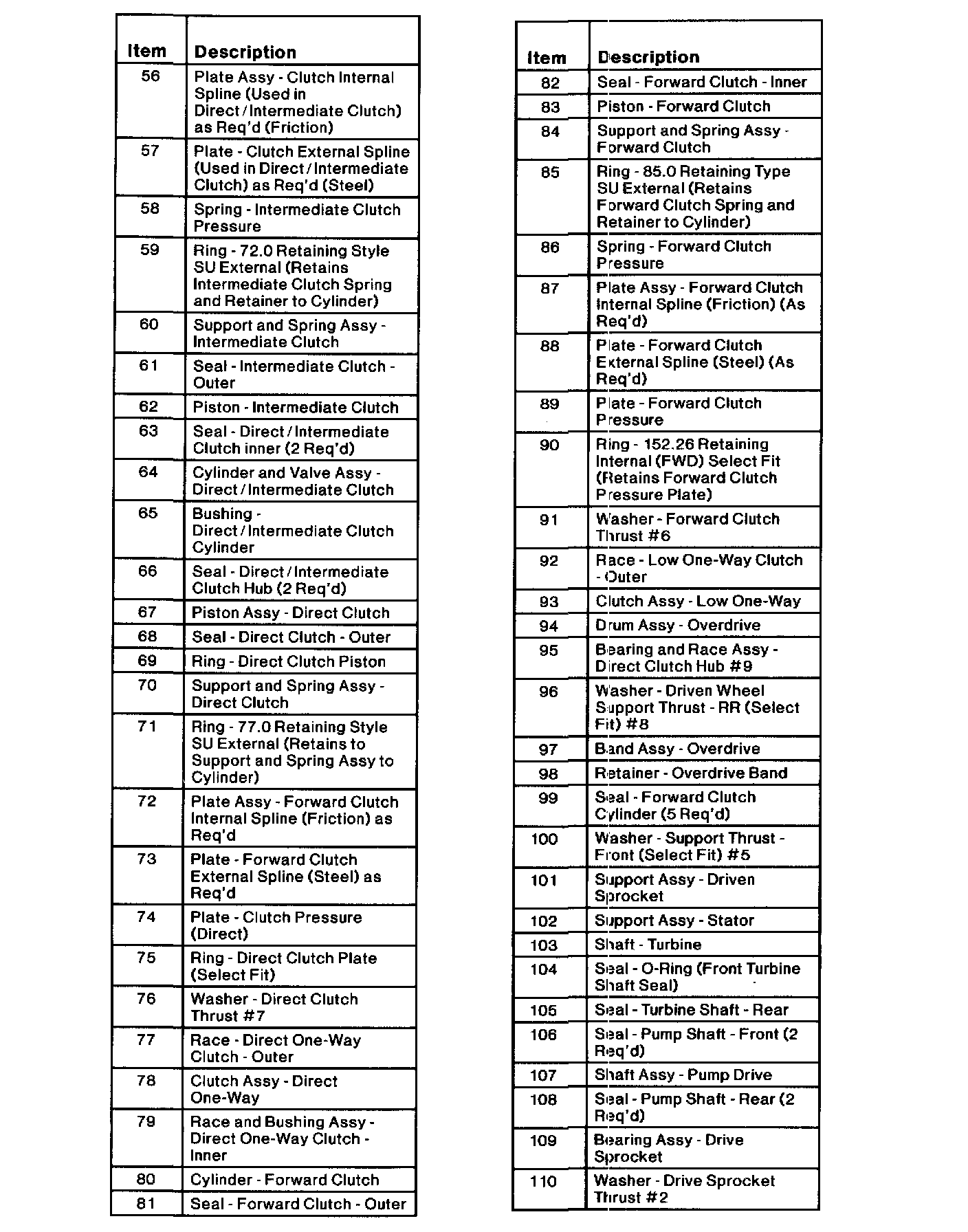

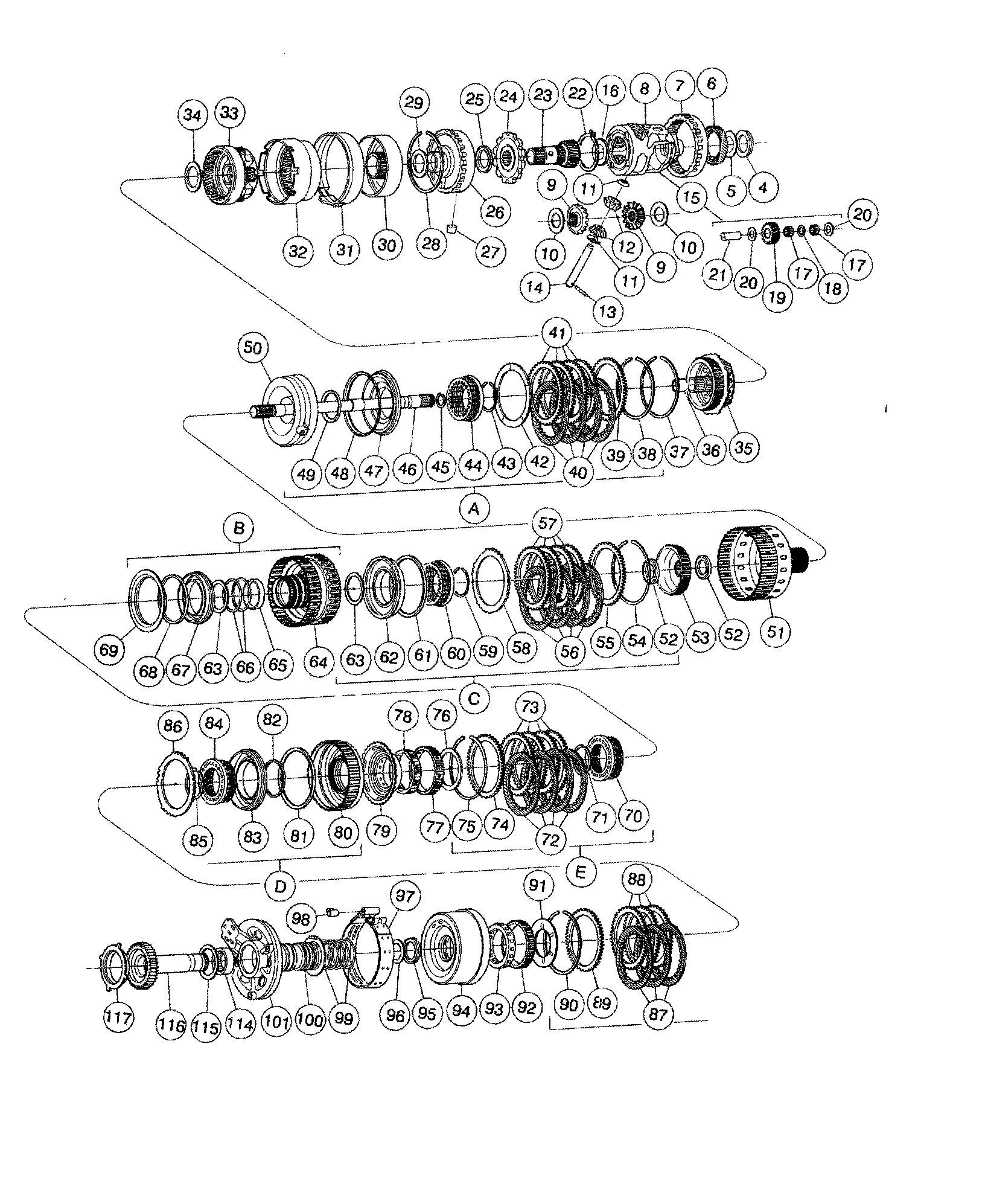

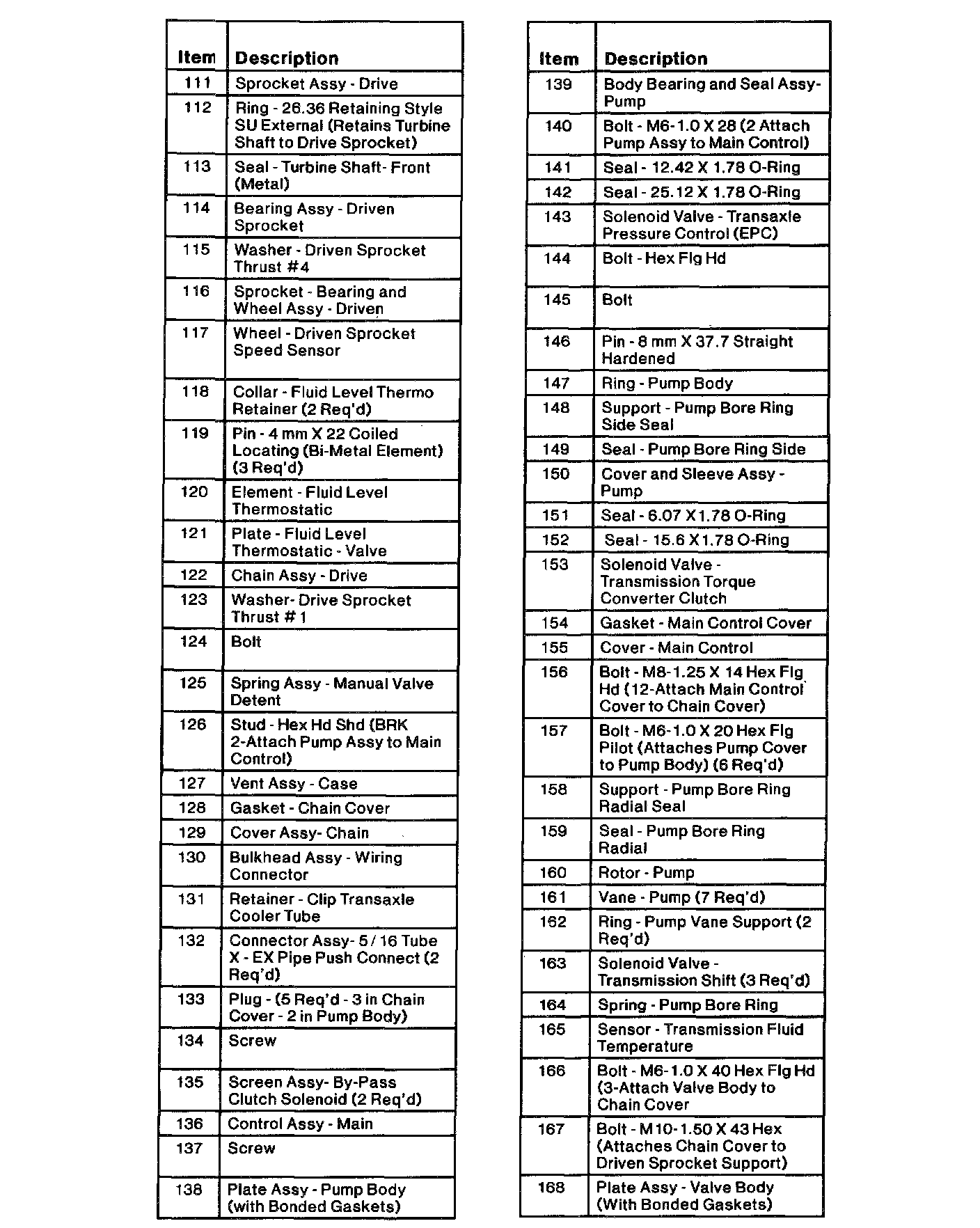

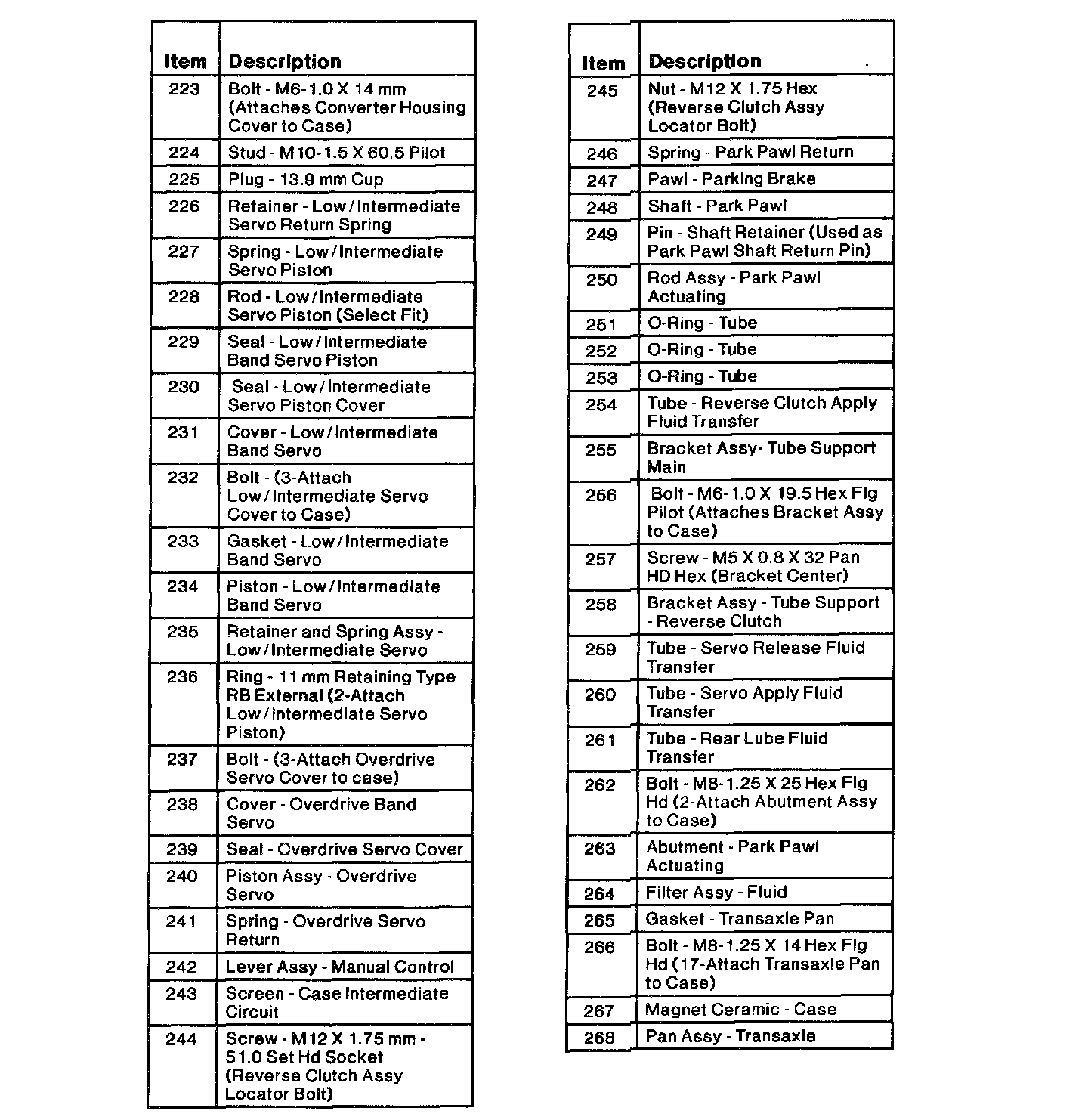

Disassembled View - Transaxle, Automatic
