Engine

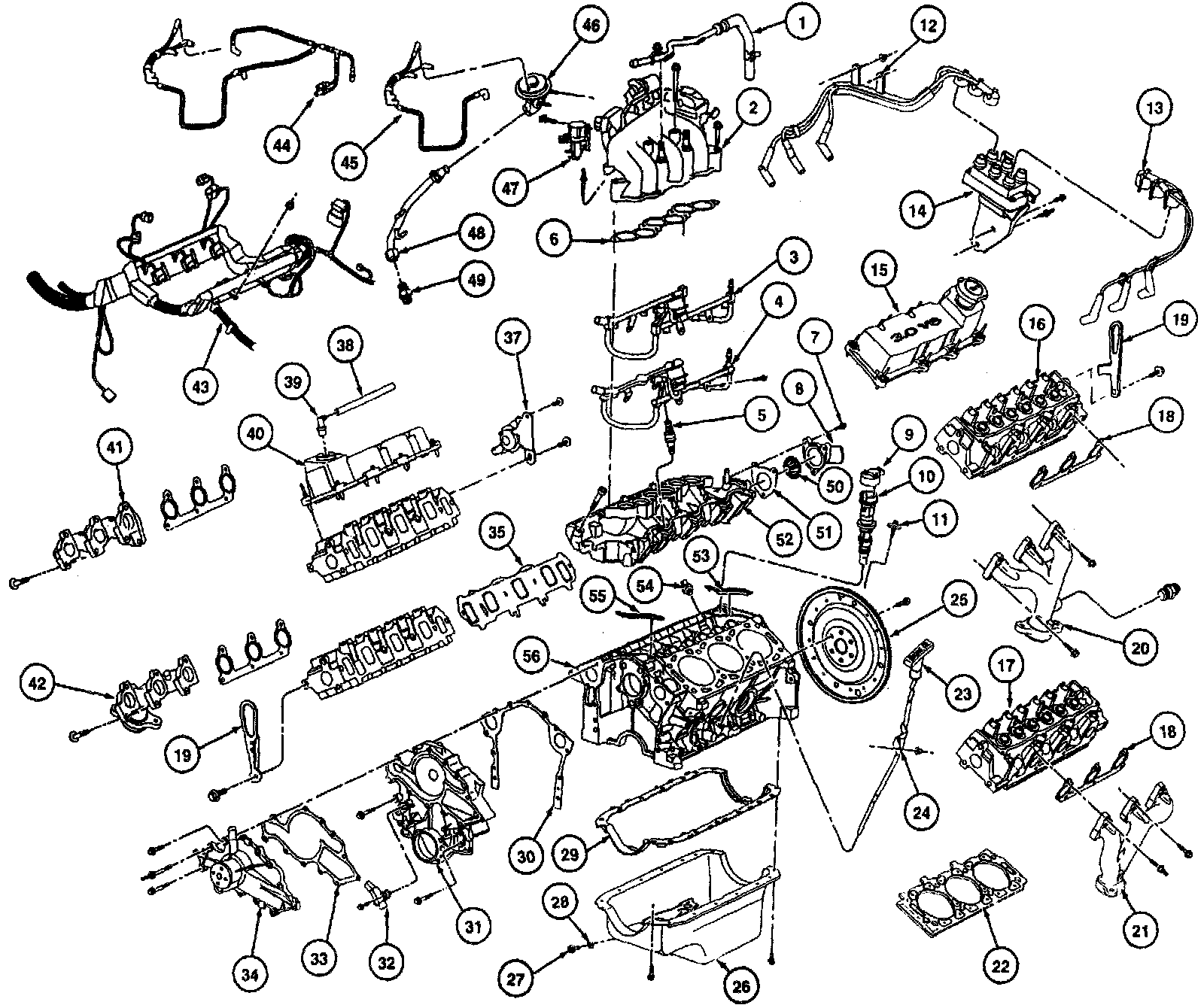

3.0L (2V) Engine - Disassembled View (1 Of 4):

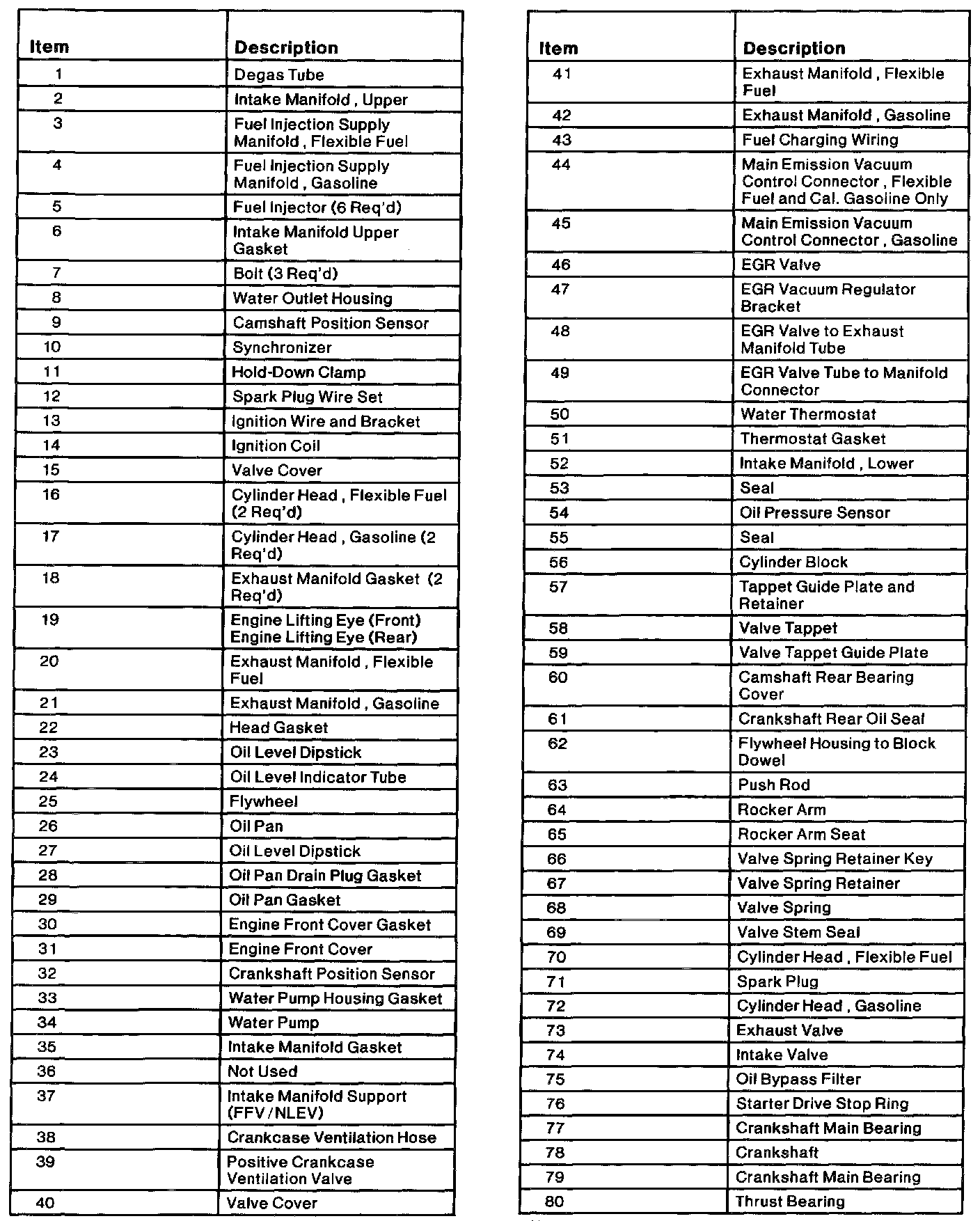

3.0L (2V) Engine - Disassembled View (2 Of 4):

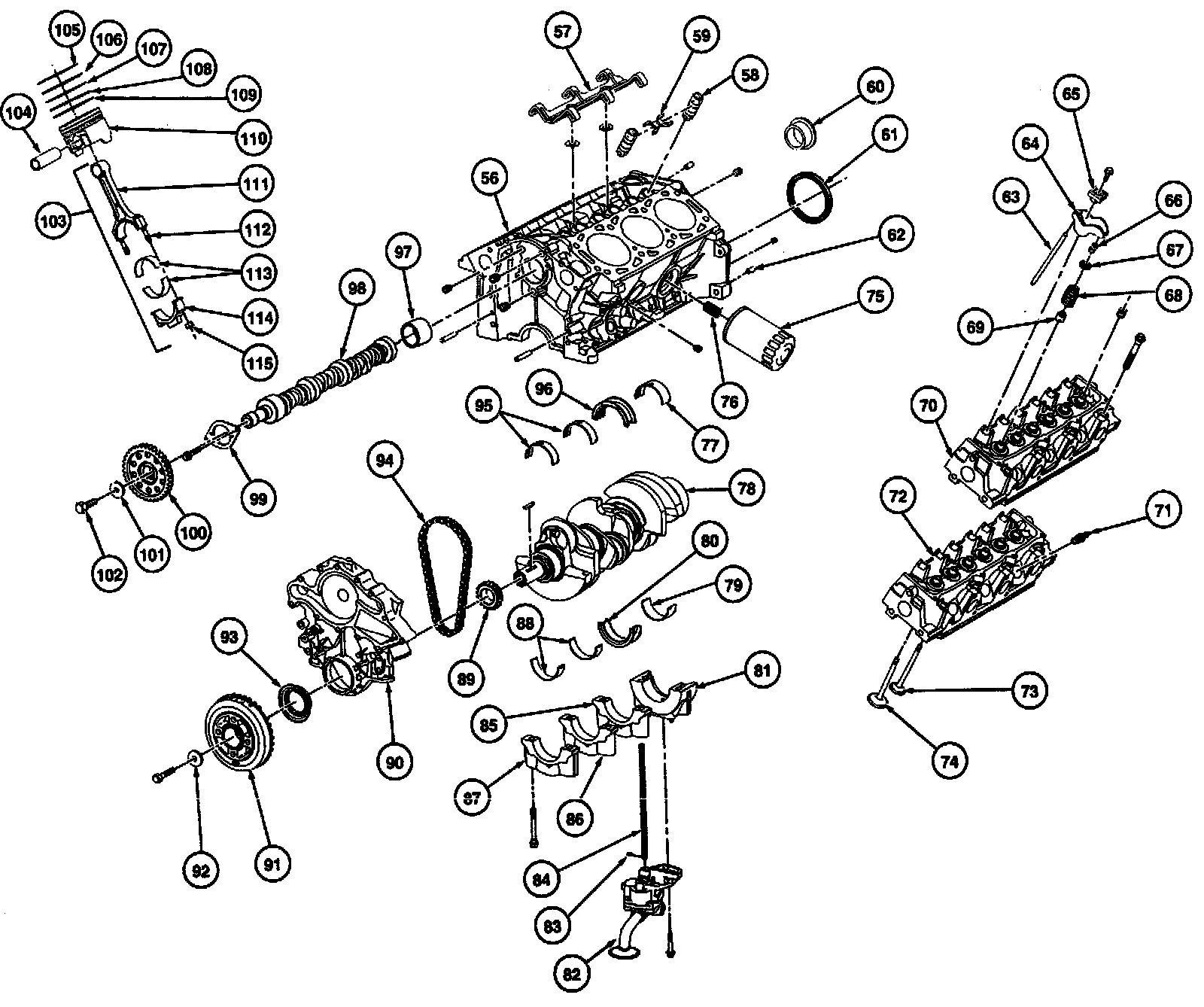

3.0L (2V) Engine - Disassembled View (3 Of 4):

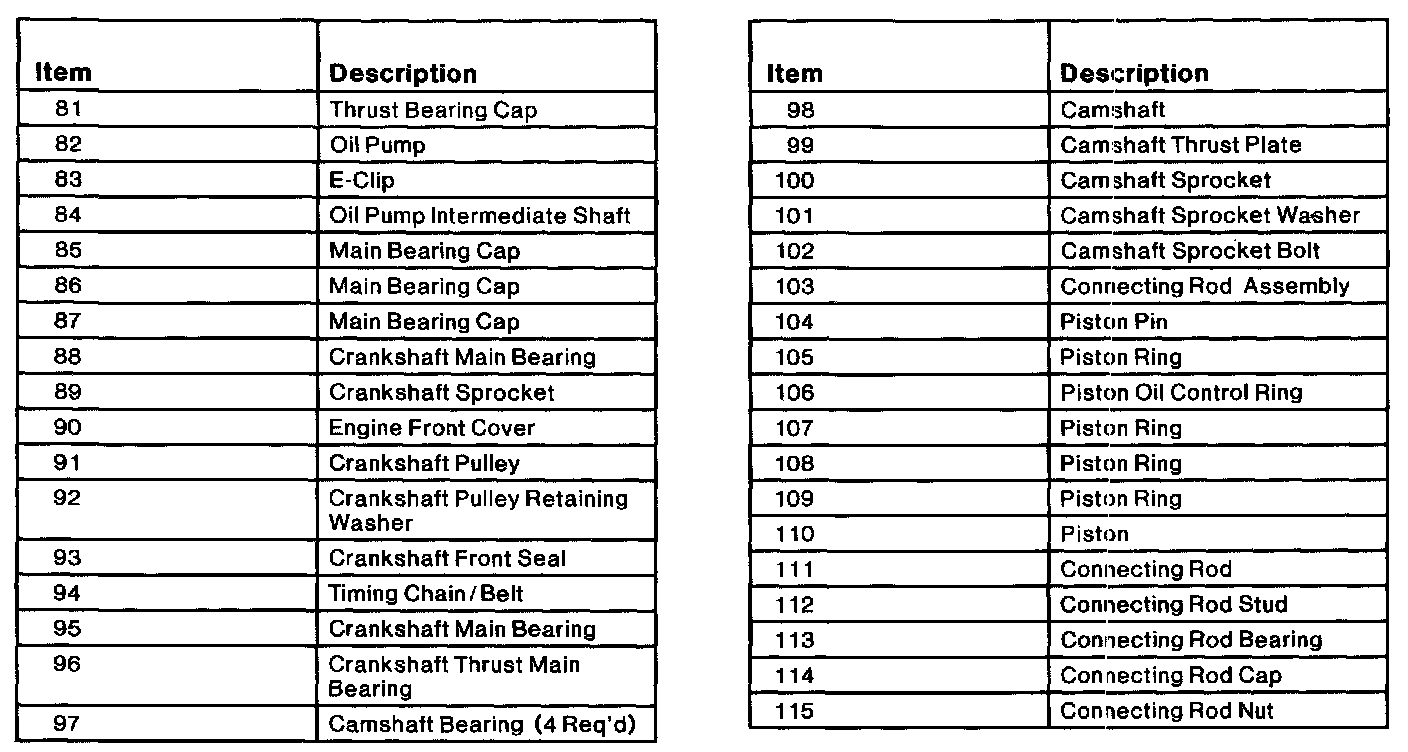

3.0L (2V) Engine - Disassembled View (4 Of 4):
