Compressor Bracket

REMOVAL
1. Remove A/C compressor.
2. Loosen two LH front engine support bolts and four A/C compressor mounting bracket retaining bolts.

NOTE: Do not remove engine support bolts or A/C compressor mounting bracket retaining bolts at this time.

3. Raise vehicle on hoist.
4. Remove RH front wheel and tire assembly.

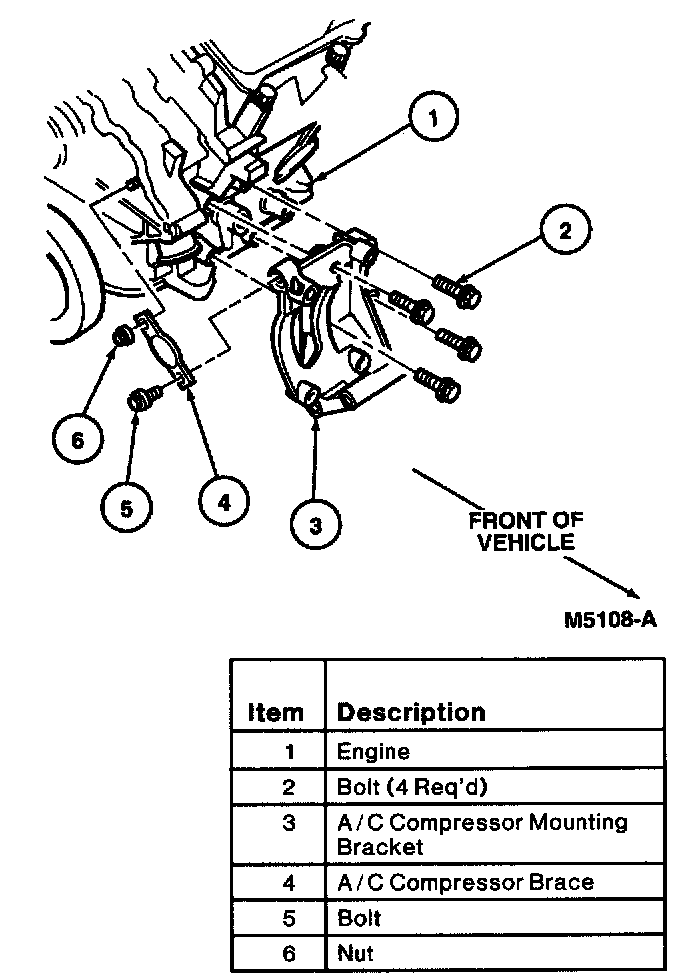

5. Loosen nut and remove bolt from A/C compressor brace.
6. Remove four bolts retaining A/C compressor mounting bracket to engine.
7. Remove two bolts retaining A/C compressor mounting bracket to RH front engine support insulator.
8. Loosen nut retaining RH front engine support insulator to front sub-frame and remove A/C compressor mounting bracket from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
