PID Reference Value Symptom Chart

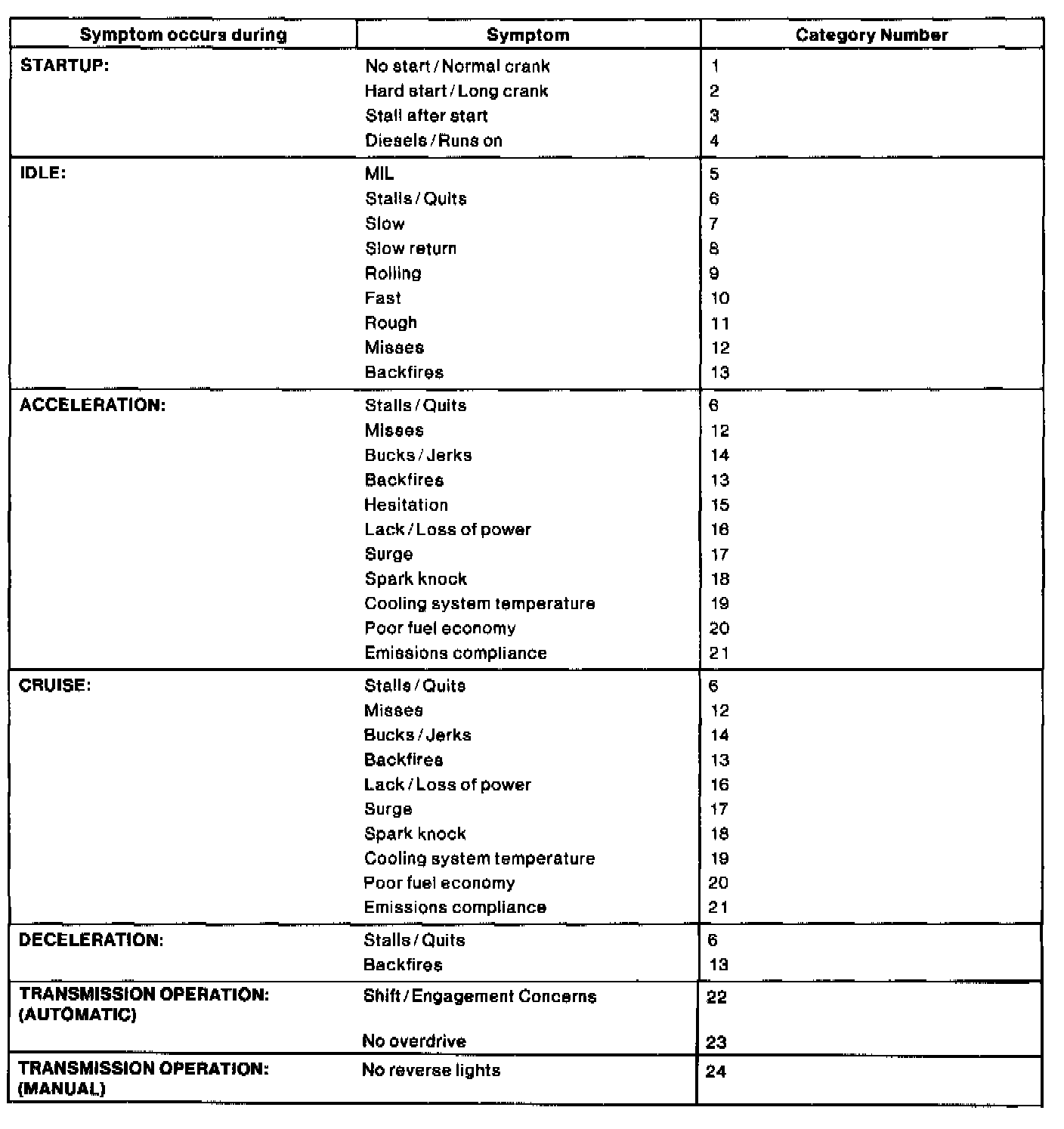

The Reference Value Symptom Chart is used to provide guidance in selecting the appropriate PID or measured signal related to the fault area. Select a symptom from the symptom chart along with the category number and proceed to the PID/Measured Signal Chart. For multiple symptoms, select the most evident.

For AX4N

For AX4S
