Reference Value PID/Measured Signal Chart

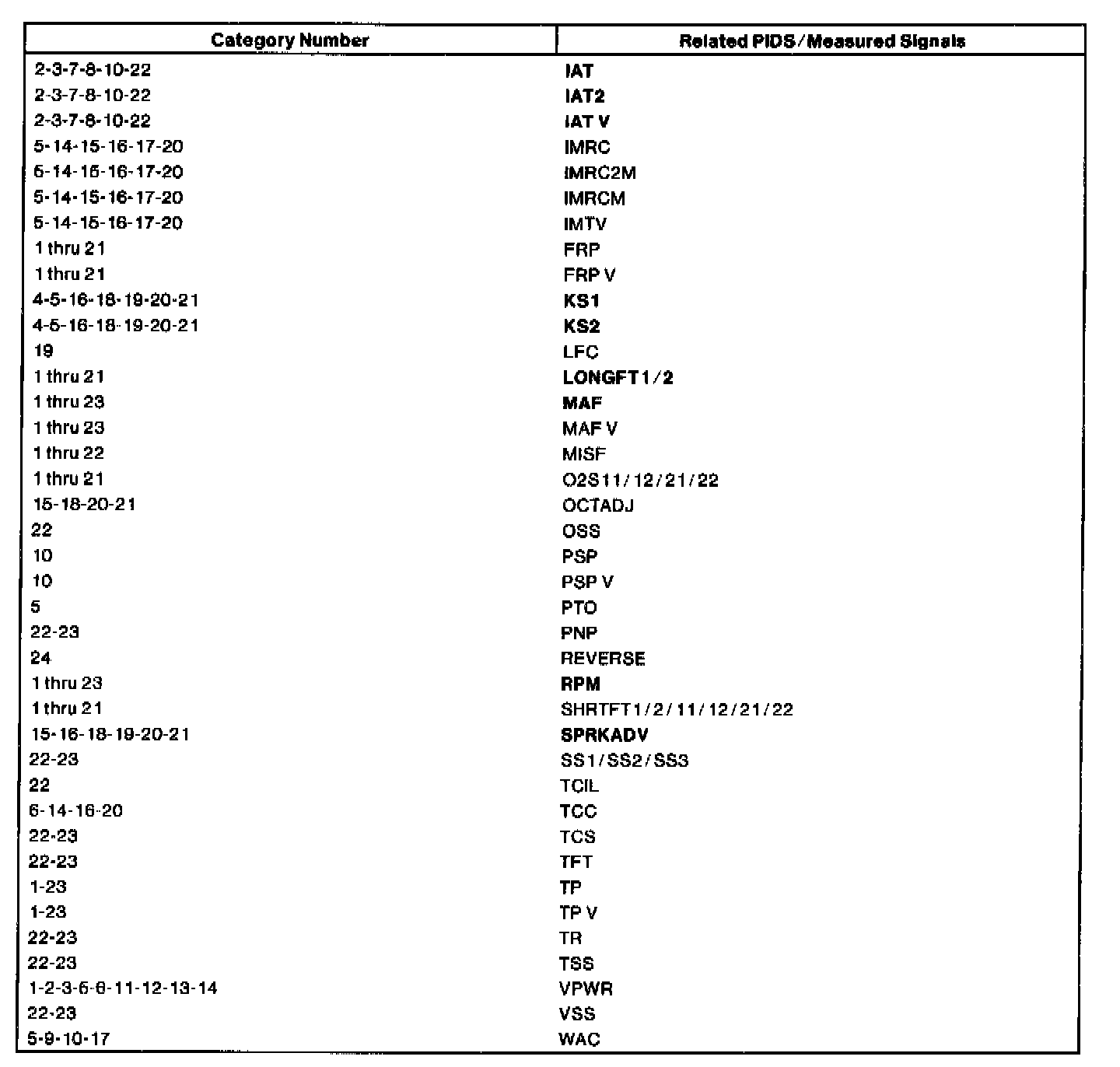

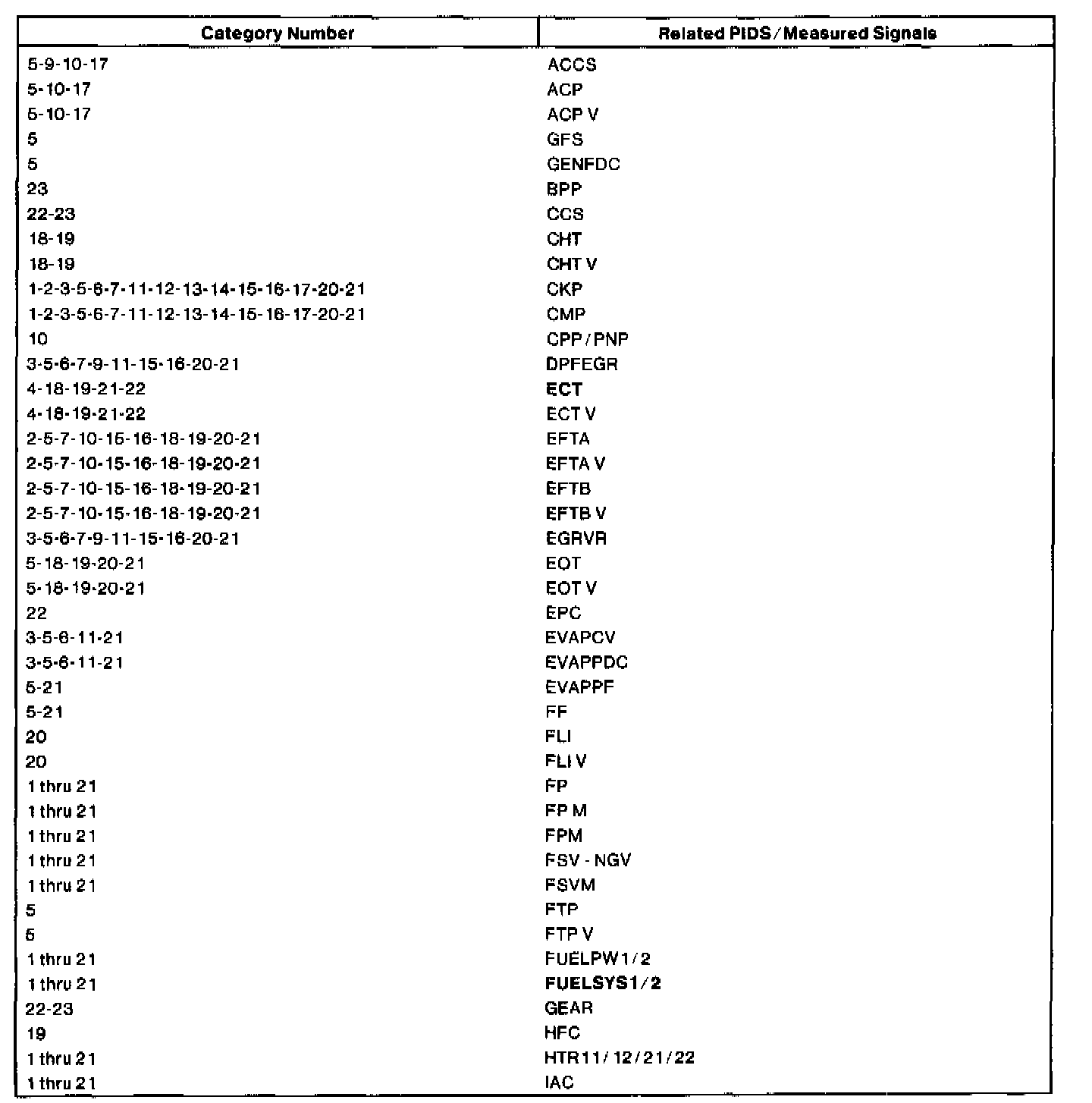

The listing reflects PIDs and/or measured values which may reveal a possible concern within each system shown. Match the category number with the related PID/measured signal and proceed to the Typical Diagnostic Reference Value Charts. Normal Scan Data Values - Includes Pids

NOTE:
- Generic PIDS are in bold.
- Some signals are measured only and will require the use of a breakout box and digital multimeter.
