Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the accelerator cable from the throttle lever.

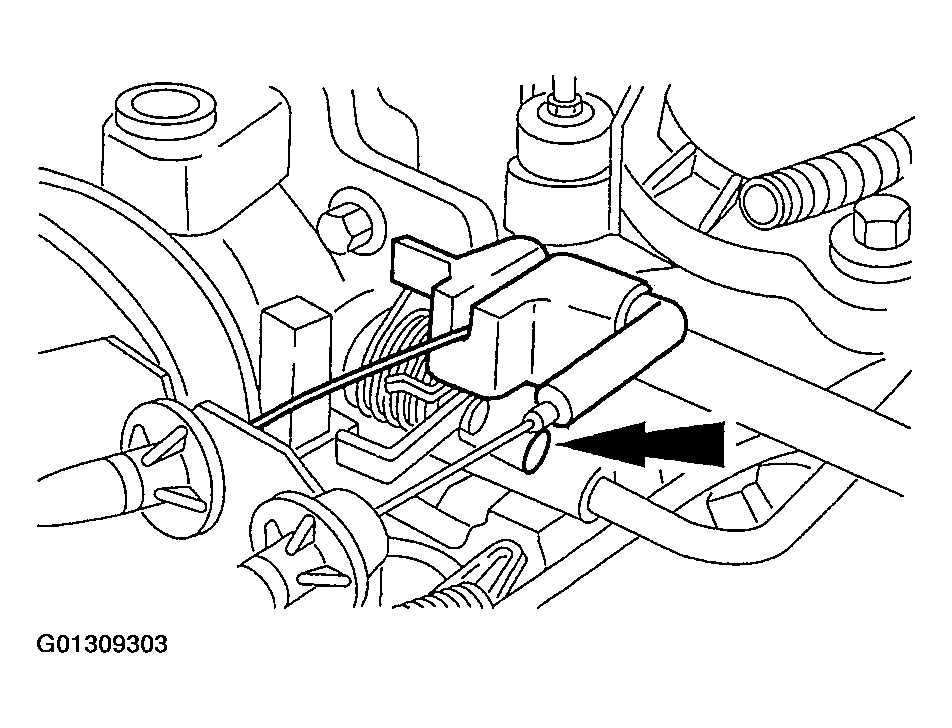

Fig 1: Disconnecting Accelerator Cable From Throttle Lever
Courtesy of FORD MOTOR CO.
Remove the cable separator clip.

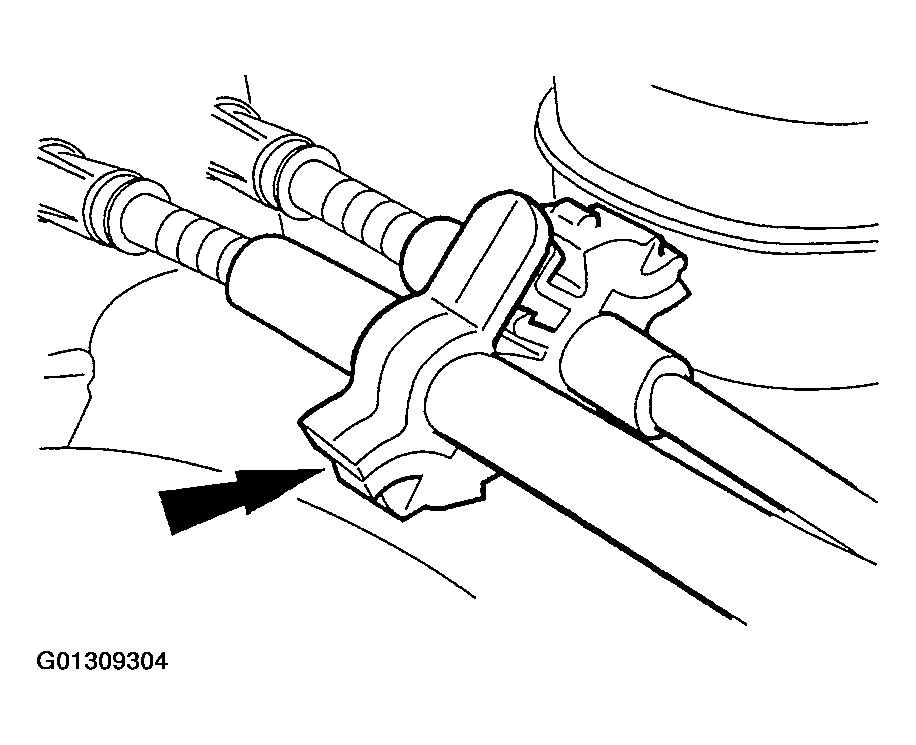

Fig 2: Removing Cable Separator Clip
Courtesy of FORD MOTOR CO.

NOTE: Make sure cable is routed into clips during reinstallation.

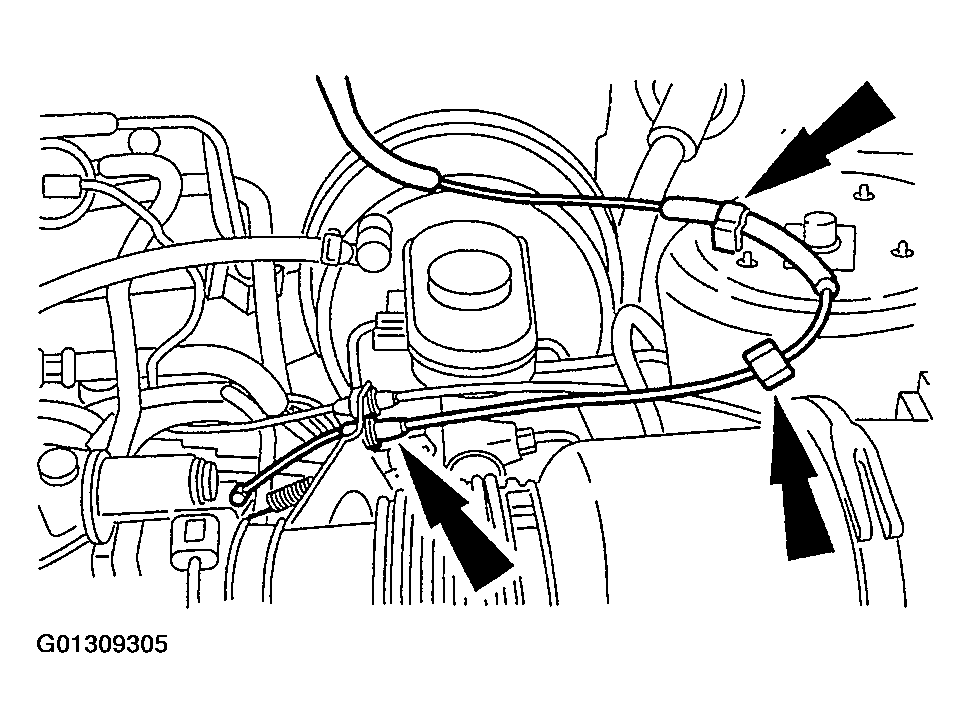

Fig 3: Removing Accelerator Cable Fitting And Accelerator Cable

Courtesy of FORD MOTOR CO.

Remove the accelerator cable fitting from the accelerator cable bracket and the accelerator cable from the accelerator cable clip on the LH shock tower and air cleaner housing.
Remove the accelerator pedal. For additional information, refer to PEDAL .
Depress the accelerator lock tabs and disconnect the accelerator cable from the dash panel. Push the accelerator cable into the engine compartment and remove the accelerator cable.

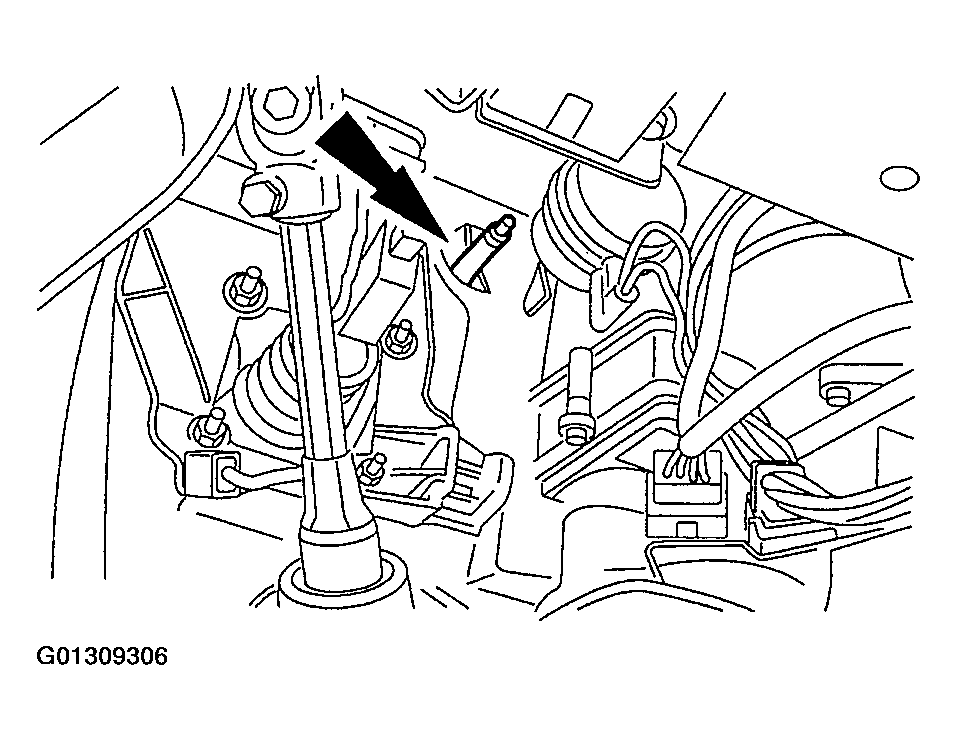

Fig 4: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
