EVAP Monitor

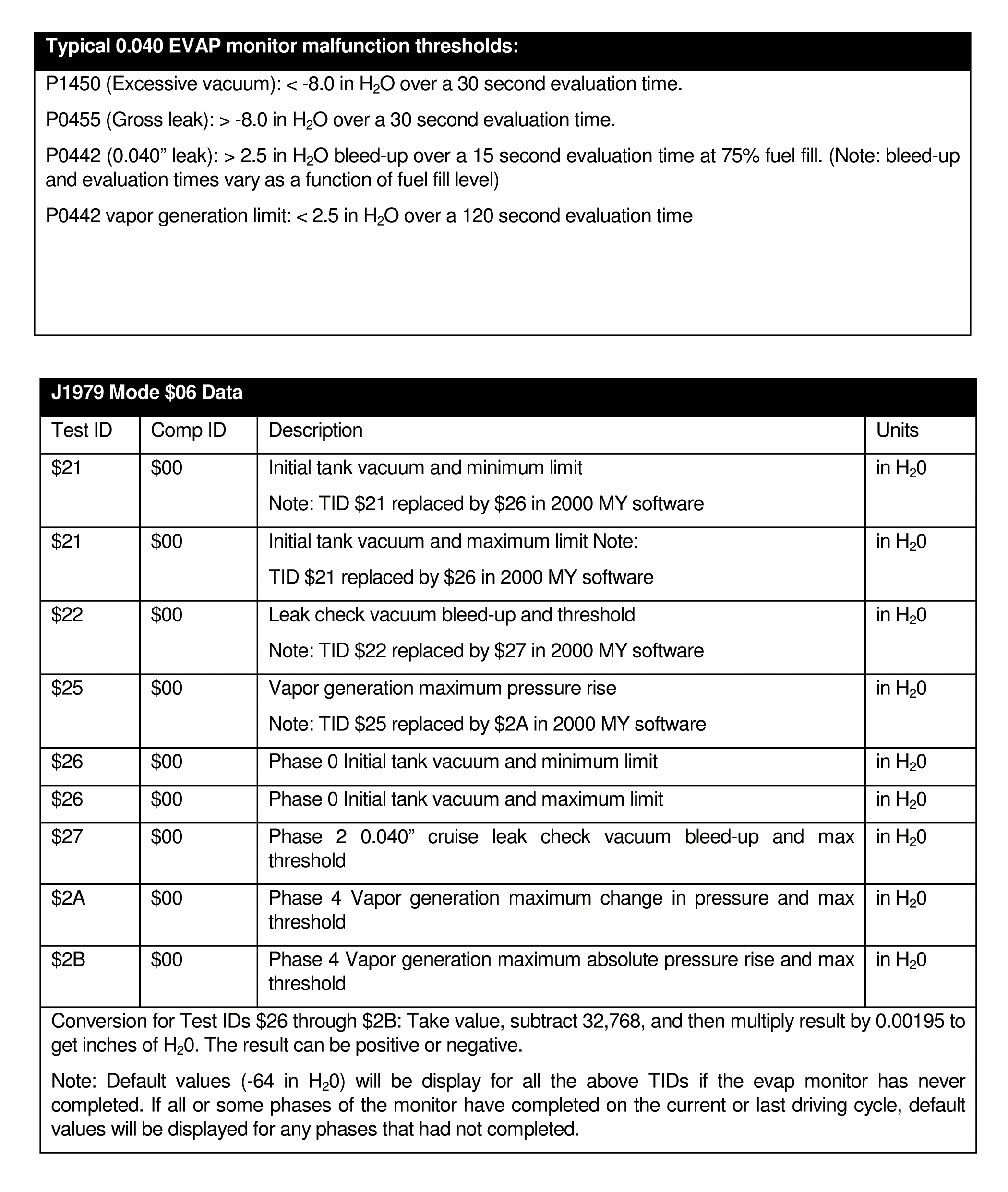

Fig 1: Mode $06 Data For EVAP Monitor (0.040" Leak)
G00152251Courtesy of FORD MOTOR CO.

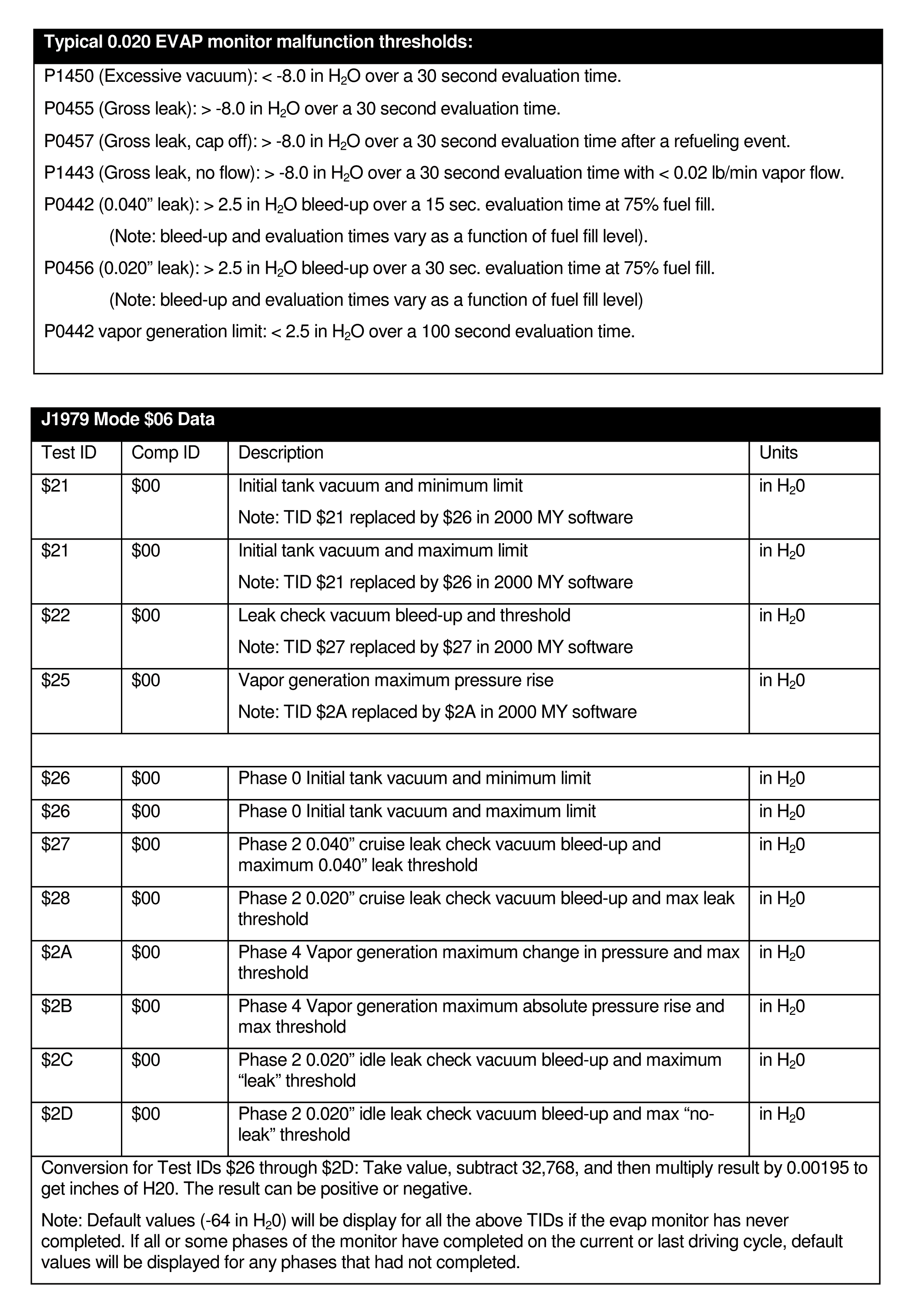

Fig 2: Mode $06 Data For EVAP Monitor (0.020" Leak)
G00152252Courtesy of FORD MOTOR CO.
