Oil Pan: Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Use a plastic scraping tool to remove all traces of the oil pan gasket.
- Clean all surfaces with metal surface cleaner.
- Apply a 10 mm (0.39 in) diameter dot of silicone sealant to the areas indicated.
- Position the oil pan and a new gasket, and loosely install the bolts and stud bolts.
- Install the oil pan-to-transaxle bolts.
- Tighten to 40 Nm (30 lb-ft).
- Tighten the oil pan-to-engine bolts in the sequence shown to 25 Nm (18 lb-ft).
- Install the oil filter adapter-to-oil pan bolt.
- Tighten to 40 Nm (30 lb-ft) and then rotate 90 degrees.
- Install a new oil filter.
- Tighten to 16 Nm (12 lb-ft).

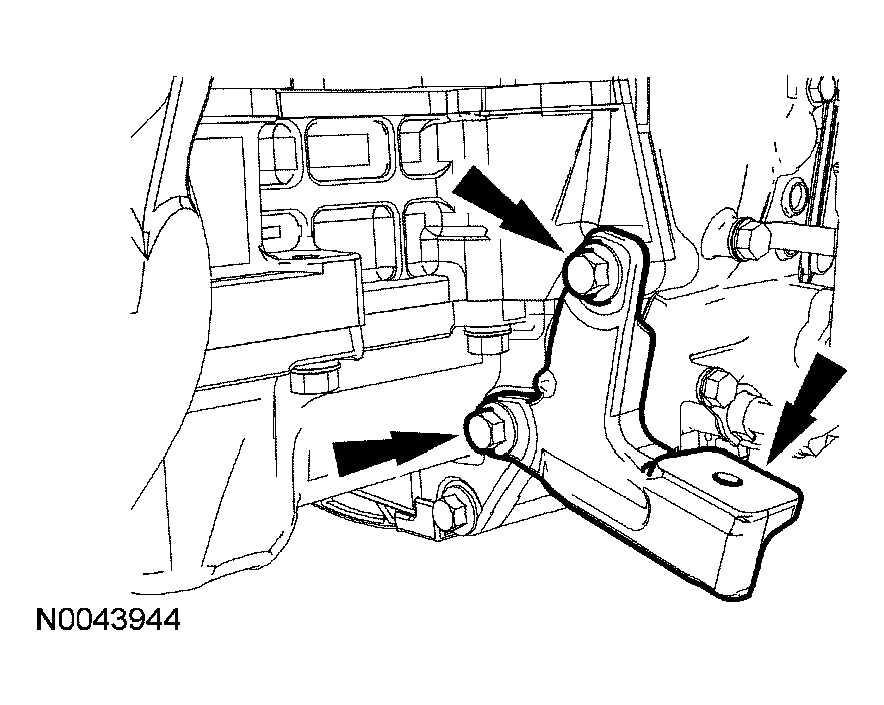

- Install the front catalytic converter bracket and the 2 bolts.
- Tighten to 40 Nm (30 lb-ft).
- Install the front catalytic converter. For additional information, refer to EXHAUST SYSTEM .
- Fill the engine with clean engine oil.
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
NOTE:
The oil pan must be installed and the bolts tightened within 4 minutes of sealant application.
