Valve Spring Squareness

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Measure the out-of-square on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to the appropriate engine article for the procedure.

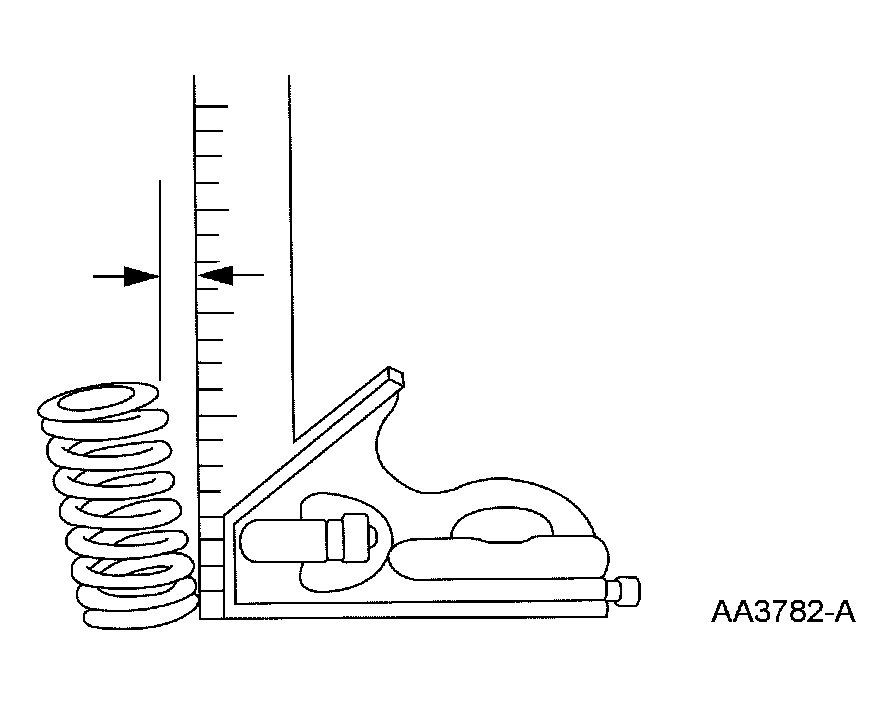

  Fig 1: Installing New Valve Spring Square
  Courtesy of FORD MOTOR CO.
