Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

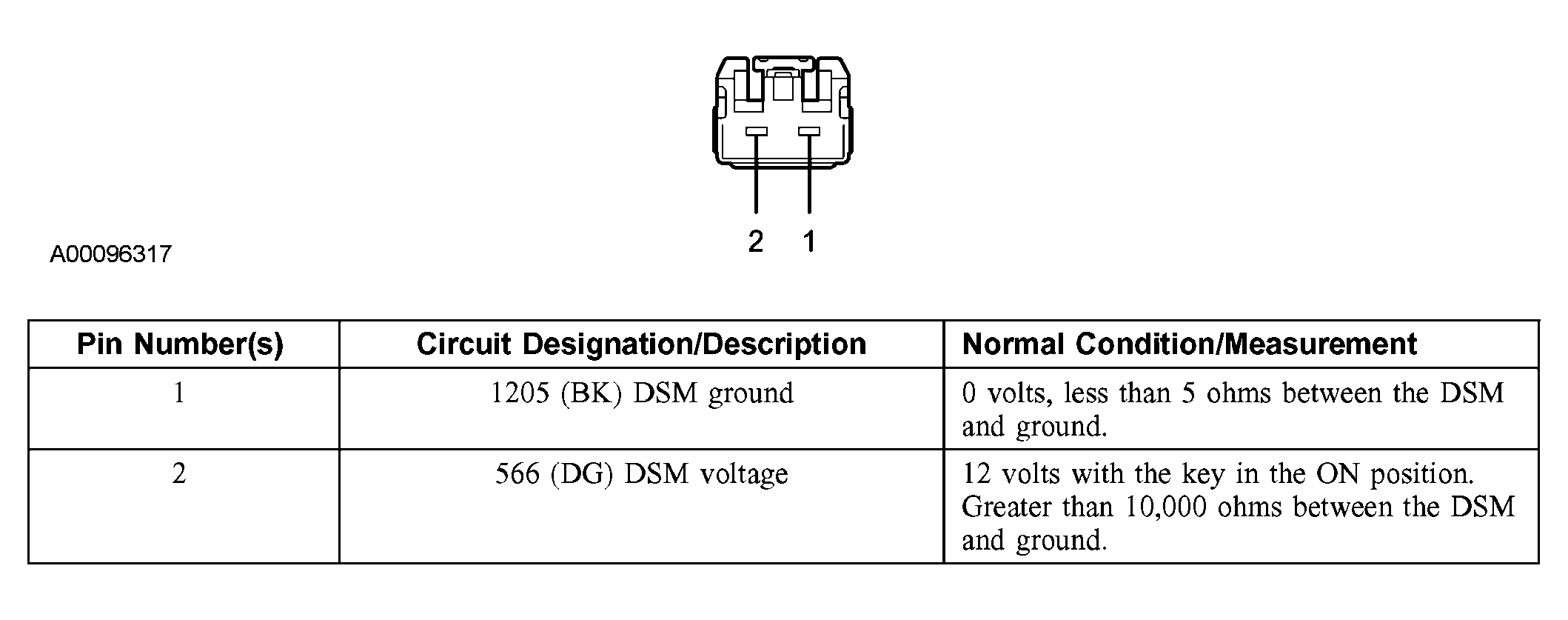

Fig 1: Driver Seat Module (DSM) C341A Connector Circuit
G03993022Courtesy of FORD MOTOR CO.

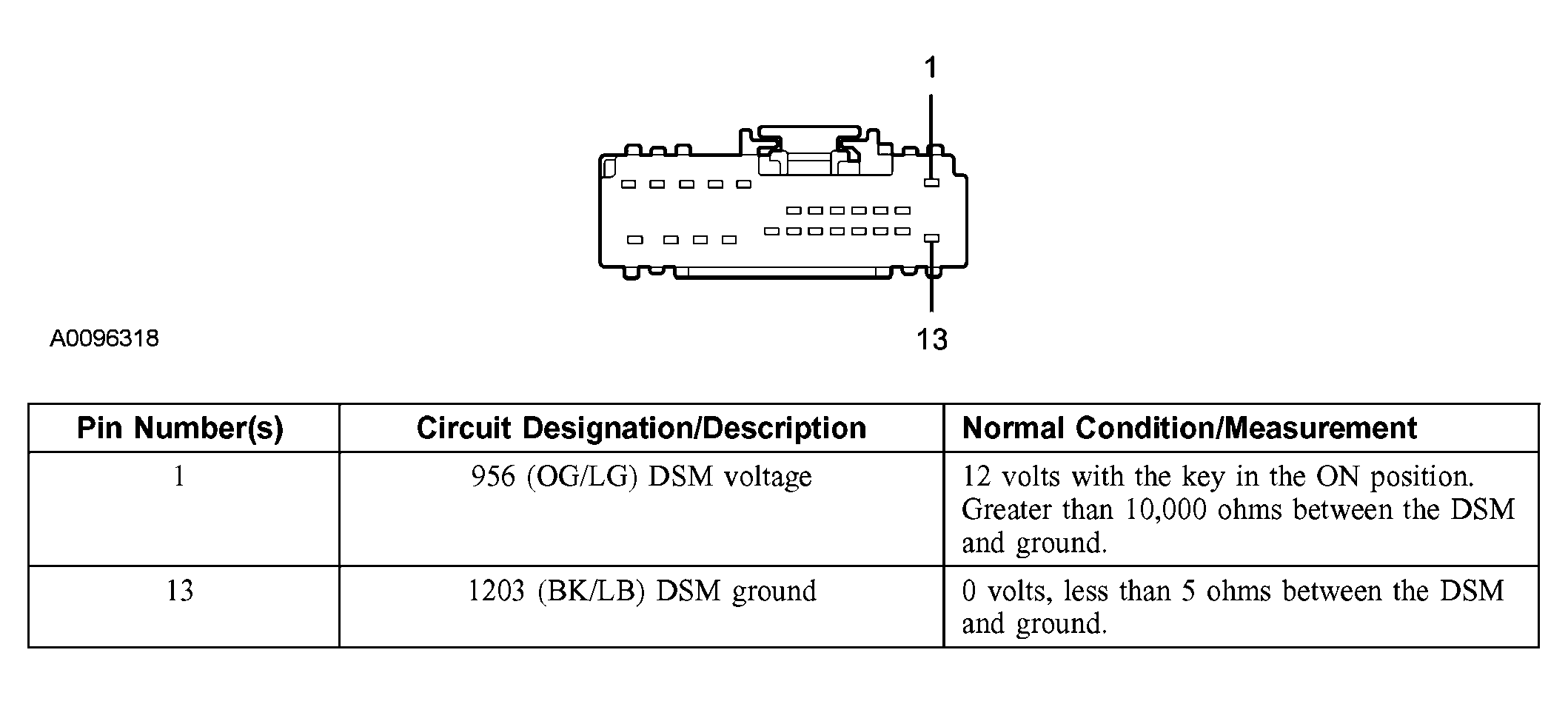

Fig 2: Driver Seat Module (DSM) C341C Connector Circuit
G03993023Courtesy of FORD MOTOR CO.
