Removal and Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument cluster finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

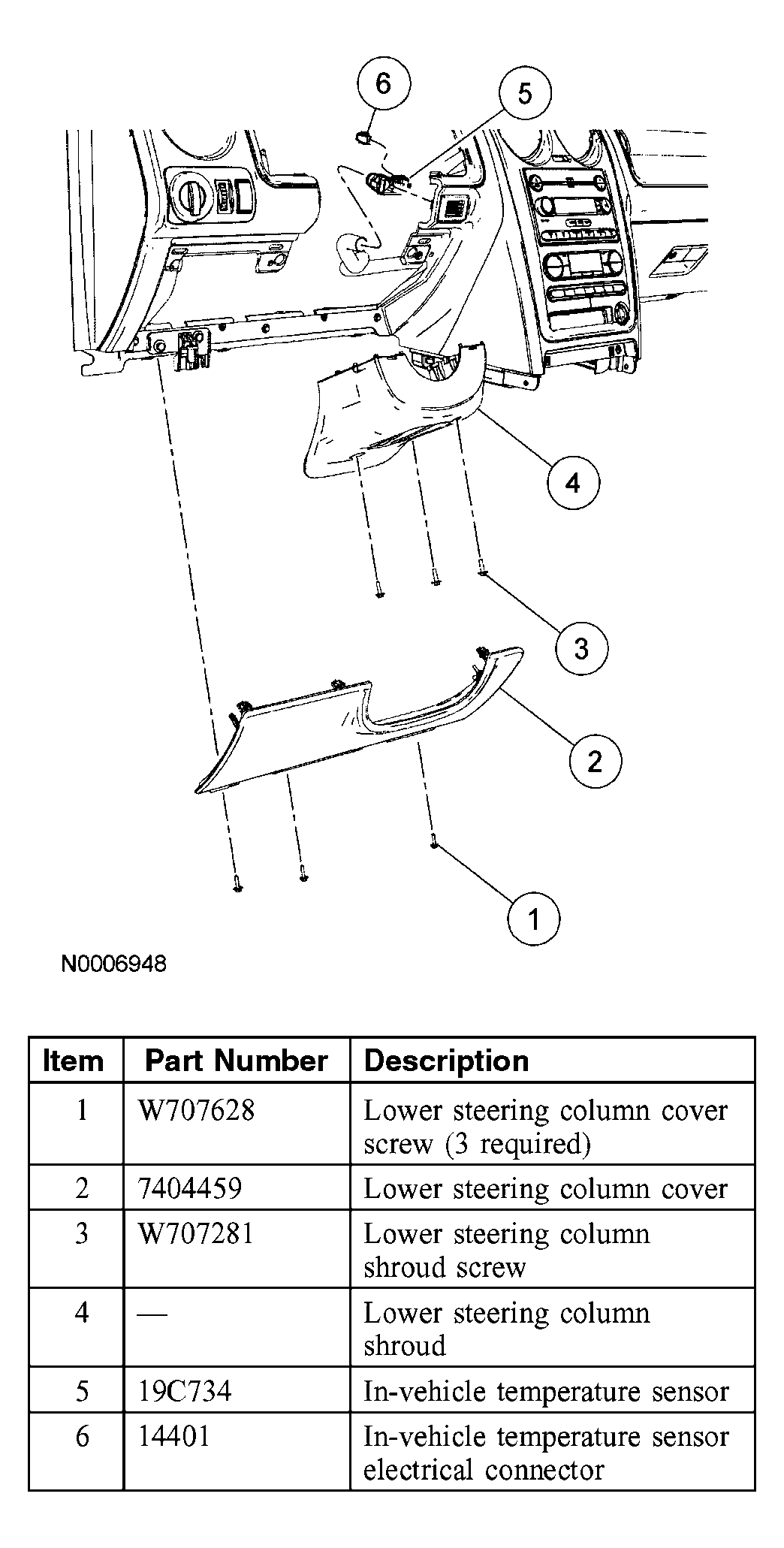

- Remove the 3 lower steering column cover screws.
- Remove the lower steering column cover.
- Remove the 3 lower steering column shroud screws.
- Remove the lower steering column shroud.
- Disconnect the in-vehicle temperature sensor electrical connector.

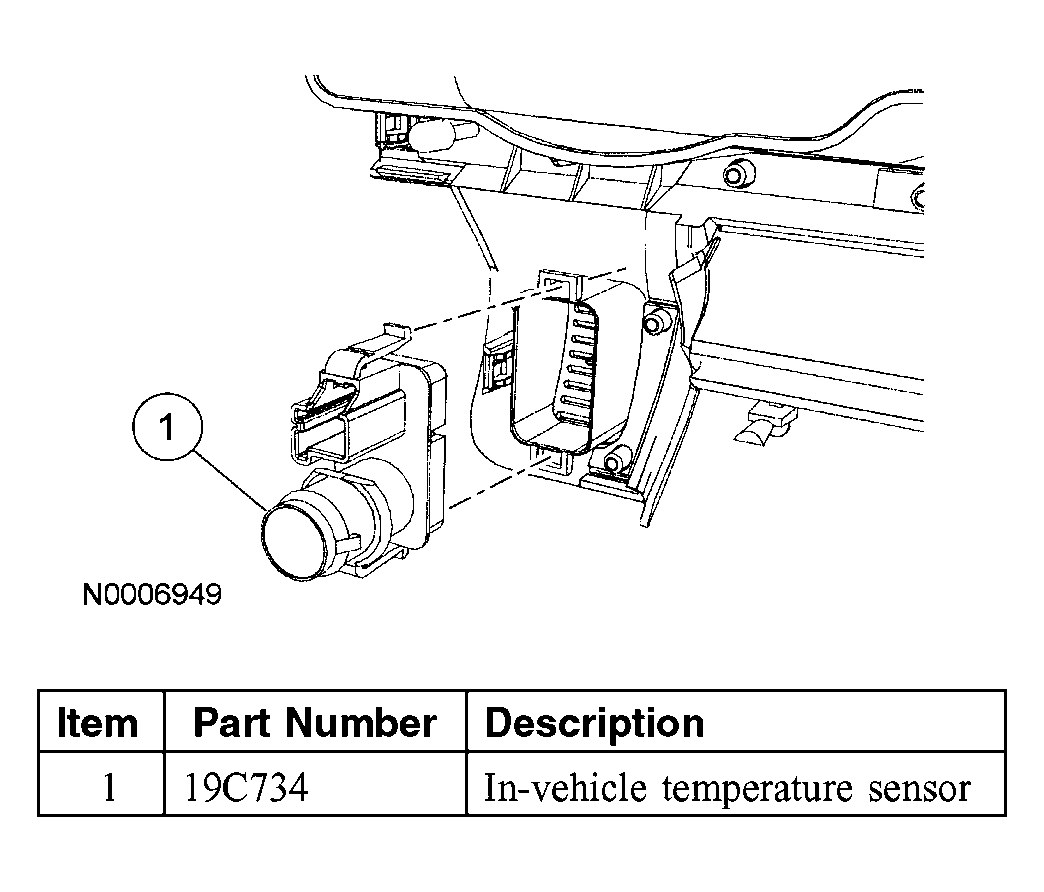

- Remove the in-vehicle temperature sensor.
- To install, reverse the removal procedure.
Five Hundred/Montego
Freestyle
All vehicles
