Climate Control Assembly - EATC: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

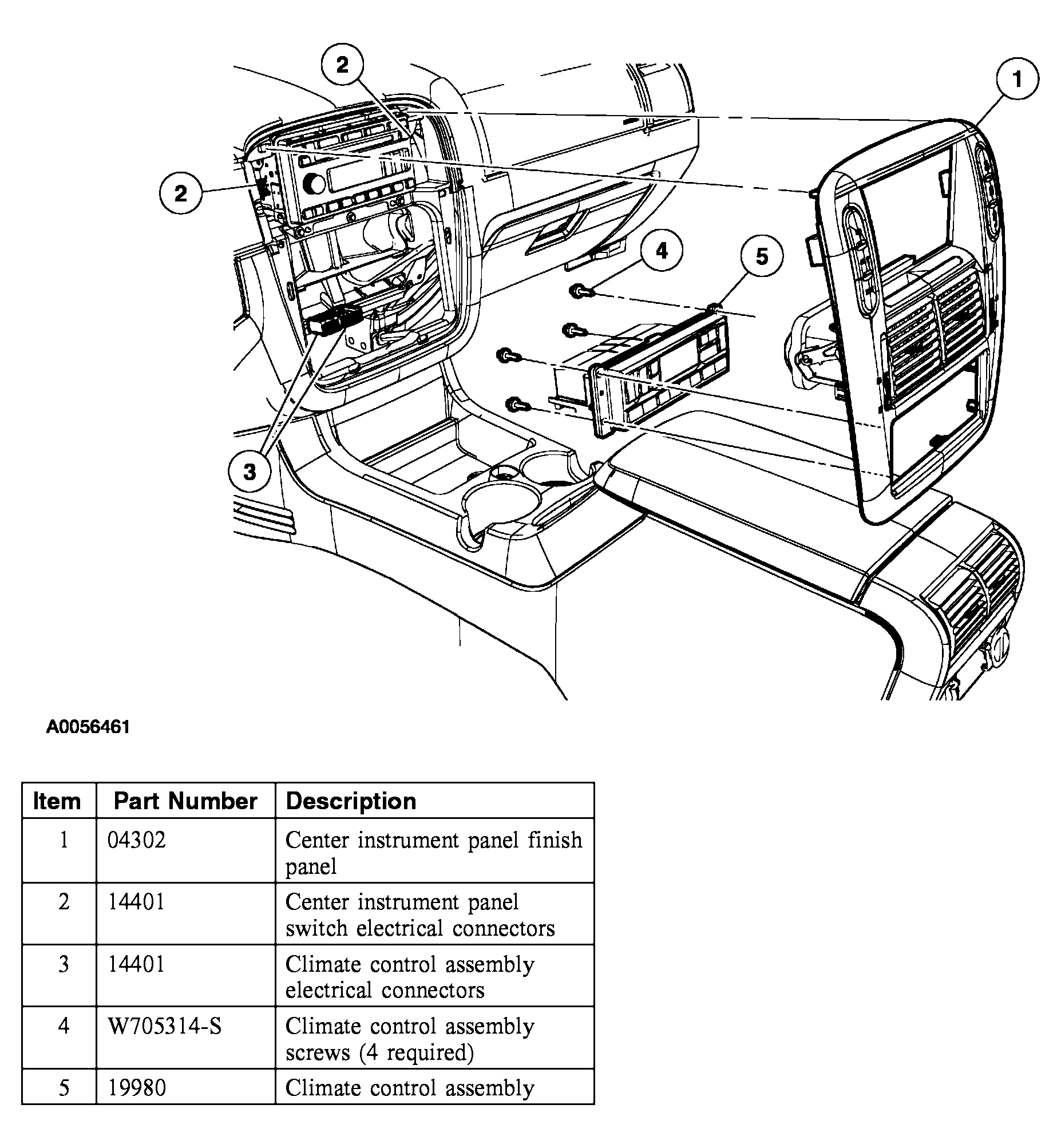

Fig 1: Removing Climate Control Assembly - EATC Components
G03945297Courtesy of FORD MOTOR CO.
