Steering Wheel Controls

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

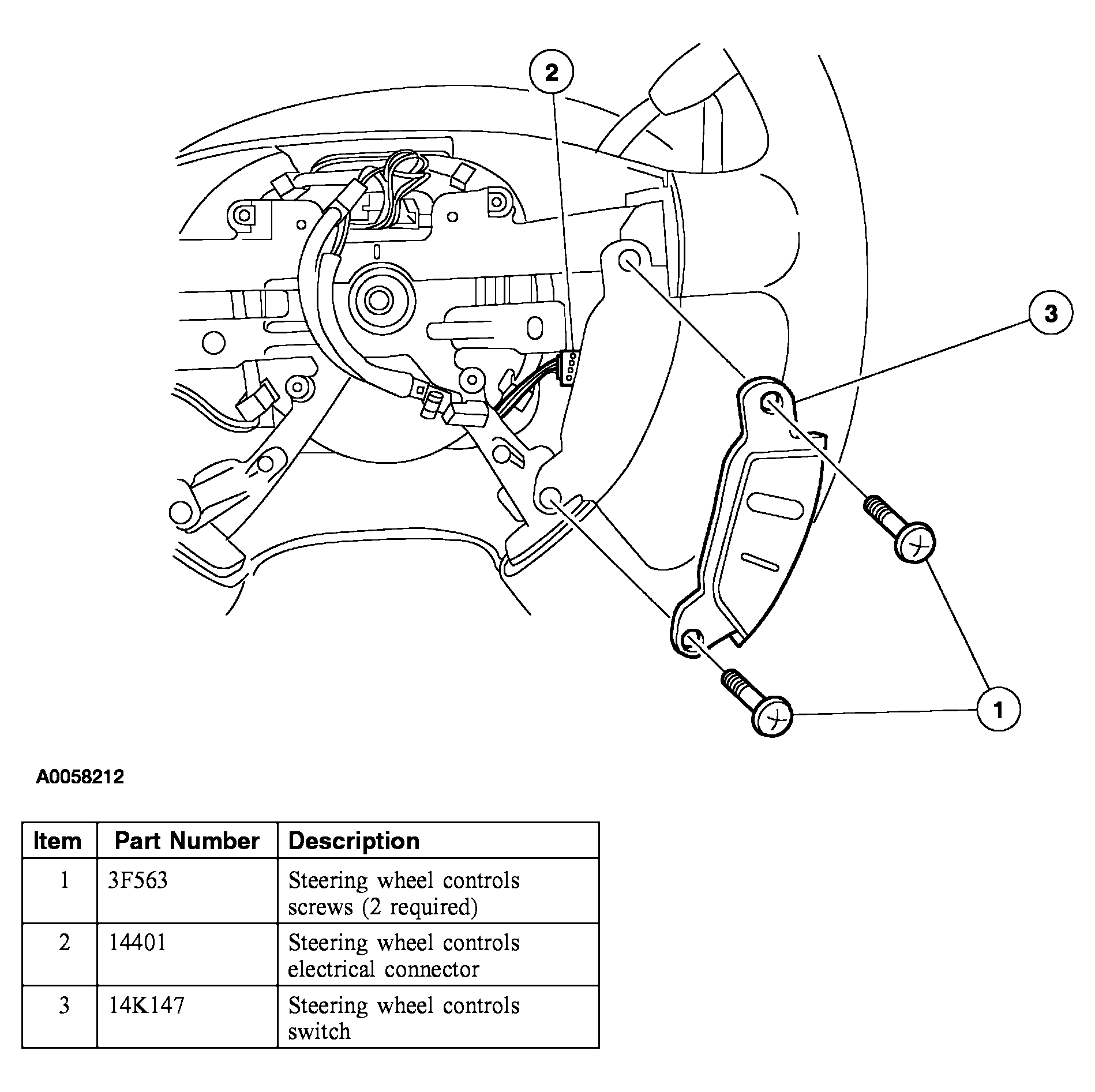

Fig 1: Identifying Steering Wheel Controls Components

Courtesy of FORD MOTOR CO.

Remove the driver airbag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the 2 screws and the steering wheel controls switch.
- Disconnect the steering wheel controls electrical connector.
To install, reverse the removal procedure.
