Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery junction box (BJB) aside.
1. Release the clips.
2. Position the BJB aside.

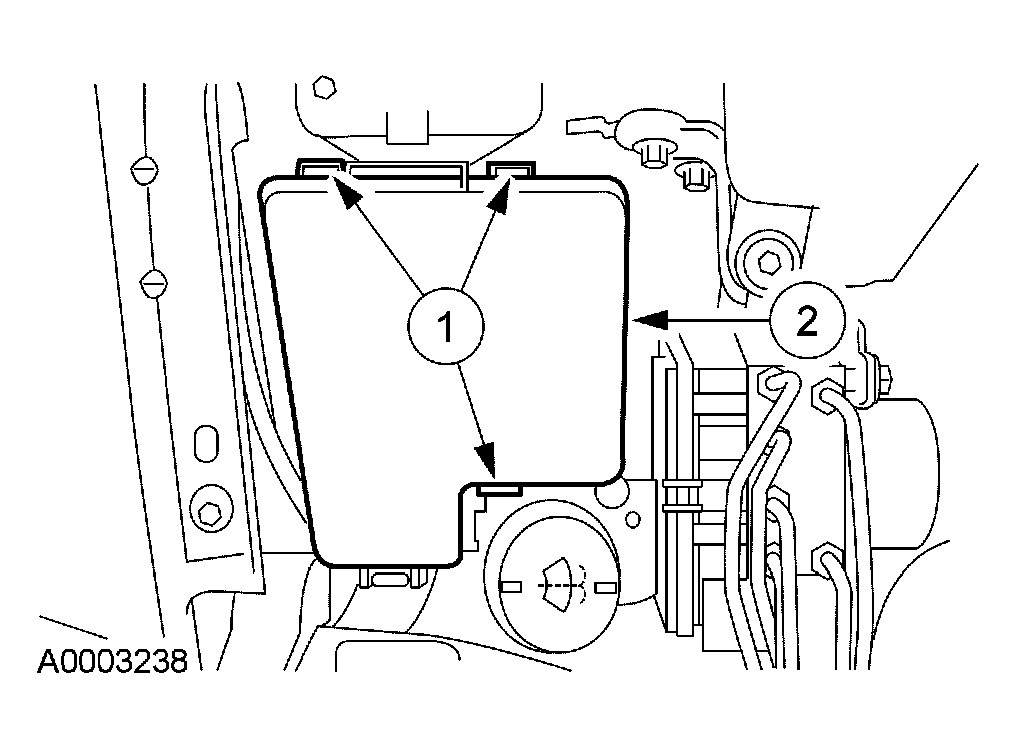

Fig 1: Identifying Battery Junction Box Clips
Courtesy of FORD MOTOR CO.
Disconnect the ABS electrical connector.
Remove the 3 ABS module screws and the ABS module.
- To install, tighten to 2 Nm (18 lb-in).

NOTE: Use the diagnostic tool to configure the ABS module. For additional information, refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
