Cylinder Head Distortion
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD DISTORTION SPECIAL TOOLS
|
|
Straight Edge 303-D039 (D83L-4201-A) or equivalent |

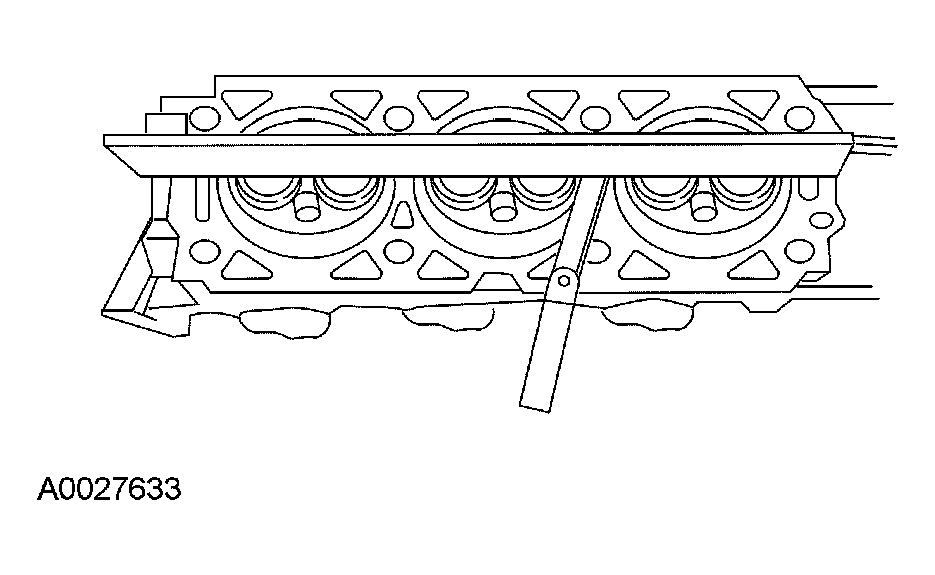

- Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.
Courtesy of FORD MOTOR CO.
