Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

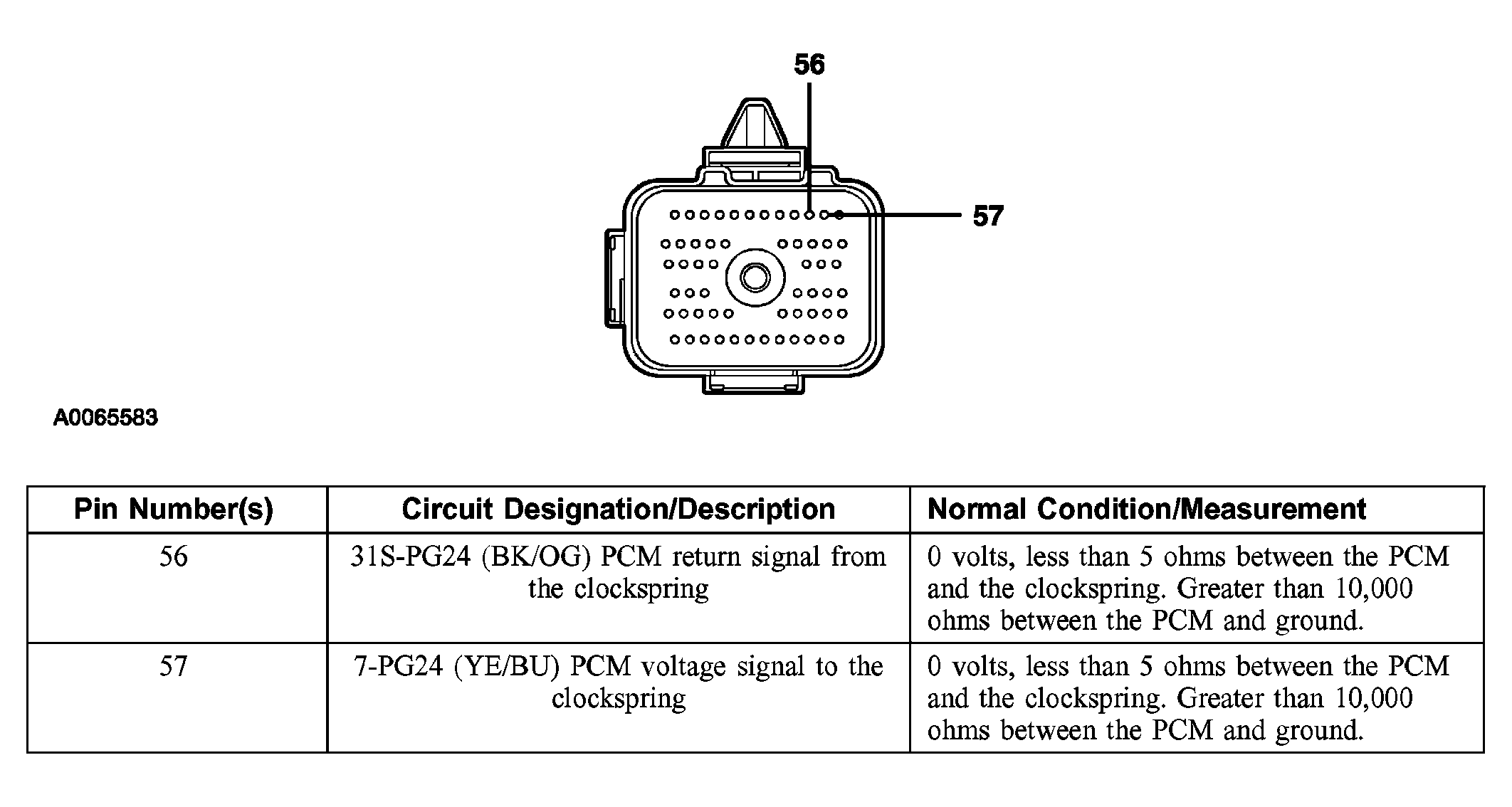

PCM C175b

Fig 1: Identifying PCM C175b Connector Pins

Courtesy of FORD MOTOR CO.

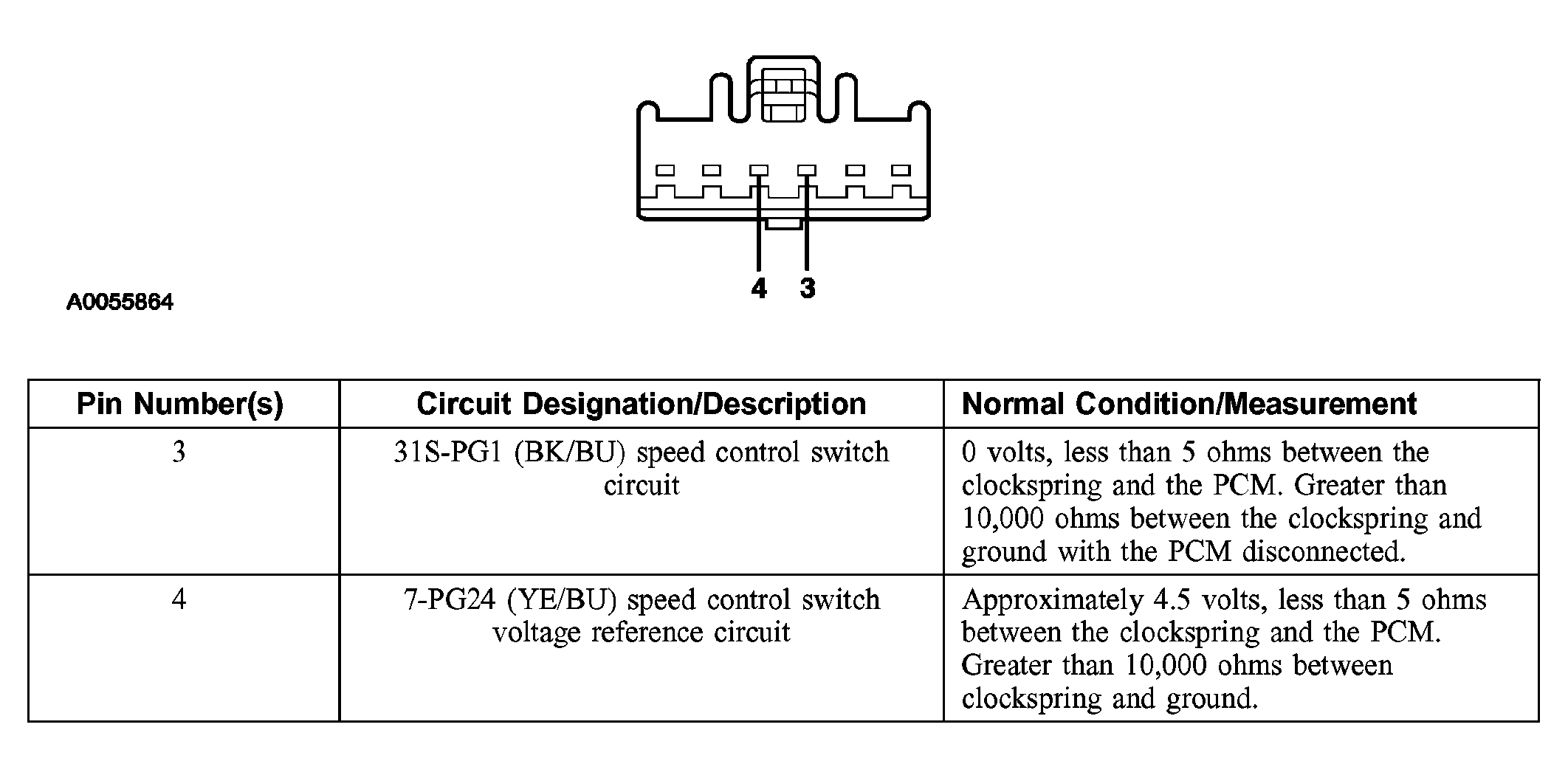

Clockspring C218b

Fig 2: Identifying Clockspring C218b Connector Pins

Courtesy of FORD MOTOR CO.

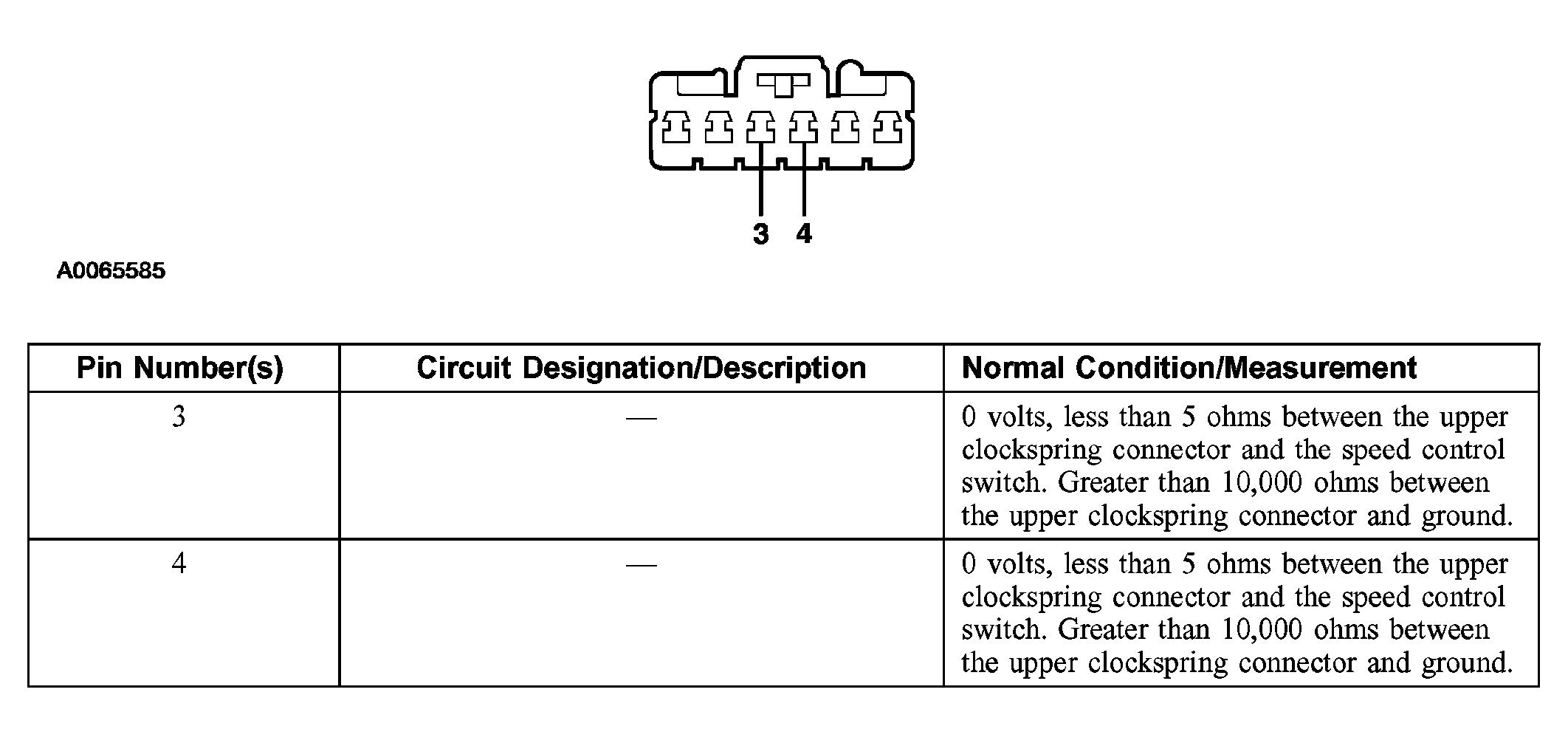

Upper Clockspring Connector

Fig 3: Identifying Upper Clockspring Connector Pins

Courtesy of FORD MOTOR CO.
